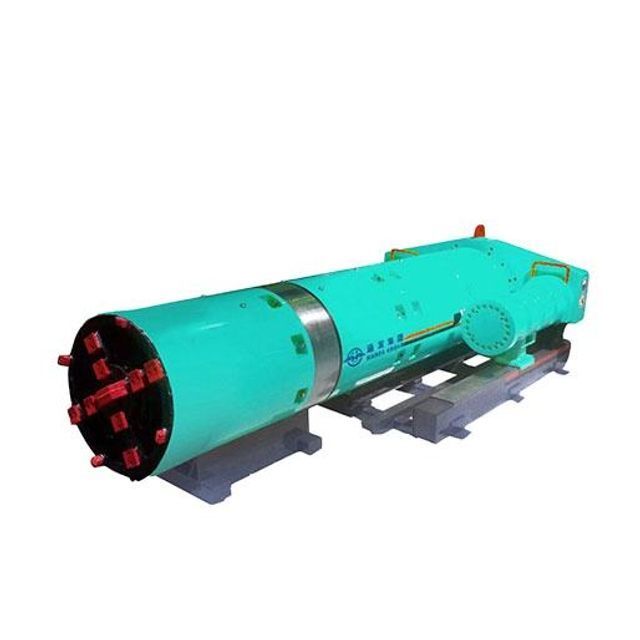

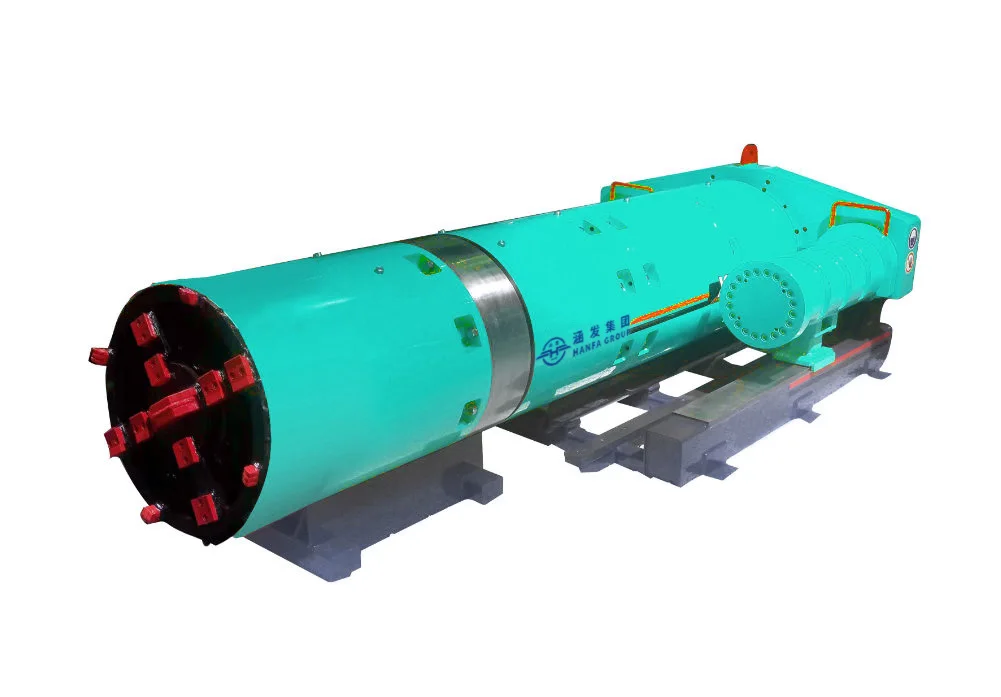

HFDN500 Small Hydraulic Rock Auger Pipe Jacking Machine for Sewage Pipes
- $18000.00 / 1 - 2 sets
$10000.00 / >=3 sets - 1 set
- Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.
- Henan, China
- Mr Vincent Guo
PRODUCT DETAIL
| Supply Ability: | 20 Sets per Month; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Applicable Industries: | Energy & Mining,engineering; | Machinery Test Report: | Provided; |
| Usage: | Sewage; | Application: | Tunneling; |
| After-sales Service Provided: | Video Technical Support; | Brand Name: | HF; |
| Supply Ability: | 10000 Unit/Units per Year; | Place of Origin: | Henan, China; |
| Marketing Type: | New Product 2021; | Warranty of core components: | 1 Year; |
| Dimension(L*W*H): | 690*3200mm; | Torque: | 89kN.m; |
| Certification: | CE/ISO9001; | Condition: | New; |
| Video outgoing-inspection: | Provided; | Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; |
| Warranty: | 2 years; | Showroom Location: | Pakistan,Chile,South Africa; |
| Port: | Qingdao port, Tianjin, Shanghai; | Packaging Detail: | standard export packing or as you needs; |
| Weight: | 3500kg,3500 kg; |
Product Description
Product Selling Point
1.High reliability:Hydraulic overload protection system is reliable and safer,and the water proof is good.
2.Great geology adaptability:Revolution can be adjusted without grade and different cutting wheels are designed for different
ground conditions.So it makes great adaptability.
3.High rock breaking efficiency:The special design of large eccentric cone crusher can raise the working efficiency with secondary
crushing which also makes rock pieces easier to discharge.
4.Good construction operability:Jacking speed and slurry flow can be continuously adjusted that makes it easier to achieve a
balance of jacking speed and delivery of slurry flow.
2.Great geology adaptability:Revolution can be adjusted without grade and different cutting wheels are designed for different
ground conditions.So it makes great adaptability.
3.High rock breaking efficiency:The special design of large eccentric cone crusher can raise the working efficiency with secondary
crushing which also makes rock pieces easier to discharge.
4.Good construction operability:Jacking speed and slurry flow can be continuously adjusted that makes it easier to achieve a
balance of jacking speed and delivery of slurry flow.
Technical Data
Description | Unit | Parameter value | ||
Pipe diameter | ID | mm | Φ500 | |
OD | Φ670 | |||
Outer diameter× length | mm | Φ690×3200 | ||
Rotation system | Motor power | kW | 37 | |
Torque | kN.m | 22 | ||
Revolution | r/min | 14 | ||
Roll correction system | Force per cylinder | kN | 150 | |
Cylinder number | EA | 3 | ||
Steering angle | ° | 3 | ||
slurry line diameter | mm | Φ75 | ||
Weight | kg | 3500 | ||
Jacking system Motor power | kW | 15 | ||
Jacking cylinders | Thrust | kN | 1000 | |
Number | EA | 2 | ||
Stroke | mm | 760×2 | ||
Launch shaft dimensions | mm | Φ2800 | ||
Reception shaft dimensions | mm | Φ1900 | ||
Charge pump Motor power | kW | 5.5 | ||
Discharge pump Motor power | kW | 11 | ||
Injection pump Motor power | kW | 4 | ||
FAQ
1. Are you a trading company or a manufacturer? We are a professional manufacturer. Our factory mainly produces water well
drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of
countries around the world and enjoy a high reputation all over the world. 2. How is the quality of your machine? Our products
pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped. 3. How to
inspect the goods? 1) Support customers to come to the factory for on-site inspection. 2) Support customers to designate
third-party companies to inspect goods. 3) Support video inspection. 4. Do you have after-sales service? Yes, we have a dedicated
service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace
and provide training for your employees. 5. How about quality assurance? We provide a one-year quality guarantee for the main
machine of the machine. 6. How long is your delivery cycle? 1) In the case of stock, we can deliver the machine within 7 days. 2)
Under standard production, we can deliver the machine within 15-20 days. 3) In the case of customization, we can deliver the
machine within 20-25 days.
drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of
countries around the world and enjoy a high reputation all over the world. 2. How is the quality of your machine? Our products
pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped. 3. How to
inspect the goods? 1) Support customers to come to the factory for on-site inspection. 2) Support customers to designate
third-party companies to inspect goods. 3) Support video inspection. 4. Do you have after-sales service? Yes, we have a dedicated
service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace
and provide training for your employees. 5. How about quality assurance? We provide a one-year quality guarantee for the main
machine of the machine. 6. How long is your delivery cycle? 1) In the case of stock, we can deliver the machine within 7 days. 2)
Under standard production, we can deliver the machine within 15-20 days. 3) In the case of customization, we can deliver the
machine within 20-25 days.
