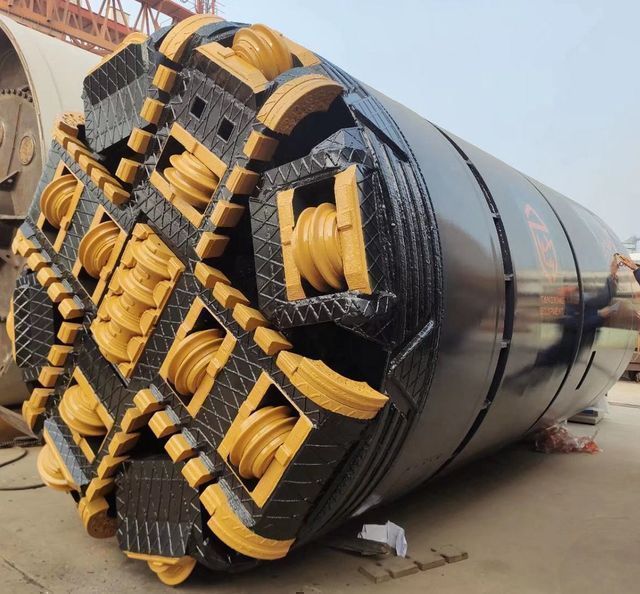

The machine for extracting underground pipes/tbm 2750 mm without channel is for sale

PRODUCT DETAIL

port:	Shanghai	Video shipment inspection:	if
Core component warranty:	1 year	weight:	60 kg
Warranty:	12 months, 1 year	Types of:	Hydraulic pipe jacking machine
Marketing Type:	normal product	pack:	wooden
Supply capacity:	10 sets per month	Core components:	PLC, motor
place of origin; place of origin:	Anhui, China	pipeline:	RCP, GRP, steel pipe
After-sales service provided:	Overseas service center available	Dimensions (LWH):	3400*5850mm
Applicable industries:	construction project	payment terms:	L/C, T/T
Trenchless:	trenchless pipe jacking	Mechanical test report:	if
diameter:	2750mm	State of health:	new
Showroom location:	Russia, Thailand, Malaysia, Australia	mud:	gravel, rock
application:	Underground Tunnel Pipe Laying	Packaging Details:	Standard export packaging
brand:	Tang Xing

Product Description

1) Specially designed for gravel and rock (up to 150MPa)

2) Easy access to the face for maintenance and repair work.

3) Through the rotation of the cutter head, the stones or obstacles entering the cone of the crusher are crushed to a conveyable particle size.

Long distance jacking.

4) The data is collected and controlled by computer.

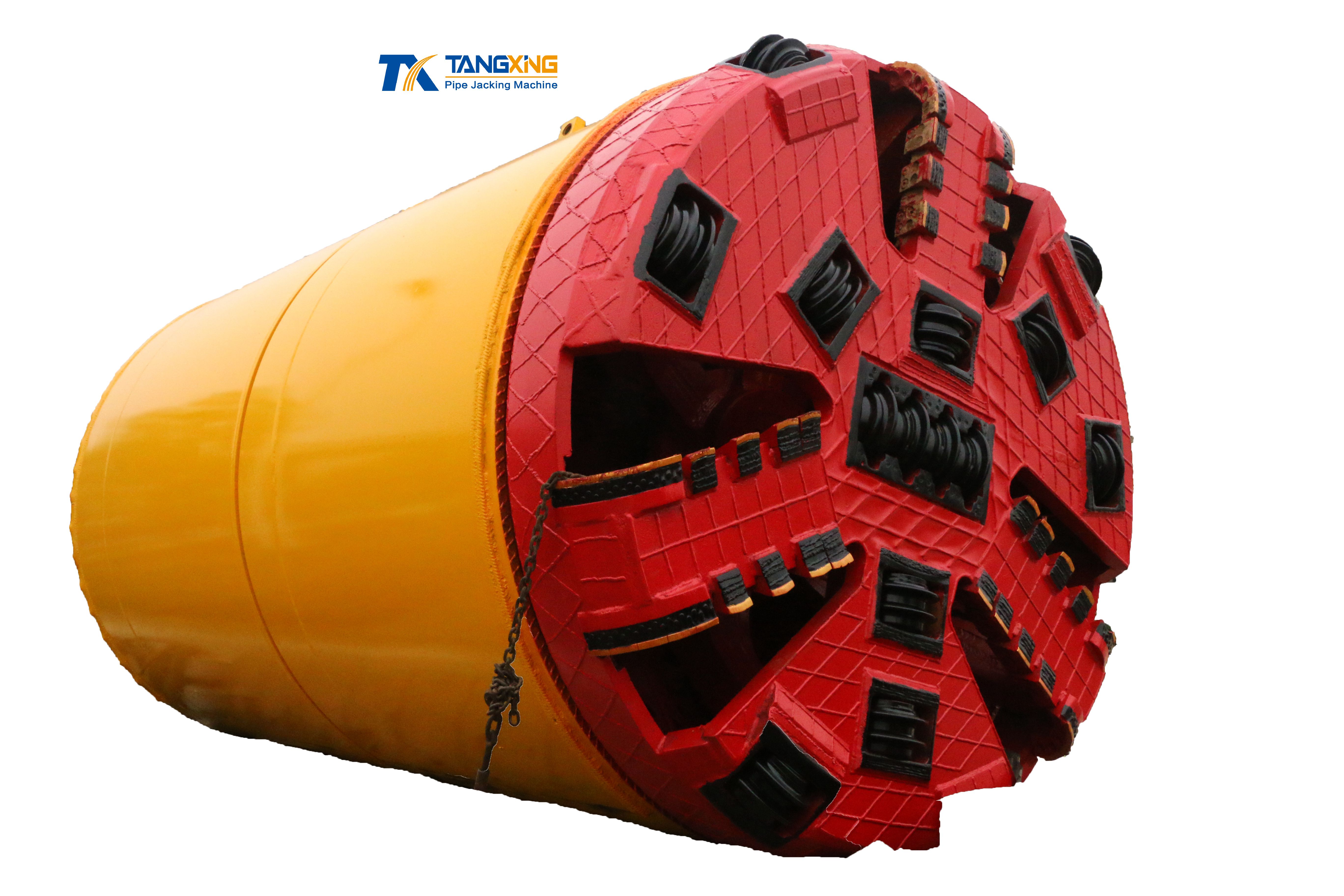

2750MM rock pipe jacking machine technical parameters
the inside diameter of	￠2750mm
Outer Diameter*Length	￠3400×5850mm
knives	Motor Power	37*6kw
		rated. torque	589 kNm
		revolution	3.6 rpm
steering system	Thrust*quantity	155T*8
		angle	0-2.5°
		Motor Power	5.5KW
Jacking cylinder	Thrust*quantity	200 tons*8
		stroke	2500/3000/3500mm
		pressure	31.5 MPa
mud pipe	diameter	6 inches
Total machine power			230KW

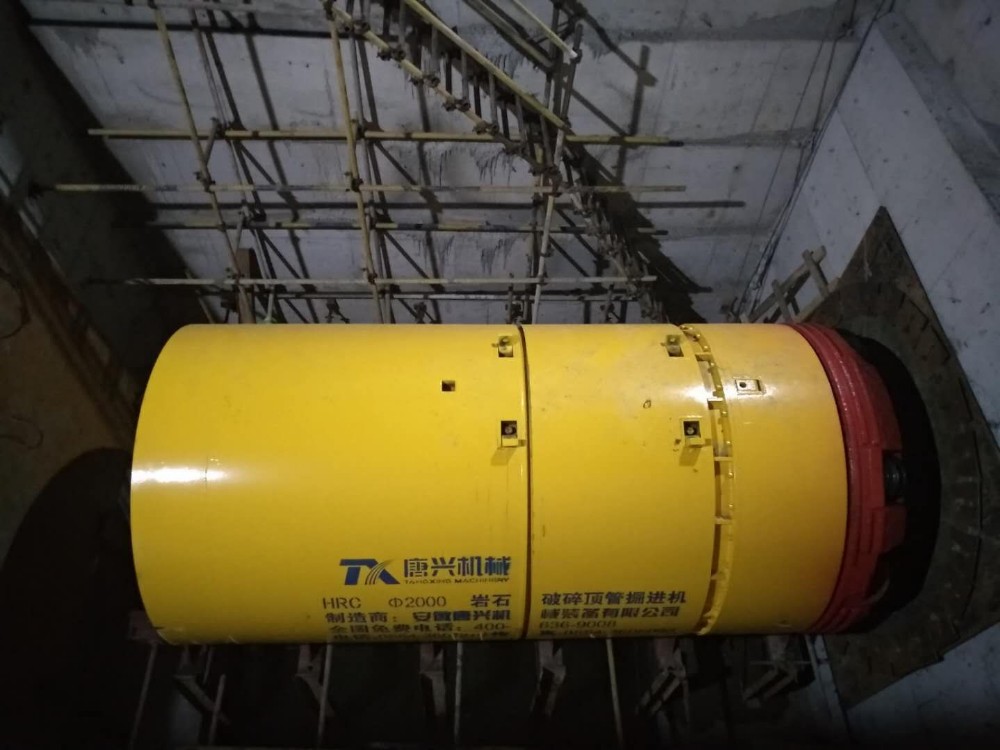

Project cases
