For sale pneumatic forging hammer with power 75kg and 9kg.
- $4550.00 /set
- 1 set
- Anyang Forging Press Machinery Industry Co., Ltd.
- Henan, China
- Ms Melily Y
PRODUCT DETAIL
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Package preview: | |
| After-sales service provided: | Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support | External dimensions: | 680*420*850 mm |
| weight: | 500Kg | Work piece square: | 25*25mm |
| place of origin; place of origin: | Henan, China | Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Morocco |
| Workspace height: | 135mm | port: | Chinese port |
| Structure: | piece | Local service location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya , Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan |
| Weight of dropped parts: | 9 kg | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Strike energy: | 0.09 kJ | Supply capacity: | 1000 sets per year |
| After warranty service: | Video technical support, online support, on-site maintenance and repair services | Core component warranty: | 1 year |
| Maximum Hit Energy: | 54kj | Throat Depth: | 120mm |
| Marketing Type: | normal product | Dimensions (L*W*H): | 680*420*850 mm |
| Hit frequency: | 245/minute | Packaging Details: | plywood case |
| Certification: | CE/PEOP/ISO9001 | Main selling points: | easy to operate |
| strength: | 1500 kW | Video shipment inspection: | if |
| brand: | Anyang | Applicable industries: | Manufacturing plants, home use, smithy |
| Warranty: | 1 year | Voltage: | 220V-440V |
| Type of machine: | pneumatic | State of health: | new |
| Mechanical test report: | if |
Product overview

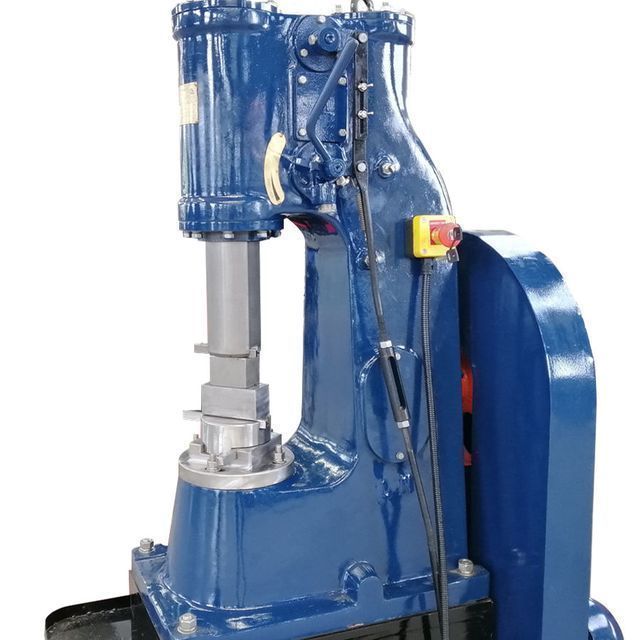

Anyang blacksmith with electric hammer
Anyang blacksmith power hammers are widely used in industrial free die forging from 150kg to 2000kg. The frame is cast iron and the internal parts are forged steel and precision machined. The design is based on the tried and tested designs of old European pneumatic hammers, many of which are still in use today.
Features and advantages:
1. Anyang gas forging hammer does not need an external air compressor. It will compress the air inside through a flywheel driven by a motor.
2. The cast iron frame will never bend or deform. Comparing the weight of the different hammers available, you will find that the Anyang is the heaviest. Cast iron is much more expensive to manufacture but allows designers to put mass and strength where it is needed.
3. The frame is guaranteed for life, the wearing parts are free from defects for one year, and the electrical components are free from defects for one year.
6. Low maintenance. Anyang electric hammer automatic and fully adjustable oil system. The two filler nipples are easily accessible. Large tapered roller bearings in the crankcase provide long, trouble-free life.
4. External drive belt. Designed to keep the belt dry and free from oil. This eliminates belt slippage and extends belt life. Changing the belt is quick and easy.
5. The air port is cast on the hammer. This eliminates internal rubber hoses and fittings.8. Very controllable, making tool use easy. Operators can change tool or material thickness without adjusting the piston or stroke.
7. Simple design. There are only 3 basic parts (crankcase, compressor piston, plunger). The hammer can be disassembled and, if desired, rebuilt in a day or less.
9. EASY INSTALLATION - It takes about 30-45 minutes to install the hammer once it is out of the box.12. All Anyang electric hammers have obtained CE certification. The design is safe.
10. One blacksmith electric hammer (C41-9, C41-15, C41-25, C41-40, C41-55, C41-75, C41-110), easy to install.11. Anyang power hammer is suitable for making forged operating tools, forging hunting knives, scissors, general operating tools, farm implements and wrought iron parts for house gates and fences.
product specification
The main technical parameters | ||||||||||||||||
Model | C41-9 | C41-15L | C41-25L | C41-40L | C41-55L | C41-75L | C41-110L | |||||||||
Dropping weight(kg) | 9 | 15 | 25 | 40 | 55 | 75 | 110 | |||||||||
Hitting energy (kj) | 0.09 | 0.16 | 0.27 | 0.53 | 0.7 | 1 | 1.98 | |||||||||
Hit frequency (min-1) | 245 | 300 | 250 | 245 | 230 | 210 | 180 | |||||||||
Working area height(mm) | 135 | 160 | 240 | 245 | 270 | 300 | 355 | |||||||||
D——throat depth (mm) | 120 | 170 | 235 | 270 | 300 | 330 | 400 | |||||||||
Serving | square | 25×25 | 30×30 | 40×40 | 52×52 | 60×60 | 65×65 | 110×110 | ||||||||
piece | Round (mm) | Φ30 | Φ35 | Φ48 | Φ68 | Φ75 | Φ85 | Φ120 | ||||||||
strength | (kilowatt) | 1.5 | 2.2 | 3 | 4 | 7.5 | 7.5 | 15 | ||||||||
weight | including base | 450 | 490 | 1080 | 1263 | 1750 | 2700 | 3300 | ||||||||

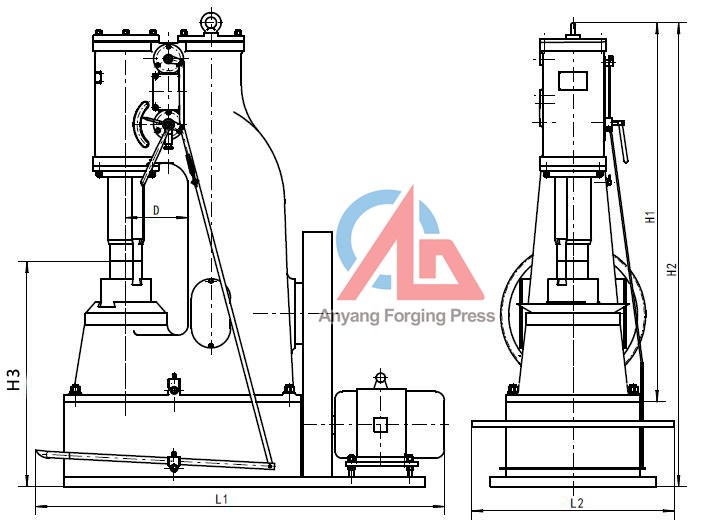

L1 (mm) | 1080 | 1180 | 1470 | 1650 | 1860 | 1620 | 1910 | |||||||||
L2 (mm) | 420 | 650 | 740 | 800 | 880 | 930 | 1070 | |||||||||
H1 (mm) | 850 | 1025 | 1330 | 1500 | 1750 | 2220 | 2382 | |||||||||
H2 (mm) | 1450 | 1575 | 1835 | 1920 | 2100 | |||||||||||
H3 (mm) | 920 | 920 | 925 | 920 | 965 | 915 | 917 | |||||||||

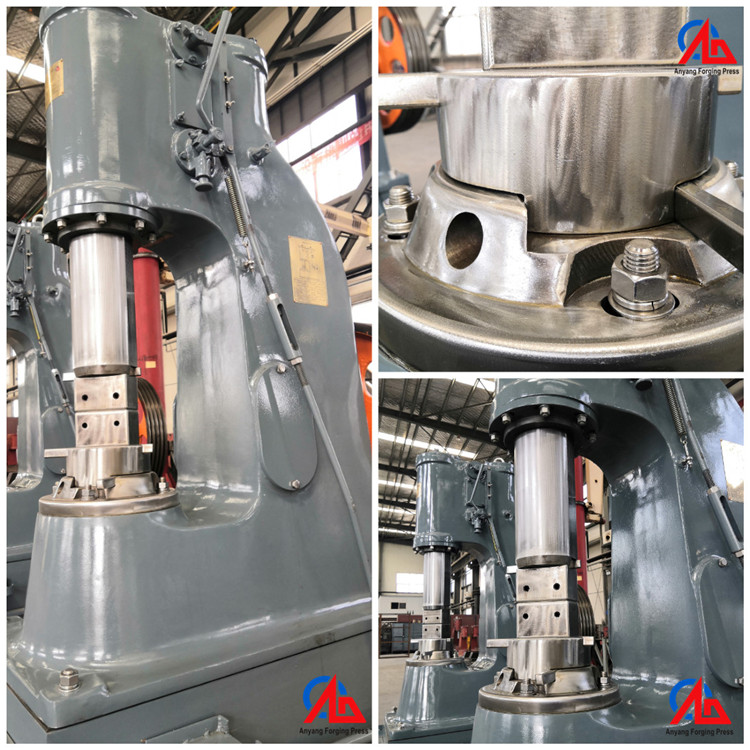

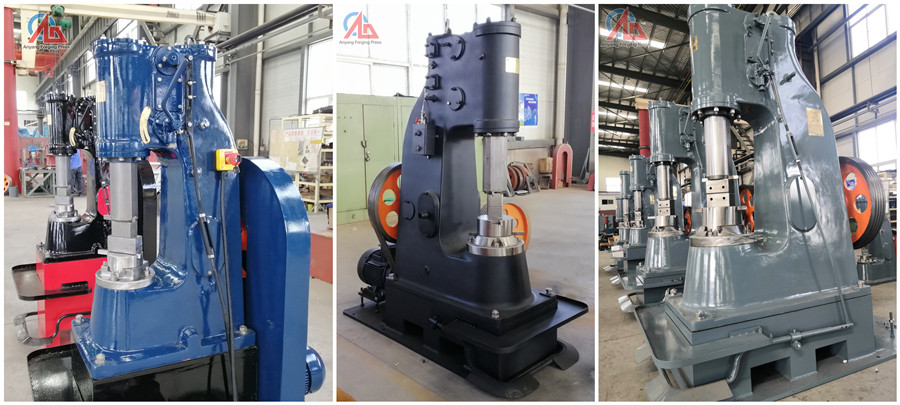

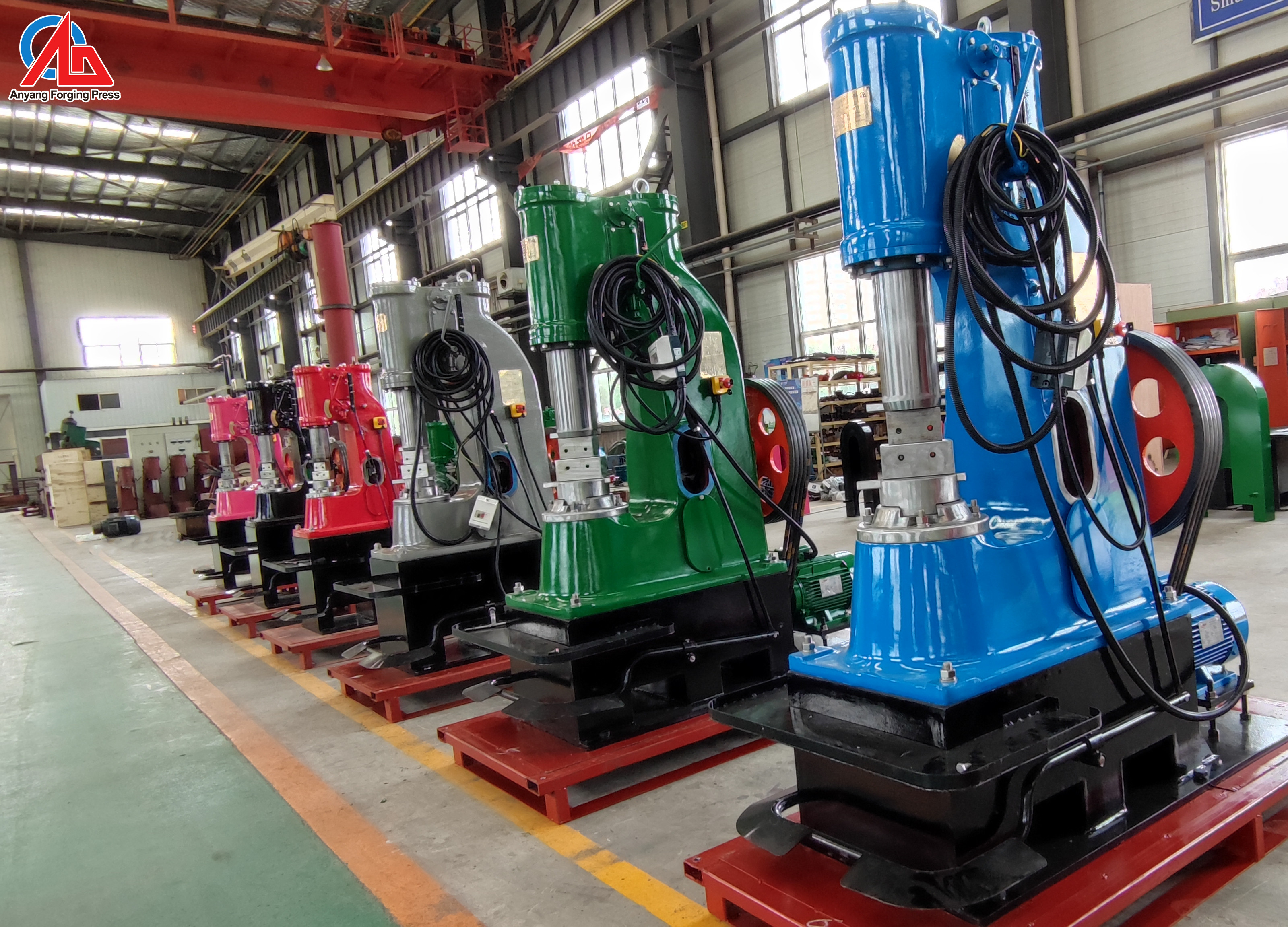

detailed image
