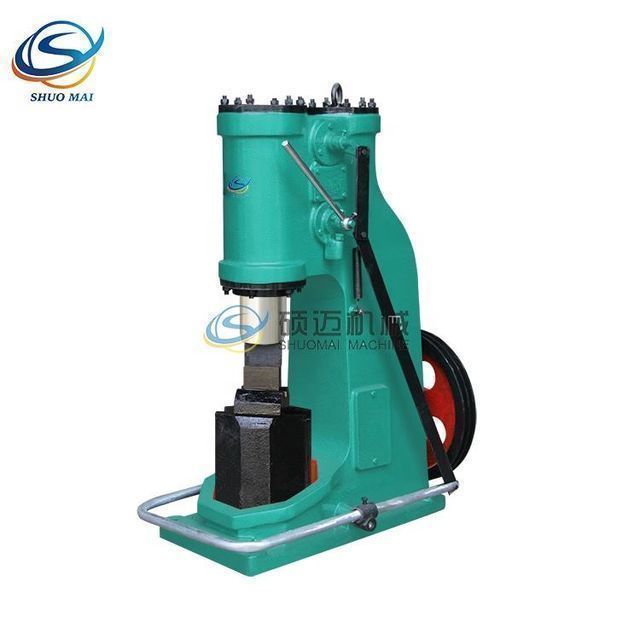

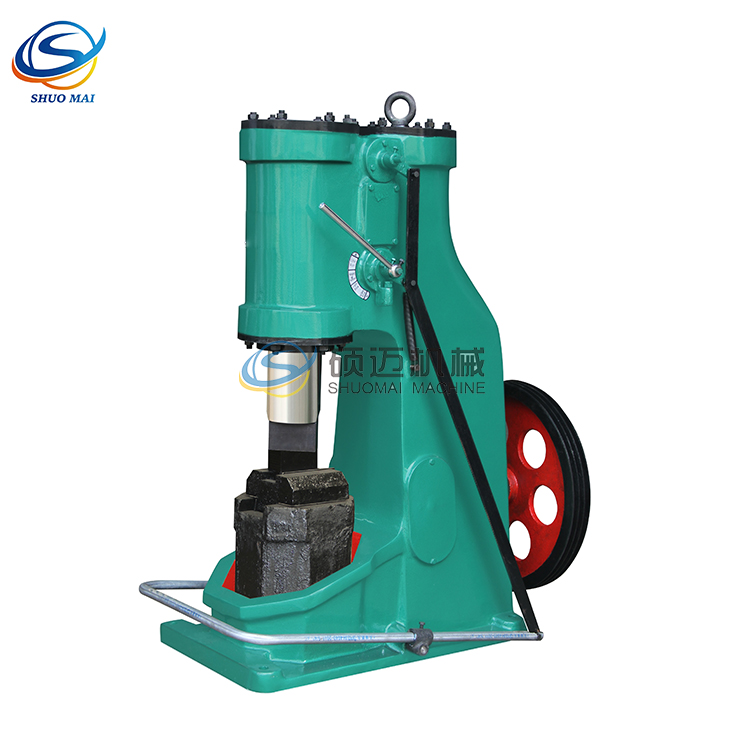

40kg/65kg/75kg/150kg Automatic Forging Blacksmith Iron Steel Metal Forging Pneumatic Power Hammer
- $1500.00 /set
- 1 set
- Zaozhuang Shuomai Industrial And Commercial Co., Ltd.
- Shandong, China
- Ms Anne Cui
PRODUCT DETAIL
| weight: | 240 | After-sales service provided: | Free spare parts, video technical support, online support |
| brand: | Shuomai | aspect: | 1080x600x1390 |
| Processing: | yes | State of health: | new |
| Packaging Details: | Export standard wooden box packaging, bare packaging, to accept customer requirements | Package preview: | |
| color: | Customization | Supply capacity: | 1000 sets per month |
| Motor speed: | 1440 | Dimensions (L*W*H): | 1080x600x1390 |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Applicable industries: | Building materials store, machinery repair shop, manufacturing plant |
| port: | Qingdao or any Chinese seaport | place of origin; place of origin: | Shandong China |
| strength: | 1.5 | MOQ: | 1 |
| Motor Power: | 4.5 | name: | C41 series air hammer |
| Number of strikes: | 245 | Warranty: | 1 year |
| Certification: | CE ISO9001 | Strike ability: | 245 |
| Voltage: | 110V 220V 380V | Features: | forged metal |
Product Description
main specifications

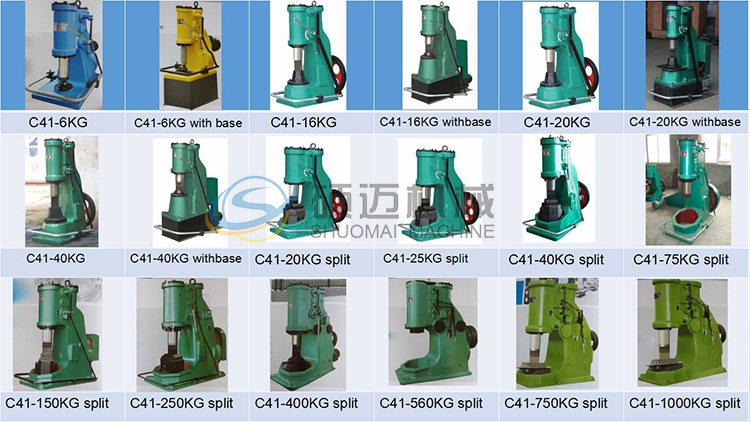

| C41-16KG | C41-20KG | C41-25KG | C41-40KG | C41-75KG | C41-150KG | C41-250KG | C41-400KG |
strike capability | 180 | 220 | 270 | 530 | 900 | 2500 | 5600 | 9600 |
Working height range (mm) | 180 | 200 | 240 | 245 | 300 | 370 | 420 | 530 |
Number of strikes | 258 | 270 | 250 | 245 | 210 | 180 | 140 | 120 |
Forgeable square steel edge (mm) | 20×20 | 30x30 | 40x40 | 52x52 | 65x65 | 130x130 | 145x145 | 220x220 |
Malleable edge (mm) | Φ20 | Φ35 | Φ45 | Φ68 | Φ84 | Φ145 | Φ175 | Φ240 |
Motor power (KW) | 1.5 | 2.2 | 2.2 | 4.5 | 7.5 | 15 | twenty two | 30 |
Motor speed(rpm) | 1440 | 1440 | 1440 | 1440 | 1440 | 1470 | _ | _ |
Anvil Weight(KG) | _ | 200 | 250 | 400 | 850 | 1800 | 2500 | 4800 |
Dimensions (mm) | 548x390 x950 | 670x370 x1050 | 800x410 x1210 | 1080x600 x1390 | 1600x950 x1950 | 2080x1240 x2350 | 2639x1000 x2540 | 2639x1000 x2540 |
Total weight KG | 240 | 500 | 760 | 1350 | 2800 | 5060 | 5600 | 8000 |
Details
Export standard wooden box packaging, bare packaging, to accept customer requirements
