High Speed Low Noise Best Price Automatic Bolt Making Machine Cold Heading Machine
- $4800.00 /set
- 1 set
- Ningbo Bysen Machinery Co., Ltd.
- Zhejiang, China
- Mr Jack Wang
PRODUCT DETAIL
| Warranty: | 1 year | Core components: | PLC, bearings, gearboxes, motors, gears, pumps |
| port: | Shanghai Port or Ningbo Port | brand: | Byson |
| Marketing Type: | New Products 2022 | Core component warranty: | 1 year |
| Dimensions (L*W*H): | custom made | Mechanical test report: | if |
| pack: | wooden box | Type of machine: | forging machine |
| Supply capacity: | 100 sets per month | Packaging Details: | wooden case or container |
| payment terms: | L/C, T/T | Video shipment inspection: | if |
| strength: | custom made | Advantage: | High speed, fully automatic |
| Weight (kg): | 1200 | Health status: | new |
| Showroom location: | Egypt, Türkiye, India, Russia | quality: | ensure |
| product name: | screw machine | Voltage: | custom made |
| Package preview: | usage: | manufacture various screws | |
| Origin: | Zhejiang, China | Applicable industries: | manufacturing plant |
| Main selling points: | easy to operate |
Product Description

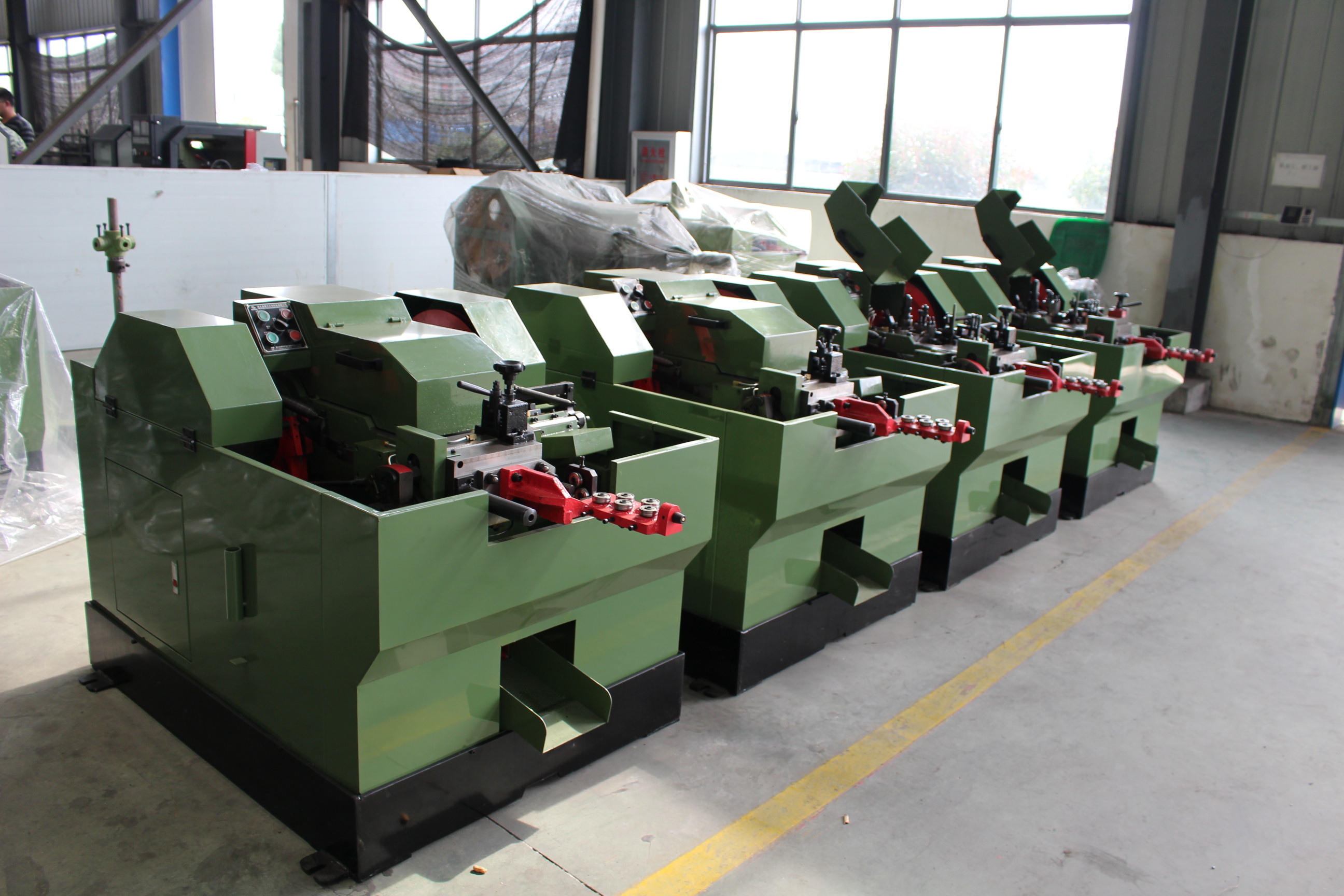

One-die two-blow high-speed automatic cold heading machine is mainly used for screw head forming. Its working principle is that the first punch is forged, and the second punch is returned. Can thicken various metal materials: ordinary steel, carbon steel, stainless steel, copper, aluminum, alloy steel and other materials, used for drywall screws, self-tapping screws, particleboard screws, electrical screws, miniature screws, self-tapping screws, etc. Screws - Drilling Screws, Fiberboard Screws, Button Head Screws, Flat Head Screws, Pan Head Screws, Oval Head Screws, Button Head Screws, Countersunk Head Screws and others.

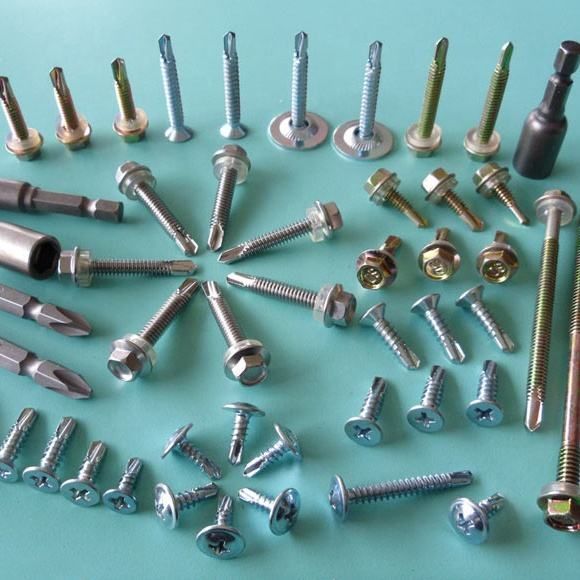

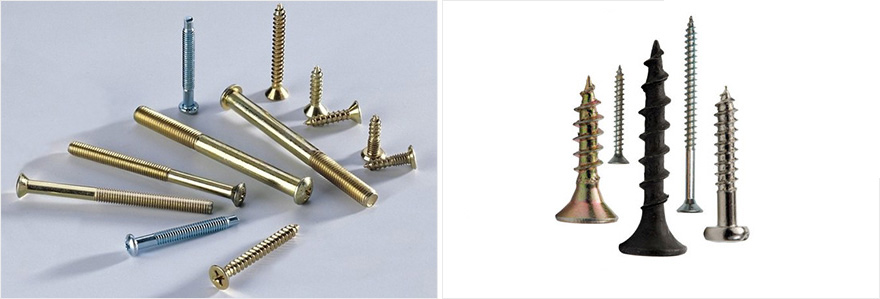

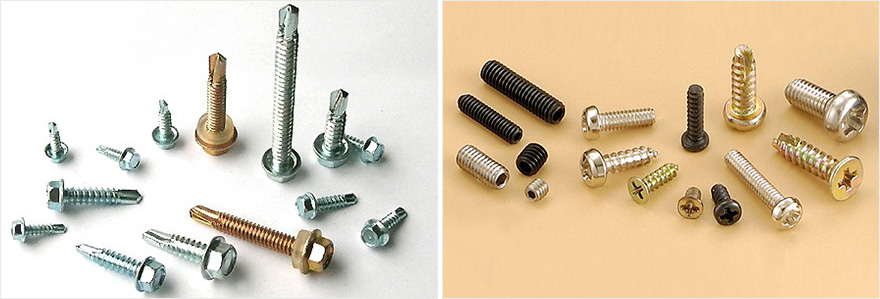

screws made by screw machine
Specification
Model | BHD3-20 | BHD4-40 | BHD5-60 |
Maximum blank diameter/mm | φ1.6-3.0 | φ2.0-4.0 | φ3.0-5.0 |
Maximum blank length/mm | 20 | 40 | 60 |
Maximum cutting length/mm | 30 | 47 | 67 |
Stroke/mm | 37 | 60 | Post-90s |
Capacity/piece/minute | 150-210 | 160-180 | 110-140 |
Main mold diameter/mm | φ20x35 | φ30x60 | φ32x80 |
Diameter of the first die/mm | φ18x50 | φ25x65 | φ30x75 |
Second die diameter/mm | φ18x50 | φ25x65 | φ30x75 |
Cut-0ff Die Diameter/mm | φ13x25 | φ15x30 | φ20x35 |
Main motor power/kW | 1.5HP/1.1kW | 3.0HP/2.2kW | 4.0HP/3.0kW |
Volume (LxWxH)/m | 1.40x0.75x0.9 | 1.80x0.85x1.15 | 2.30x1.08x1.25 |
weight/kg | 625 | 1275 | 2080 |
We can provide M1-M12 two-stroke cold heading machines. For other models not shown, please contact us directly for more information.
Email: [email protected]
Phone/WhatsApp: +86-18606605063
