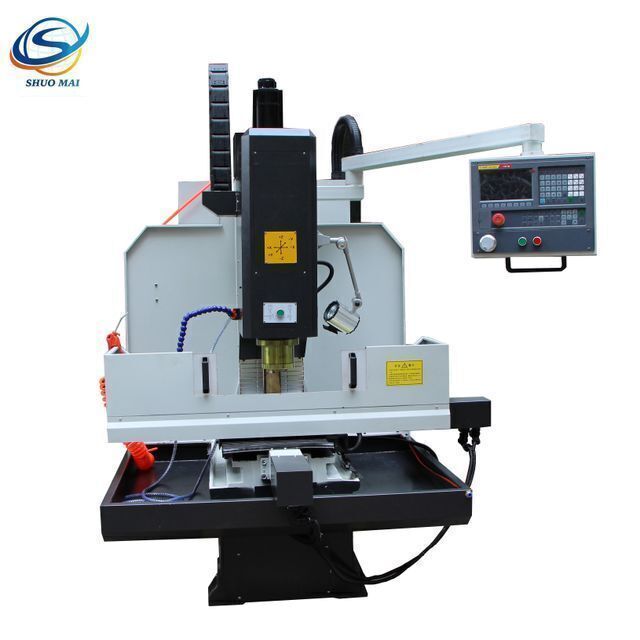

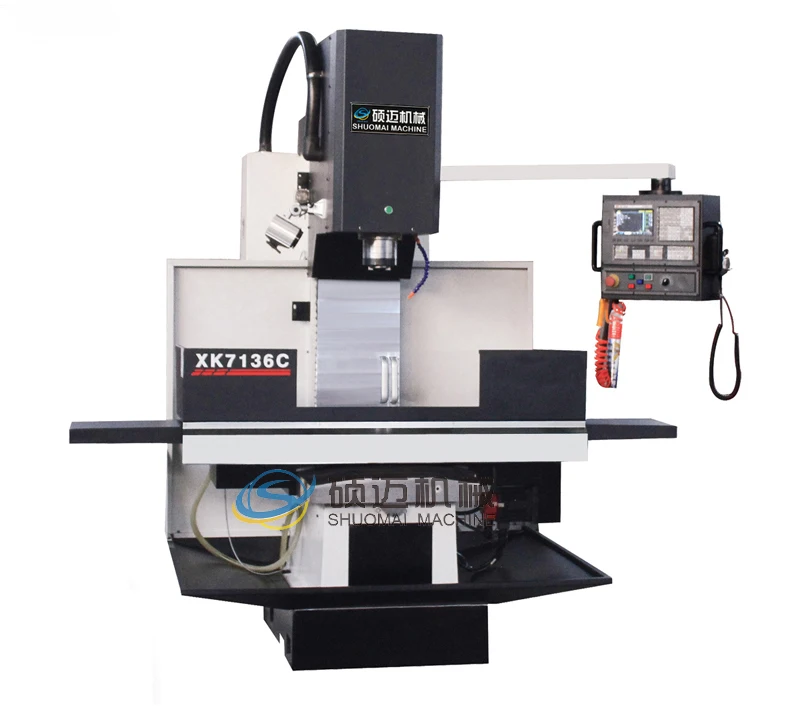

Mini Cnc milling Machine XK7136
- $3000.00 /set
- 1 set
- Zaozhuang Shuomai Industrial And Commercial Co., Ltd.
- Shandong, China
- Ms Anne Cui
| Range of Spindle Speed(r.p.m): | 50 - 8000; | maximum table load: | 400kg; |
| Packaging Detail: | Export standard wooden box packing Delivery time: about 30 days Vertical Cheap CNC Milling Machine XK7136; | TABLE SIZE: | 1250X360mm; |
| Payment Terms: | L/C,D/P,T/T,Western Union; | Repeatability (X/Y/Z) (mm): | 0.02; |
| Warranty: | 1 Year; | Condition: | New; |
| Keyword: | VMC Milling Machine; | Brand Name: | Shuomai; |
| Place of Origin: | Shandong China; | Supply Ability: | 30 Set/Sets per Month; |
| Name: | Milling Machine Xk7136; | Voltage: | 220v; |
| Machine Type: | Cnc Vertical Milling Machine; | After-sales Service Provided: | Online support,Video technical support,Free spare parts; |
| Model Number: | XK7136; | Certification: | CE, SGS, ISO9001; |
| CNC or Not: | CNC; | Positioning Accuracy (mm): | 0.04; |

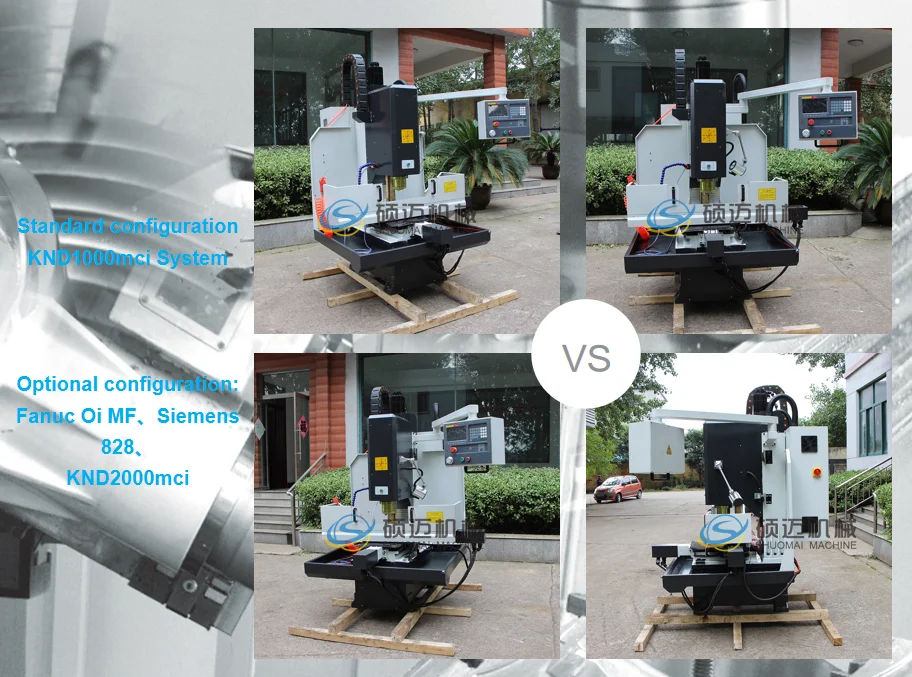

| Power: | 5.5kw; | Control system: | KND SIEMENS GSK FANUC (optional); |
| Key Selling Points: | Competitive Price; | Type: | VERTICAL; |
| Spindle Taper: | BT40; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops; |
| Table Travel (mm): | 900X360X500; | Application: | Metal Machining; |
| Dimension(L*W*H): | 2380X1900X2350 mm; | Spindle taper: | BT40; |
| Port: | Qingdao port, Shanghai port, Tianjin port; | Weight (KG): | 2800; |
| Year: | 2019; | X/Y/Z travel: | 900X360X500mm; |
| Spindle speed: | 8000rpm/min; |
MAIN TECHNICAL DATA | ITEM | XK7136 |
X-axis travel | mm | 900 |
Y-axis travel | mm | 360 |
Z-axis travel | mm | 500 |
Spindle nose to table | mm | 100-600 |
spindle center to column surface distance | Kg | 460 |
Rapid traverse (X/Y/Z) | mm/min | 6000/6000/4000 |
Cutting feed rate | mm/min | 1-10000 |
Table size | mm | 1250×360 |
Maximum table load | kg | 400 |
Spindle speed | rpm | 8000 |
Main motor power | kw | 5.5 |
Spindle taper |
| BT40 |
positioning accuracy | mm | 0.04 |
Repeat accuracy | mm | 0.02 |
Machine weight | kg | 2800 |
| Packing Size | 2400×2000×2400mm |
| Packing Weight | 1000kg |
| Packing mothed | Nude, or wooden case, or customer's request |
| 20'GP | About >2 sets |
| 40'HQ | About >4 sets |
| MOQ | 1 set |
| Delivery time | 7-15days |
Zaozhuang Shuomai Industrial and commercial Co., Ltd is a foreign-oriented enterprise engaged in the development, design, manufacture, sales and import and export of metal cutting machine tools. Metal cutting machine tools include two major categories, one is CNC lathe, CNC machine center, CNC drilling machine, CNC milling machine, the other is the ordinary machine tools, include lathe machine, radial drilling machine, vertical drilling machine, drilling milling machine, metal band saw, grinding machine, hydraulic machine, boring machine and so on, more than 100 kinds of specifications. Market coverage of the country and exported more than 30 countries and regions.
Before order, please kindly inform the following,
1.Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2.Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
4.Q: How long does it take to get machine?
A:It takes about 25 days.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.
