Dental Practice/Laboratory CAD CAM 5 Axis AMD-500 Zirconia PMMA Dental Milling Machine
- $23000.00 / 1 - 1 pieces
$19999.00 / >=2 pieces - 1 piece
- Foshan Weiyou Technology Co., Ltd.
- Guangdong, China
- Ms Carolina Tan
PRODUCT DETAIL
| year: | 2022 | Core components: | Bearings, motors, gears |
| Core component warranty: | 1 year | brand: | Vivier Group |
| Table travel (X) (mm): | 55mm | Main selling points: | high accuracy |
| Grindable material: | Zirconia/PMMA | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Processing capacity: | burden | Marketing Type: | normal product |
| model: | AMD-500 | Video shipment inspection: | if |
| Table travel (Z) (mm): | 20mm | Spindle power: | 500W |
| Cam software: | open system | payment terms: | Western Union, T/T, MoneyGram |
| Package preview: | Warranty: | 1 year | |
| Spindle motor power (kW): | 0.5 | Dimensions (L*W*H): | 560x670x770mm |
| Positioning accuracy (mm): | ±0.008 | place of origin; place of origin: | Guangdong, China |
| Packaging Details: | Dental laboratory equipment will be packed in carton, 1pc/box. Will be shipped by express or sea. | Number of spindles: | twin |
| Table travel (Y) (mm): | 20mm | maximum. Table load(kg): | 3 kg |
| Weight (kg): | 160 | Number of axes: | 5 |
| Showroom location: | U.S. | Mechanical test report: | if |
| port: | Foshan, Guangzhou, Shenzhen, Ningbo, Shanghai | Spindle speed range (rpm): | 10000 - 60000 |
| Air requirements (L/Min.): | 60 l/min | Supply capacity: | 500 sets per month |
| Voltage: | optional | Ball screw accuracy: | 8μm |
| Table travel (mm): | 55mm | Spindle taper: | BT40 |
| Health status: | new | Empty pipe capacity: | 6 |
| type: | common | Applicable industries: | Manufacturing plants, printing plants, construction works |
Product Description
Specification
thing | value |
type | common |
Number of axes | 5 |
Number of spindles | twin |
Processing capacity | burden |
Positioning accuracy (mm) | ±0.008 |
Repeatability (X/Y/Z) (mm) | ±0.008 |
Health status | new |
place of origin; place of origin | China |
Guangdong | |
model | AMD-500 |
Voltage | optional |
Mechanical inspection report | if |
Video shipment inspection | if |
Core component warranty | 1 year |
maximum. slope | B-axis: +30°, -90°; A-axis: ±360° |
empty pipe capacity | 6 |
air demand | 60 l/min |
cam software | open system |
Edit | Advanced Milling Machine AMD-500

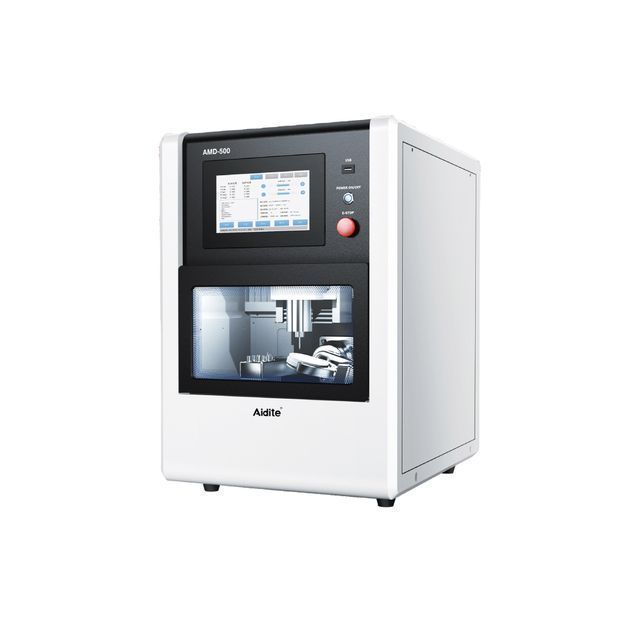

Aidite AMD-500 milling machine is a five-axis dry milling machine, mainly used for CAD/CAM processing of dental materials such as zirconia and PMMA. The superior performance of the AMD-500 features a unique large machining angle that uniquely enables 90° milling of the buccal or labial surfaces of restorations. It also comes with a 1/2 open jig clamp and plastic auxiliary jig clamps, effectively increasing the number of units that can be milled per single platter. Large high-definition touch screen, easy to operate. Aidite has developed these milling units for dentistry to be ideal for commercial dental laboratories and you can rest assured that they have been thoroughly tested for reliability and precision. The unit can be loaded with standard size PMMA, wax or zirconia discs, including all Aidite milling materials. There's also a version with a disc changer, the AMD-500DC; get in touch to learn more.
feature
feature
* 5-axis dry milling
* High speed 60,000rpm spindle
* Glass-ceramic abutments, composite abutments and preformed abutments
* Integrated CNC controller
* Extremely high accuracy
* HD touch screen
* HyperDENT and MillBox compatible
* High speed 60,000rpm spindle
* Glass-ceramic abutments, composite abutments and preformed abutments
* Integrated CNC controller
* Extremely high accuracy
* HD touch screen
* HyperDENT and MillBox compatible
AMD-500 Digital Dental Milling Machine Aidite AMD-500 dental millinaina machine is a drv-millina eauinment with five axes. It is mainly used for CAD/CAM processing of dental materials such as zirconia and PMMA. AMD-500 has stable performance and fast processing speed, and can perform 90° vertical processing on the buccal surface of the restoration. At the same time, AMD-500 is equipped with 1/2 opening fixture and plastic secondary fixture, which can effectively improve the utilization rate of material typesetting. The ultra-large high-definition touch screen is easy to operate, bringing you an ideal solution for dental material processing.
