China Low Cost VM1200 3 Axis CNC Milling Machine
- $9000.00 / 1 - 2 units
$8600.00 / >=3 units - 1 unit
- Dalian Jori Co., Ltd.
- Liaoning, China
- Ms Jessica Tian
PRODUCT DETAIL
| After-sales service provided: | Engineers can repair machinery overseas | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| model: | Virtual machine 1200 | Gross weight: | 8100kg |
| Weight (kg): | 15000 | Spindle speed: | 40-4000 rpm |
| Video outbound inspection: | if | Supply capacity: | 50 units per year VM1200 low cost 3 axis Chinese CNC milling machine |
| Place of origin: | Liaoning, China | Whether CNC: | CNC system |
| type: | vertical | Voltage: | 380V, 50Hz, three-phase. ,220v/380v |
| Post-warranty service: | Video technical support, spare parts | brand: | Jory |
| Number of axes: | 3 | Dimensions (length*width*height): | 3250mm*2500mm*2600mm |
| Certification: | EU CE certification | Processing capacity: | medium size |
| Core component warranty: | 1 year | port: | Shanghai port, China |
| Positioning accuracy (mm): | ±0.001 | maximum. Workbench load (kg): | 1500kg |
| Health status: | new, new | Packaging details: | wooden box |
| Marketing type: | normal product | Applicable industries: | Machine repair shop |
| control method: | CNC controller | Local service location: | Peru, Saudi Arabia |
| Showroom location: | Peru, Saudi Arabia | Mechanical test report: | if |
| Repeatability (X/Y/Z) (mm): | ±0.001 | Spindle speed range (rpm): | 15-3000 |
| Number of spindles: | single | Name: | VM1200 Low Cost 3-Axis Chinese CNC Milling Machine |
| Core components: | Bearings, motors, pressure vessels | Warranty: | 1 year, 1 year |
| Worktable travel (Z) (mm): | 800 | Worktable travel (X) (mm): | 1160 |
| Spindle taper: | other | Main selling points: | automatic |
| Packaging details: | Wooden box, seaworthy packaging VM1200 low cost 3 axis Chinese CNC milling machine | Worktable travel (Y) (mm): | 800 |
Product Description
VM1200 Low Cost 3-Axis Chinese CNC Milling Machine
Specification | unit | Virtual machine 1200 |
Workbench travel (X, Y, Z) | mm | 1200×600×600 |
working desk size | mm | 1200×620 |
T-slot quantity/width/distance | mm | 5-18-115 |
maximum. Workbench load | Kilogram | 1000 |
Distance from spindle nose to work surface | mm | 150-750 |
Distance from spindle axis to column guide rail | mm | 660 |
Rapid feed rate | m/min | 24, 24, 18/30, 30, 24 |
Feed rate | mm/min | 2.5-6000 |
Spindle taper | BT50 | |
Spindle motor power | kilowatt | AC Servo11/15 |
Spindle speed | Rotating speed | 40-4000 |
Positioning accuracy X, Y, Z | mm | ±0.005/300 JIS |
Repeat positioning accuracy X, Y, Z | mm | ±0.003/300 JIS |
Dimensions | mm | 3250×2500×2600 |
Machine weight | Kilogram | 810 |
Standard accessories:
GSK 25i or HNC-808D CNC system
RS232 interface, separate handwheel
Spindle air blowing and chip removal system

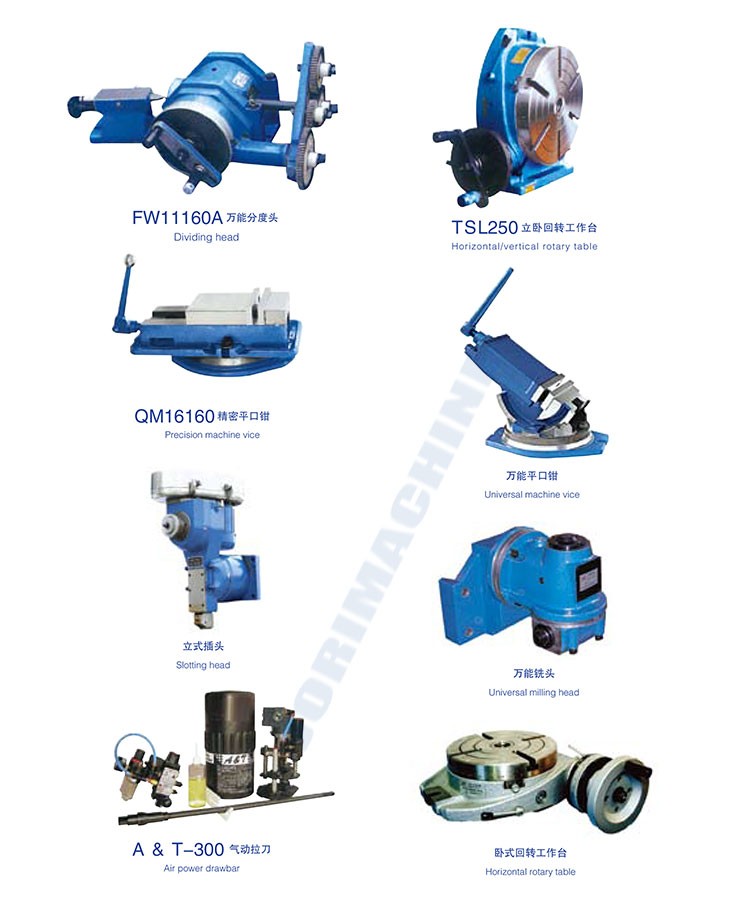

Optional accessories:
FANUC 0i mate-MD or SIEMENS 828D, KND-2000M CNC system
Disc tool magazine capacity 24 tools
Automatic chip removal system
