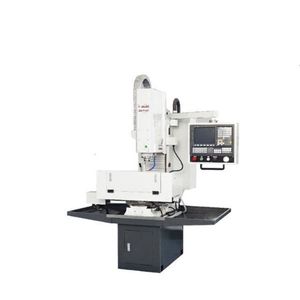

XK7124B Low Cost CNC Milling Machine

PRODUCT DETAIL
Range of Spindle Speed(r.p.m):0 - 20000;Table Travel (mm):800x240;
Port:Tianjin/Qingdao, China;After-sales Service Provided:Free spare parts,Engineers available to service machinery overseas;
Key Selling Points:Multifunctional;Place of Origin:Tianjin China;
Weight (KG):60;Repeatability (X/Y/Z) (mm):20000;
Supply Ability:20 Set/Sets per Month;CNC or Not:CNC;
Brand Name:ME;Warranty:5 years;
Model Number:XK7124B;Condition:New;
Positioning Accuracy (mm):20000;Voltage:CUSTOMIZED;
Power:2.2/3.7;Type:VERTICAL;
Packaging Detail:WOODEN CASES;Applicable Industries:Manufacturing Plant;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Certification:CE, ISO;
Dimension(L*W*H):1640x1202x1950(2050)mm;

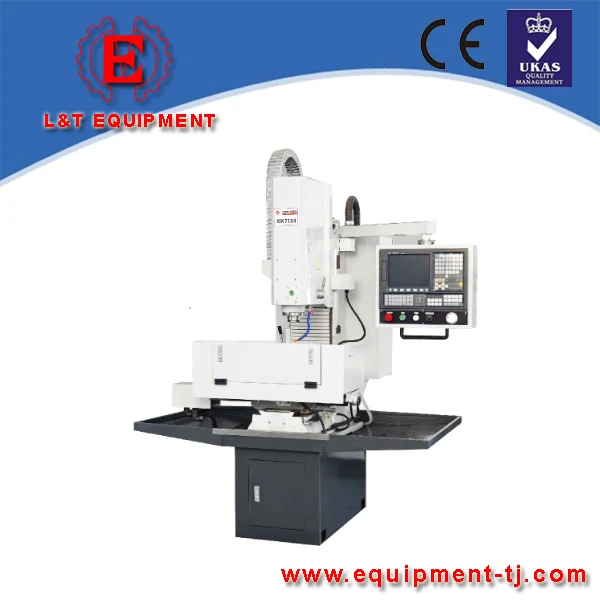

  XK7124B Low Cost CNC Milling Machine





Features





4 Pcs Tool stations on worktable with high efficiency.  It can finish all process of surface machining, hole machining and tapping by clamping workpiece.



High and low step speeds available and stronger torque for low step speed.



3axis transmission by precision ball leadscrew, servo motor driven.



Two styles of tool change available, manually and pneumatically.



Various famous CNC controllers supplied with for more choice.



Machine stand and machine body are designed separately for easy and flexible installment by user.





Specification
 ModelXK7124,7124AXK7124B
WORKTABLESize of Worktable (L x W)(mm)800x240800x240
900x240 Optional900x240 Optional
T slot(width x qty x space)(mm)16x3x6016x3x60
Max. loading on worktable(kg)6060
TRAVELX/Y/Z Axis travel(mm)430x280x400430x280x400
530x280x400530x280x400
Distance between spindle nose and table(mm)60-46060-460
Distance between spindle center and column(mm)297297
SPINDLESpindle speed(r/min)100-4000100-6000
Spindle taperBT30BT30
Tool damping wayManual/PneumaticManual/Pneumatic
ATC capacity(optional)no4 pcs Simple ATC
FEEDINGFeeding speed(mm/min)0-20000-2000
Rapid feeding speed X,Y,Zaxis(kw)66
ACCURACYPositioning accuracy(mm)0.040.04
Repeatability accuracy(mm)0.020.02
Min.set unit(mm)0.010.01
MOTORMain motor power(kw)1.5(A/C motor)2.2/3.7
Feeding motor power(kw)1/1/11/1/1.5
TOOLSMax. size of tool(mm)Φ60x175Φ60x175
Max loading weight of tool (kg)3.53.5
OTHERSN.W(include machine stand)(kg)9001000
Overall size(L x W x H)(mm)1640x1205x1950(2050)1640x1202x1950(2050)
Packing size(L x W x H)(mm)1900x1620x2480(2580)1900x1620x2480(2580)
Loading amount(20")3sets3sets
Description and specification given in this catalogue are subject to modification without notice





Packaging & Shipping

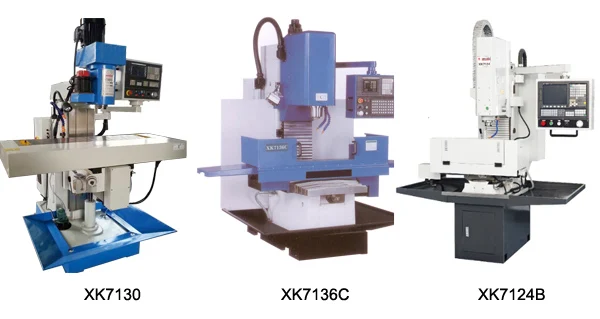

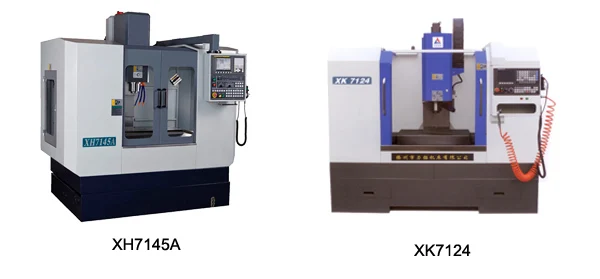

Other hot sale models

             Click Here                                    Click Here                                    Click Here

                   Click Here                                 Click Here                               Click Here

                         Click Here                                                            Click Here

Company Information
L&T Mechanical & Electrical Equipment Co., Ltd. is a major import-export enterprise located in the port city of Tianjin, China. Awarded multiple contracts by the World Bank and the Asian Development Bank, we have provided billions of dollars worth of products to domestic and overseas partners on an annual basis since 1994. Our corporate mission is to grow our business by continually exceeding our customers’ expectations for service and reliability.
ISO9001:2008-certified.

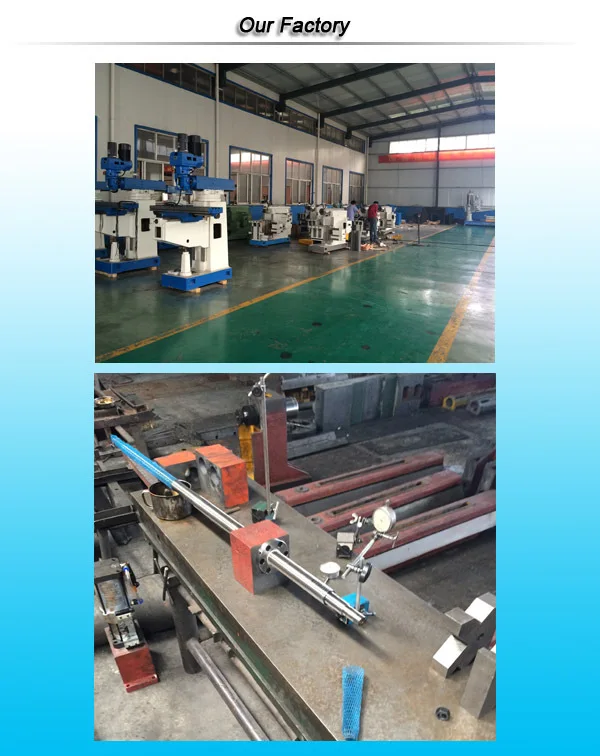

Our factory specialize in machinery for more than 20 years, we also supply all kinds of accessories of milling/drilling machines and cnc milling machines. Please contact our sales for more details.
