CDM5Z high-precision five-axis dental milling machine for zirconia, PMMA, WAX
- $14000.00 / 1 - 2 sets
$13500.00 / 3 - 4 sets
$13000.00 / 5 - 9 sets
$12000.00 / >=10 sets - 1 set
- Shenzhen Camdent Medical Technology Co., Limited
- Guangdong, China
- Mr Paul Chou
PRODUCT DETAIL
| Spindle taper: | other | Mechanical test report: | not available |
| Spindle motor power (kW): | 500 | Advantage: | competitive price |
| Weight (kg): | 120 | Table travel (X) (mm): | 200 |
| payment terms: | L/C, Western Union, D/P, T/T | Processing capacity: | relaxing work |
| maximum. Table load(kg): | 5 kg | model: | CDM5Z |
| Package preview: | Number of axes: | 5 | |
| application: | Dental field | Core component warranty: | 1 year |
| State of health: | new | Core components: | Bearings, motors, pumps, gears, PLCs, engines, gearboxes |
| Warranty: | 1 year | Main selling points: | high accuracy |
| Table travel (mm): | 200*100*100 | Marketing Type: | other |
| feature: | durable | place of origin; place of origin: | Guangdong, China |
| year: | 2022 | Table travel (Z) (mm): | 100 |
| Video shipment inspection: | if | Supply capacity: | 30 sets per month |
| Table travel (Y) (mm): | 100 | CNC system: | mitsubishi |
| brand: | Cardent | weight: | 95 kg |
| usage: | denture | Showroom location: | Vietnam, Peru, Pakistan, Mexico, Russia, Uzbekistan |
| Applicable industries: | other | Key words: | Five-Axis Dental Milling Machine |
| Types of: | horizontal | Positioning accuracy (mm): | ±0.002 |
| Voltage: | 220 volts | Spindle speed range (rpm): | 3000 - 60000 |
| Name: | dental milling machine | port: | Shenzhen |
| Model: | CDM5Z | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Dimensions (L*W*H): | 50*52*65cm |

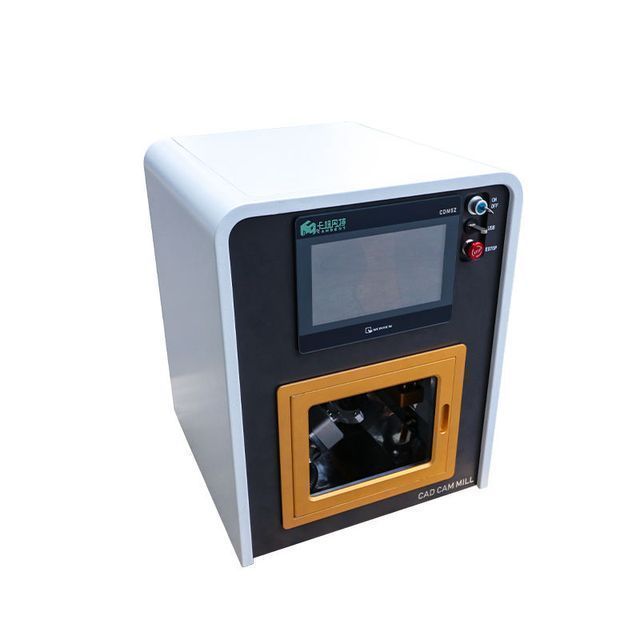

Cdm5z
CDM5Z is a five-axis dry milling machine for dental CAD/CAM systems, suitable for a wide range of materials, with high precision, long-lasting stability and excellent compatibility. It is ideal for high precision restorations including complex procedures such as bridges, frames, splints, abutments, abutments and zirconia perforations. CDM5Z is equipped with high-quality spindle, imported core components, intelligent CAM nesting system and intelligent touch screen, providing better disc handling, wider material capability, automatic tool change to provide higher efficiency.
· product information

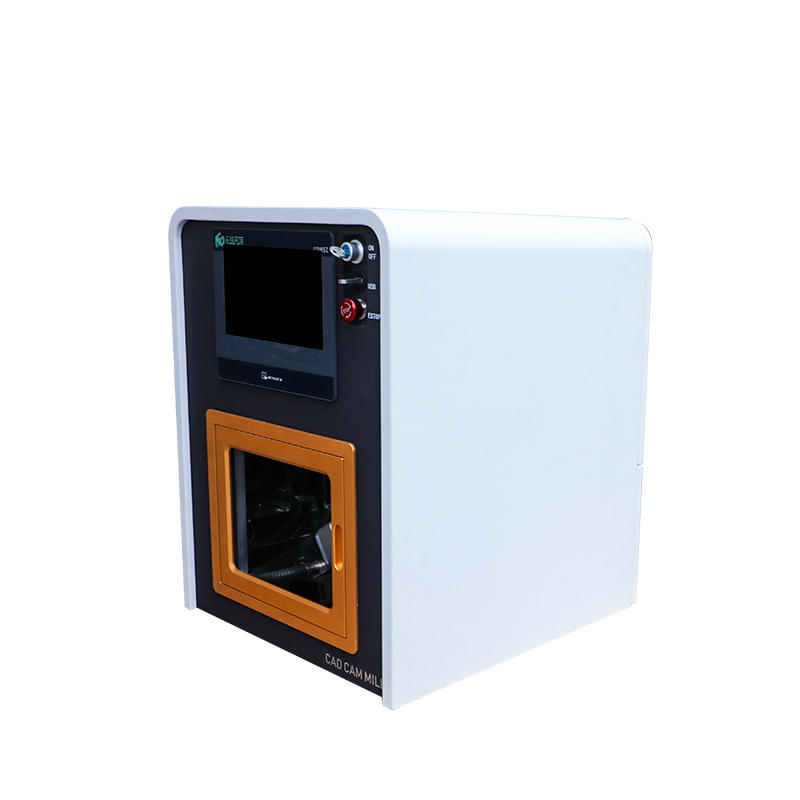

right level

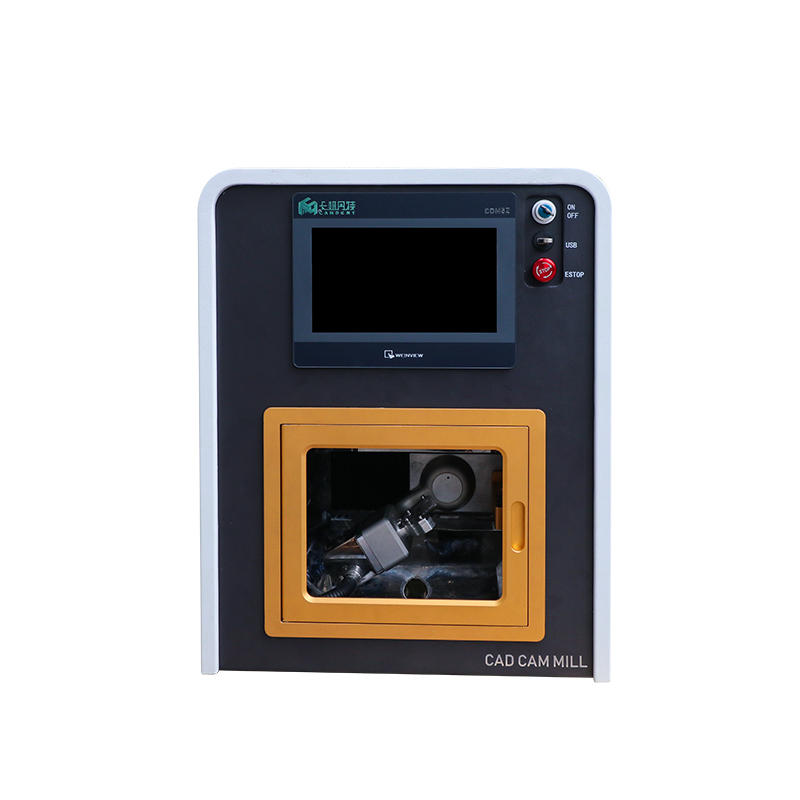

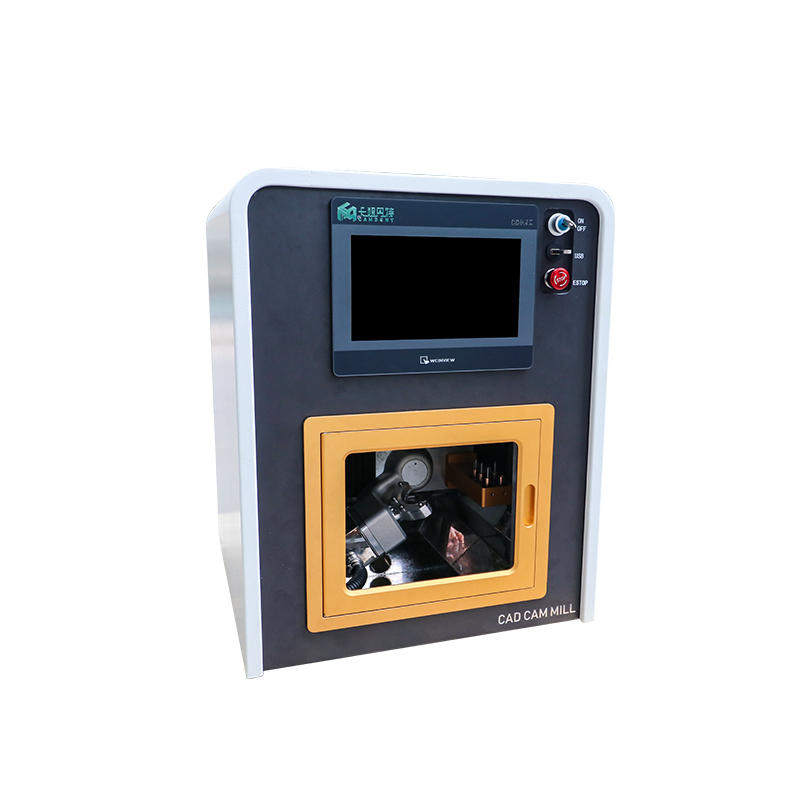

Front view
left elevation
main features
compact structure
--Compact size 620mm*500mm*650mm
--Compact size 620mm*500mm*650mm
Box structure
--High rigidity, not easy to deform
--High rigidity, not easy to deform
Comprehensive protection alarm
--Low air cooling pressure: low tool change pressure, unsuccessful tool return, interrupted burrs during cutting, wrong burr type.
--Low air cooling pressure: low tool change pressure, unsuccessful tool return, interrupted burrs during cutting, wrong burr type.
open controller system
--This system supports the international ISO standard G code and is compatible with popular CAM software, such as HyperDent, Sun3d millbox, GO2dental, WorkNC dental, Delcam Dental, etc.
--This system supports the international ISO standard G code and is compatible with popular CAM software, such as HyperDent, Sun3d millbox, GO2dental, WorkNC dental, Delcam Dental, etc.
Intelligent processing
--Excellent and concise man-machine interface, touch screen control, simple operation, unique CAD/CAM processing strategy, no need for professional CNC programming personnel, one-button operation, stable operation.
--Excellent and concise man-machine interface, touch screen control, simple operation, unique CAD/CAM processing strategy, no need for professional CNC programming personnel, one-button operation, stable operation.
high efficiency
--It adopts high-power frequency conversion and high-speed tool-changing spindle, which has large torque and high precision, and can process various materials efficiently.
--It adopts high-power frequency conversion and high-speed tool-changing spindle, which has large torque and high precision, and can process various materials efficiently.
OEM customization
--The machine is completely developed and designed by us, so we can provide OEM service to our customers.
--The machine is completely developed and designed by us, so we can provide OEM service to our customers.
Automatic calibration function.
· Product specifications
CNC system | 5-axis dental system with touchscreen | ||
Model | CDM5Z | ||
Milling method | dry | ||
grindable material | Zirconia, wax, PMMA | ||
Product Category | Crowns/Coronings, Bridges, Inlays/Onlays, Veneers | ||
Spindle power | 500W | ||
Spindle speed | 3000-60000 rpm | ||
Spindle cooling | air cooled | ||
Rotation range | A axis | ±360° | |
B axis | -40°~ +30° | ||
Can be loaded with needles (tools) | Shank diameter | 4mm | |
length | 45mm | ||
Number of needles accommodated (tools) | 6 | ||
Tool change and inspection | fully automatic | ||
Suitable for compressed air | 0.6MPa | ||
Workpiece shape that can be loaded | outer diameter | 98mm | |
maximum height | 25mm | ||
minute height | 10mm | ||
Dimensions | length | 500mm | |
weight (depth) | 620mm | ||
high | 650mm | ||
weight | 95 kg | ||
g. weight | 121 kg | ||
Input voltage | Single phase 220V 50Hz/60Hz | ||
control command set | CNC code | ||
positioning accuracy | 0.02mm | ||
Average Milling Time (Crown) | Zirconia | 8-15 minutes | |
wax | 3-6 minutes | ||
Acrylic | 12 minutes | ||
Package Size | 600*660*790mm | ||

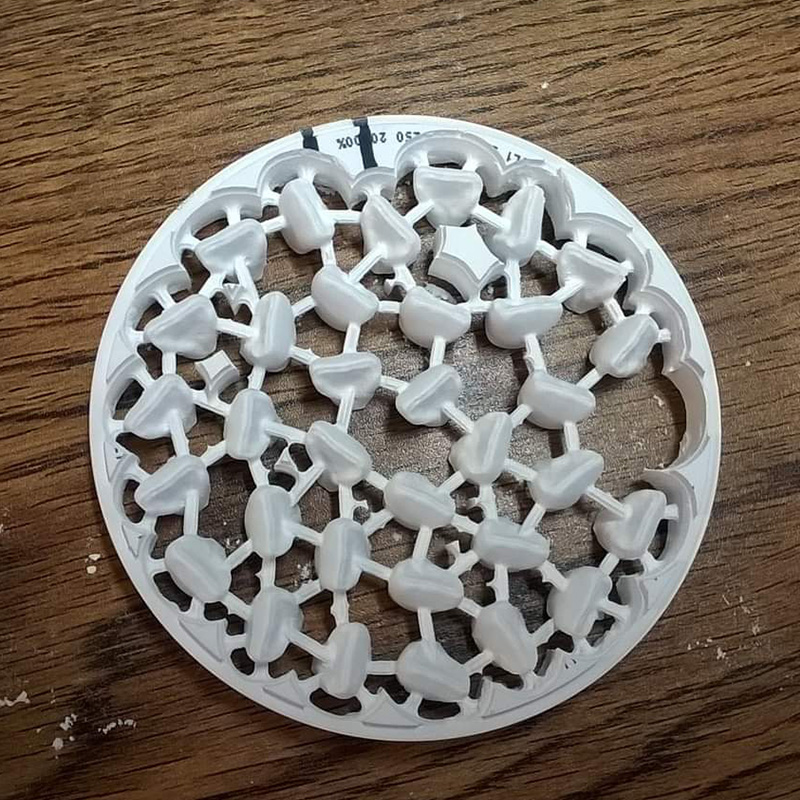

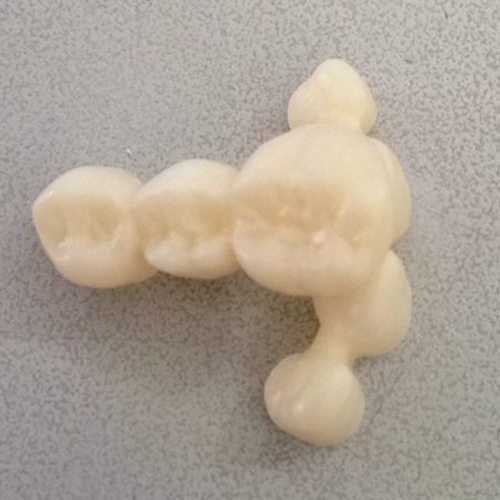

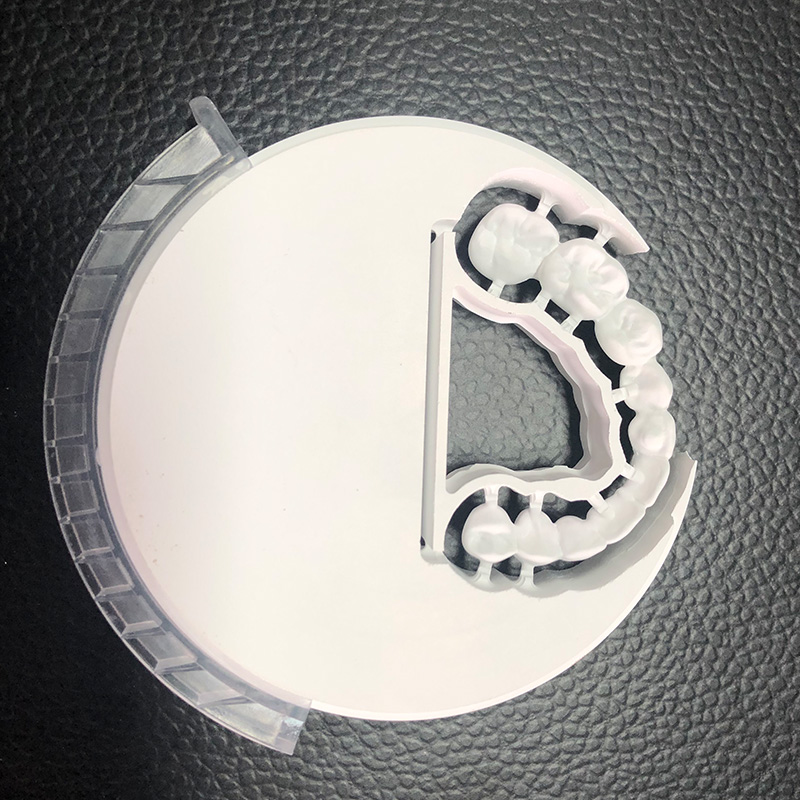

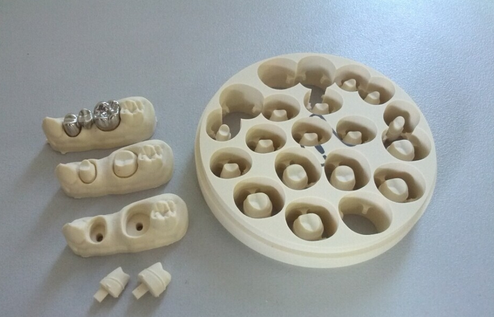

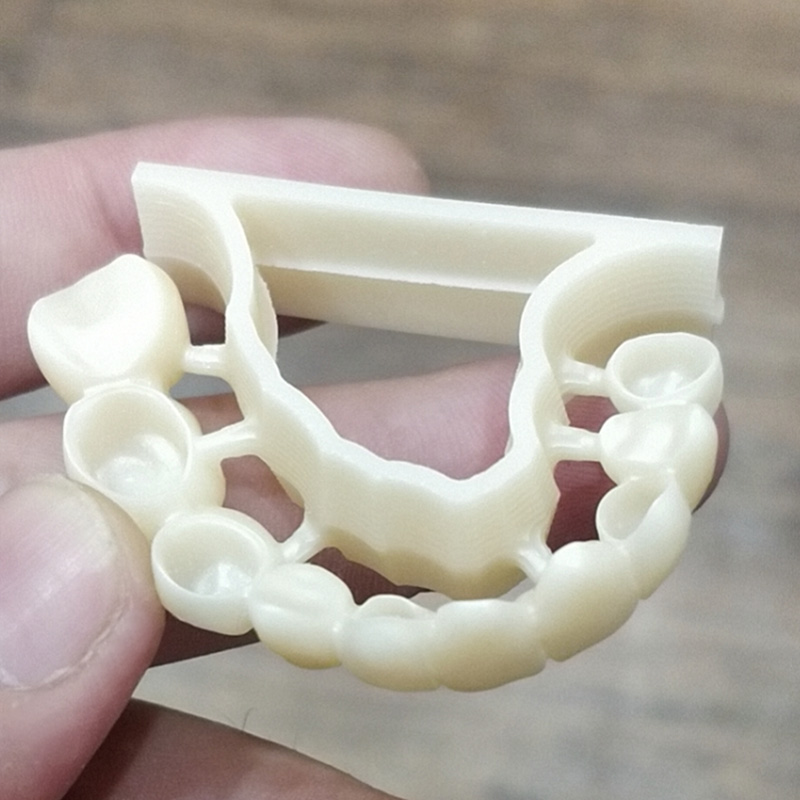

· Case
· Obtained certificates
