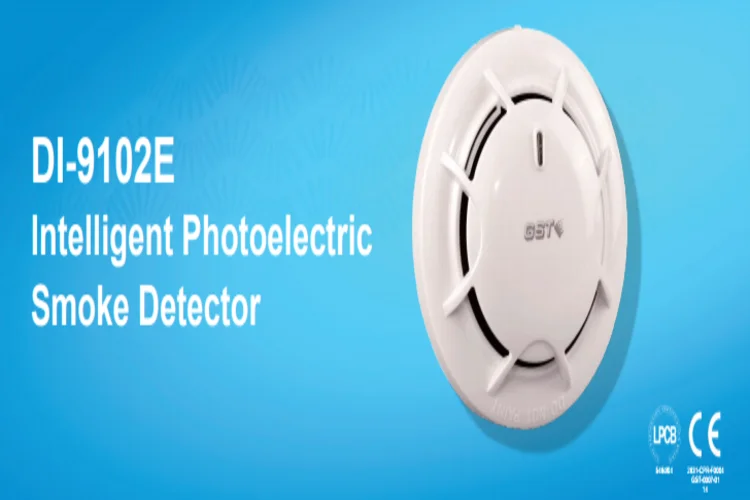

GST DI-9102E Intelligent Photoelectric Smoke Detector Fire Alarm Detector

PRODUCT DETAIL
Brand Name:GST;Model Number:DI-9102E;
Payment Terms:Western Union,T/T;Place of Origin:Shanghai, China;
Certification:LPCB;Port:SHANGHAI;
Product name:Intelligent Photoelectric Smoke Detector;
Product Description
  • DI-9102E Intelligent Photoelectric Smoke Detector is addressable type fire detection device.
  • The detector is suitable for hotel, restaurant, office building, school, bank, warehouse, library, computer room, switch room, and etc.
Features
  • Electrically addressed, can be modified by programmer
  • Strong environmental adaptability due to drift compensation
  • Self-diagnostic, reed switch test
  • Dirty chamber checking
  • Fire LED allows 360° viewing
  • Possible to switch off polling LED
  • Remote indicator output
  • Removable innovative sensing chamber, easy for maintenance
  • 2 levels sensitivities programmable (Level 1 certified)

Specific information



Operating Voltage

loop 24V (16V ~ 28V)

Standby Current

≤0.8mA

Alarm Current

≤1.8mA (without remote indicator)

≤ 3.8mA (with remote indicator)

Indicator

Red.

Flashes in polling, and illuminates in alarm

Sensitivity Level

2

Environment Temperature

-10°C ~ 50°C

Relative Humidity

≤95%, non condensing

Ingress Protection Rating

IP2X

Dimensions

Diameter: 100mm

Height: 54.5mm (with base)

Weight

About 110g

Certifications
  • Standards: EN54-7
  • Certifications: LPCB

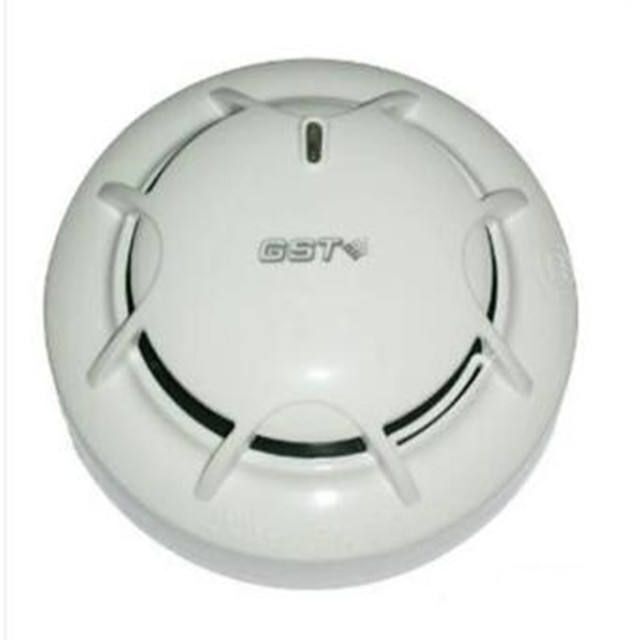

Product image
