Smart home security alarm system wifi 4g GSM PSTN IP camera smoke detector pir motion magnetic door sensor gas leak

  • $56.00 / 1 - 199 sets
    $55.00 / 200 - 499 sets
    $50.00 / 500 - 999 sets
    $45.00 / >=1000 sets
  • 1 set
  • Shenzhen Chitongda Electronic Co., Ltd.
  • Guangdong, China
  • Mr qichi wan
PRODUCT DETAIL
Carton size:54cm*35cm*36cm(L*W*H) 15kg (10 gift boxes)Packaging Details:Security alarm system: one piece in a gift box, 10 gift boxes in a carton gift box: (320*265*62MM) carton: (56*35*36cm)
payment terms:L/C, T/T, Western Union, MoneyGram, PayPalmodel:YL - 007M2BX Security Alarm System
Built-in RF transmitter module:trigger wireless sirenWarranty:3 year security alarm system
telephone number:5 groupsWireless frequency:433Mhz / 868Mhz
usage:Home/Shop/Office etc.Unit Size:18cm * 11.5cm * 3.5cm (length * width * height)
GSM frequency band:Tri-band and quad-band optionalplace of origin; place of origin:Guangdong, China
Featured Accessories:Smart Home Remote SensorSupply capacity:20000 sets of security alarm system per month
port:Shenzhen Portcolor:Black and white alarm system
Gift box size:32cm*26.5cm*6.2cm(length*width*height) 1.45kgbrand:wolf guard

security alarm system



Product Description

What is the details of our YL-007M2BX security alarm system?











Function Description



. Elegant and advanced touch keyboard, easy to operate;

. 128x64 dot matrix LCD screen with clock display;

. Wired and 10 wireless zones; each wireless zone supports up to 10 sensors;

. Support up to 8 remote controllers;

. 1 relay switch: turn on when alarming;



. Built-in loudspeaker, artificial intelligence digital voice announcer;

. Built-in artificial intelligence English message;

. 10 seconds automatic voice message recording;

. 6 phone numbers can be preset: when there is an alarm, the system will automatically make a voice call to these numbers;



. 3 SMS numbers can be preset: when alarming, the system will send SMS;

. Timely arm and disarm;

.Can be used as a wireless phone, use the keypad to make calls;

. One-button control: arming when away from home, arming at home, remote control or telephone arming;

. SOS, fire, gas, door, hall, window, balcony, boundary alarm;



. Real-time, delay, 24 hours, bypass zone programming functions;

. Wireless Learning Code: Easily add additional wireless accessories;

.Remotely control equipment arming and disarming, monitoring and intercom through telephone;

. Record viewing: the device can store 30 alarm records;

. Different arming states: arming outside, arming at home, arming with delay, and arming in time;



. Multiple arming methods: panel buttons, remote control, remote call;

. Alarm call priority: even if the device number is busy;

.Power failure or recovery SMS reminder;

.Built-in lithium battery: automatic charging.







Technical Parameters



Input voltage: AC 110-240V, DC 12V

Standby current: <80mA

Alarm current: <450mA

GSM mode: 900/1800MHz

Wireless frequency: 433MHz

Wireless receiving sensitivity: 5mV/m

Anti-interference strength: 1V/m (20-1000MHz)

Working temperature: -10℃~+40℃

Wireless detectors: 100

Remote control: 8

Humidity: ≤90%

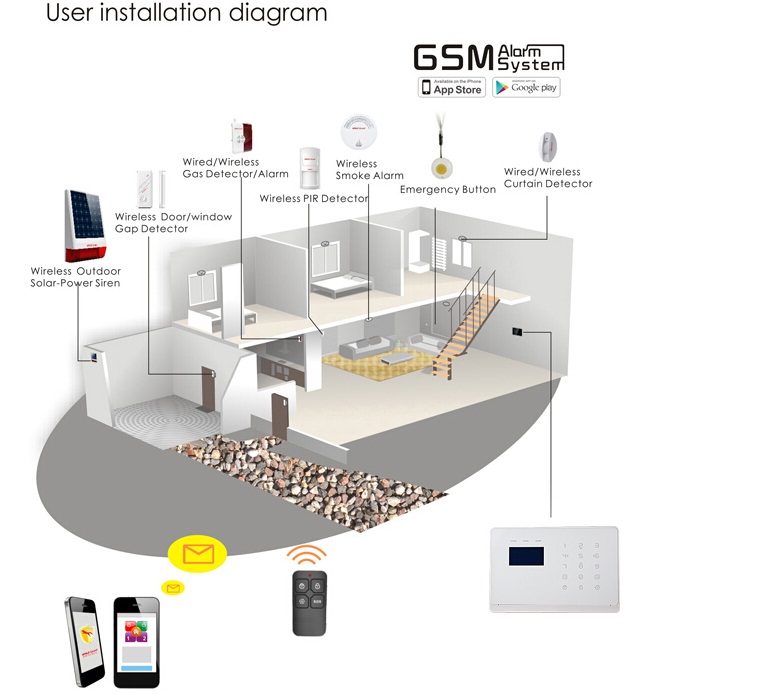

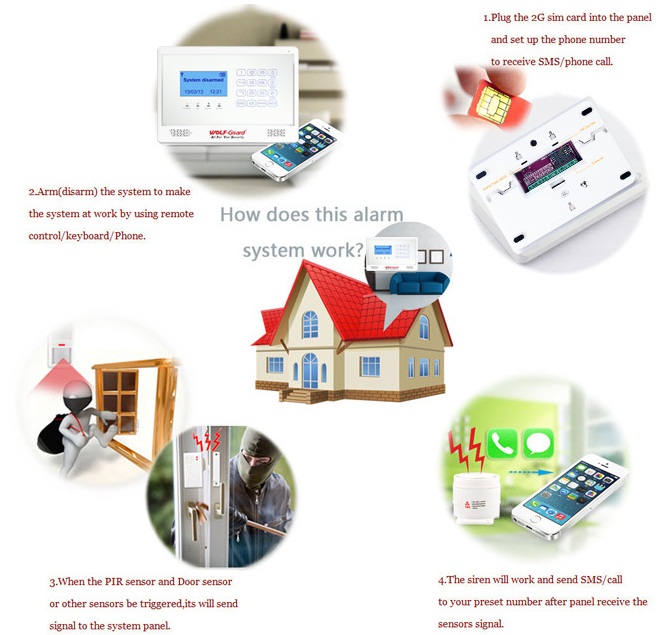

How to use the alarm system YL-007M2BX

                 Tono Keeping your own family safe?



product photo

                             DIY Your Home Security

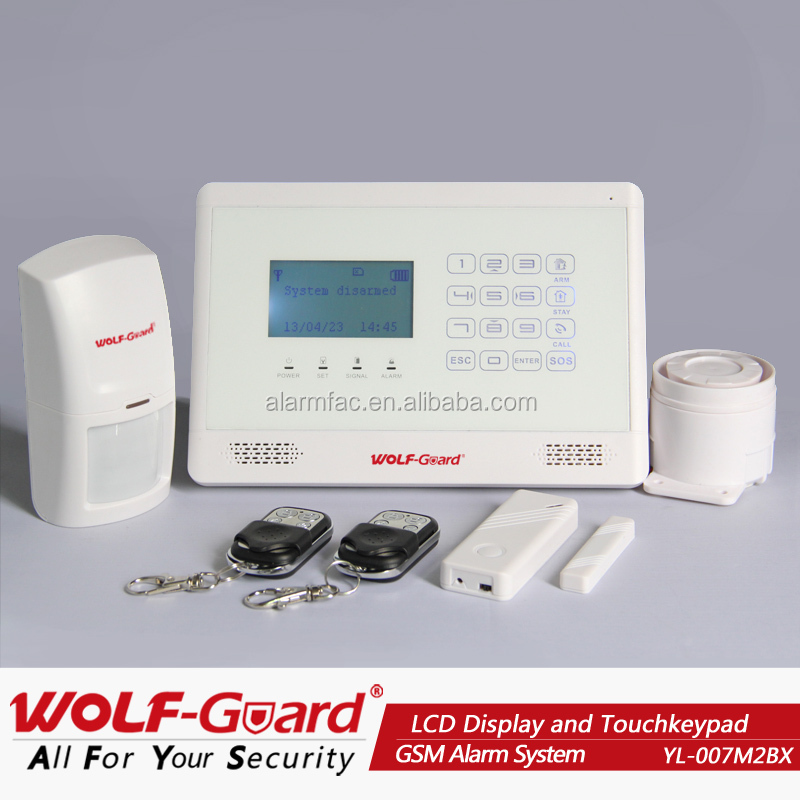

Standard kit YL-007M2BX includes:

describe

Model Name

quantity

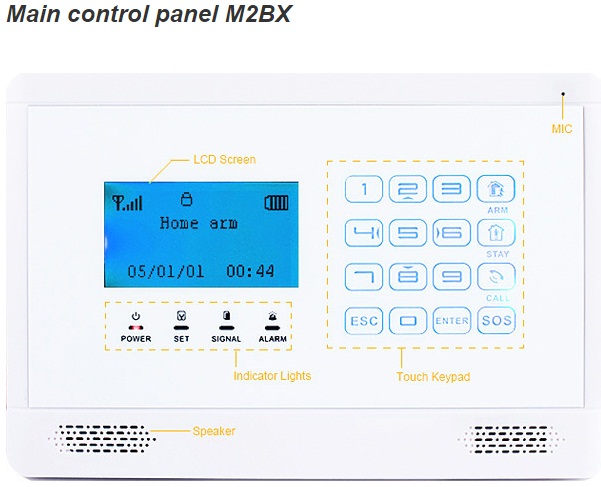

main panel(black or white)

M2BX

1

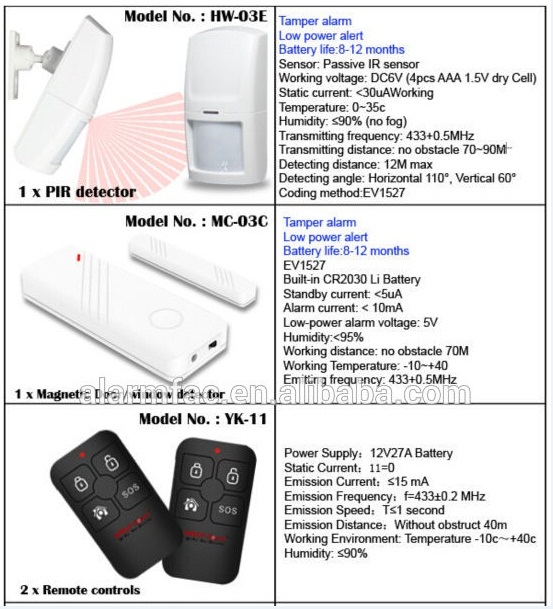

wireless PIR sensor

HW-03D

1

Wireless Door and Window Sensor

MC-03B

1

remote control

YK-11

2

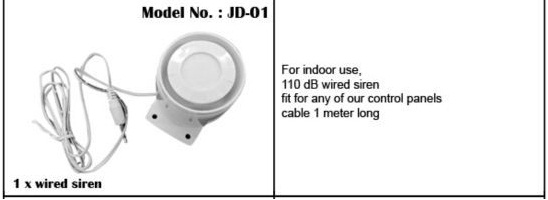

wired siren

JD-01

1

Power Adapter

Power Adapter

1

user manual

user manual

1



M2BX Alarm Accessories
