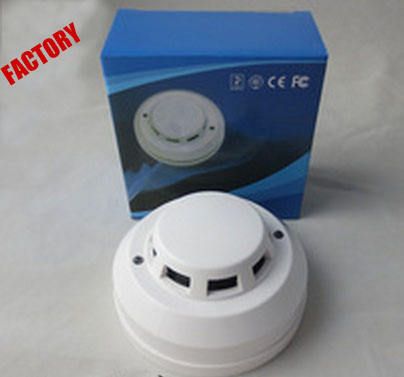

Plastic smoke detector cover with fire alarm

Price:$1.00 / >=10 pieces
Min. Order:10 pieces
Supplier:Hengdun Firefighting Technology Co., Ltd.
Region:Fujian, China
Contact:Mr

PRODUCT DETAIL

brand:	Hengdun	model:	HDSS16823
Key words:	Smoke Detectors	usage:	Smoke detector
port:	Xiamen	output:	: switch transducer
Certificate:	:BRE LPCB EN54-7C	strength:	DC10-30V
payment terms:	L/C,T/T,Western Union	manufacturer:	ex-factory price
Supply capacity:	8000 smoke detectors per day	theory:	current sensor
Material:	Double-sided glass	Packaging Details:	carton smoke detector
warranty period:	2 years	place of origin; place of origin:	Fujian China
Design patent number:	201130310516.3

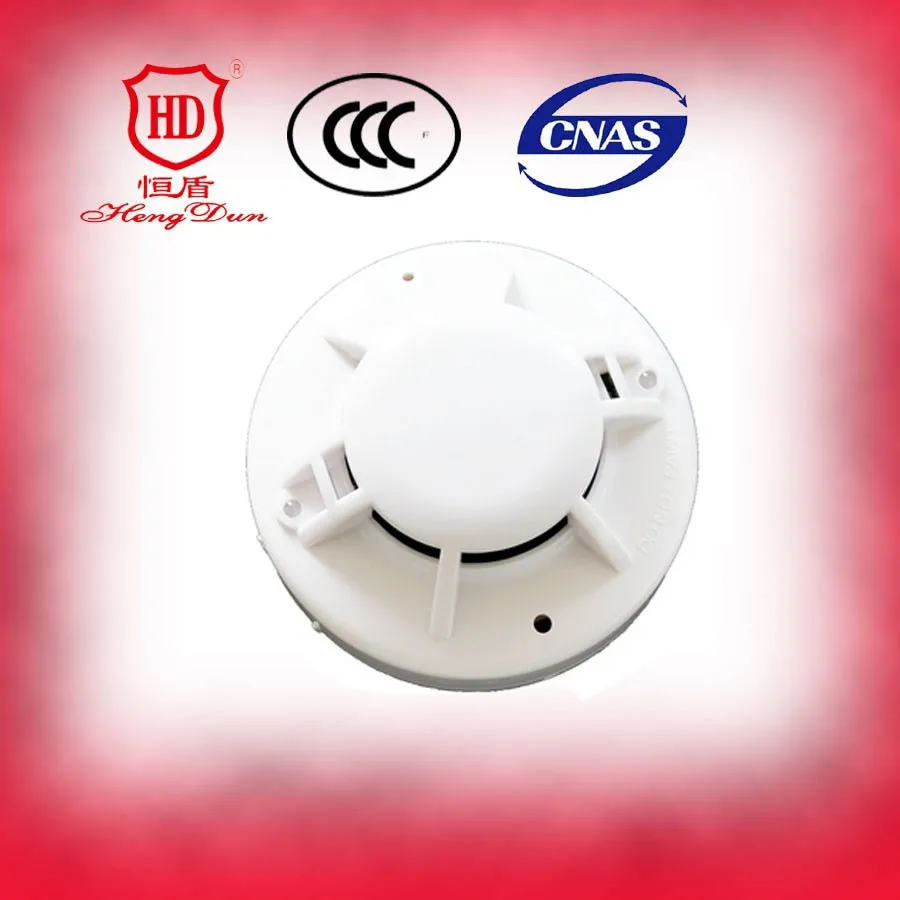

1. Standalone smoke detector

Power supply: 9v battery (6 sections) made (DC)

Static: < 10 ua

Warning: Current < 35 ma

Acuity: 2.06%/ft +/- 1.3

Alarm indication: red LED flashes

Alarm sound pressure: 85dB/3m or higher

Wireless transmission frequency: 315 MHZ / 433 MHZ (non-linear)

Launch distance: 200 m (empty)

Working temperature: -10℃～+50℃

Relative humidity: below 95% RH

Size: 105*58mm

Executive standard: GB4715-2005.En14604; UL217

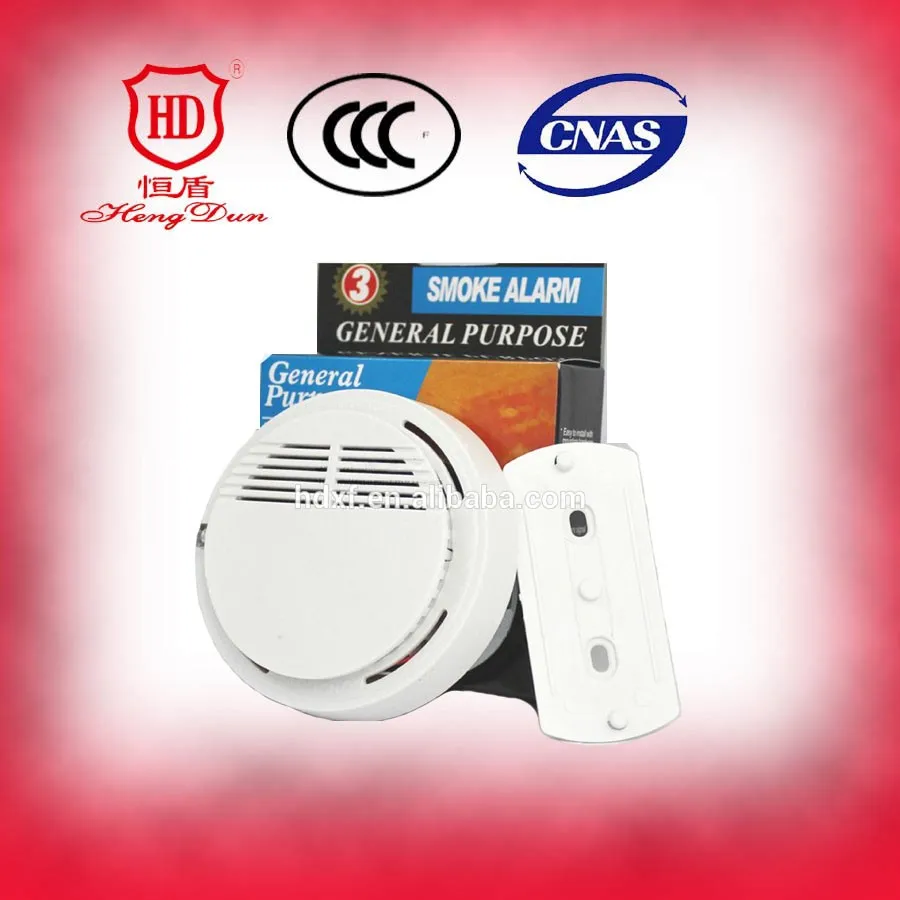

2. Independent smoke detector

1. Power supply: DC9V cascade battery production (6 pcs)
2. Sensitivity: 0.16 (dimming coefficient m value)
3. Monitoring current: < 15 ua, fire current: < 17 mA
4. Indicator light: three-color light, green is normal, red is fire, yellow is fault
5. Alarm volume: > 80 decibels before (3 meters)
6. Protection area: 40㎡ or refer to the design specification for automatic fire alarm system for specific parameters (GB50116-1998)
7. Ambient temperature: -10°C to +50°C Relative humidity: below 95% (40°C, no condensation)
8. Service life: >10 years
9. Appearance size: diameter 107 mm, height 44 mm
10. Shell material and color: white ABS
11. Weight: 136 grams
12. Installation hole distance: 78mm

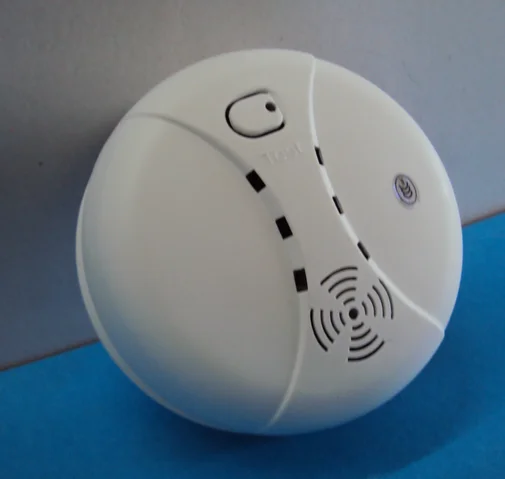

3. GSM smoke detector with SIM card

1.SOS alarm

The device can send SMS for SOS alarm.

Press the SOS button, the alarm LED lights up and the buzzer starts ringing (default ringing time is 3 minutes). Then the device sends an alarm SMS to the preset main number. Pressing the button again will stop the buzzer and the device will return to its pre-alarm state.

The alarm SMS number (up to 5 groups), the main number (1 group), and the content of the SMS can be set by the user. (Please refer to the "System Settings" below for the detailed setting method.) The default SMS is "Fire Alarm".

2. Smoke alarms

The device's smoke detection is based on optoelectronic technology. When it detects smoke, it makes a call and sends a text message to a preset phone number.

If triggered again within 3 minutes of the first alarm, the device will not issue an alarm signal. And within 3 minutes, if the user presses the SOS button, or arm the device via SMS, the buzzer will stop ringing, and the device can return to detection after 1 minute and 40 seconds.

After sending the alarm SMS, the device will automatically enter the armed state.

3. Reset

Press and hold the SOS button for 5 seconds, (release until the buzzer emits a long sound), the device will return to the factory state. All settings will be restored to default values.

Operation guide

1. Insert the SIM card into the card slot. Make sure your SIM card has enough balance to make calls and send text messages.

2. Connect the power adapter. The LED indicator will be on for about 10 seconds, and the device will start a self-test. If a SIM card is detected, the buzzer will beep twice; if not, it will beep four short beeps. If the indicator light flashes once every two seconds, it means that the main number has not been set; if it keeps flashing fast, it means that the main number is set, but the SIM card is not detected.

3. To make sure all settings are default before use, you can reset them.

4. Set the main number. Only this number can set the smoke alarm.

5. Now you can make other settings and use this device.

6. In the whole working state, the device will check the GSM network. Then the GSM signal is below 20% (not enough to make calls and send text messages) and the Alert LED will keep flashing fast as before. At this time, the position of the device should be replaced until the signal indicator is normal.

7. This device has a power off/restore reminder function. When the external power supply is disconnected, it is powered by the backup battery and sends the SMS "Power Charger Off". The external power supply recovery text message is "Power Charger on".

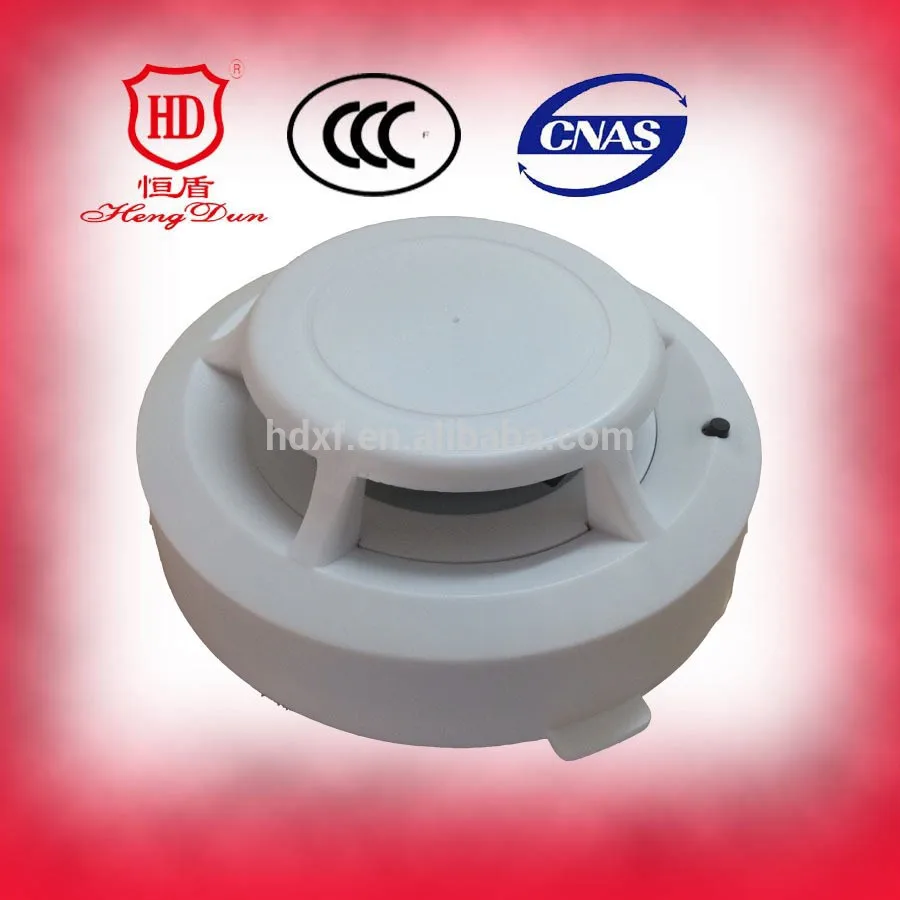

4. Wire Smoke Detector

main feature:

Power non-polar input

Infrared photoelectric sensor

MCU processing to eliminate false positives

SMT manufacturing process, high stability

Dust-proof, moth-proof, anti-light interference design

Stainless steel shield, anti-RF interference (20V/m-1GHz)

Executive standards: UL268, GB4715, EN54-7

Technical Specifications:

model.	SR-801PC-2/SR-802PC-2/SR-811PC-2	SR-801PC-4/SR-802PC-4/SR-811PC-4:
Operating Voltage	DC9~35V
Quiescent Current	55uA	12mA(NC); 500uA(NO)
Alarm current	35mA@DC12V; 60mA@DC24V	10mA (normally closed); 18mA (normally open)
Sensitivity	0.5dB/m(±0.01dB/M)	0.5dB/m(±0.01dB/M)
Alarm Output	Remote LED Indicators	relay output
Install	ceiling mount	ceiling mount
working environment	-10℃~+50℃(≤95%RH non-condensing)	-10℃~+50℃(≤95%RH non-condensing)
aspect	104*49mm (SR-801/SR-802)	100*48mm (SR-811)

5. Standalone smoke detector

power supply	9V DC block battery/PP3
Quiescent Current	≤10µA
Alarm current	16 mA
humidity	0to95% (40±2°C), no condensation or icing
Quiescent Current	8µA
Operating temperature	-10°C to 50°C
Alarm decibel	≥85dB at 10 feet (3 meters)
test button	Verify that the smoke function is normal alarm
smoke sensitivity	0.086 dB/m to 0.140 dB/m
Low voltage warning	Smoke alarms go off every 40 seconds 30 days (minimum) to indicate Battery needs to be replaced

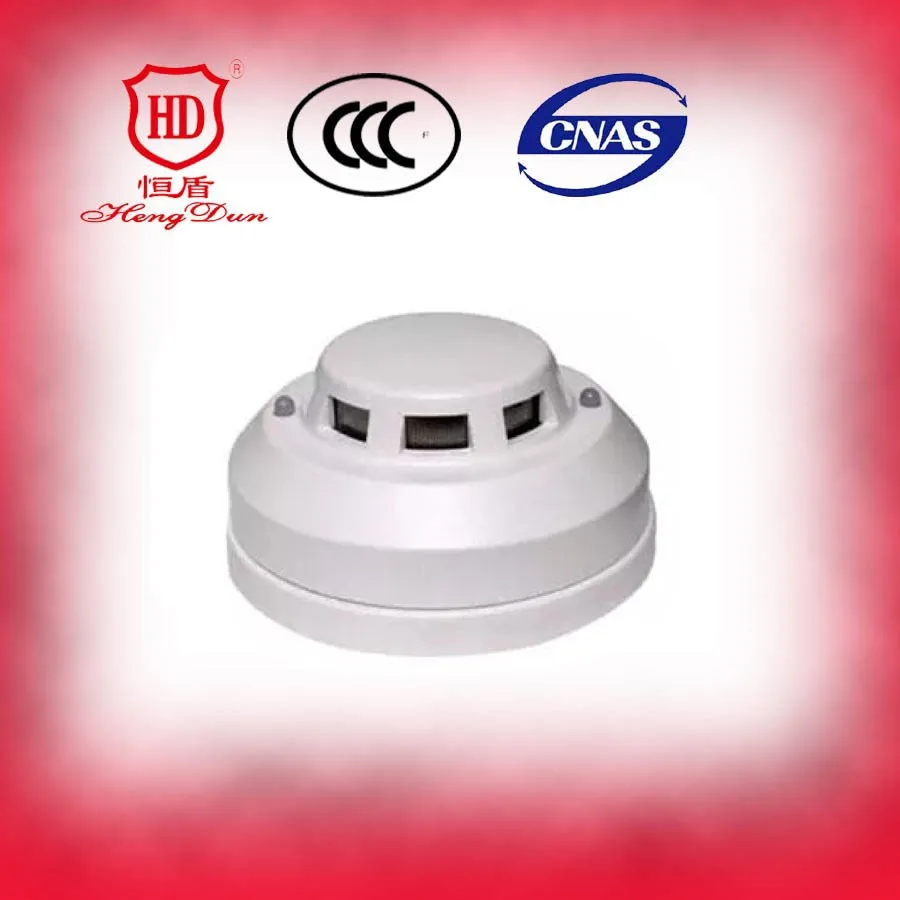

6. Standalone smoke detector

1. Easy to install, including mounting hardware

2. 9 volt battery included

3. Test button for any room, convenient to recommend monthly test

4. Low battery signal

5. To protect you, the safety clip does not allow the installation of a smoke alarm without a 9 volt battery installed

6. Ionization chamber for early detection from all directions

7. Loud 85db alarm signal

Power supply: 9vdc
Working current: quiescent current <200uA
Working current: ≤20uA
Buzzer sound level: 85dB at 20 inches
Alarm indication: red LED
Working temperature: -10℃~+50℃
Ambient humidity: ≤95%RH
Alarm mode: relay on/off
Size: 107*35mm

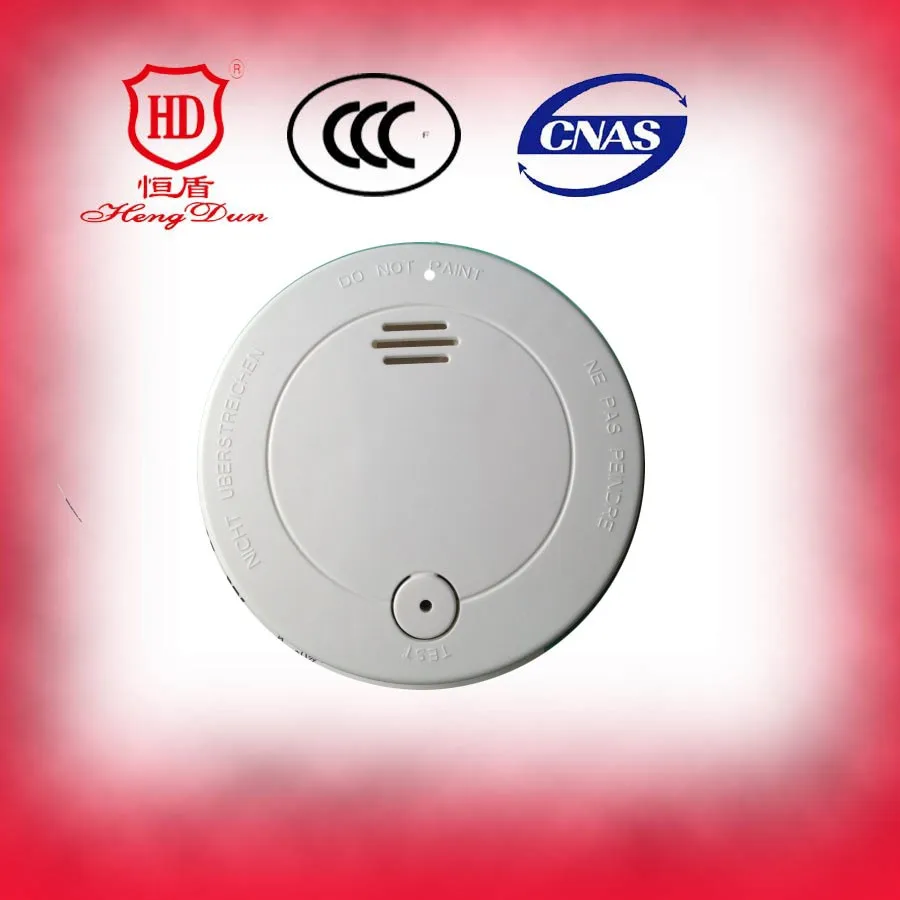

7. Standalone photoelectric smoke detector

1) Material: ABS plastic
2) Assembly without wiring, size: Dia.104xH35mm
3) Power supply: 9V lithium battery (including battery)
4) Standby current: 8μA, alarm current: 16mA
5) Ambient temperature: -10°C ~ +50°C
6) Ambient humidity: 0 to 95% (40±2°C)
7) Alarm decibel: greater than 85dB at 10 feet (3 meters)
8) Tamper-resistant locking pin
9) Test button: Verify that the detector functions properly
10) Low Voltage Warning: The device beeps every 40 seconds for 30 days (minimum), indicating that the battery needs to be replaced
11) Smoke sensitivity: according to EN 14604
12) CE, ROHS, EN 14604
13)5 Years Quality Guarantee

8. Standalone Photoelectric Smoke Detector .

1) Material: ABS plastic

2) Assembly without wiring, size: Dia.104xH35mm
3) Power supply: 9V carbon zinc battery/PP3 (including battery)
4) Standby current: 8μA, alarm current: 16mA
5) Ambient temperature: -10°C ~ +50°C
6) Ambient humidity: 0 to 95% (40±2°C)
7) Alarm decibel: greater than 85dB at 10 feet (3 meters)
8) Tamper-resistant locking pin
9) Test button: Verify that the detector functions properly
10) Low Voltage Warning: The device beeps every 40 seconds for 30 days (minimum), indicating that the battery needs to be replaced
11) Smoke sensitivity: according to EN 14604
12) CE, ROHS, EN 14604
13)5 Years Quality Guarantee
