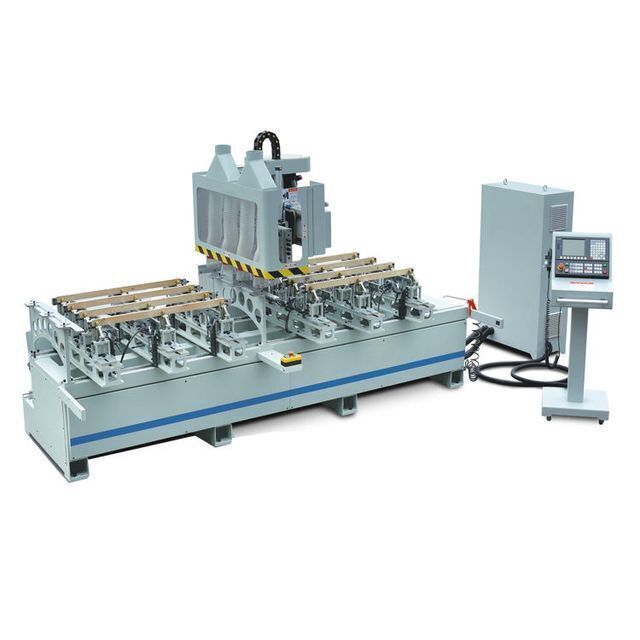

HC3710 CNC Automatic Mortiser For Wood
- $32000.00 / 1 - 1 sets
$30000.00 / >=2 sets - 1 set
- Qingdao High-Class Service Import & Export Co., Ltd.
- Shandong, China
- Ms Cindy Yu
PRODUCT DETAIL
| Y-axis route: | 170mm; | X-axis route: | 2800mm; |
| Z-axis route: | 200mm; | Condition: | New; |
| Cutter dia.: | 12.7mm; | Packaging Detail: | plywood crate; |
| Payment Terms: | L/C,T/T; | Max. moving speed: | 20m/min; |
| After Warranty Service: | Video technical support,Online support,Field maintenance and repair service; | Automatic Grade: | Automatic; |
| Motor Speed: | 18000r/min; | Showroom Location: | None; |
| Application: | mortising; | Max mortise depth: | 100mm; |
| Brand Name: | HICAS; | Dimension(L*W*H): | 3600*1640*2100mm; |
| Max mortise width: | 25mm; | Weight: | 2200kg; |
| Warranty: | 1 Year; | Local Service Location: | None; |
| Drill Diameter: | 12.7mm; | Qty. of milling head: | 4 head; |
| After-sales Service Provided: | Online support; | Name: | CNC Mortiser; |
| Applicable Industries: | Furniture Factory; | Key Selling Points: | High Productivity; |
Product Description

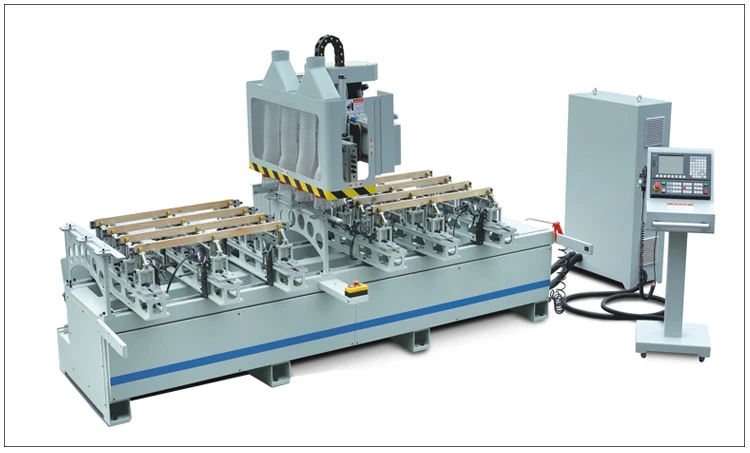

This machine adopts Numeric control system, double working position.

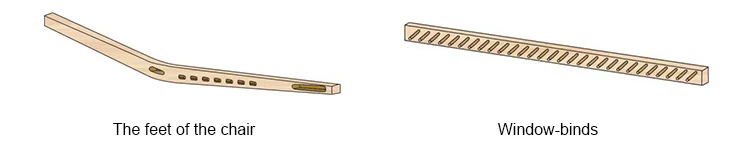

Professional solution: Make mortise, fit for mass production of making dinning table, chair and other solid wood furniture, etc.
Professional solution: Make mortise, fit for mass production of making dinning table, chair and other solid wood furniture, etc.
Max mortise width | 25mm |
Max mortise depth | 100mm |
X-axis route | 2800mm |
Y-axis route | 170mm |
Z-axis route | 200mm |
Qty. of milling head | 4 head |
Cutter dia. | Φ12.7mm |
Max. speed of milling spindle | 18000r/min |
Max. moving speed | 20m/min |
Motor power of milling spindle | 3.0×4kw |
Motor power for X-axis | 1.5kw |
Motor power for Y-axis | 1kw |
Motor power for Z-axis | 1kw |
Air source pressure | 0.4mpa |
Suction hood Dia. | Φ120×4mm |
Vacuum system air demand | 120m3/min |
Vacuum system air speed. | 30~40m/s |
Packing Specification | 3600×1640×2100mm |
Weight | 2200kg |
Outstanding characteristic:
1.X, Y, Z has adopts imported linear guide rail, ball screw, precision rack and helical gear. Three spindles linkage. The performance is stable and high precision.
2.X-axis adopts the planet gear speed reducer and the performance is stable and high precision.
3.X, Y, Z axes adopts servo drivers, the Z-axis is with brake which keep the stable performance and high precision.
4.Milling axes adopt the frequency variable motor with 18000r/min 3kw, imported converter. It is good for machining variety workpiece.
5.CNC control system and man-machine interactive are easy and efficient for operation.
1.X, Y, Z has adopts imported linear guide rail, ball screw, precision rack and helical gear. Three spindles linkage. The performance is stable and high precision.
2.X-axis adopts the planet gear speed reducer and the performance is stable and high precision.
3.X, Y, Z axes adopts servo drivers, the Z-axis is with brake which keep the stable performance and high precision.
4.Milling axes adopt the frequency variable motor with 18000r/min 3kw, imported converter. It is good for machining variety workpiece.
5.CNC control system and man-machine interactive are easy and efficient for operation.
