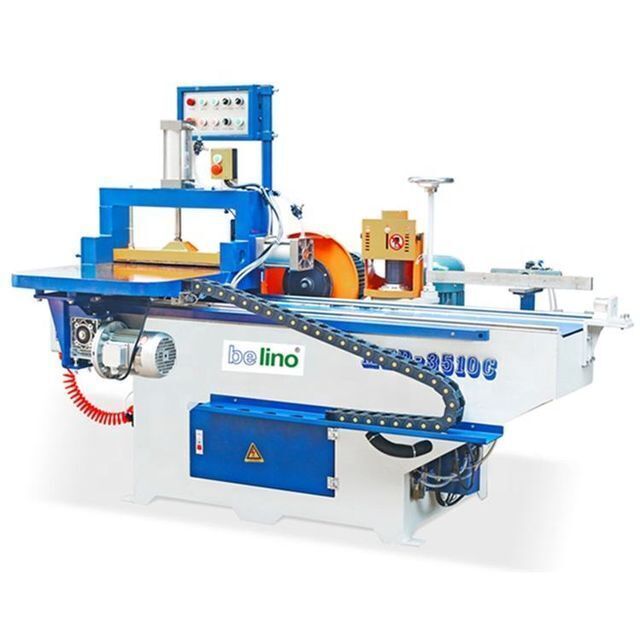

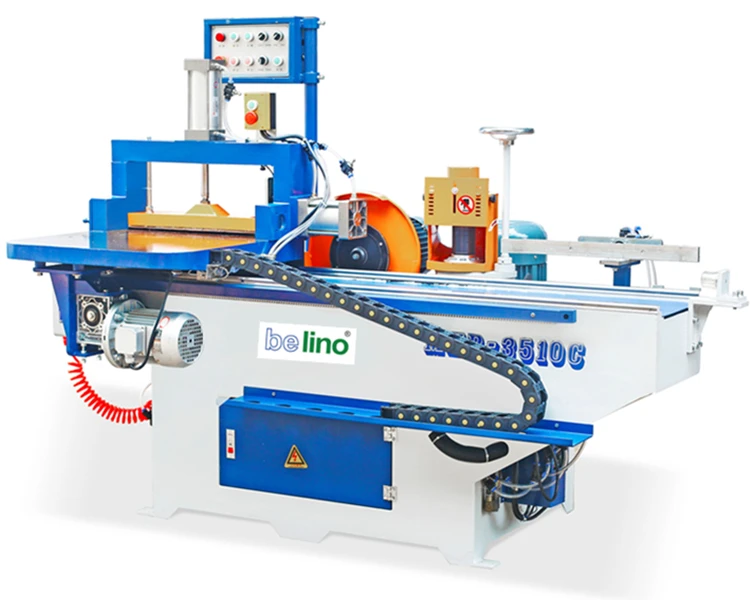

High quality comb tenon mortising machine for solid wood processing
- $3580.00 /set
- 1 set
- Guangdong Shunde Belino Machinery Co., Ltd.
- Guangdong, China
- Ms Belino Machinery
| Place of Origin: | Guangdong, China; | Condition: | New; |
| Video outgoing-inspection: | Provided; | Voltage: | 380V; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Warranty of core components: | 1 Year; |
| Max.Mortising Depth: | 120mm; | Max working width: | 450mm; |
| Machinery Test Report: | Provided; | Automatic Grade: | Automatic; |
| Supply Ability: | 50 Sets per Month; | Core Components: | PLC,Bearing; |
| Spindle speed: | 5500rpm; | After Warranty Service: | Online support; |
| Working desk size: | 680x650mm; | Main power: | 12.75kw; |
| Max working thickness: | 120mm; | Warranty: | 1 Year; |
| Brand Name: | belino; | Tooth length: | 12mm; |
| Dimension(L*W*H): | 2280X1400X1500mm; | Max diameter: | 305mm; |
| Local Service Location: | None; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ; |
| Drill Diameter: | 160mm; | Key Selling Points: | High Productivity; |
| After-sales Service Provided: | Online support; | Application: | make wood mortise; |
| Port: | Guangzhou,China; | Tooth diameter: | 160mm; |
| Weight: | 550kg; | Motor Speed: | 5700RPM; |
| Certification: | ce certificate; | Power: | 12.75kw; |
| Marketing Type: | Ordinary Product; | Showroom Location: | None; |
Comb tenon tenon machine, also known as comb machine, is mainly used for wood tenon operation, comb tenon tenon splicing, is an effective method of wood lengthening, this method can improve the utilization rate of wood, reduce the wave of resources, to achieve the short wood long with, the purpose of good wood.In addition, the plate made by connecting the finger with the edge is less deformed in the subsequent processing, and its performance is better than that of ordinary plate.Mainly used in the construction site wood splicing, construction wood splicing, wood splicing, daxing board production, rosewood splicing, miscellaneous wood splicing, I plant the MX3510A comb tenon tenon machine quality, compact structure, reasonable distribution, cheap, beautiful shape, better than other comb tenon tenon machine products
| Code | MX-B3510C |
| Maximum Processing width | 480mm |
| Maximum processing thickness | 120mm |
| Tooth diameter | 160mm |
| Maximum diameter of saw blade | 305mm |
| Tooth length | 12mm |
| Working desk size | 680X650mm |
| Spindle speed | 5700RPM |
| Install total power | 12.75kw |
| Weight | 550kgs |
