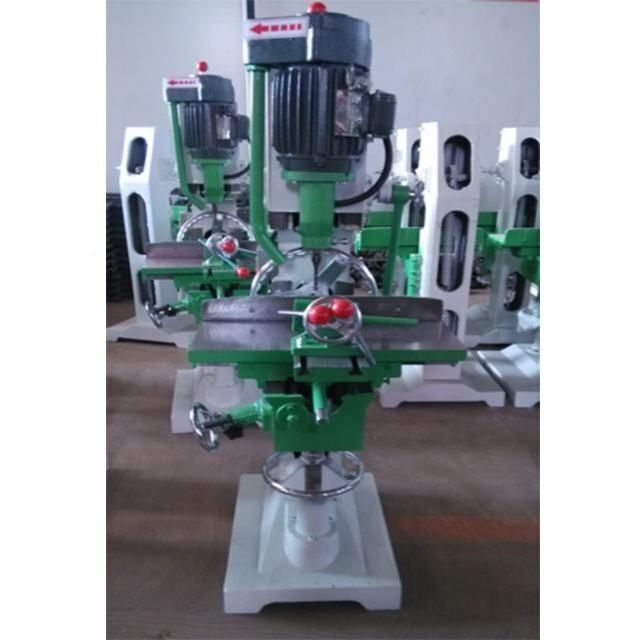

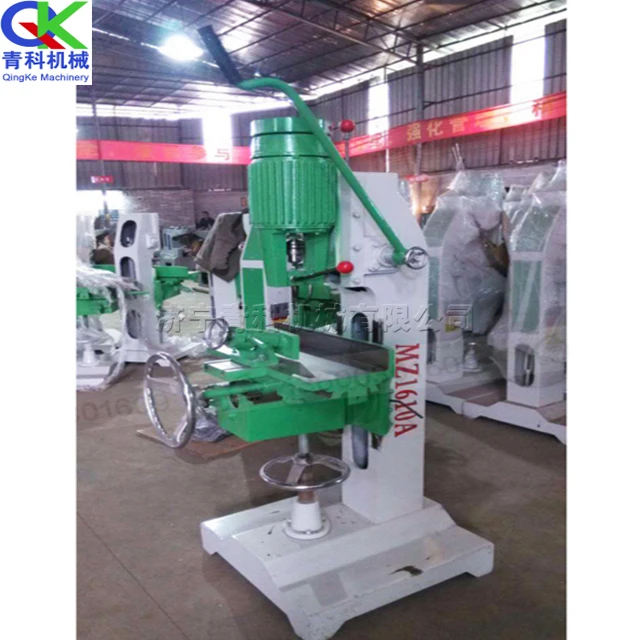

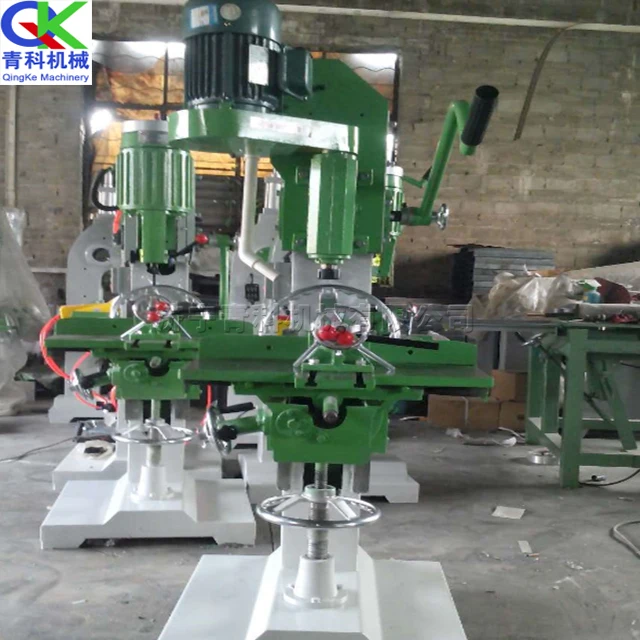

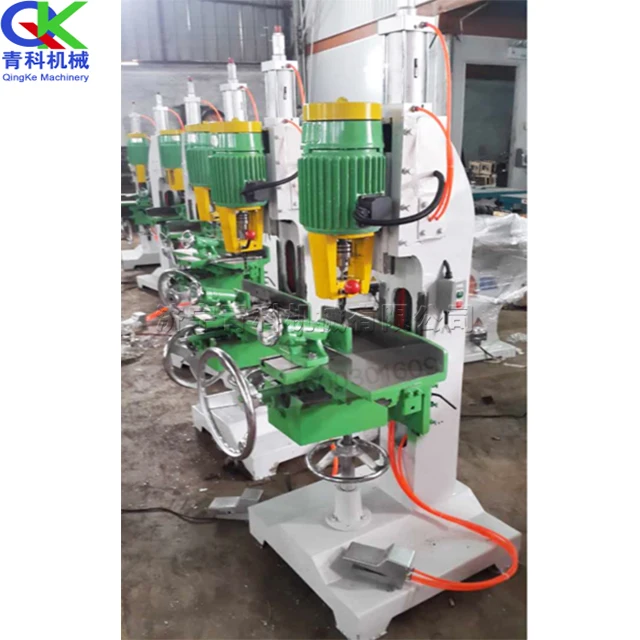

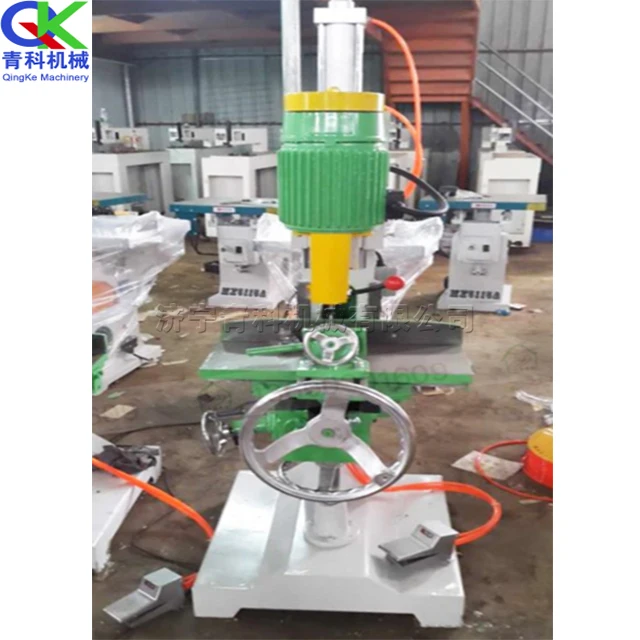

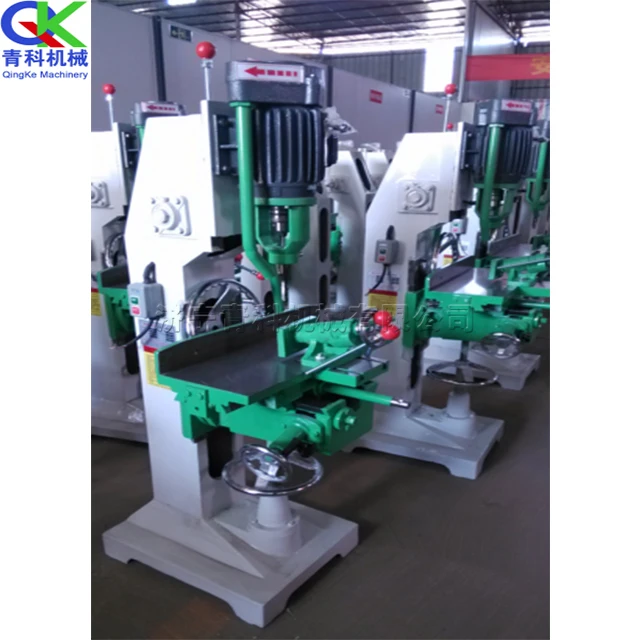

Solid wood furniture Classical furniture Square hole drill Drilling machine Tenoning Mortise
- $590.00 / 1 - 4 pieces
$570.00 / 5 - 9 pieces
$550.00 / >=10 pieces - 1 piece
- Jining Qingke Machinery Co., Ltd.
- Shandong, China
- Mr Ethan Liu
| Local Service Location: | None; | Key Selling Points: | Long Service Life; |
| Application: | A wide range of; | Port: | QINGDAO PORT; |
| The table tilts left and right: | 0-30°; | Maximum mortise depth: | 110mm; |
| Brand Name: | qingke; | Power: | 2.2kw; |
| External dimension: | 500X530x1500mm; | After Warranty Service: | Online support; |
| After-sales Service Provided: | Online support; | Dimension(L*W*H): | 500X530x1500mm; |
| Motor Speed: | 2840r/min; | Core Components: | Motor,Gear; |
| Power Supply: | 220v-380v Optional; | Maximum tenon size: | 200*25.4mm; |
| Warranty: | 1 Year; | Showroom Location: | None; |
| Condition: | New; | Warranty of core components: | 1 Year; |
| Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company; | Automatic Grade: | Manual; |
| Horizontal travel of the table: | 450mm; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Marketing Type: | New Product 2021; | Motor power: | 2.2kw; |
| Longitudinal stroke of worktable: | 150mm; | Video outgoing-inspection: | Provided; |
| Machinery Test Report: | Provided; | Diameter of drill shank: | 1-13mm; |
| Spindle speed: | 2840r/min; | Place of Origin: | Shandong, China; |
| Drill Diameter: | 110mm; | Voltage: | 380v/220v Optional; |
| Supply Ability: | 400 Cases per Day; |
Solid wood furniture Classical furniture Square hole drill Drilling machine Tenoning Mortise
Purpose: This machine is mainly used for drilling mortise on wood. It is a kind of woodworking machine which not only retains the traditional furniture production process, but also can carry out mechanized production efficiently. This machine can easily make a variety of round / oval / square mortise. It is a rare advanced machine for making solid wood furniture and classical furniture. This machine has reasonable design, excellent manufacture, generous shape, beautiful and practical, fashionable and pleasing to the eye.
Features: the worktable of this machine is easy to adjust and equipped with a quick clamping device, which can bring great convenience to your work. The front and rear feed transmission system of the hand wheel is flexible and stable, and the motor power is large. This machine is also equipped with energy storage inertia wheel, which makes the drilling force stronger and the work efficiency faster.
|
Horizontal travel of the table |
450mm |
|
Longitudinal stroke of worktable |
150mm |
|
The table tilts left and right |
0-30° |
|
Motor power |
2.2KW |
|
Spindle speed |
2840r/min |
|
Power Supply |
380V/220V Optional |
|
Diameter of drill shank |
1-13mm |
|
Maximum tenon size |
200*25.4mm |
|
Maximum mortise depth |
110mm |
|
External dimension |
500X530x1500mm |
1. 24 hours on line service, support Chinese, English, Spanish, French, German, Russian ,technical guidance.
2. When meets machine failure problem, our factory will ensure that the problem is solved within 1 hour.
3. Povide machine install video.
4. Provide logistics information, like shipping by sea, shipping by express DHL, FEDEX delivery, real-time tracking service.
5. If machine is broken ,Non-human causes,the new machine will be provided or new parts will be provided.
Jining Qingke Machinery Co., Ltd established in July 29, 2015, registered capital of 5 million.This is our new branch. Our factory has 6 years history. We have CNC machining center, CNC,lathe, boring machine, and milling machine.
Main products: square steel blanking machine , Bending machines, Straightening machines, Steel arc bending machine, Ground polishing machines, Terrazzo machines, Solar water pump, Garden Machinery(including tree spade & lawn mower), Construction machinery and accessories, Road marking and Mining equipment, Mining tools and so on.
We have passed the ISO9001:2000 certification. Our products have been exported to Europe, Russia, south America, Africa & the Middle East, more than 20 countries. We sincerely hope to have the opportunity to co-operate with you.
Are you manufacture?
Yes. We are one of leading manufacturers
Do youhave Stockproductions to sell?
Yes,ofcourse.Butwe also offer OEM service. Please send us some drawing.
What information do you want to know if i want to get a quotation?
a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.
Do you inspect the finished products?
Yes.Each step of products will be carried out inspection by QC department until shipping
What advantages do you have?
(1) Punctual: Have your orders met with the latest delivery?
We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production schedual for punctual delivery.
(2) 20year production experience. We have over 20 years exprerience in this industry.
That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad situation to happen.
(3) Point to point service.
There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him for all the problems and the way sames much times
