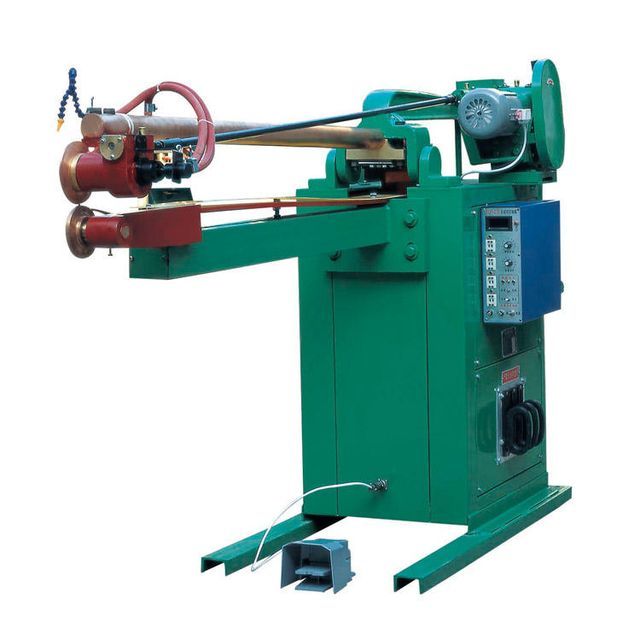

HVAC duct longitudinal seam straight seam welding machine

  • $3000.00 / 1 - 1 sets
    $800.00 / >=2 sets
  • 1 set
  • Bobo Machine Co., Ltd.
  • Jiangsu, China
  • Mr Sotu Zhu
PRODUCT DETAIL
Forming time:3-5 secondsWire diameter:2.0mm-2.5mm
Mechanical test report:ifVideo outbound inspection:if
aspect:2.6m*0.9m*1.3musage:Air duct seam welding machine
Packaging Details:HVAC Duct Longitudinal Seam Welder Price (by Wooden Package)payment terms:L/C, Western Union, D/A, T/T, MoneyGram, HVAC Duct Longitudinal Seam Welder Price
Origin:Jiangsu, ChinaArm length:1000mm
brand:BoboSupply capacity:Price of 4 HVAC duct seam welders per month
Core components:engineWarranty:1 year
weight:800 kgMaterial Thickness:1.2mm
After Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair servicesCore component warranty:1 year
After-sales service provided:Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical supportport:HVAC air duct longitudinal seam welding machine price Shanghai delivery
Welding method:seam weldingHealth status:new
Showroom location:not anyWelding materials:thin galvanized sheet
Welding direction:horizontal and verticalLocal service locations:not any
air flow:250 l/minstrength:4 kW
Function:Stitch welding / seam weldingApplicable industries:manufacturing plant
Weld diameter:1250 mmWeight (kg):800 kg
aspect:1.0+1.0mmCertification:EU CE certification
Voltage:220V/380V/440V/480VMarketing Type:2020 New Products
Product Description

Applications

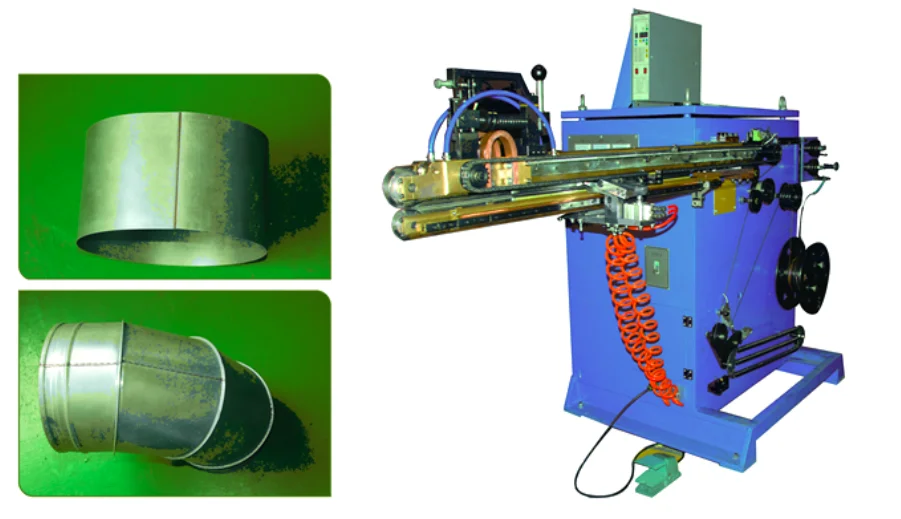

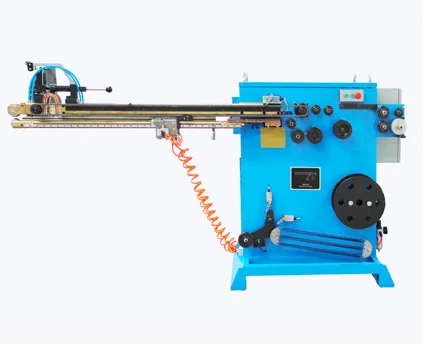

This machine is a semi-automatic seam welder, specially designed for welding circular air ducts/pipes/barrels in a large diameter range. This machine is based on the seam welding machine, the electrode arm is extended, and it is a special machine for welding HVAC pipes. Adopt PLC control, easy to operate.

25 ton crawler excavator specifications

strength
strength
kilowatt
4
Air consumption
l/min
250
cooling water flow
l/min
8.5

Main performance parameters
material thickness
Tin, base iron≤1.2mm
Galvanized sheet≤1mm
pipe size
mm
100-1000
maximum. Gradeability
Rotating speed
11.3
other
Cooling water temperature

≤25
aspect
mm
2.6m×0.9m×1.3m
air pressure
MPa
0.5

main feature

☆ Large diameter range: 80mm~1000mm (5"~59")

☆ High production efficiency
☆ Adopt double wire technology, good welding quality
☆ Reasonable structure and simple maintenance: compact structure; welding electrode and main transmission mechanism are easy to assemble.
☆ Quickly change the diameter of the welded pipe
☆ PLC and frequency converter control welding speed and stitch welding pitch
