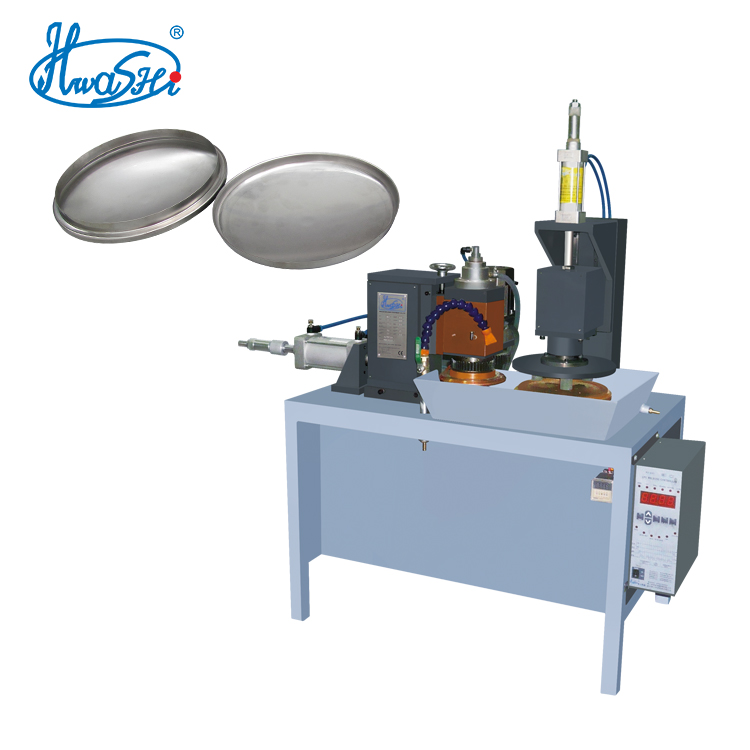

HWASHI double-layer circular plate circular seam welding machine
- $8000.00 /set
- 1 set
- Guangdong Hwashi Technology Inc.
- Guangdong, China
- Ms Kary Hou
| Showroom location: | not any | Rated air pressure: | 0.8 MPa |
| Welding wheel width: | 3-5 mm | Local service locations: | USA, Brazil, India, Russia, Uzbekistan |
| Maximum Secondary Circuit Current: | 38000A | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Applicable industries: | Building material stores, machine repair shops, manufacturing plants, construction projects | Video outbound inspection: | if |
| usage: | Air Funnel Welding | aspect: | Length 1900*Width 800*Depth 1750mm |
| Voltage: | Three-phase 380V±10% 50Hz | Warranty: | 1 year |
| Health status: | new | Core components: | PLC, engine, pressure vessel, gear |
| port: | Shenzhen Port | Supply capacity: | 50 sets per month |
| Welding wheel diameter: | 100-120 mm | Forming time: | less than 20 seconds |
| After-sales service provided: | Engineers available to repair machinery overseas, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical support | Rated duty cycle: | 25% |
| payment terms: | L/C, T/T, MoneyGram | Marketing Type: | New Products for 2021 |
| Certification: | CCC and CE | Origin: | Guangdong, China |
| Weld diameter: | 8mm | Welding wheel speed: | 1800-4000mm/min adjustable |
| Cooling water consumption: | 1000 liters/hour | Weight (kg): | 480 kg |
| Main selling points: | Well-known brand PLC | Welding method: | resistance seam welding |
| Mechanical test report: | if | brand: | Fahrenheit |
| Maximum Secondary Float Voltage: | 9.5VAC | Insulation class of welding transformer: | f |
| Core component warranty: | 1 year | Packaging Details: | Ordinary wood packaging, advanced wood packaging |
Seam (roll) welding machine is the evolution of spot welding machine. It uses a roller electrode instead of a cylindrical electrode for spot welding. When the welding workpiece moves between the rolling plates, the sealing welding will produce overlapping welding spots, so as to achieve the welding effect. AC pulse current is used. Seam welding is widely used in thin-wall welding of sealed containers such as oil drums, cans, radiators, aircraft, fuel tanks, rockets, and missiles.
feature
1. The machine has reasonable design, beautiful appearance and stable welding performance.
2. Adopt intelligent microcomputer controller, which can set various welding specifications. Multi-stage power-on mode, with soft start welding and end welding functions, adopts secondary constant current feedback control mode, automatically compensates when the voltage is unstable, and ensures stable welding current.
3. Adopting high-power welding transformer and all-round water cooling, it can efficiently complete the welding of different types of products and ensure the welding quality.
4. This welding machine is widely applicable to various stainless steel products, and can realize one machine with multiple functions.
Machine composition:
main body:The specially designed reinforced steel structure is adopted as the main body. Vertical structure, strong and stable, equipped with slideway and all-round water adding device. The bottom welding electrode is used to hold the barrel to help hold the mold and weld.
Energy source:The special transformer energy source for AC or intermediate frequency DC resistance welding can be used as the welding power source. The standard GB/15578-2008 is implemented, and the magnetic permeability of the forced temperature-controlled water-cooled silicon steel sheet reaches above 1200GS. The special water-cooled and secondary circuit ensures that the welding current is constant and strong, and provides a guarantee for high-quality solder joints.
Welding control system:It adopts intelligent microcomputer to quickly respond to the touch controller, fully digital control, and the operation interface is simple and clear. Automatic detection and compensation, to ensure that the machine will only work when the current value is within the preset data, to ensure the stability of the welding effect, and effectively prevent loose welding, virtual welding and other bad phenomena. The characteristics of fast response and high control precision can help you obtain high-quality solder joints.
Welding electrode:The conductive part adopts copper embedded electrodes with superior conductivity. Welding electrodes are made of high hardness beryllium copper cobalt. The diameter of the welding wheel can be designed according to the position of the welding seam, ranging from 100mm to 300mm.
Rotary feeder:Using high-power electric motor as power. The rotational speed is controlled by a reduction pressure box and a frequency sensor. Large capacity, simple and convenient adjustment.
Conductive system:The traditional silver tile conductive device is adopted. Transmission friction and contact resistance are large. Poor electrical conductivity and high maintenance costs. The transmission device adopts German technology. Mercury is used as the conductive medium, and a special air lock device is used as the connection between the transmission shaft and the base. Good transmission performance and electrical conductivity. Effectively avoid the cumbersome maintenance of the transmission mode. The welding wheel is made of Japanese alloy copper, which has high rigidity and good conductivity.
cooling method:The circulating cooling water system is equipped with cooling water filter and shunt to ensure that the temperature of transformers, thyristors, welding clamps, electrodes and other high-current heating components will not exceed the standard for 20 hours of continuous operation. The machine is also equipped with a temperature control alarm device.
Welding starts:Use pedal to start. Easy to operate.
The whole machine and electrodes are easy to disassemble and maintain. Circuits, air circuits, and water circuits are marked clearly and clearly. The wires are arranged neatly and beautifully.

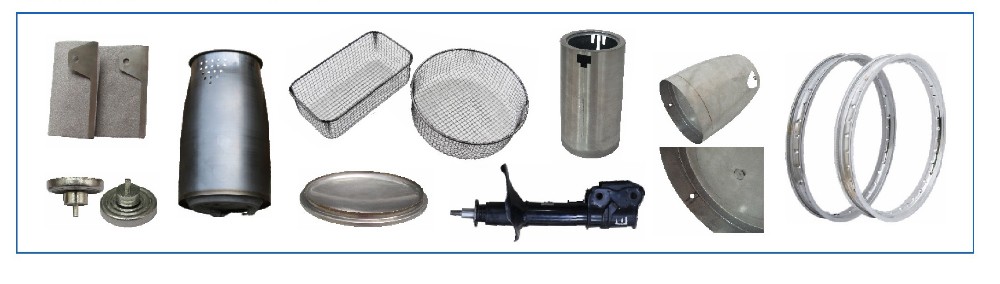

sample image
