Welding tank circular seam welding machine
- $6000.00 / 1 - 9 sets
$1900.00 / >=10 sets - 1 set
- Shandong Kasry Intelligent Equipment Co., Ltd.
- Shandong, China
- Ms Amy Liu
PRODUCT DETAIL
| Power (kW): | 11 | Video shipment inspection: | if |
| payment terms: | L/C, T/T | Core components: | PLC, gearbox, motor |
| Origin: | Shandong China | product name: | Circular seam welding machine |
| color: | blue | Key words: | seam welder |
| brand: | Kerry | Main selling points: | high security level |
| Mechanical test report: | not available | Welding method: | Argon arc welding |
| After warranty service: | Video Technical Support | Warranty: | 12 months |
| Showroom location: | not any | Core component warranty: | 1 year |
| Weight (kg): | 600 kg | Voltage: | 220 volts |
| Forming time: | / | Marketing Type: | New Products 2020 |
| usage: | welding | Health status: | new |
| aspect: | 370*140*300mm | port: | Qingdao Port |
| Weld diameter: | / | Applicable industries: | Clothing store, building material store, manufacturing plant, construction project |
Product Description

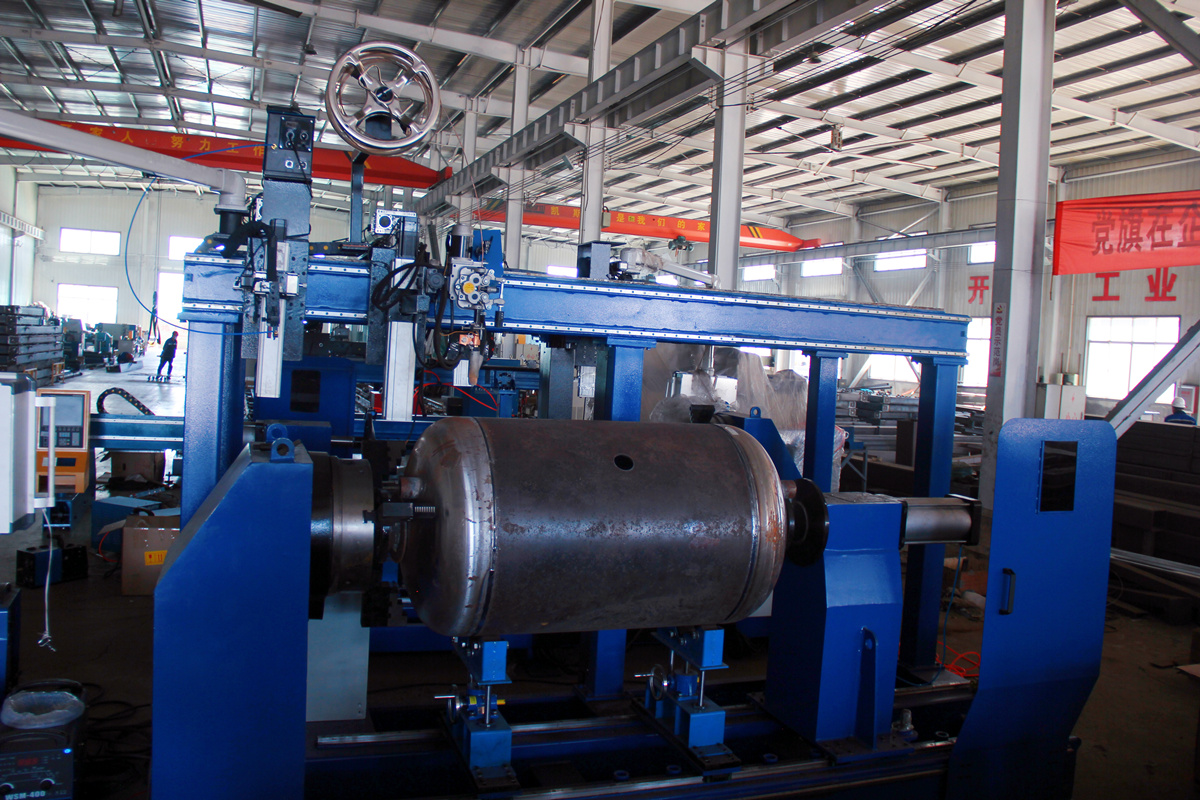

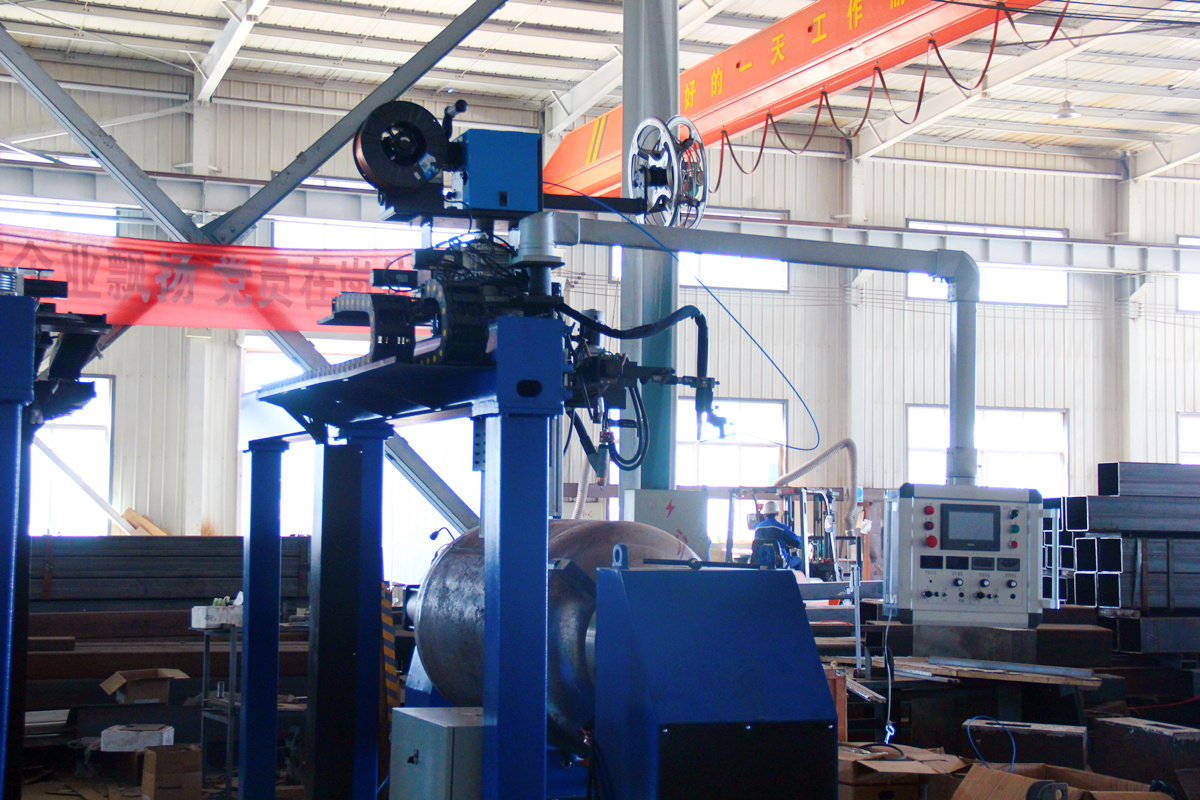

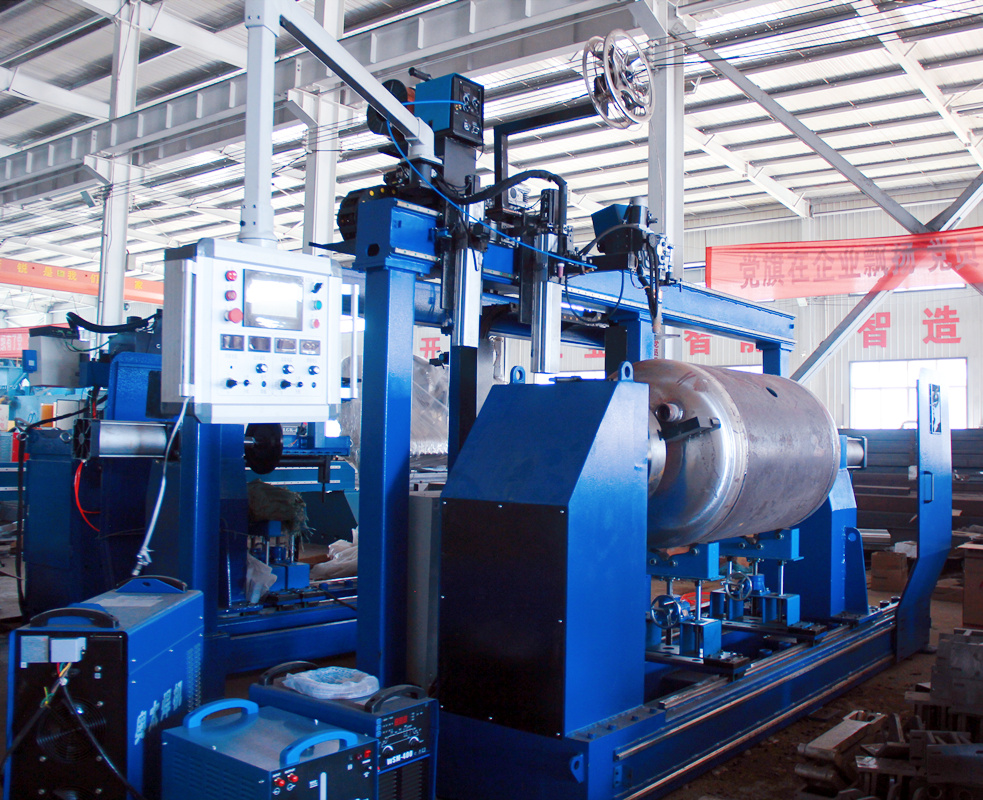

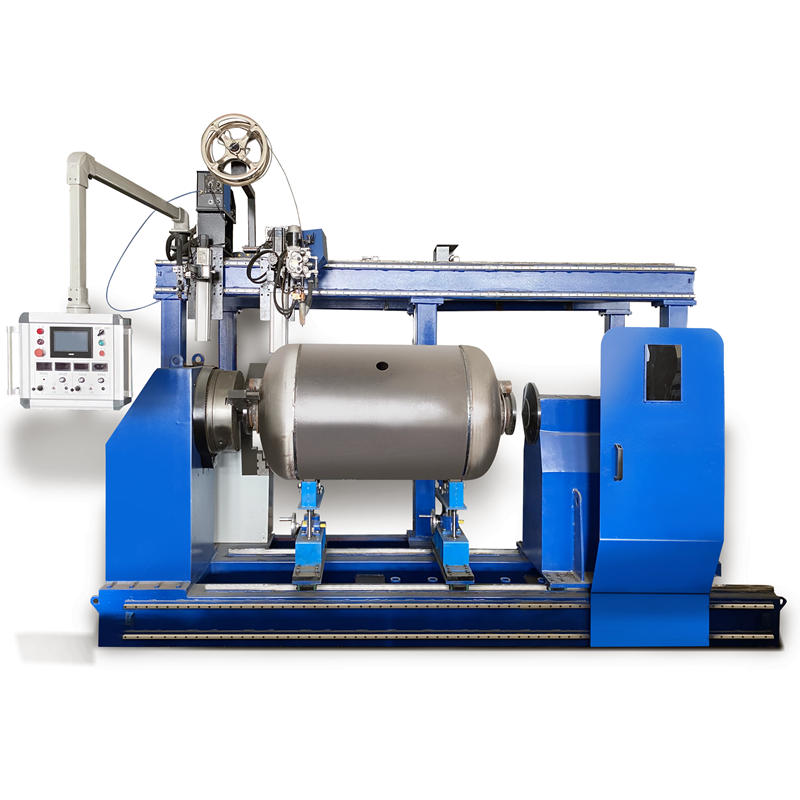

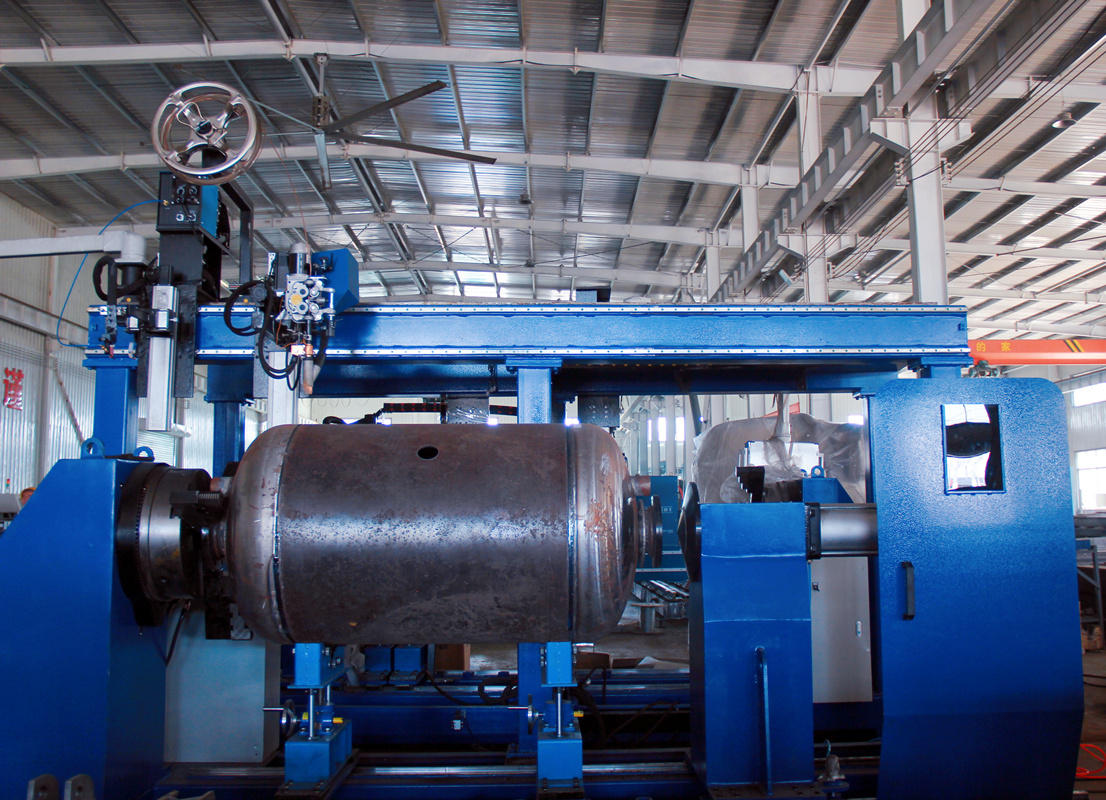

Welding Tank Circular Seam Welding Machine
Karui seam welding machine adopts three-phase frequency conversion drive, the welding speed is uniform, easy to adjust and stable. Longitudinal seaming machine has two forms of coating welding and welding. Karui seam welding machine is widely used in hardware, electrical appliances, automobiles, tanks and other manufacturing industries. It is most suitable for welding low-carbon steel, stainless steel bowls, barrels, thin-walled boxes and other airtight containers.
Advantages of turning machine
1. The welding gun is fixed, the workpiece is rotated, and the welding position is horizontal. One end of the workpiece is clamped by the power head
and rotate
2. Two welding torches and two power sources work at the same time to improve work efficiency.

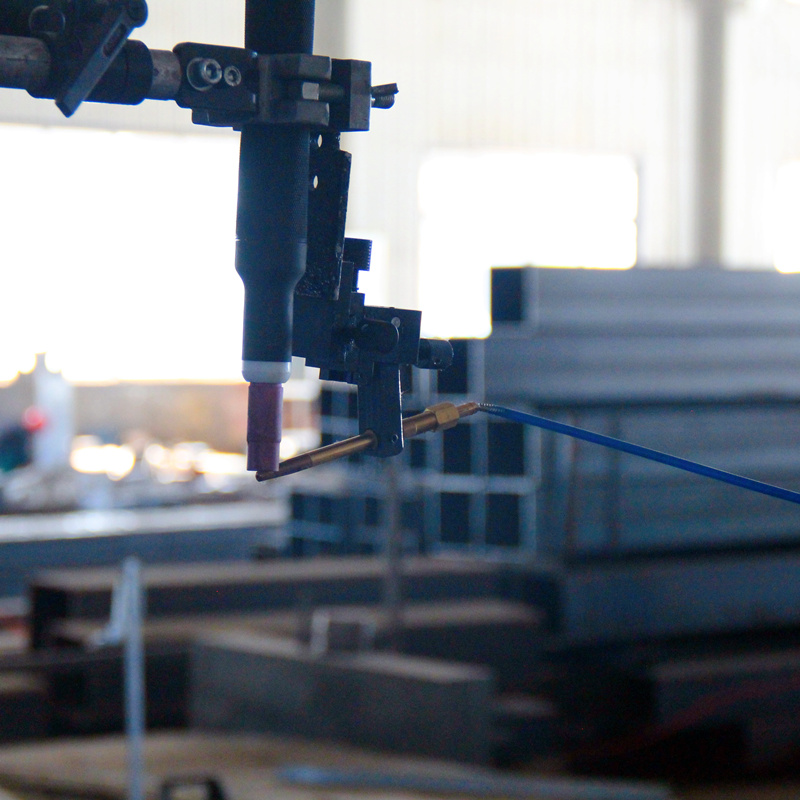

3. Welding torch, headstock and tailstock can be adjusted vertically to adapt to various welding.
4. Adopt Japanese Omron PLC to control the operation of the machine, and AC servo speed regulation to improve reliability
equipment.
5. Adopt end face positioning and pneumatic clamping method.
6. Use man-machine interface to modify parameters. The welding time and welding length can be set through this interface. this
Parameter changes can be input through touch keys, which is convenient and timely. Parameters can be stored and recalled.
and rotate
2. Two welding torches and two power sources work at the same time to improve work efficiency.
3. Welding torch, headstock and tailstock can be adjusted vertically to adapt to various welding.
4. Adopt Japanese Omron PLC to control the operation of the machine, and AC servo speed regulation to improve reliability
equipment.
5. Adopt end face positioning and pneumatic clamping method.
6. Use man-machine interface to modify parameters. The welding time and welding length can be set through this interface. this
Parameter changes can be input through touch keys, which is convenient and timely. Parameters can be stored and recalled.

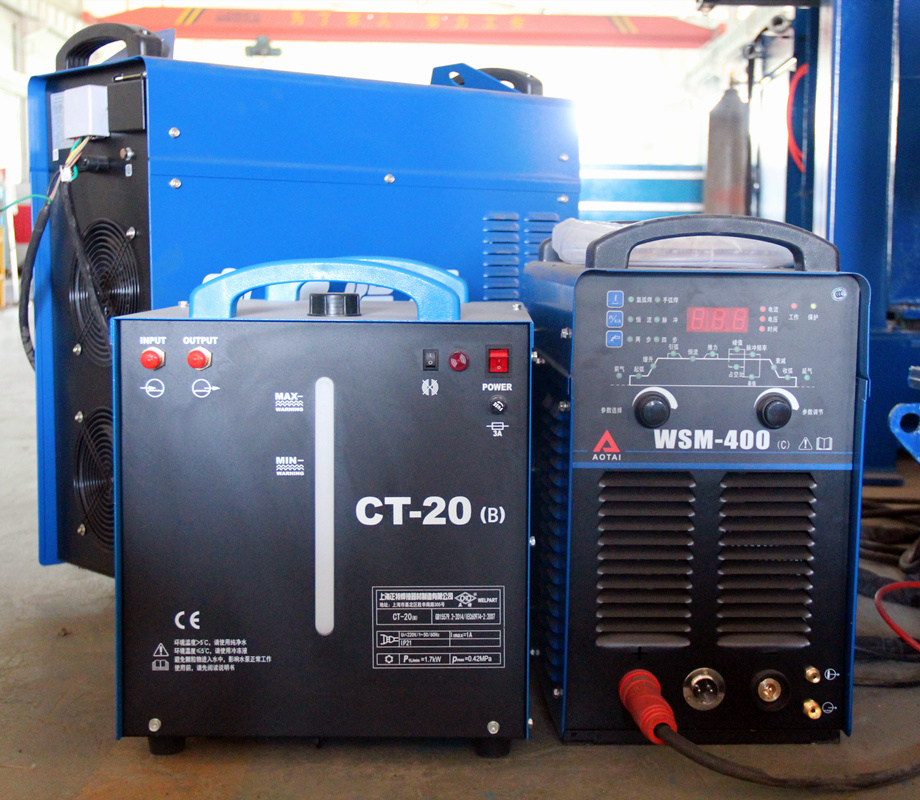

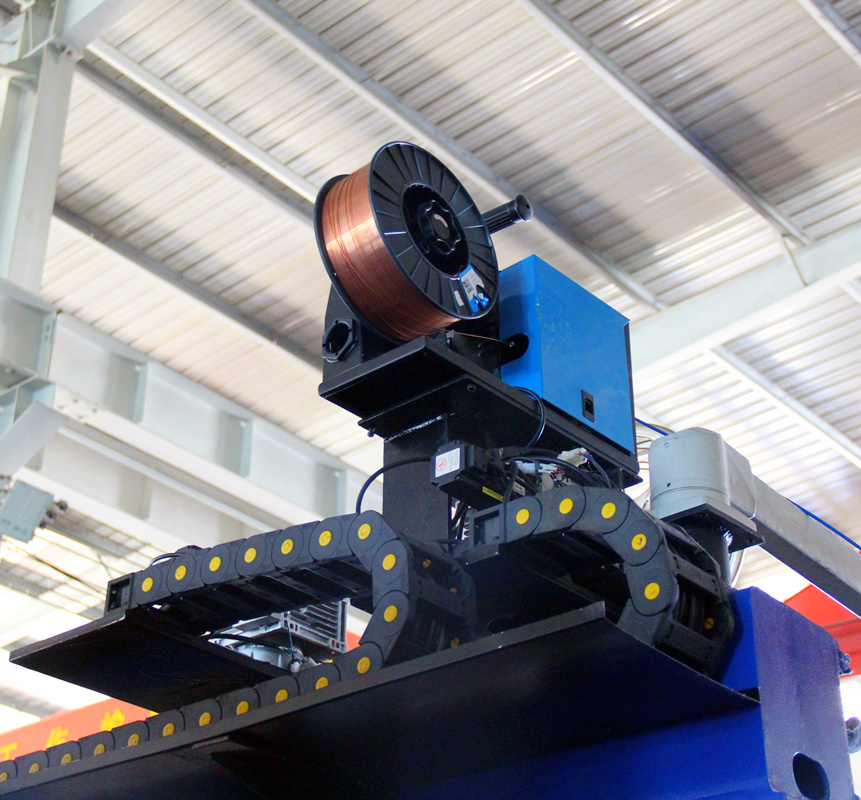

welding power source

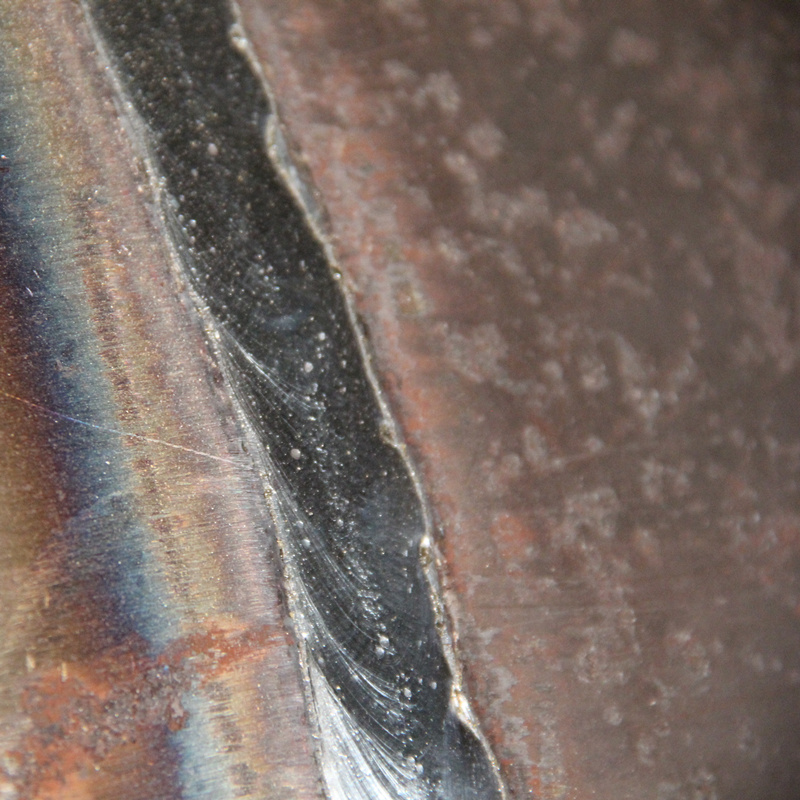

It is mainly used for automatic welding of hydraulic cylinder ring seam. Ensure that the welding specifications are uniform and the weld appearance is good and uniform. It is convenient and reliable to use, and the welding quality meets the requirements.
detailed image
Applicable diameter | 200mm-800mm |
Applicable length | 2000mm |
Material | stainless steel, carbon steel |
thickness | 1mm-3mm |
spinning speed | 0.2-2rpm |
Motor Power | 0.55KW |
Torch moving range left and right | 100mm |
Welding torch lifting range | 100mm |
Torch moving range | 50mm |

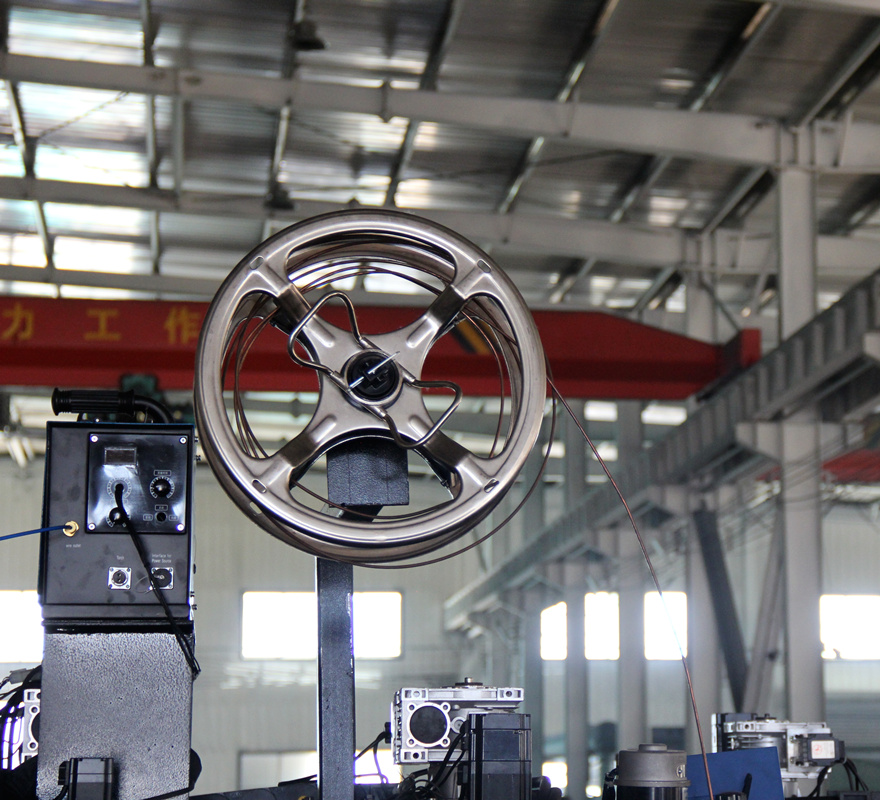

Solid Wire Diameter | 1.0mm & 1.2mm |
Size Information
Technical Parameters
thing | Name | Specification | unit | notes |
1 | Machine size | 2730*330*1300 | mm | user customization |
2 | Motor Power | 2.2*2 | kilowatt | |
3 | Eccentricity | 200 | mm | |
4 | energy source | 380 | V | |
5 | Strap length | 8m*2 | m/piece | custom made |
6 | insurance factor | 1.2 | Second-rate | |
7 | remote control battery | 7#*2 | pieces | |
8 | flip angle | 360° | degree | |
9 | welded chain | D14X42 | ||
10 | Minimum breaking force | 254 | KN |
