steel structure processing machine CNC pipe and tube cutting drilling machine plasma cutting machine
- $26000.00 / 1 - 49 sets
$19000.00 / 50 - 99 sets
$8900.00 / >=100 sets - 1 set
- Shandong Kasry Intelligent Equipment Co., Ltd.
- Shandong, China
- Ms Amy Liu
| Product name: | pipe plasma gas cutting machine tube cutter; | Key Selling Points: | Automatic; |
| Packaging Detail: | standard packing; | Showroom Location: | United States,UAE; |
| Control system: | KASRY Control System with software; | Supply Ability: | 16 Set/Sets per Month cnc plasm cutting machine pipe; |
| Condition: | New; | Core Components: | cnc; |
| Machinery Test Report: | Provided; | Cutting material: | pipe /profiles; |
| Applicable Industries: | Building Material Shops,Manufacturing Plant,Construction works ; | Certification: | CE ISO; |
| Warranty of core components: | 3 years; | Voltage: | Customized; |
| Warranty: | 2 years; | After-sales Service Provided: | Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support; |
| Marketing Type: | Hot Product 2019; | Payment Terms: | L/C,T/T; |
| Port: | qingdao; | Dimension(L*W*H): | 1700*900*1400mm; |
| cutting pipe shape: | round pipe/square pipe/oval pipe; | Application industry: | steel structure / gas&oil pipeline/offshore engineering/vessel; |
| Place of Origin: | China; | Type: | CNC Plasma Cutters; |
| Cutting thickness: | 0-30mm depend on plasma power; | Local Service Location: | Thailand,UAE; |
| Weight: | 10000KG; | Brand Name: | KASRY; |
| Rated Power: | 7.5kw; | Video outgoing-inspection: | Provided; |
| After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Cutting mode: | Oxy-fuel(flame) / plasma; |
| Machine type: | CNC pipe cutting machine; |
steel structure area processing machine CNC pipe and beam H cutting and drilling
Brief introduction:

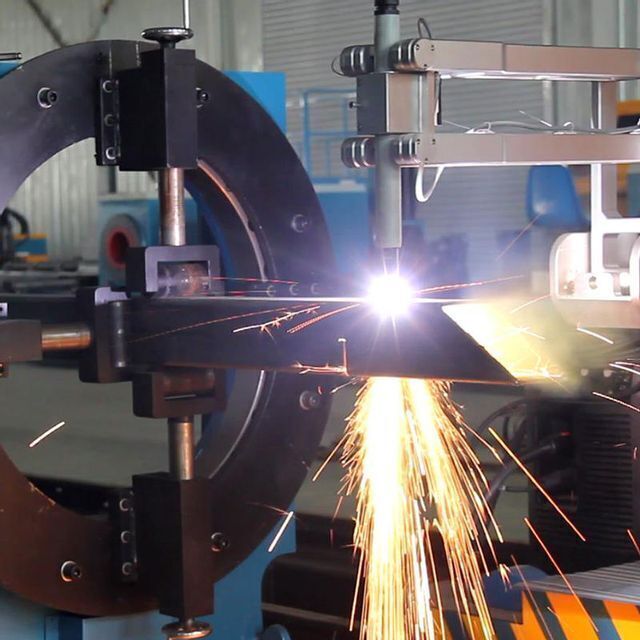

Pipe CNC cutting machine for steel pipe. It can cut carbon steel, stainless and other material are widely used in pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries.
Features:
1,adopt welding platform, heavy rail and improve the overall bearing weight, humane design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy.
2,independent research development to optimize CNC pipe systems, auto CAD version of the engineering design can generate standard G code directly, three-dimensional simulation of the operation, node expansion, long split pipe, fittings optimization, oversized EGES DXF SAT and STL software compatibility and lifetime free upgrade process can be modified according to user needs
3,taiwan’s Advantech industrial computer can be programmed directly on the machine. Using menu-select input cutting parameters such as diameter, wall thickness, bevel angle deviation compensation data. By KASRY professional pipe cutting applications for a seamless connection.
Data:
|
Mode |
Pipe CNC cutting machine(3 to 6 axis) |
|
Cutting range |
6m 9m 12m( customized ) |
|
Machine size |
7800*1800*1650mm( customized ) |
|
Cutting method |
Flame/plasma |
|
Flame cutting speed |
20—700mm/min |
|
Plasma cutting speed |
20—4000mm/min |
|
Control system |
Advantech industrial computer |
|
Plasma Max. hole thickness |
14mm |
|
Plasma Max. edge cutting thickness |
18mm |
|
Plasma torch crash protect system |
yes |
|
Driving mode |
servo |
|
software |
KASRY pipe apply software |
|
Working condition |
|
|
Working pressure of compressed gas |
Above 7mpa |
|
Required gas flow of plasma |
4500L/H |
|
Working place |
Ventilation, no concussion |
|
Power wattage |
5KW |
|
Types of gas |
Acetylene propane |
Why choose us?
We are a manufacturer specialized in CNC plate/ pipe/ profiles H-beam, Channel, Angel cutting machines.
Widely used in steel structure, pipe truss, building, bridge, gas&oil pipeline offshore engineering vessel etc.
