Hardened Chrome Steel Ball AISI52100 100cr6 cr15 0.5-50.8mm for high speed and low noise
- $780.00 /piece
- 1 piece
- Feicheng City Tianyuan Industry &Trade Co., Ltd.
- Shandong, China
- Ms Tianyuan TY
| brand: | Liang Jingjing; | model: | 0.5-50.8mm; |
| Material: | chrome steel; | Certificate: | ISO9001:2015, RoHs, MSDS; |
| Packaging Preview: | ; | product name: | Chrome steel ball; |
| size: | 0.5-50.8mm; | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Advertising Agencies, bearing; |
| Pay: | Telegraphic transfer, letter of credit, trade assurance; | Gross weight per piece: | 10.000 kg; |
| place of origin; place of origin: | Shandong China; | pack: | Wooden boxes, steel drums, cartons; |
| surface: | shine; | Single package size: | 19X18.5X0.8 cm; |
| Packaging Details: | Steel ball packing: 1. Standard export packing: 4 boxes/carton plastic bags, woven bags, pallets are available. 2. Steel drums (1000kg per barrel) 3. High-quality special plastic woven bags 4. We also pack products completely according to customer requirements. | Minimum order quantity: | 1; |
| color: | silver; | application: | bearing; |
| Sales unit: | single item; |
AISI52100 100cr6 cr15 0.5-50.8mm hardened chrome steel ball for high speed and low noise bearing

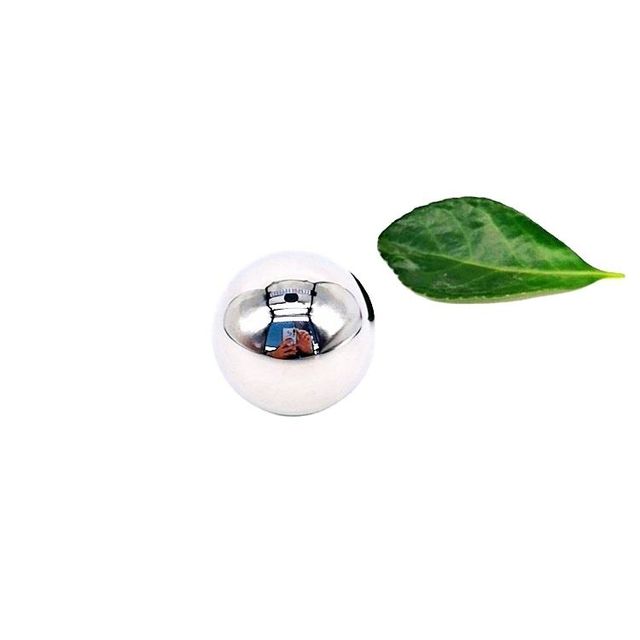

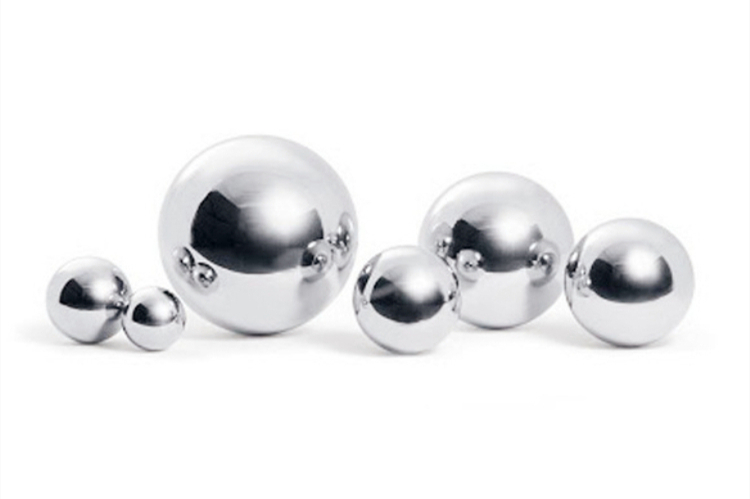

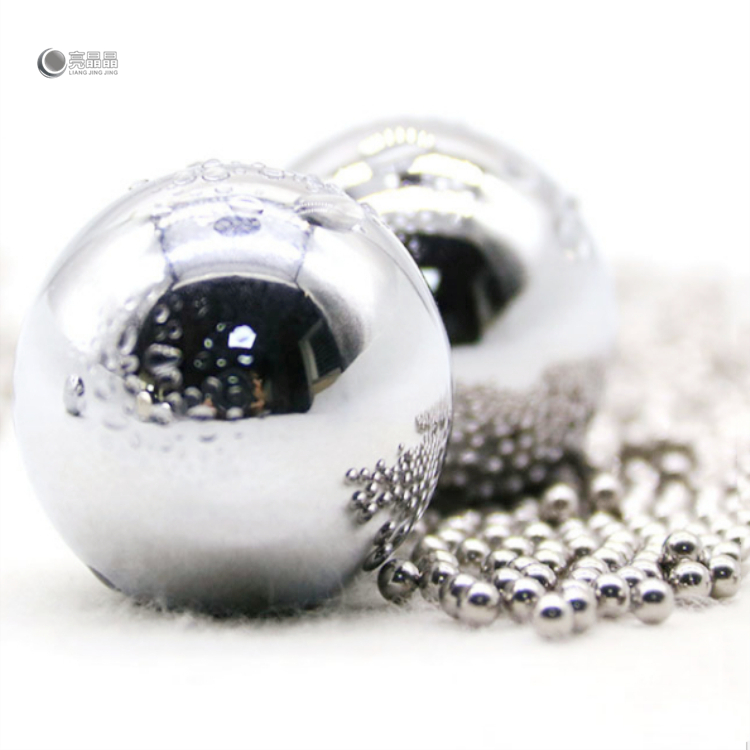

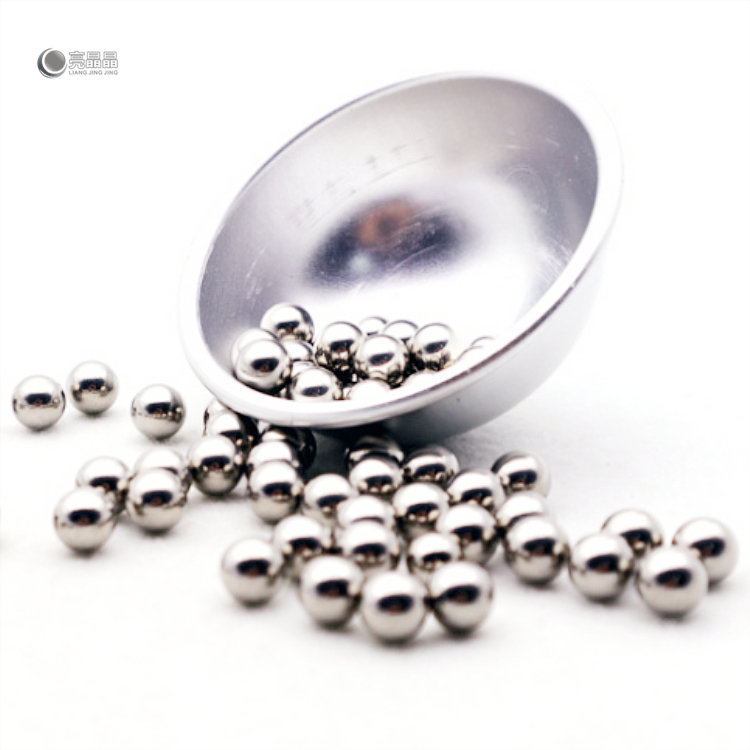

Chrome steel ball
Chrome steel ballIt is a kind of high carbon chromium bearing steel with less alloy content, good performance and the most widely used. They exhibit excellent hardness, wear resistance, very good surface finish and dimensional stability. The steel has the characteristics of medium plasticity, low cutting performance, poor welding performance, high sensitivity to white spot, and high temper brittleness.
|
grade |
Vdws(≤) |
Sph(≤) |
Pull (≤) |
Vdwl(≤) |
Tdn(≤) |
|
10 |
0.25 microns |
0.25 microns |
0.025um |
0.5um |
- |
|
16 |
0.4um |
0.4um |
0.032um |
0.8um |
- |
|
20 |
0.5um |
0.5um |
0.04um |
1 micron |
- |
|
28 |
0.7um |
0.7um |
0.05um |
1.4 microns |
- |
|
40 |
1.0um |
1.0um |
0.08um |
2 microns |
- |
|
60 |
1.5um |
1.5um |
0.10 microns |
3 microns |
- |
|
100 |
2.5 microns |
2.5 microns |
0.125um |
5 microns |
±12.5um |
|
200 |
5 microns |
5 microns |
0.2um |
10 microns |
±25um |
|
500 |
13 microns |
13 microns |
- |
25 microns |
±50um |
|
1000 |
25 microns |
25 microns |
- |
50 microns |
±125um |
Excellent characteristics of bearing steel balls:
1) High contact fatigue strength,
2) After heat treatment, it should have a higher hardness or a hardness that can meet the performance requirements of the bearing.
3) High wear resistance, low friction coefficient,
4) High elastic limit,
5) Good impact toughness and fracture toughness,
6) Good dimensional stability,
7) Good anti-rust performance,
8) Good cold and hot processing properties.

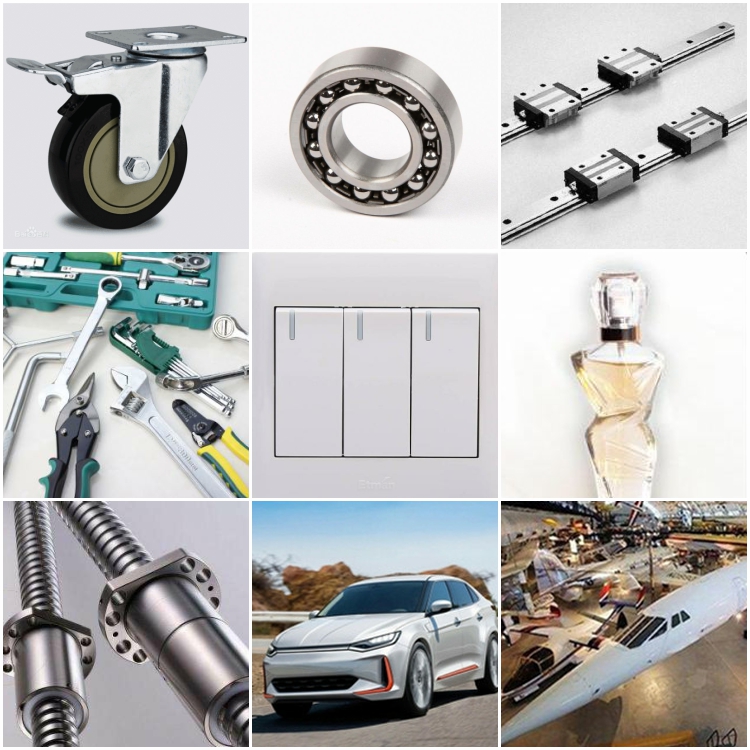

in ball bearings
Suitable for grade 20 hardened chromium steel balls.Manufactured from high carbon high chromium steel, also known as bearing steel (AISI-52100 / EN-31)Ball diameter tolerance: 0.000020 inches or 0.0005 mm or 0.50 microns.Basic Diameter Tolerance: ± 0.0001" or ± 0.0025 mm or ± 2.50 microns
on the bike
A grade of 200 or 500 is appropriate.Manufactured from hardened high carbon high chromium steel (AISI-52100 / EN-31 / EN-9 / MS)Commonly used diameters (inches) are 1/8", 1/4", 3/16", 5/32"
as a mixer
in electro-galvanizing and lead baths
In the bath, chrome steel balls with diameters of 1, 1.5 and 2 mm were used. High tolerances are not required, therefore, grade 1000 polished balls are usually suitable. Sometimes, stainless steel balls of 304 steel are also used.
in a spray paint can
A 3/8" or 10 mm diameter ball, G-1000, is used here. The steel ball agitates the paint and mixes thoroughly.
In personal care products such as nail polish
The liquid will congeal due to non-use, shake the bottle to even out the liquid and allow it to flow freely. The bottle contains a steel ball that acts as a stirring ball to help with this when shaking the bottle. Due to the fluid, steel balls are prone to corrosion, so AISI 316 stainless steel balls are preferred. Typically 3 and 5 mm sizes (1/8" and 3/16" diameter) are used. -1000 class is suitable for this application.
Related Products

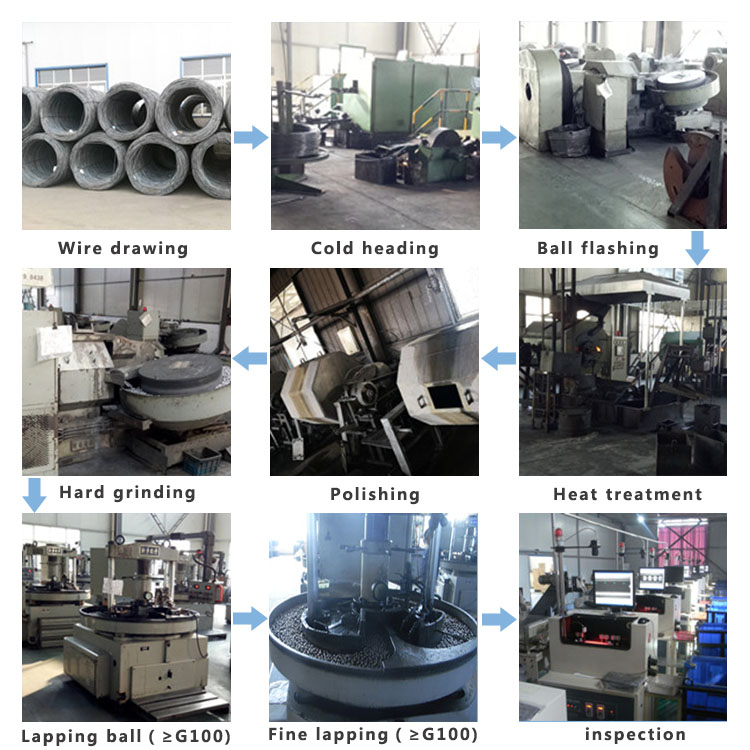

1. Raw materials
Each batch of raw steel is inspected and classified according to different materials (carbon, stainless steel, chromium), size and quantity, and a material certificate is indicated. The qualified steel enters the quarantine area; the unqualified will be rejected and recorded.
2. Brushed
Steel is available in different sizes as required.
3. Title
Certified raw materials are machined into parts of different sizes on high-speed casting machines.
4. Blink
This step in the production process involves rolling parts between discs with concentric grooves to remove casting marks and improve ball accuracy.
5. Heat treatment
Heat treatment is carried out, if necessary, to give the balls the greatest possible hardness and the best technical characteristics achievable by the material used.
6. Grind i (grind)
A careful grinding process using ceramic grinding wheels several times in a row provides greater dimensional accuracy and prepares the balls for the next final grinding process.
7. Grinding II
This procedure gives the ball a perfectly glossy, dense and defect-free surface with very low surface roughness, far below the requirements of GB/308-2002
8. Selection and Final Inspection
Sorter with manual
Inspection and modern testing procedures ensure the high quality of our products to a large extent.
9. Packaging
We will arrange the package according to the customer's needs.

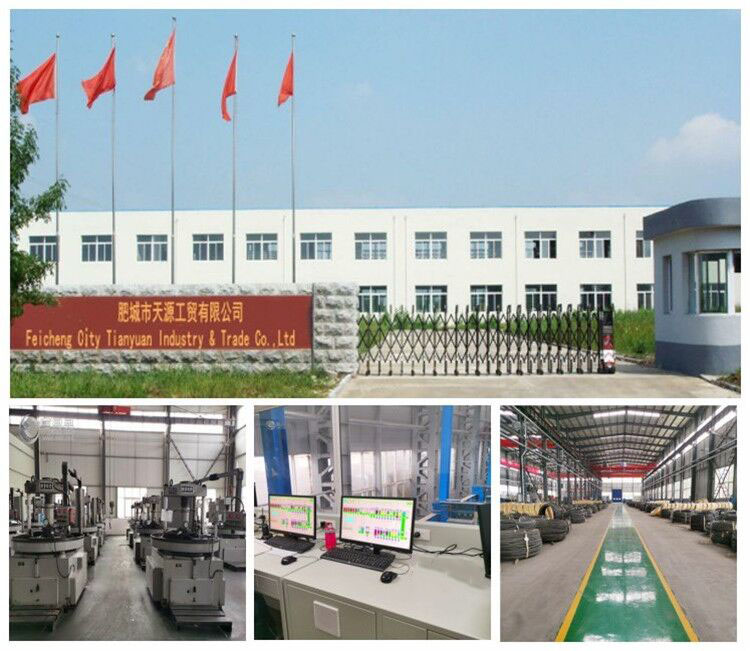

our company
Feicheng Tianyuan Industry and Trade Co., Ltd. was established in 1999 and has gone through a glorious history of 20 years. Located at the foot of the world-famous Mount Tai, the location is superior and the transportation is convenient. Our factory covers an area of 7000 square meters. There are 100 employees and 28 technicians, including 16 senior technicians. It has advanced production equipment and perfect testing equipment, including 96 cold heading machines, 8 vertical optical 4980 ball machines, 6 4680 ball machines, 6 4870 grinding machines, and 5 heat treatment equipment. Strong technical force and a strong team provide you with high-quality products, with an annual output of 3.5 billion steel balls. It is a large-scale private steel production enterprise integrating technology, production and trade.
our team
We are a professional team. Our members have deep expertise and practical ability.
We are a young team. We are full of passion and courage, and we dare to innovate.
We are a dedicated team. We firmly believe that quality comes from the trust of customers, and only focus can achieve good quality.
exhibition
As the world's largest industrial exhibition, Hannover Messe attracts 215,000 visitors and more than 6,500 exhibiting companies from 75 countries.
We attended Hannover Messe from April 1st to 5th, 2019. At the exhibition, we met a lot of cooperative customers, and also met a lot of new friends from all over the world. Through face-to-face communication, they gain more understanding and understanding. Trust our products.
customer visit
Feicheng Tianyuan has established strategic alliance business relationships with partners around the world in response to international needs. Over the years, our export volume has reached more than six million US dollars, and our products are exported to Europe, America, Southeast Asia and other countries and regions.With "excellent quality, excellent service and reasonable price", it is well received at home and abroad.

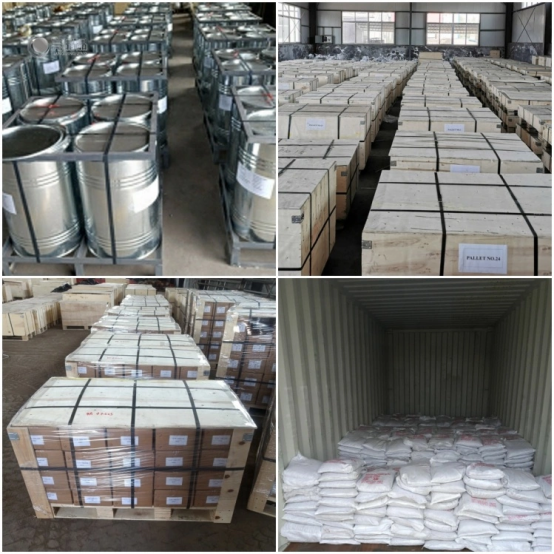

(1) We can provide a variety of packaging according to the needs of customers:
1. Woven bag
2. Woven bag + carton
3. Woven bag + carton + wooden pallet
4. Woven bag + carton + wooden box
5. Box + carton + wooden box
If customers have their own packages, we can also customize.
(2)Our loading ports:
QinGRoad, Shanghai, Tianjin, Shenzhen, Ningbo, Guangzhou, Suzhou, Dalian, Tangshan, Qinhuhold head highRoad, Yingkou.
We have obtained the above certificates:
business license
Organization code certificate
tax registration certificate
license
SGS certificate
Quality management system certification
GB/T19001-2016 idt ISO9001:2015
IATF 16949:2016
honor certificate
patent certificate
Q: Are you a factory or a trading company?
A: Yes, we are a professional steel ball original factory.
Q: Can you provide free samples?
A: Of course, we can. Free samples can be provided for you to check the quality.
Q: What is the inspection method to ensure the quality of steel balls?
A: Drum sorting, opto-mechanical sorting and visual inspection.
Q: How is the after-sales service?
A: Please contact us for free within 24 hours. We will get back to you within 1 hour.
Q: Can I visit your office and factory?
A: Yes, we are honored by your hospitality.
Q: What is the lead time for your order?
A: Usually our delivery time is 15-20 days, but if we have the product you want in stock, the delivery time will be within a week or less.
Q: Which country is your main market now?
A: Middle East, North Africa, West Africa, Southeast Asia, South America and Northern Europe. In particular, it has a solid customer base in Saudi Arabia, Morocco, Nigeria, India, Bangladesh and Russia.
