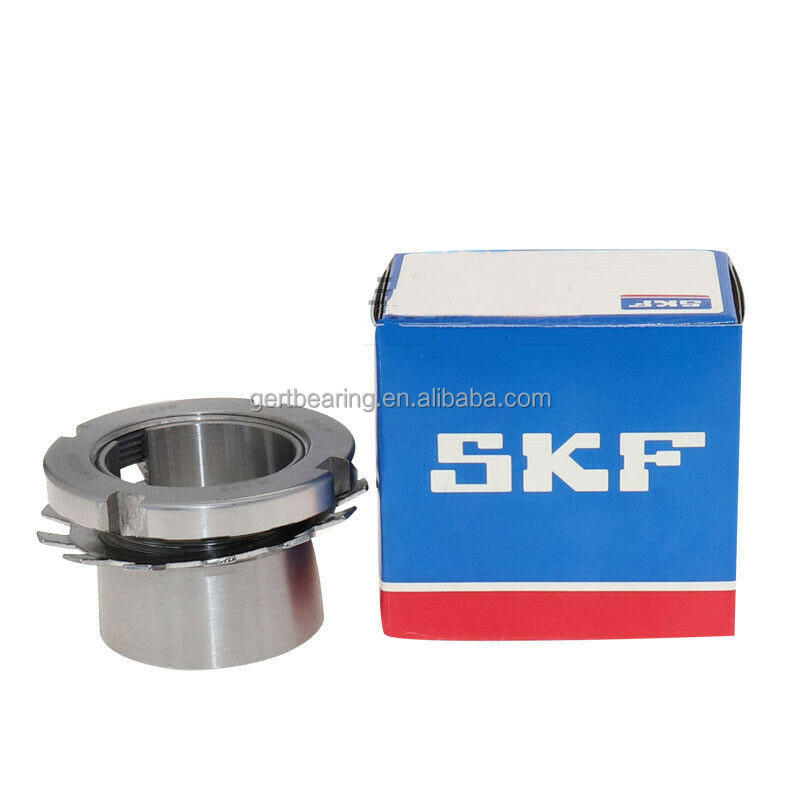

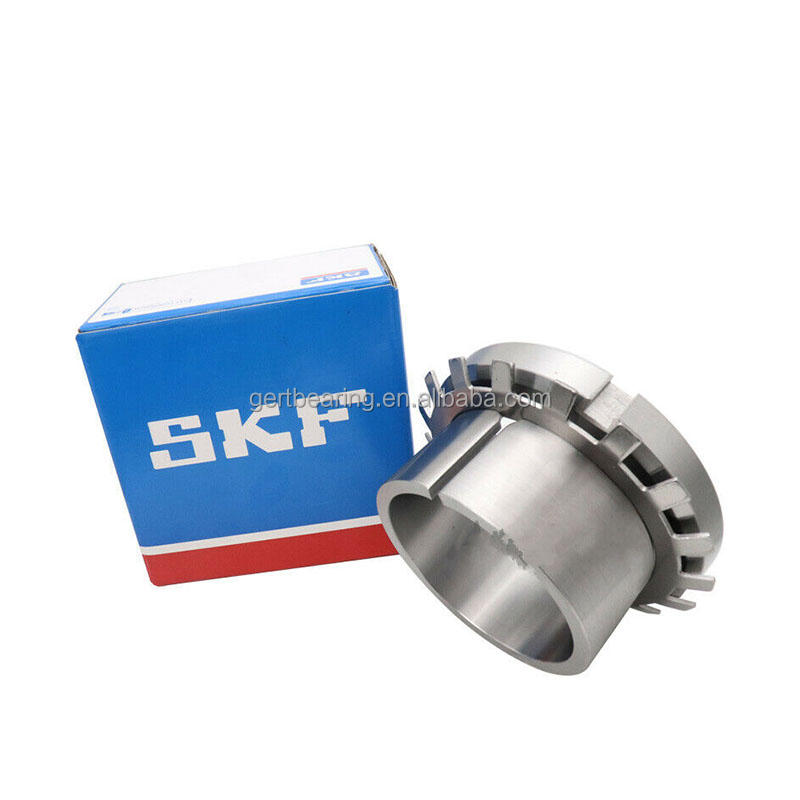

SKF High Performance Adapter Sleeve H320 for Pillow Block Bearings SKF Adapter Sleeve H320
- $2.00 / >=2 pieces
- 2 pieces
- Shandong Gert International Trade Co., Ltd.
- Shandong, China
- Ms Sun Samara
PRODUCT DETAIL
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal | Lock device: | MB20 |
| Origin: | Sweden | pack: | Original SKF package |
| model: | H320 | size: | 90*100*130 |
| Serve: | OEM customization service | Supply capacity: | 10000 pieces per month |
| fasten the screw nut: | km 20 | Applicable industries: | Manufacturing plants, machinery repair shops, retail stores, food stores, print shops, energy and mining |
| application: | Automobiles. Tractors. Construction machinery. Rolling mills | Product Category: | Adapter sleeve |
| Certificate: | ISO9001:2008 | Packaging Details: | Original SKF Individual Box, SKF Carton Wooden Box Wooden Pallet |
| brand: | SKF | port: | Qingdao, Guangzhou, Ningbo, Shanghai |
| Material: | Chrome steel | in stock: | big |
Specification
Product Category | Adapter sleeve |
model. | H320 |
brand | SKF |
Material | Chrome steel |
size | 90*100*130 |
fasten the screw nut | 20 kilometers |
lock device | 20MB |
Supporting hydraulic nut | HMV 20 B |
Lots of | 1.78 kg |
About SKF adapter sleeve H320:
SKF adapter sleeves H320 are the most commonly used components for locating bearings with tapered bores on cylindrical housings because they can be used for: • plain shafts • stepped shafts They are easy to mount and do not require additional positioning on the shaft: • when Used on the optical shaft, the bearing can be positioned at any position on the shaft • Used on the stepped shaft together with the L-shaped spacer, the bearing can be positioned accurately in the axial direction, and it is convenient for the assembly and disassembly of the bearing.
Range and properties of SKF adapter sleeve H320:
• Standard metric classifications include dimension series, H2, H3, H23, H30, and H31.
• Dimension series H32 available on request
• Standard imperial classifications include size series, HE2 and HE23
• All adapter sleeves are supplied with lock nut and lock washer

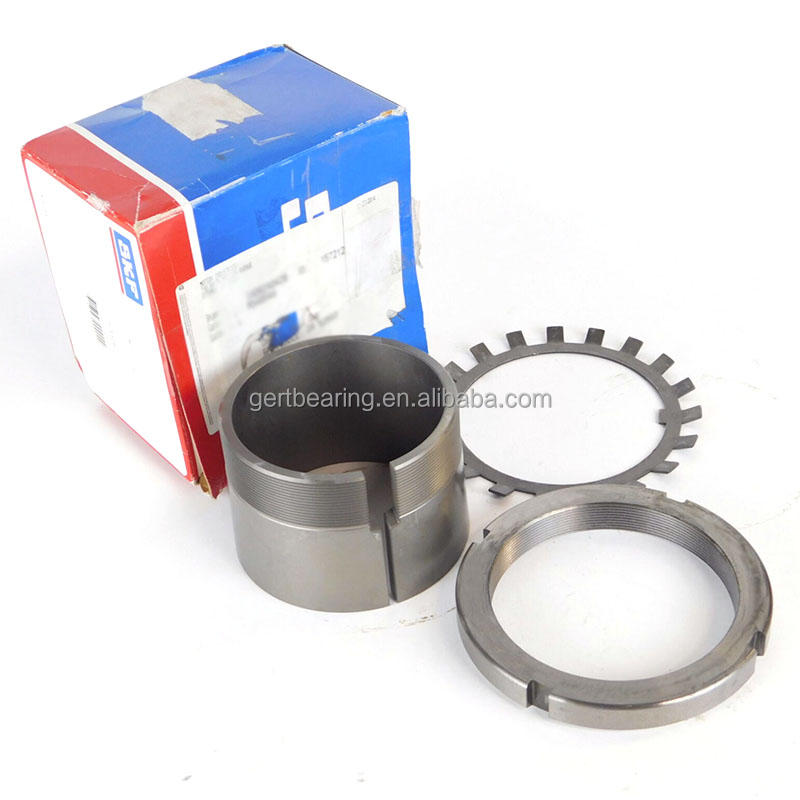

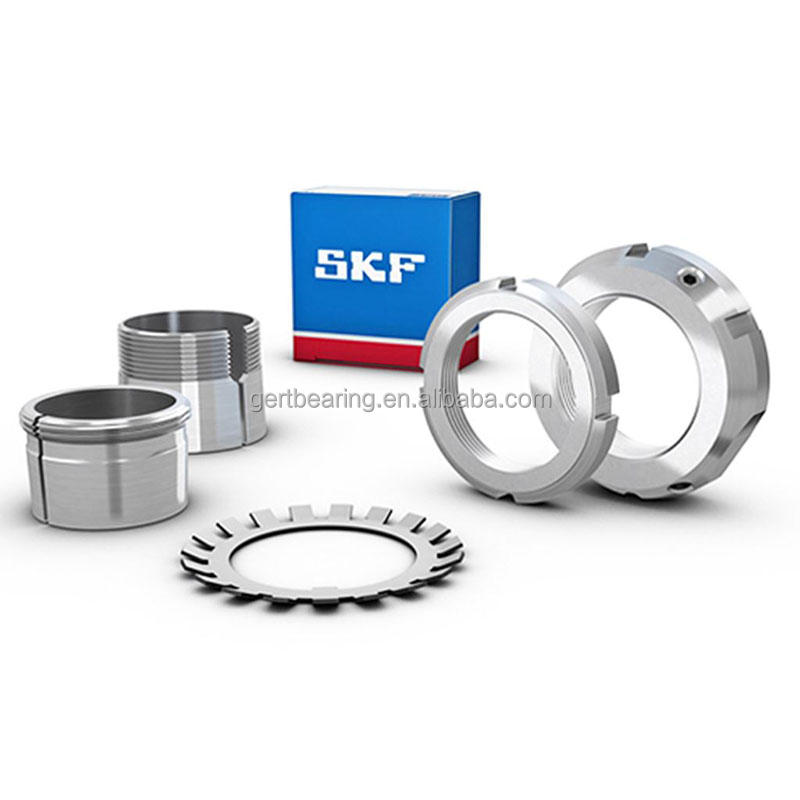

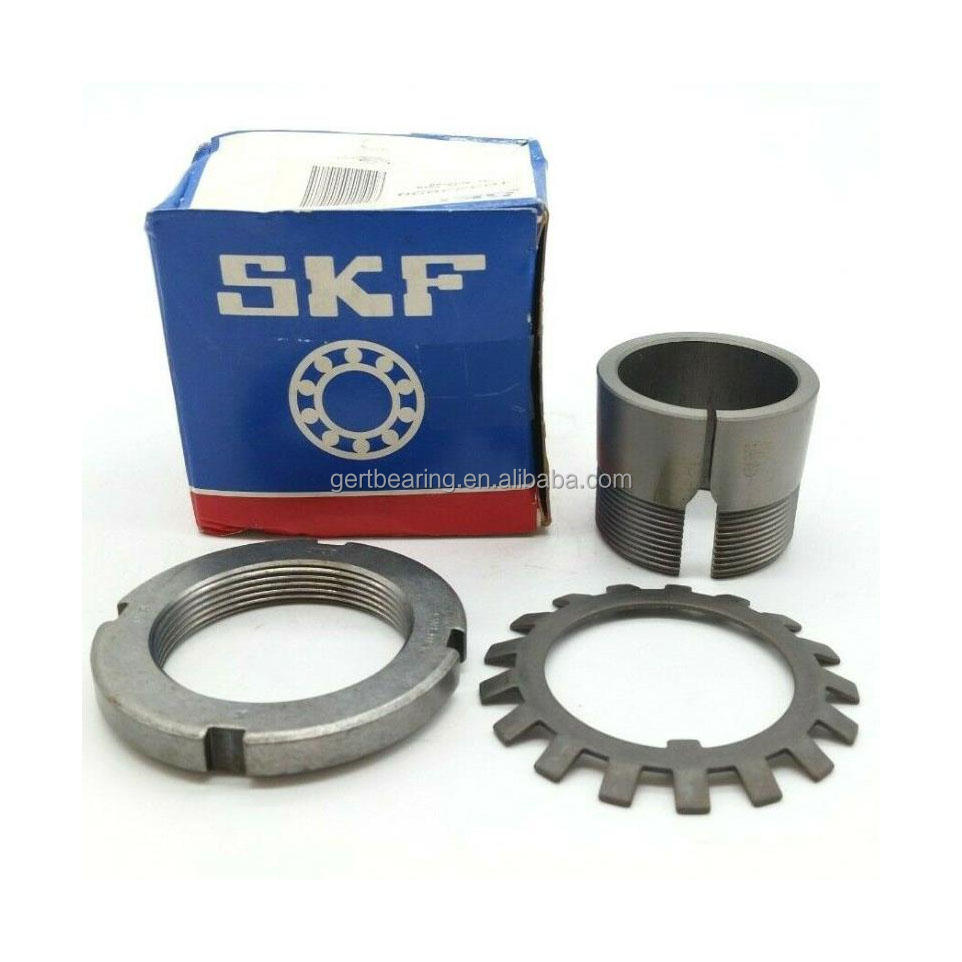

SKF adapter sleeves H320 are the most commonly used components for locating bearings with tapered bores in cylindrical housings. They are easy to install and require no additional positioning on the shaft.SKF adapter sleeve H320Made of high-quality steel, it has a very precise shape and an excellent price-performance ratio.SKF adapter sleeve H320Manufactured as a complete product with lock nut and lock washer. SKF offers metric adapter sleeves, series designation H. Dimensions conform to ISO 2982-1:1995.SKF adapter sleeve H320Consists of three elements: actual sleeve, toothed washer MB. (suitable for large socket lock washers type MS) and lock nuts type KM or HM. Adapter numbers indicate the complete assembly of adapter sleeve, lock nut and lock washer. As the name implies, adapter sleeves adapt themselves to the shaft diameter and can therefore allow greater diameter tolerances than housings with cylindrical bores. However, shape tolerances must be kept within a narrow range, since the shape accuracy directly affects the running accuracy of the bearing.
usage ofSKF adapter sleeve H320:
SKF adapter sleeves H320 are always supplied with a lock nut and locking device. They can be ordered in metric or imperial sizes, as well as custom designs. The hydraulic process also allows for easy installation and removal. With this design, the adapter and withdrawal sleeves have oil grooves and passages. The adapter sleeve is used as a bearing accessory, and its product code is subject to the bearing code system. Product codes for adapter sleeves in metric sizes begin with H even though the bore is given in inch sizes.
bearing picture
