High Quality Stainless Steel 304 Hydraulic Fine Filter Press for Sludge Oil Juice Filter

PRODUCT DETAIL
Packaging Preview:Filter area:2-35 square meters
Supply capacity:10000 sets/yearWarranty:1 year
Dimensions (L*W*H):2300*660*1300mmFunction:Liquid-solid separation
port:Shanghaiweight:1250 kg
brand:Big ZhangModel:BASJL600-14
Applicable industries:Building materials stores, manufacturing plants, food and beverage plants, farms, printing plants, construction works, energy and miningMarketing Type:normal product
Showroom location:Egypt, Turkey, Vietnam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Japan, Malaysia, AustraliaCore Components Warranty:1 year
usage:solid-liquid separationFiltration pressure:1-2.5MPa
Material:SS304/SS316L/PPHealth status:new
Video external inspection:ifPackaging Details:Wooden bag/container fixation/customization
strength:1.5kWCertification:ISO9001/CE
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramFilter plate size:600*600mm
place of origin; place of origin:China ShanghaiFilter chamber volume:10-13T
color:natureCore components:PLC, engine, bearing, motor, pressure vessel, pump
Auto grade:manualMechanical test report:if
Voltage:As required
BASJL 400 BASJL 600

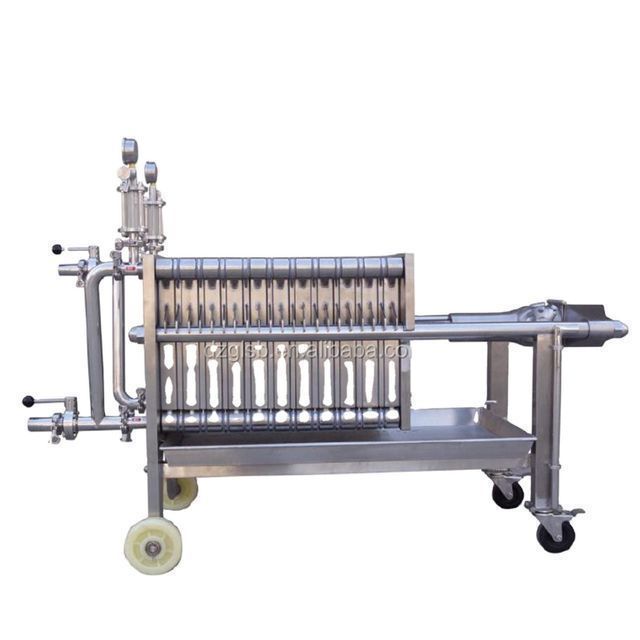

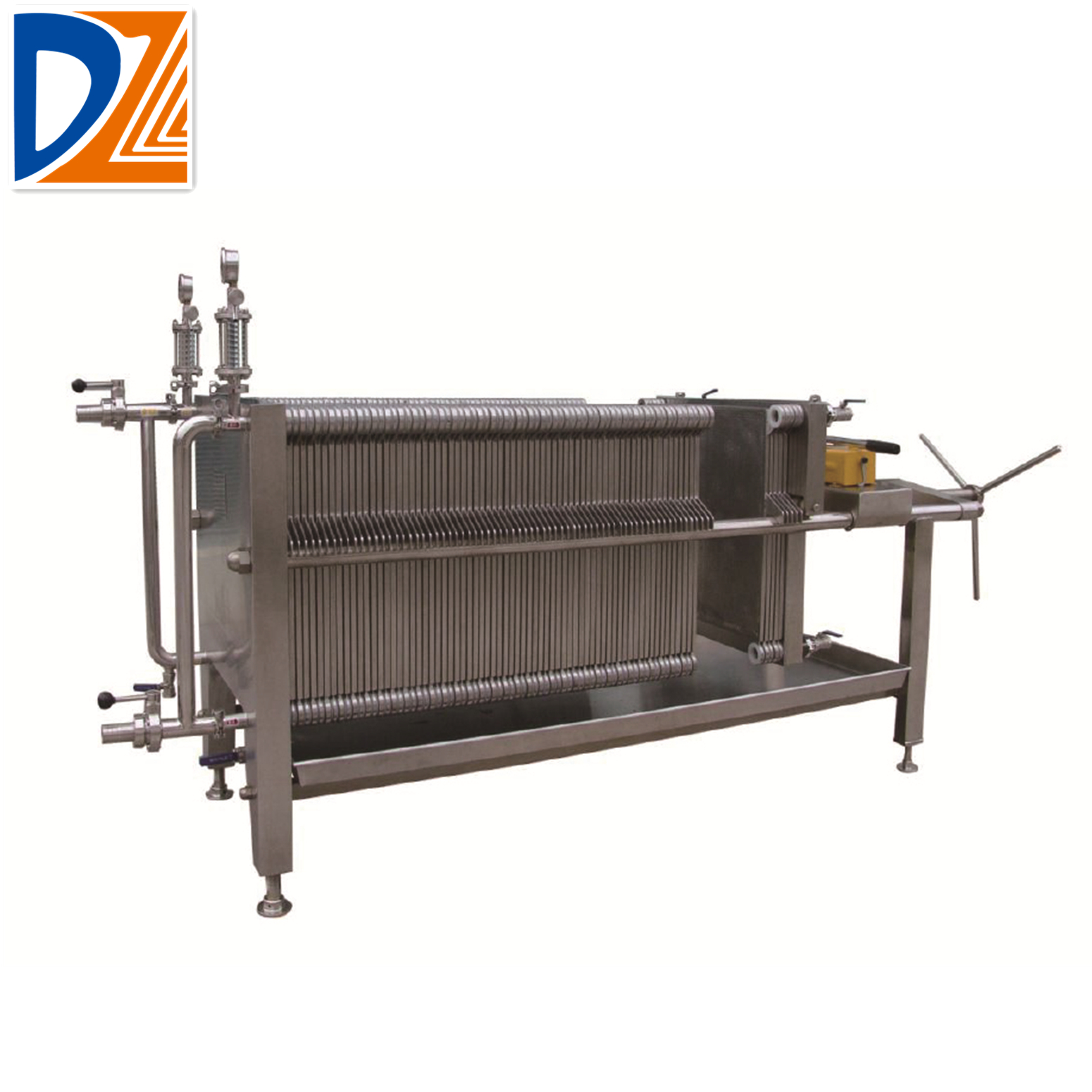

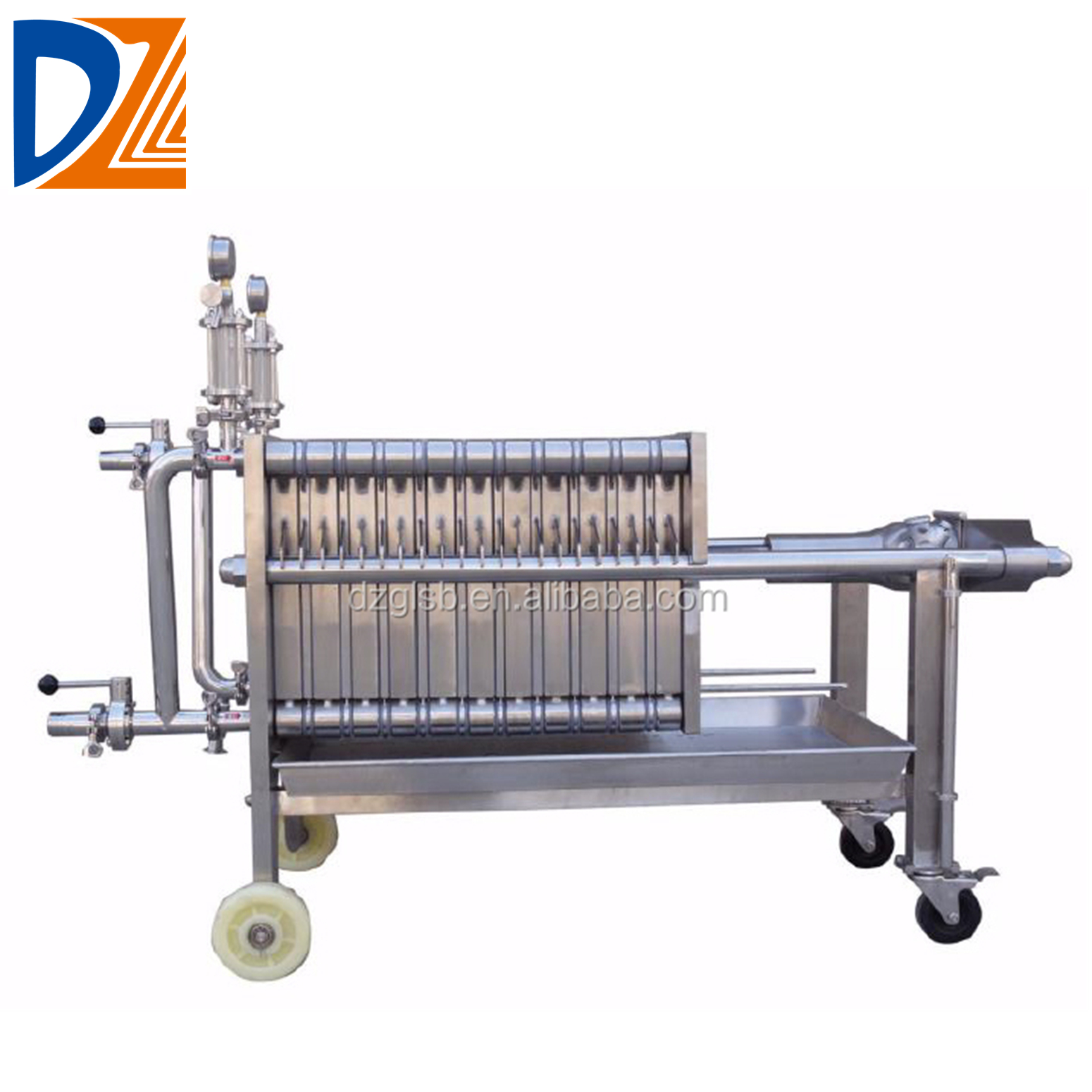

Stainless steel fine filter
This filter press is suitable for various industries, such as: liquid medicine, plasma, liquor (beer, wine, spirits, rice wine, fruit wine), beverages, fruit juice, syrup, vinegar, oil (for food or industrial use), Fine chemical industry, electroplating water industry.
Material:Frame: SS-304; Plate: SS-304 (Optional 316 L or PP)
Seal ring material: White silicone rubber Working pressure: <0.4MPa; Working temperature: <120°C
Main dimensions: Plate thickness: 13 mm; single chamber volume: 4.8 L
extrusion method: Screw/Manual Hydraulic (Other: Manual Jack/Automatic Hydraulic etc.
filter material: Cardboard, paper, film, cloth, etc.
accurate: 200-300 mesh cloth for coarse filtration, 0.22-0.45μm paper or membrane for fine filtration
Model
Filtration area (㎡)
Number of plates
Flow (T/h)
Board size (mm)
Dimensions (mm)
BASJL400-2
2
15
1-2
400*400
1250*660*1300
BASJL400-3
3
twenty one
1-3
400*400
1350*660*1300
BASJL400-4
4
31
3-4
400*400
1550*660*1300
BASJL400-6
6
45
4-6
400*400
1750*660*1300
BASJL400-8.5
8.5
61
6-8
400*400
2100*660*1300
BASJL400-9.5
9.5
71
8-10
400*400
2300*660*1300
BASJL600-14
14
41
10-13
600*600
1750*870*1350
BASJL600-21
twenty one
61
15-20
600*600
2100*870*1350
BASJL600-24
twenty four
71
20-25
600*600
2250*870*1350
BASJL600-35
35
101
25-30
600*600
2800*870*1350
