High precision flexible concrete 3d printer house for building walls
- $87000.00 /set
- 1 set
- Hubei Tengcang Building Materials Technology Co., Ltd.
- Hubei, China
- Mr Sam Xiao
PRODUCT DETAIL
| Local service location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya , Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan | Storage weight: | 80 tons |
| port: | Wuhan, Shanghai, Ningbo, any port in China | Warranty: | 1 year |
| Unique selling point: | Full hydraulic system | application: | Residential houses and public buildings |
| brand: | technical committee | Applicable industries: | Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies |
| Trestle height: | 300cm | Origin: | China |
| Straight segment height: | 900cm | Supply capacity: | 100 sets per month |
| After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | Overall height of the tank: | 1105cm |
| Steel Thickness: | 6 mm | Showroom location: | not any |
| weight: | 3600 kg | payment terms: | L/C, T/T, Western Union, MoneyGram |
| Dimensions (L*W*H): | 3*6m, 3.3*6.6m, 3.6*7.2m | Health status: | new |
| Packaging Details: | Packed in wooden case. | Tank diameter: | 280cm |
| After-sales service provided: | Video technical support, on-site installation and commissioning training, on-site maintenance and repair services, free spare parts, online support | Fuel tank capacity: | 60 cubic meters |
Product Description
We need six machines to complete the production

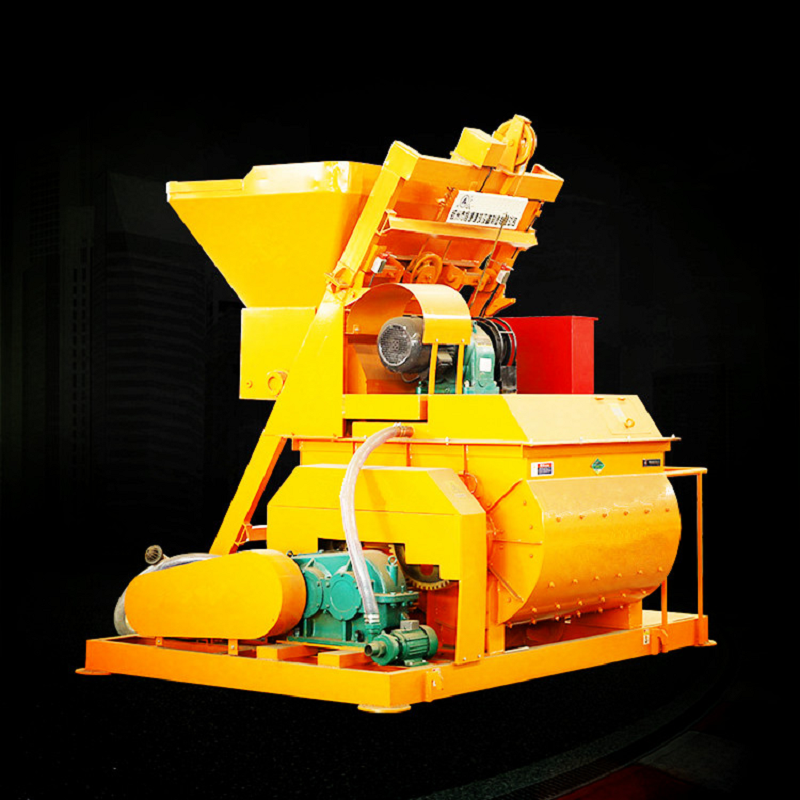

parameter | Concrete mixer A (Model: TC8041) | concrete mixer B (Model: TC8042) | |
Feed amount | 800L | 1600L | |
emissions | 500L | 1000L | |
efficiency | 25 cubic meters / hour | 50 cubic meters / hour | |
Rotating speed | 35 rpm | 25 rpm | |
total size | up to 80mm | up to 80mm | |
blade | 14 | 20 | |
Voltage | 380 volts | 380 volts | |
strength | 18.5 kW | 37 kW | |
Machine size | 428*279*651mm | 877*344*654cm | |
weight | 3900 kg | 8750 kg |

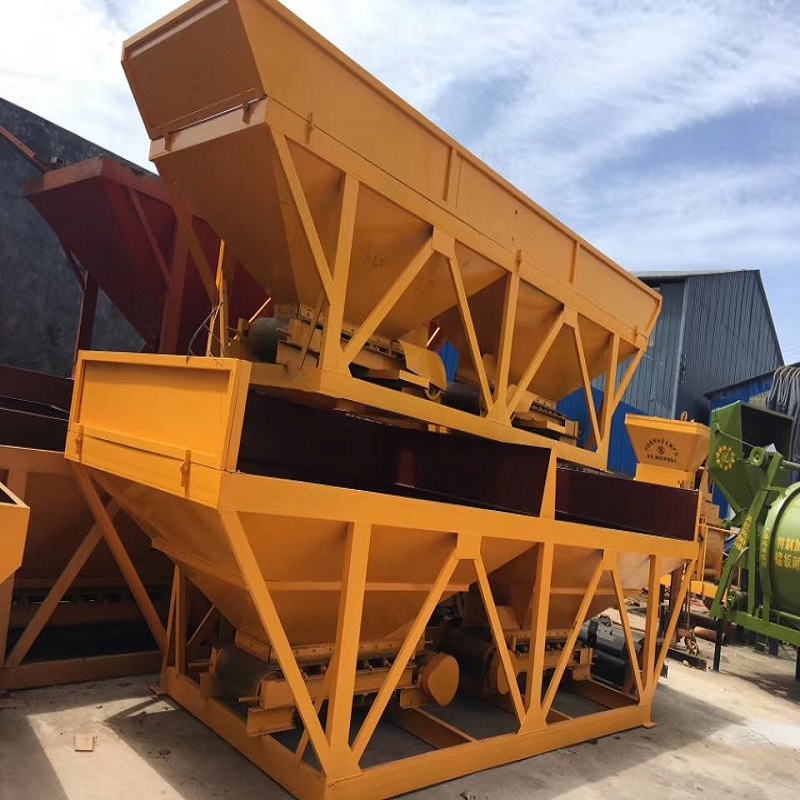

parameter | Batching machine A (model: TC8051) | ingredients machine B (Model: TC8052) |
Weigh volume | 800L | 1200L |
storage hopper | 5 cubic meters | 7 cubic meters |
efficiency | 48 cubic meters / hour | 60 cubic meters / hour |
batch error | ±1% | ±1% |
Maximum weighing value | 3000 kg | 4000 kg |
transfer speed | 1 m/s | 1.25m/s |
Voltage | 380V | 380V |
strength | 12kw | 16 kW |
Machine size | 560*183*270cm | 900*250*350cm |
weight | 2450 kg | 4500 kg |

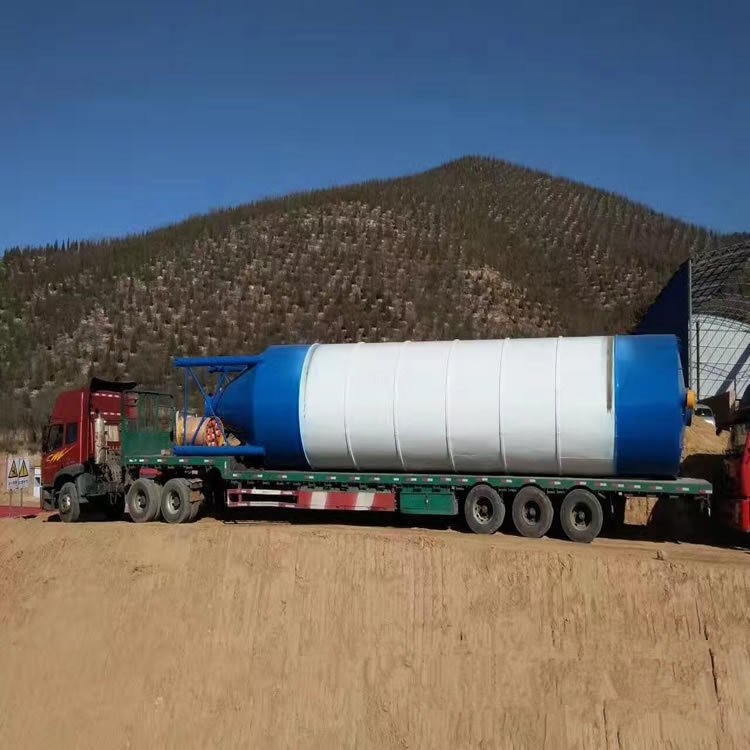

parameter | Assembled storage tank A (Model: TC8061) | Assembly storage Tank B (Model: TC8062) | |
storage weight | 80 tons | 150 tons | |
volume | 60 cubic meters | 111 cubic meters | |
diameter | 280cm | 320cm | |
straight line height | 900cm | 1350cm | |
total height | 1105cm | 1584cm | |
Trestle height | 300cm | 300cm | |
Steel thickness | 6mm | 8mm |

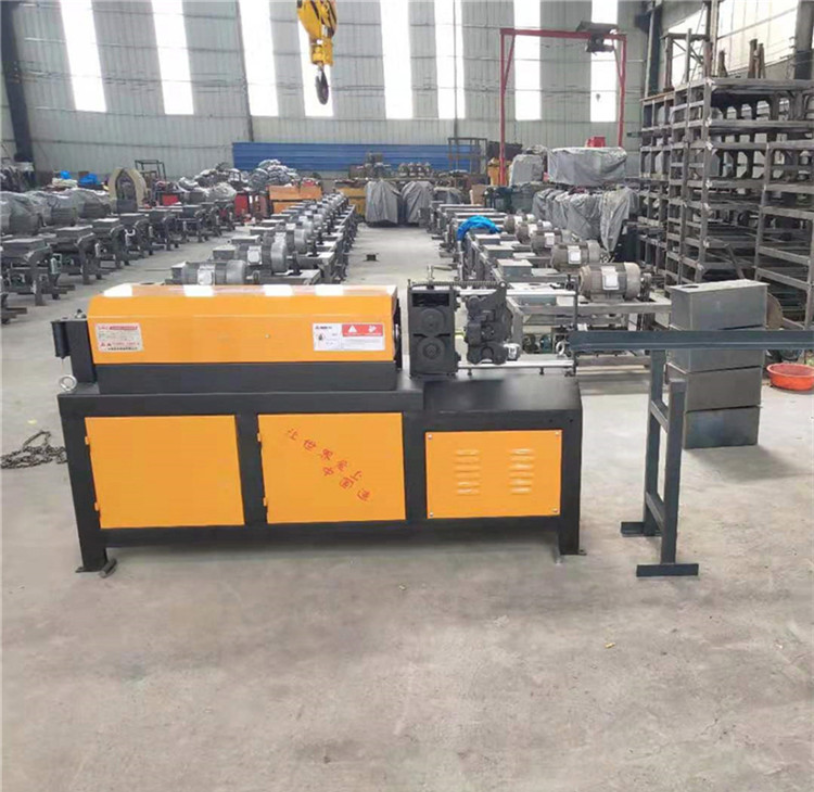

parameter | CNC Rebar Processing Machine (Model: TC8030) |
processing speed | 20-40m/min |
Processing diameter | 4-14mm steel bar |
Rebar type | Round bars, deformed bars |
in principle | hydraulic |
Control System | CNC |
Voltage | 380v |
strength | 9 kW |
Machine size | 200*75*110cm |
weight | 900 kg |

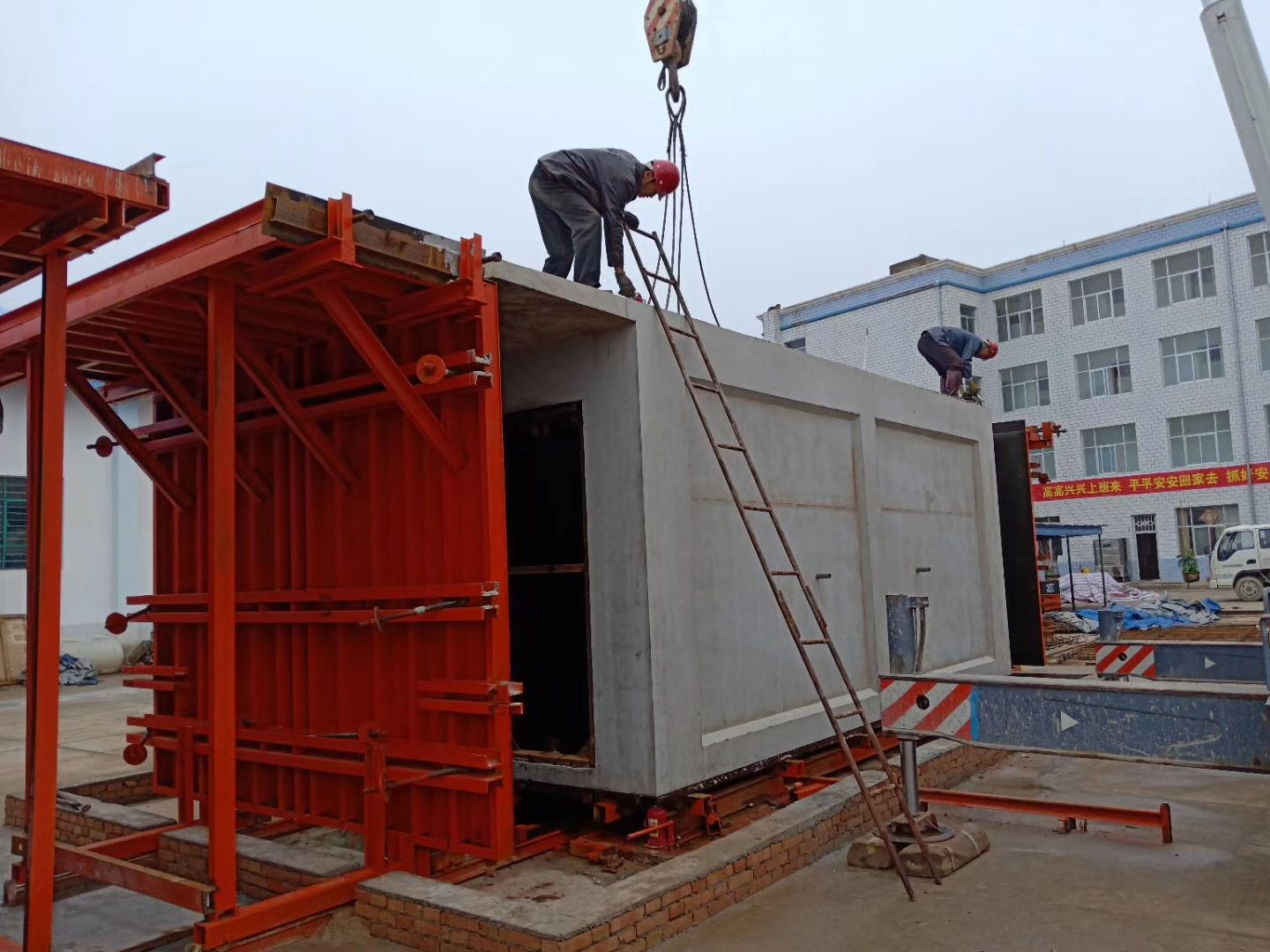

parameter | house forming machine (Model: TC8010) |
in principle | hydraulic |
automation | semi-automatic |
Production Method | RC padding |
molding time | 2-3 hours |
Machine material | All steel |
side page | slideable |
inner box | retractable |
weight | 17000-23000KG |
size | 3*6m, 3.3*6.6m, 3.6*7.2m |
customizable | Yes |

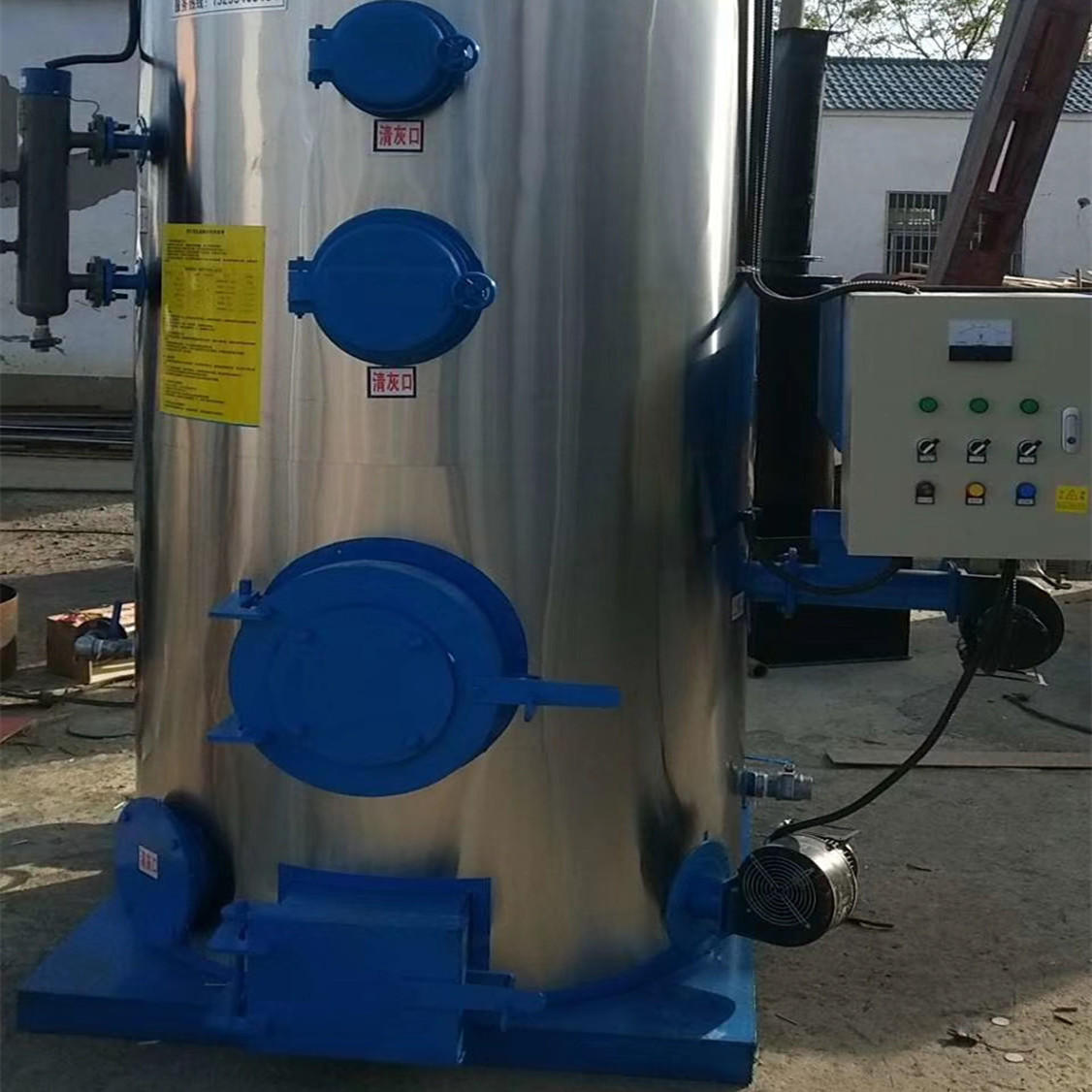

parameter | House quick-setting machine A (Model: TC8021) | house fast- condensate machine B (Model: TC8022) |
efficiency | 500kg/h evaporation capacity | 1000kg/h evaporation capacity |
preset pressure | 0.7Mpa | 0.7Mpa |
temperature | 170 degrees Celsius | 170 degrees Celsius |
Voltage | 380V | 380V |
strength | 1.4kw | 3.3kw |
weight | 2500 kg | 4500 kg |
size | Diameter 1m, height 2.6m | Diameter 1.5m, height 2.8m |

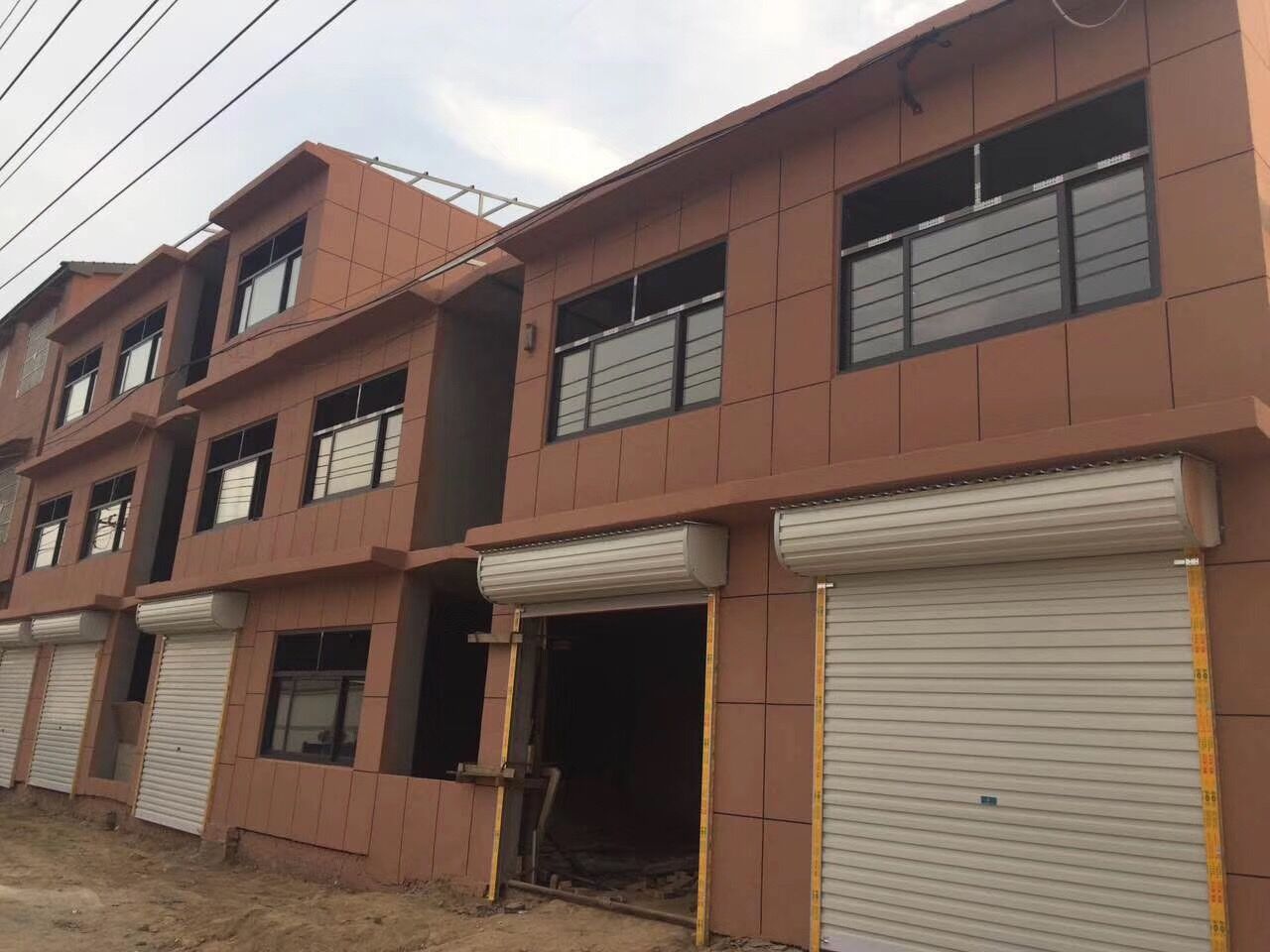

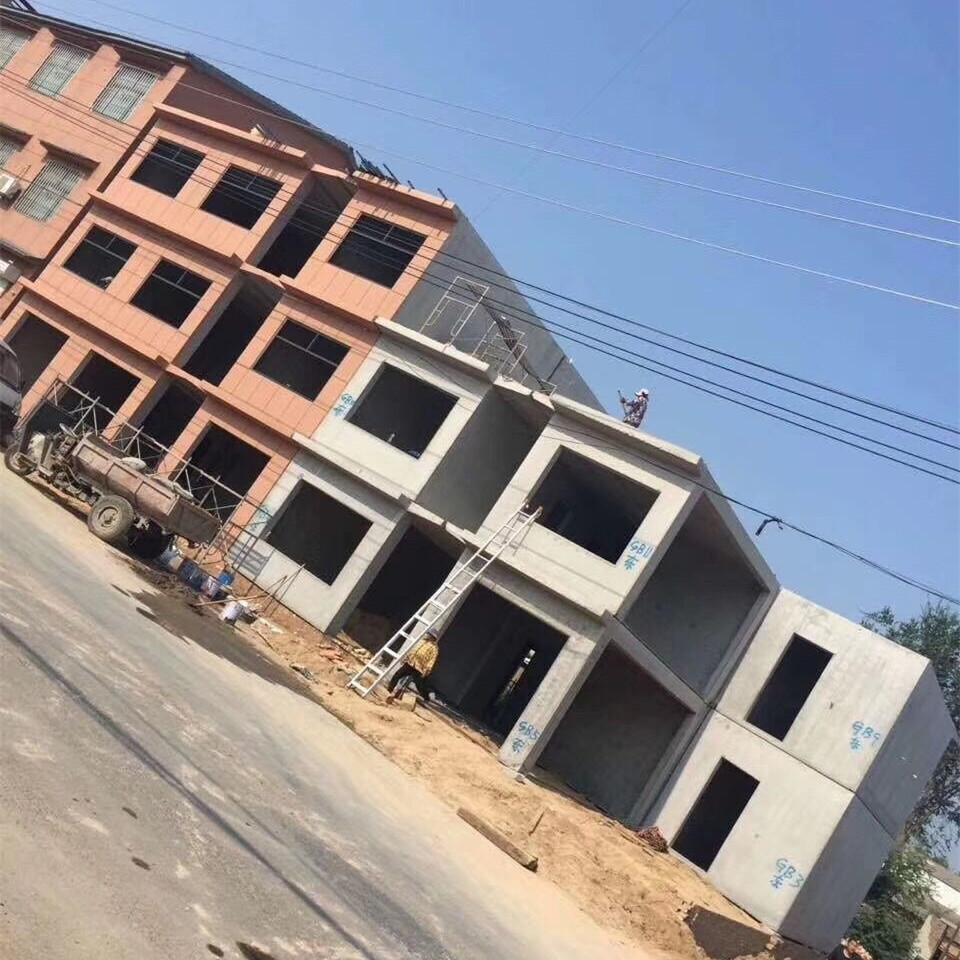

- Features of concrete modular houses
1) Low building cost
2) The construction speed is extremely fast
3) Shock resistance
4) Wind resistance.
5) Long life
2) The construction speed is extremely fast
3) Shock resistance
4) Wind resistance.
5) Long life
6) Flame retardant
7) Sound insulation
8) Insulation
9) Energy saving and environmental protection
10) Flexible assembly
7) Sound insulation
8) Insulation
9) Energy saving and environmental protection
10) Flexible assembly
detailed image
Accessories and tools:
Concrete hoppers, welding machines, steel wire ropes, U-shaped buckles, vibrating rods, cover boxes...etc.
Production process of concrete composite house
1. Process the steel bars with a CNC steel bar machine, weave the steel bars (reinforced bars) into a grid and cover the inner chassis of the forming machine.
2. Produce concrete with concrete machinery.

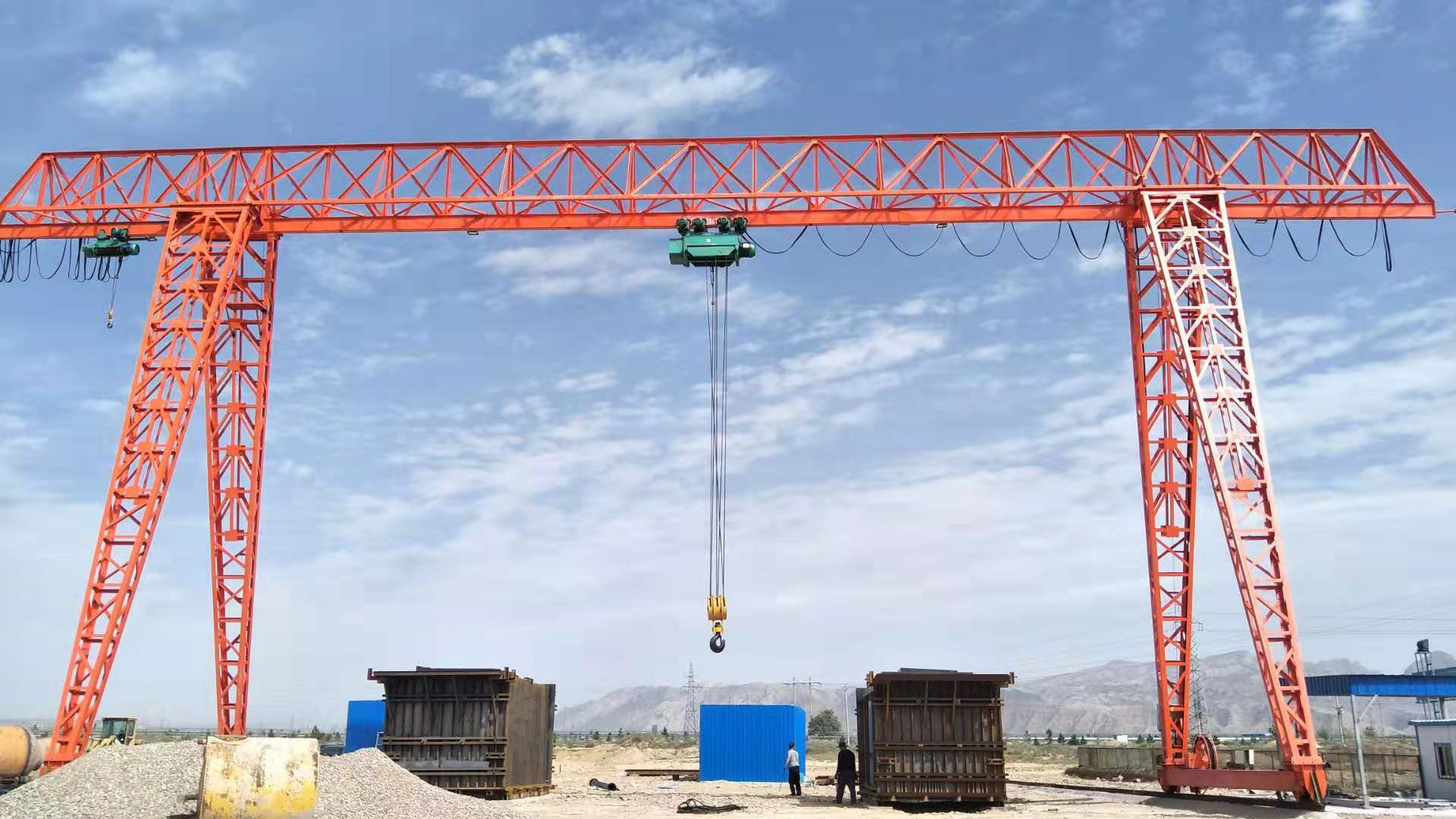

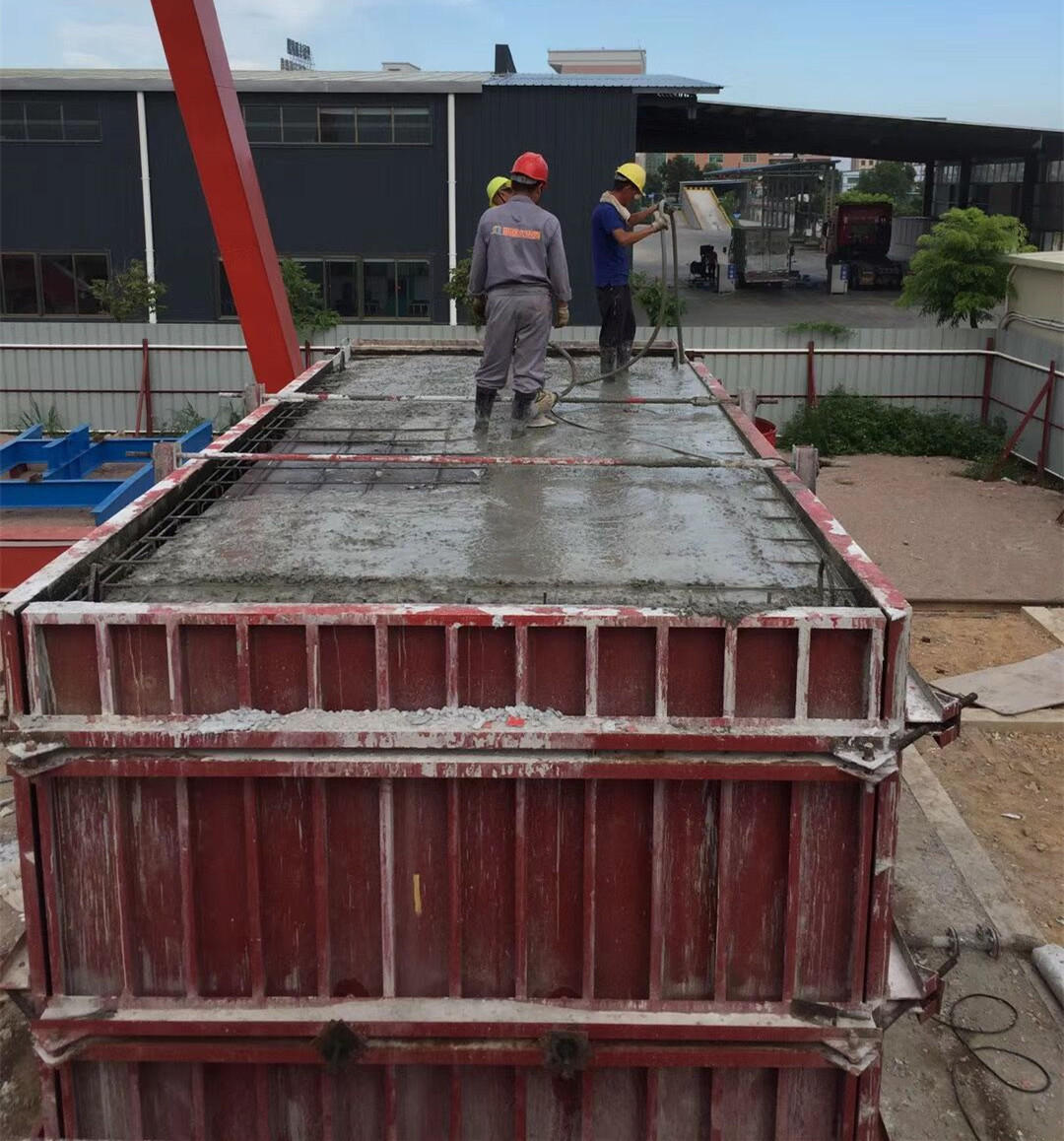

3. Adjust the molding machine, use the gantry crane and the hopper to lift the concrete into the machine until it is full
4. Cover the molding machine with a quick-setting machine cover, and then turn on the quick-setting machine to make the concrete set quickly.

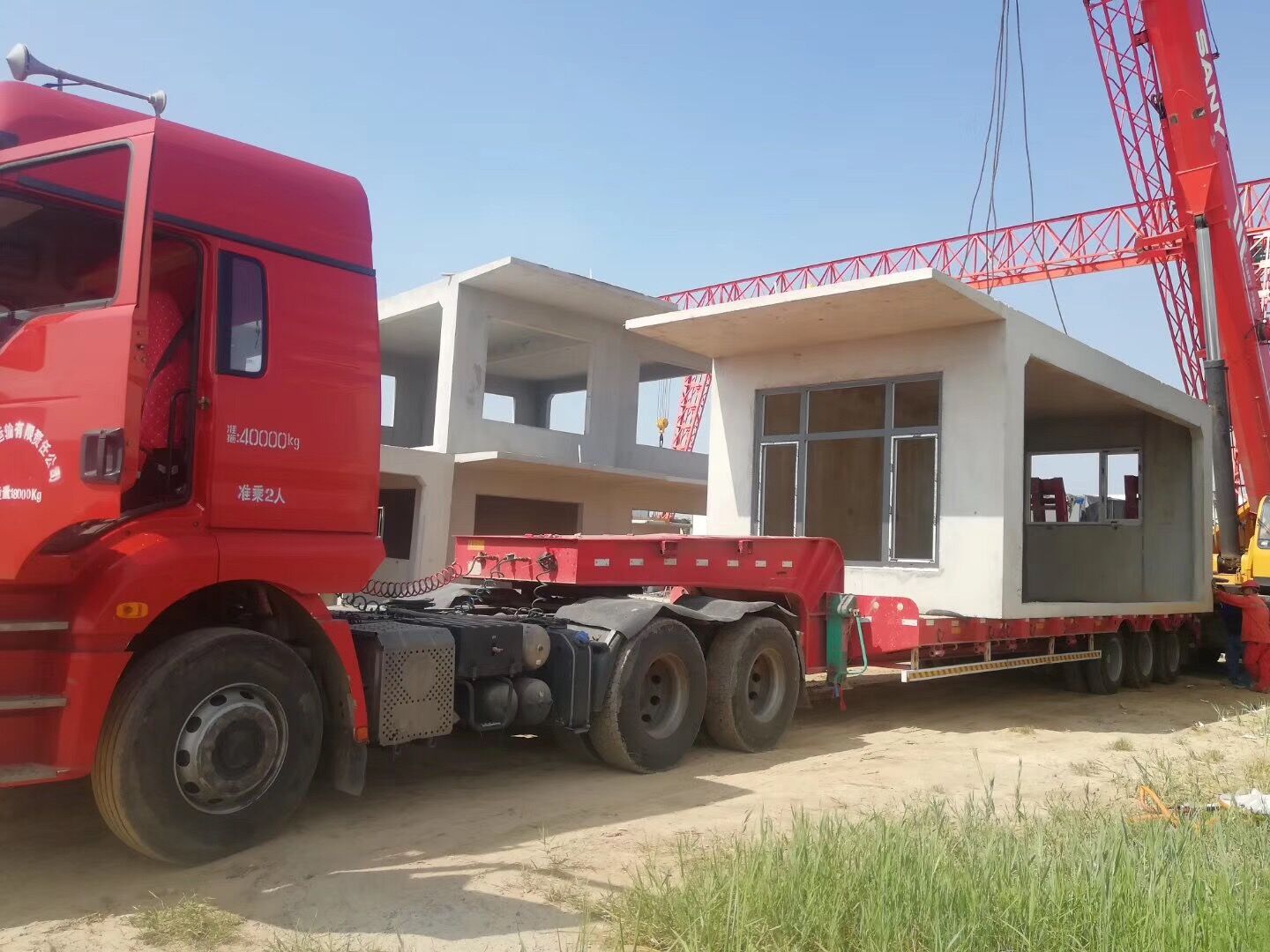

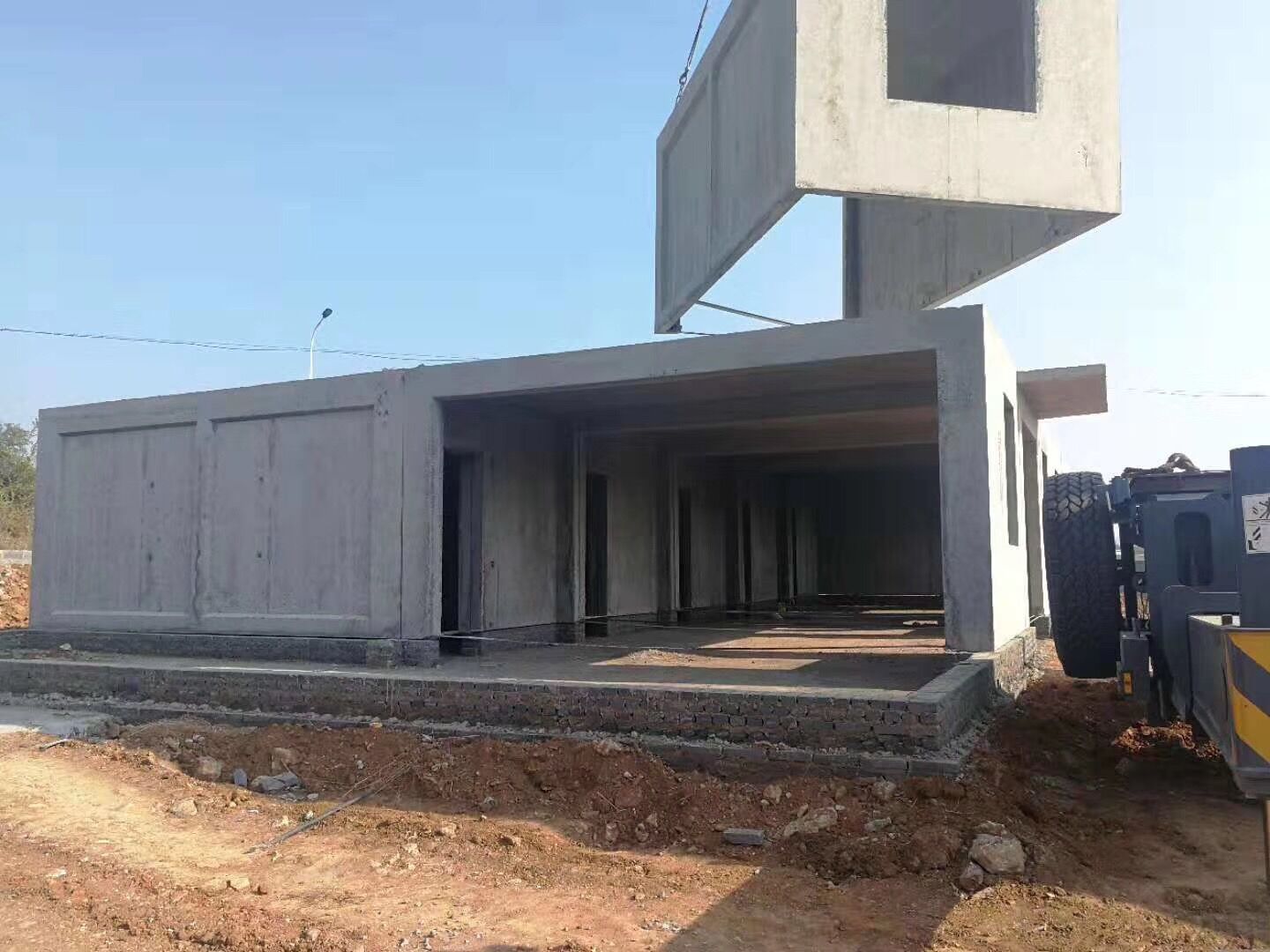

5. After 2-3 hours, a unit modular house is completed, pull the side panels of the molding machine, and adjust the inner chassis to shrink to separate the walls of the house. Use the gantry crane to lift the house and store it.
2. Produce concrete with concrete machinery.
3. Adjust the molding machine, use the gantry crane and the hopper to lift the concrete into the machine until it is full
4. Cover the molding machine with a quick-setting machine cover, and then turn on the quick-setting machine to make the concrete set quickly.
5. After 2-3 hours, a unit modular house is completed, pull the side panels of the molding machine, and adjust the inner chassis to shrink to separate the walls of the house. Use the gantry crane to lift the house and store it.
We can purchase tools and equipment for customers, or search and purchase locally
Advantage
It has the characteristics of earthquake resistance, wind resistance, moisture resistance and fire protection, sound insulation and heat insulation.
Compared with traditional brick-concrete houses, the main advantage of concrete composite houses is lowThe construction cost is low, the earthquake resistance is good, the service life is long, the construction speed is fast, labor and labor are saved, the service life is long, no construction waste is left, and it can be removed during demolition. It is in line with the development direction of environmental protection construction advocated by the world.
Compared with traditional brick-concrete houses, the main advantage of concrete composite houses is lowThe construction cost is low, the earthquake resistance is good, the service life is long, the construction speed is fast, labor and labor are saved, the service life is long, no construction waste is left, and it can be removed during demolition. It is in line with the development direction of environmental protection construction advocated by the world.
We have three Scale production lines corresponding to different capacities for your reference.
small
Total price:
$87,000
productivity:
600 unit modules (houses)/year
Configuration:
2 setsHouse forming machine 1 set House fast curing machine A1 setCNC Rebar Processing Machine
1 setconcrete mixer A
1 setBatching machine A
1 setAssembled storage tank A
Accessories and Tools
On-site debugging equipment and technical training for engineers (30 days)
productivity:
600 unit modules (houses)/year
Configuration:
2 setsHouse forming machine 1 set House fast curing machine A1 setCNC Rebar Processing Machine
1 setconcrete mixer A
1 setBatching machine A
1 setAssembled storage tank A
Accessories and Tools
On-site debugging equipment and technical training for engineers (30 days)
middle
Total price:
$143,000
productivity:
1200 unit modules (houses)/year
Configuration:
4 setshouse forming machine1 setHouse fast curing machineSecond
2 setsCNC Rebar Processing Machine
1 setConcrete mixer A
1 setBatching machine A
1 setAssembled storage tank A
Accessories and Tools
On-site debugging equipment and technical training for engineers (40 days)
productivity:
1200 unit modules (houses)/year
Configuration:
4 setshouse forming machine1 setHouse fast curing machineSecond
2 setsCNC Rebar Processing Machine
1 setConcrete mixer A
1 setBatching machine A
1 setAssembled storage tank A
Accessories and Tools
On-site debugging equipment and technical training for engineers (40 days)
big
Total price:
$266,000
productivity:
2400 unit modules (houses)/year
Configuration:
8 setshouse forming machine
2 setsHouse fast curing machineSecond
3 setsCNC Rebar Processing
machine
1 setConcrete mixerSecond
1 setBatching machineSecond
1 setAssembled storage tankSecond
Accessories and Tools
On-site debugging equipment and technical training for engineers (50 days)
productivity:
2400 unit modules (houses)/year
Configuration:
8 setshouse forming machine
2 setsHouse fast curing machineSecond
3 setsCNC Rebar Processing
machine
1 setConcrete mixerSecond
1 setBatching machineSecond
1 setAssembled storage tankSecond
Accessories and Tools
On-site debugging equipment and technical training for engineers (50 days)
our service
We will provide:
1) Commissioning equipment and technical training,
2) Teach customers to produce, design and assemble houses, let our customers produce and sell houses locally
