Economic Concrete Modular Prefabricated House Machine For Sale
- $87000.00 /set
- 1 set
- Hubei Tengcang Building Material Technology Co., Ltd.
- Hubei, China
- Mr Sam Xiao
PRODUCT DETAIL
| Features: | durable, easy operation; | Production Capacity: | 2 modular house per day; |
| After-sales Service: | offer engineer to install and training for 30 days at least; | UNIQUE SELLING POINT: | Low Maintenance Cost; |
| After-sales Service Provided: | Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support; | Needed machine 2: | Concrete Mixer, Batching Machine, Assembled Storage Tank; |
| Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Food & Beverage Shops,Advertising Company; | Needed machine 1: | Forming Machine,Quick-solidifying Machine, CNC Rebar Machine; |
| Application: | hotel, school, villa, restaurant; | Brand Name: | HBTC; |
| Packaging Detail: | standard package; | Package Preview: | ; |
| Voltage: | 380V; | Power: | 41KW for the whole production line; |
| Port: | Any port of China; | Advantage: | low cost, quick build, anti-earthquake, insulation; |
| Warranty: | 1 Year; | Suitable for: | Small building project; |
| Dimension(L*W*H): | 3*6m, 3.3*6.6m, 3.6*7.2m; | Raw materials: | Reinforced concrete; |
| Payment Terms: | L/C,D/A,D/P,T/T; | Condition: | New; |
| Application Site: | House/Hotel/ Restaurant/Villa Construction; | Product name: | Prefab Concrete Modular House; |
| Place of Origin: | China; | Supply Ability: | 5000 Sets per Month; |
Product Description

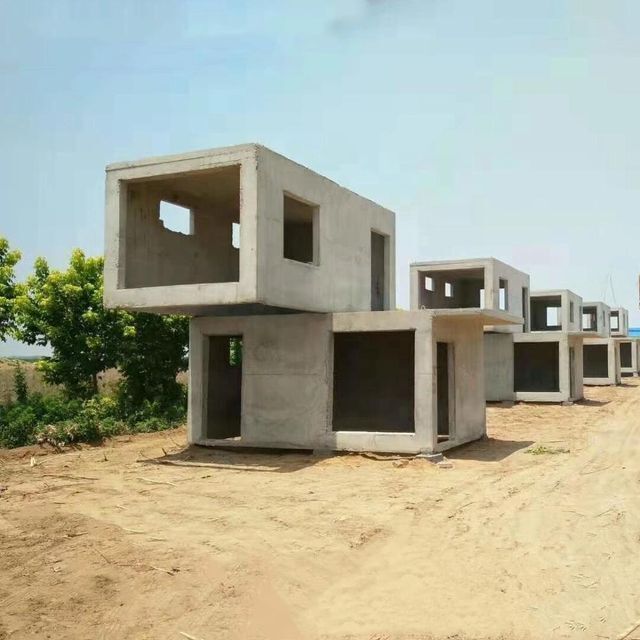

Concrete Modular House
It is also called precast concrete house,belonging to concrete assembly building.It is a new type of construction method with good energy saving and low construction cost. It adopts reinforced concrete structure, which is prefabricated into unit modules in the factory through special equipment, and then directly transported to the site for assembly. The level of prefabrication is high, the size is accurate, the construction speed is very fast, and 500 square meters can be built in one day, which greatly increases the construction speed
It realized the industrial production of concrete houses. It can be used to build permanent building or as relocation house. It is characterized by earthquake resistant and wind resistant, moisture proof and fireproof , sound insulation and heat insulation. Can be assembled into all kinds of styles houses and buildings, widely used in civil houses and public buildings, such as villas, residential, office buildings, collective dormitory,farm houses, hotels, shops and so on.
We use below machine line to manufacture the each unit concrete modular house.
Please check below machine pictures.

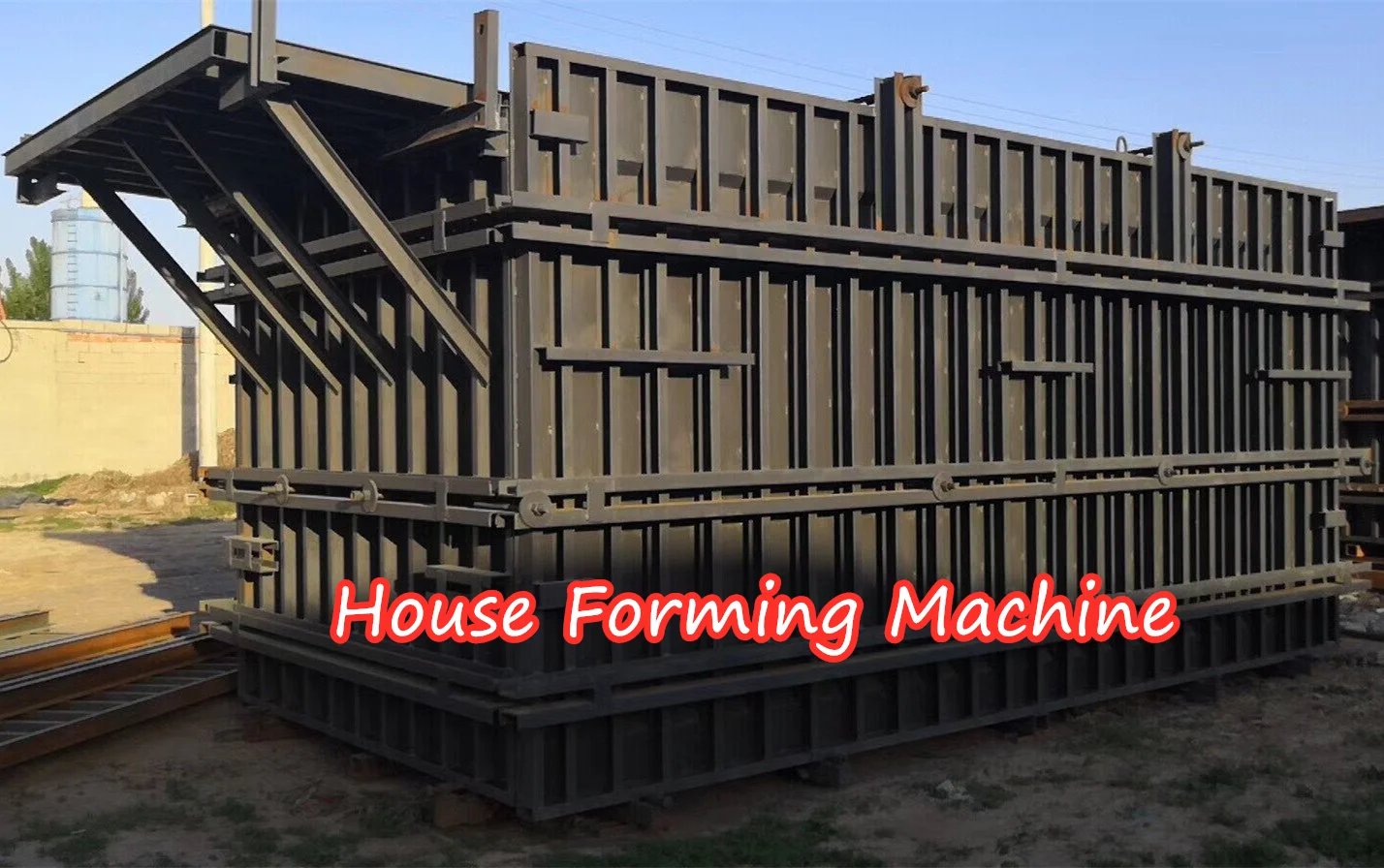

1. House Forming Machine

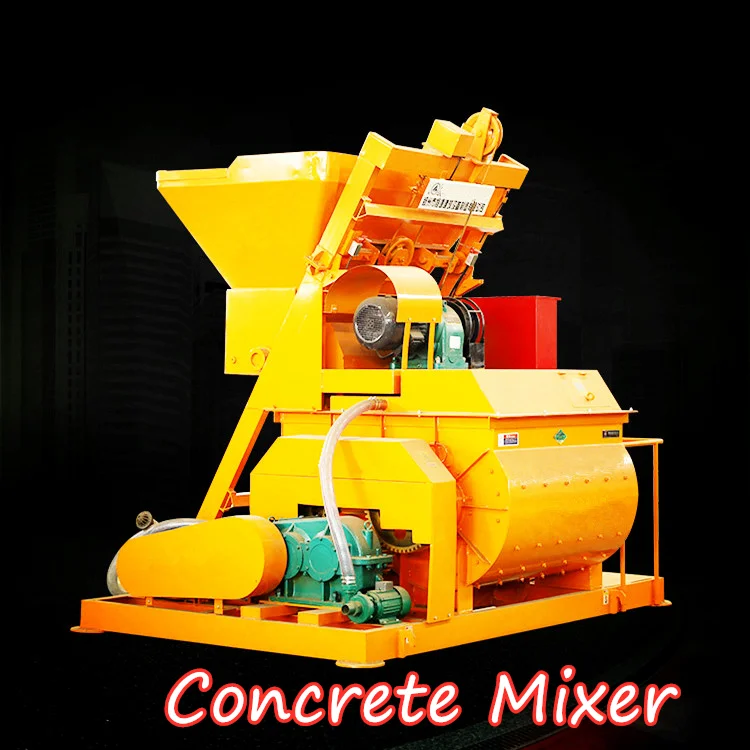

2. Concrete Mixer

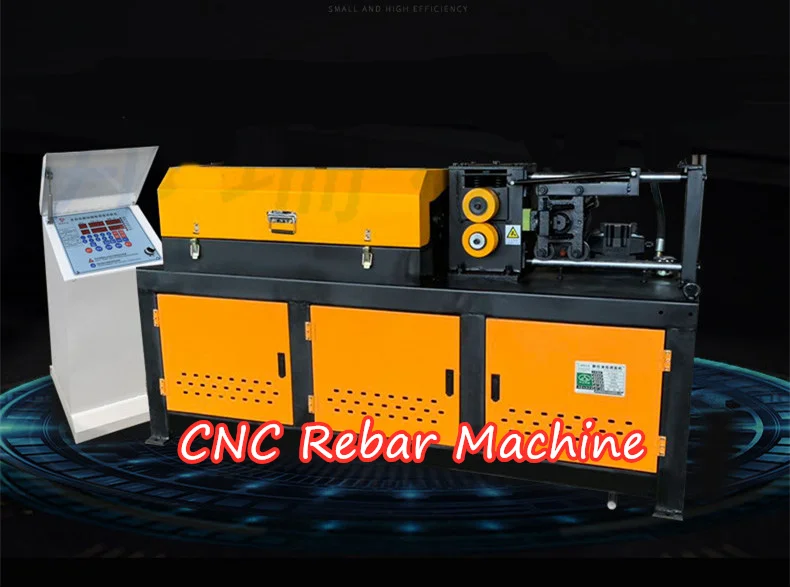

3. CNC Rebar Machine

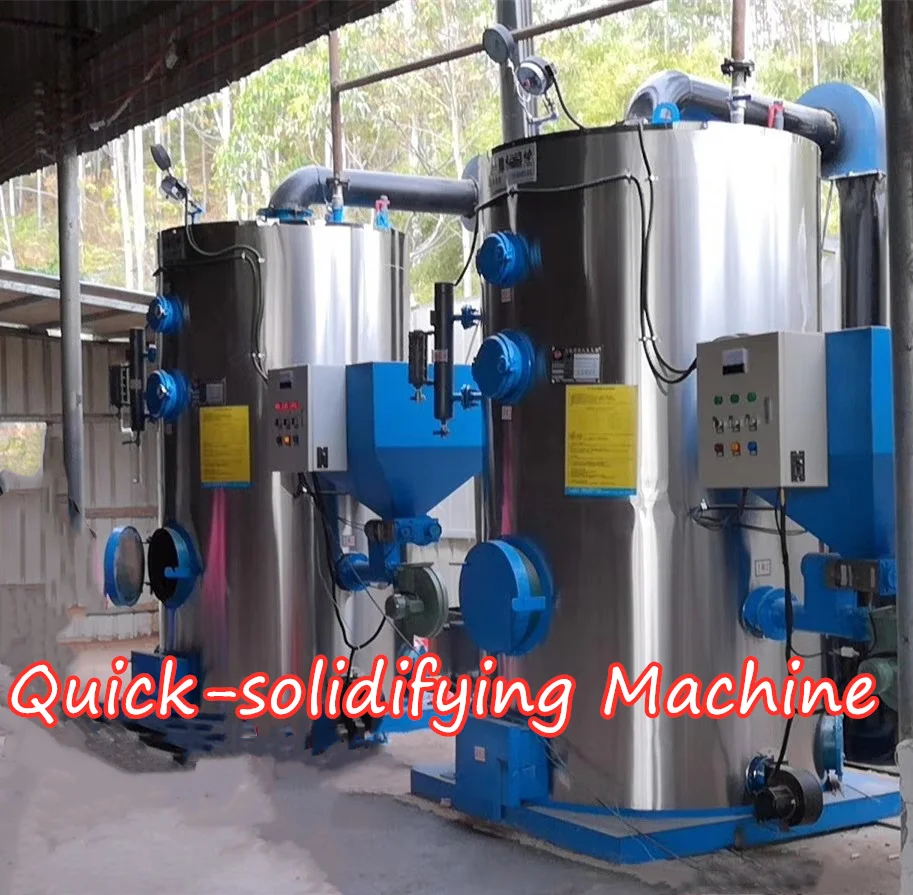

4. Quick-solidifying Machine

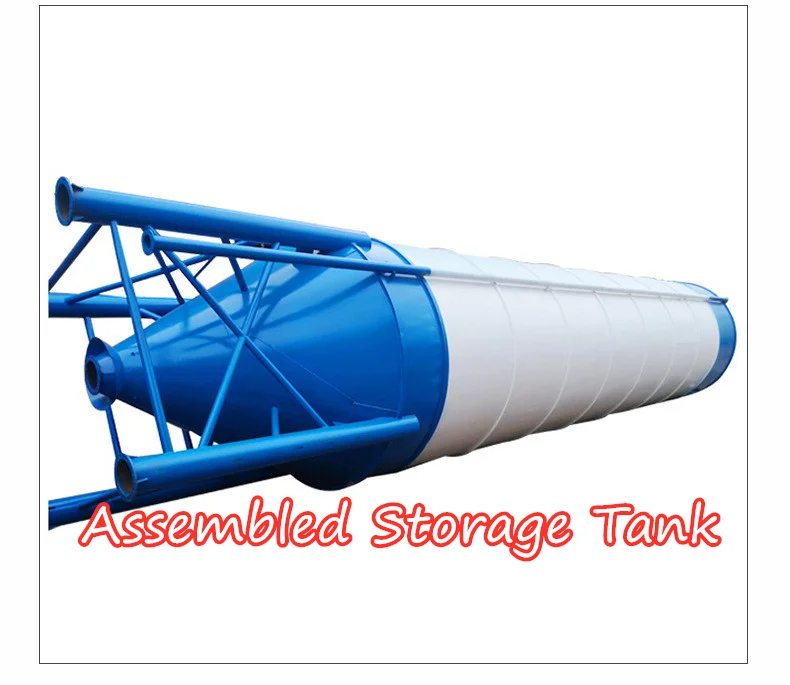

5. Assembled Storage Tank

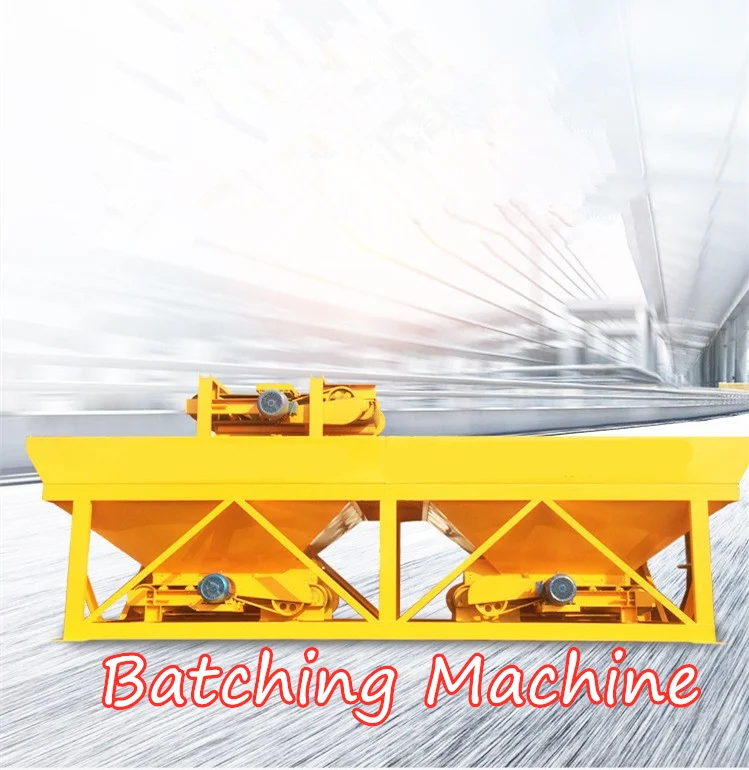

6. Batching Machine
How To Produce The Concrete Modular House?

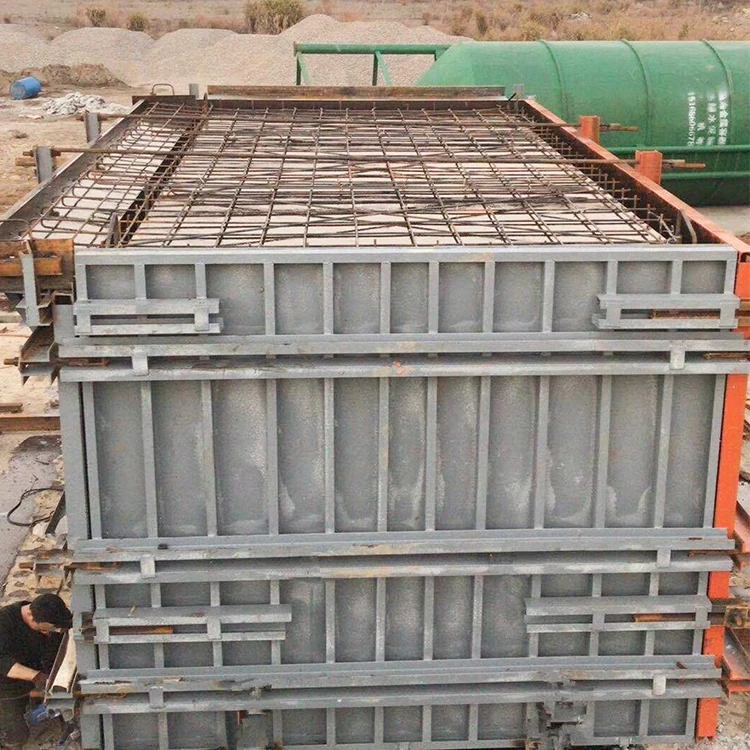

1.Processing the rebar by CNC rebar Machine ,and weave the rebar（reinforcement）into grid and cover it on the inner chassis of forming machine.
2.Producing the concrete by the concrete machines.
3.Adjust the forming machine, and use the gantry crane and hopper to hoist the concrete and pour into the machine until it is full .
4.Cover the forming machine with the cover of quick-solidifying machine,and then turn on quick-solidifying machine to make the concrete solidify quickly .

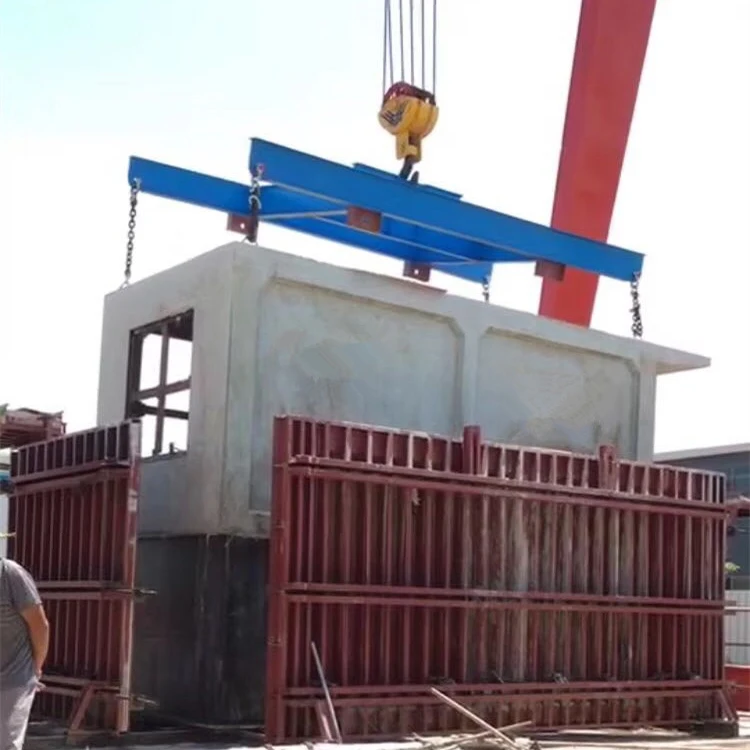

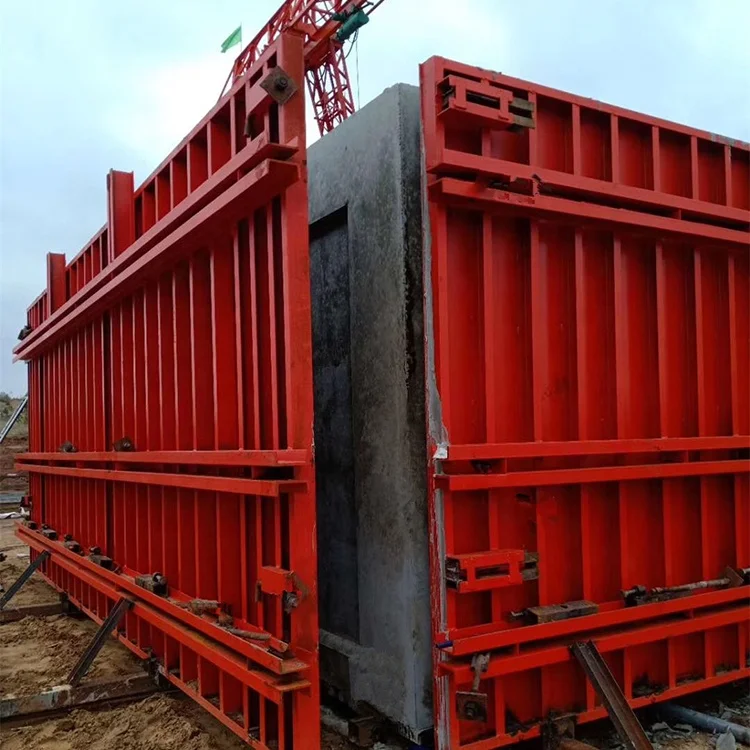

5.After 2-3 hours, a unit modular house is finished, pull open the side sheet of forming machine, adjust inner chassis shrink to detach the wall of house. Use the gantry crane hoist the house and store it.
Finished Products Description
Advantage and Application
Can be assembled into all kinds of styles houses and buildings, widely used in civil houses and public buildings, such as villas, residential, office buildings, collective dormitory,farm houses, hotels, shops and so on.
1. Low cost: The construction cost of this house is only half of traditional brick and concrete house.
2. Extreme speed of construction: High level of prefabrication, fast construction speed, 500 square meters per day, greatly improving construction speed.
3. Earthquake resistance: It can withstand a magnitude 9 earthquake and will not collapse as a whole due to local damage during earthquake.
4. Wind-resistant: It can withstand a hurricane of 200km/h. The weight of each unit module is 20 tons (the weight of 10 cars).
5. Durable: Lifetime of main structure with reinforced concrete can reach more than 100 years.
6. Fire retardant: Reinforced concrete structure solid wall, fire resistance time is long.
7. Sound insulation: The amount of sound insulation of the wall can reach more than 65dB.
8. Insulation: Reinforced concrete structure solid wall, good thermal insulation
9. Energy-saving and environmental protection: new green buildings, it doesn’t produce construction rubbish during construction, and can be removed again during demolition and reuse.
10. Flexible assembly: It can be assembled into all kinds of styles houses and buildings, each room can be assembled by one or more units modules, up to five floors.

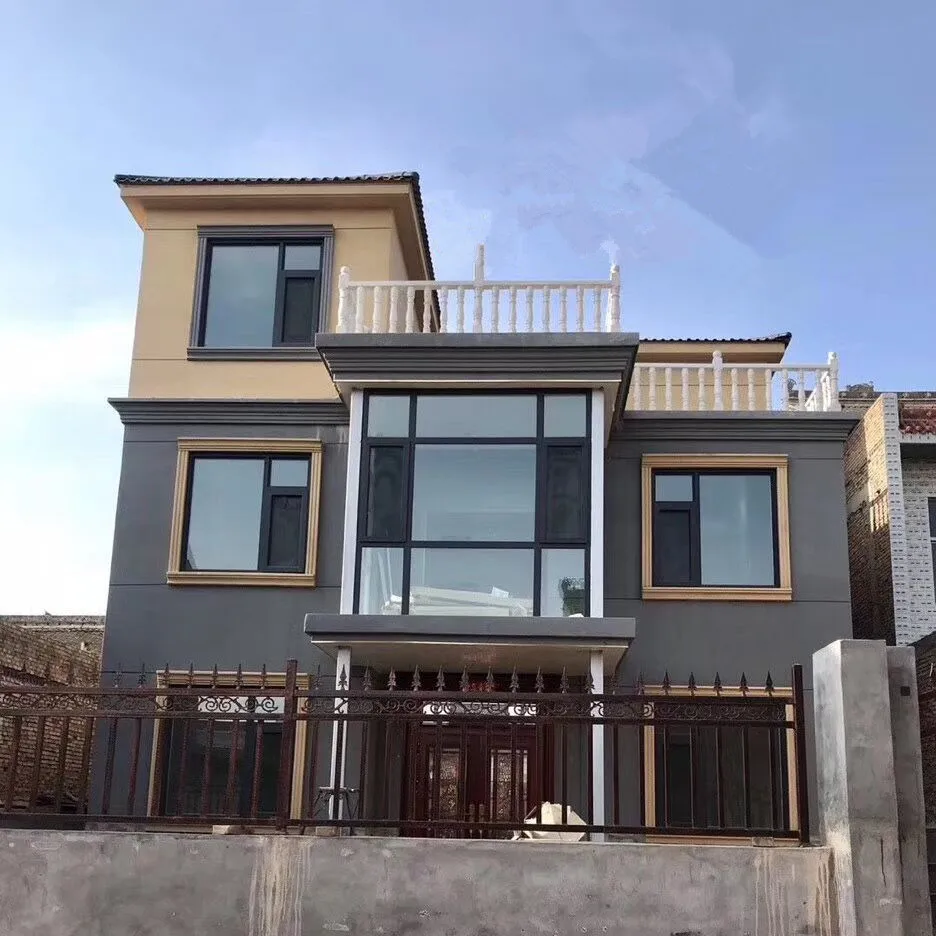

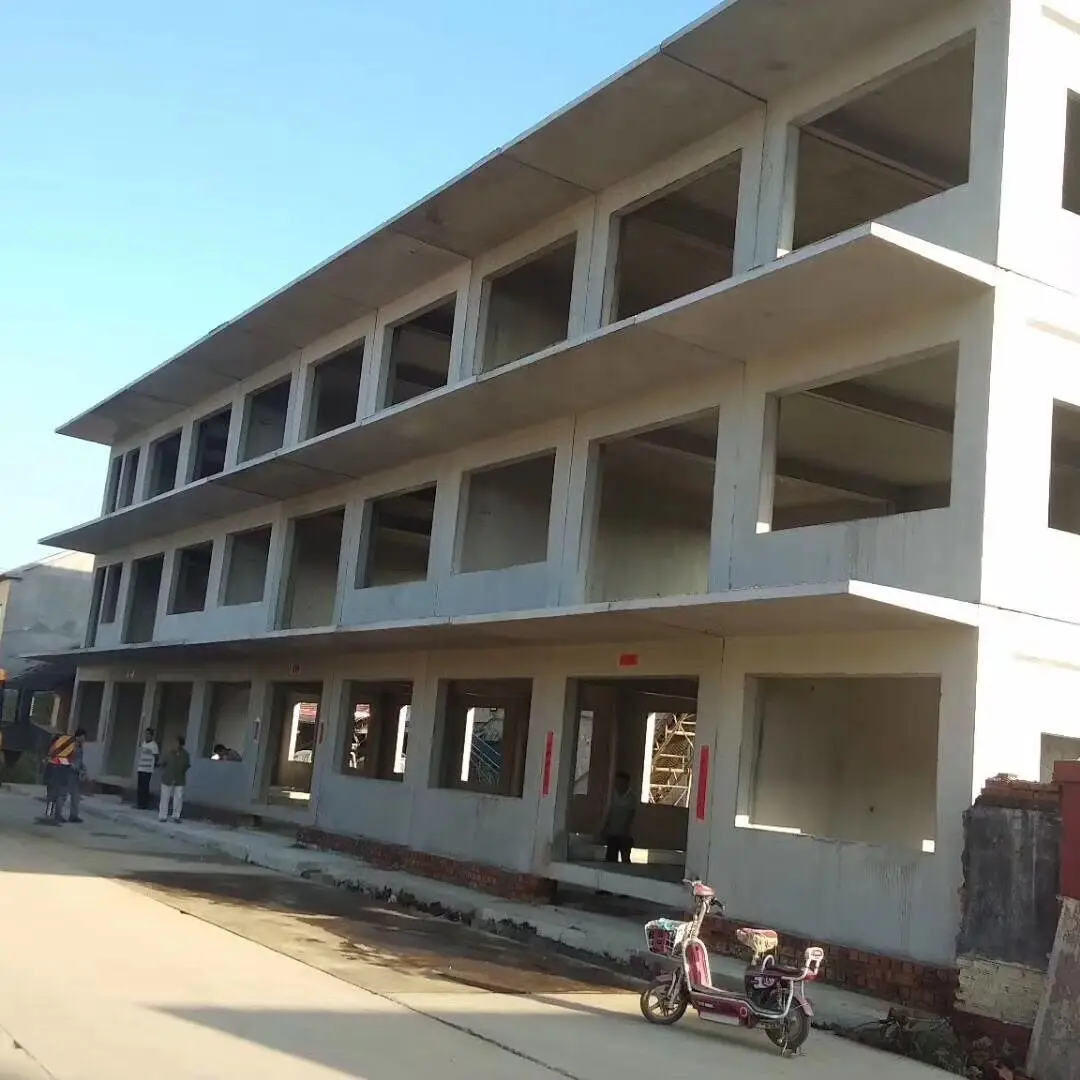

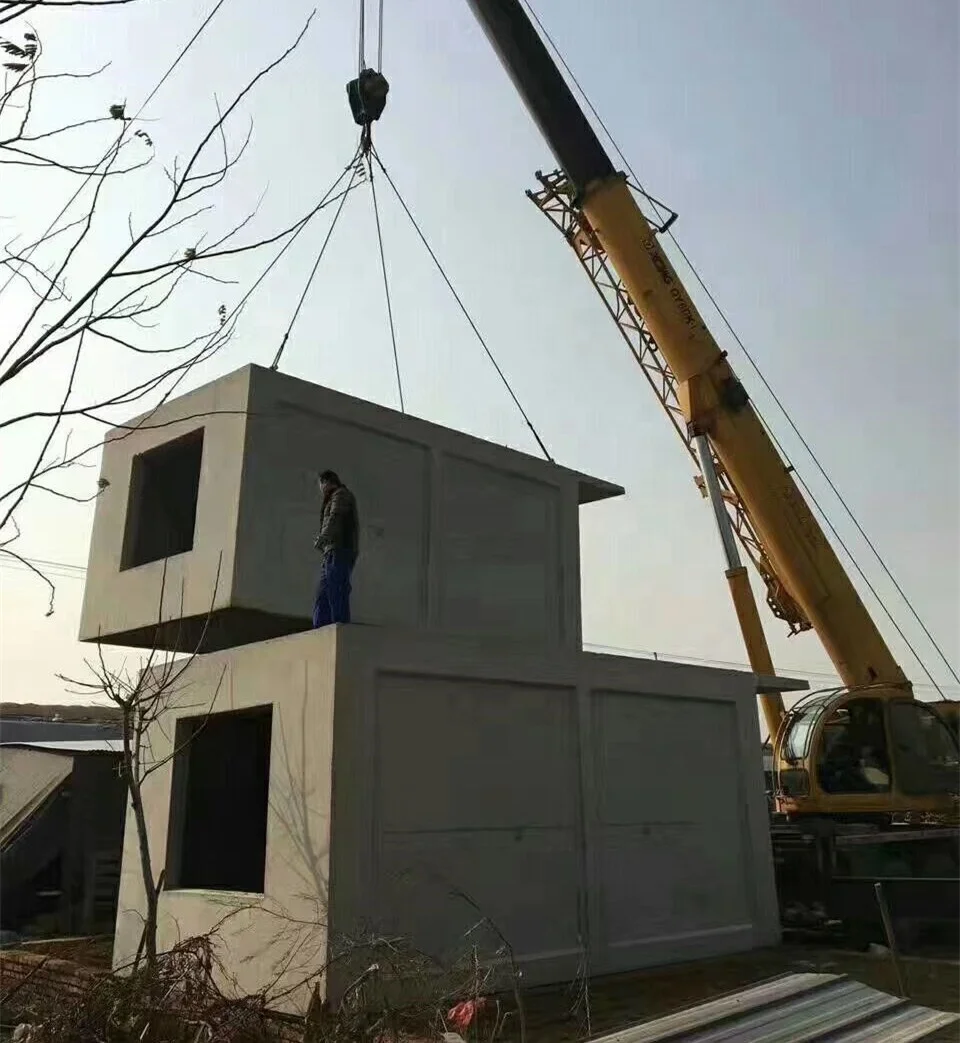

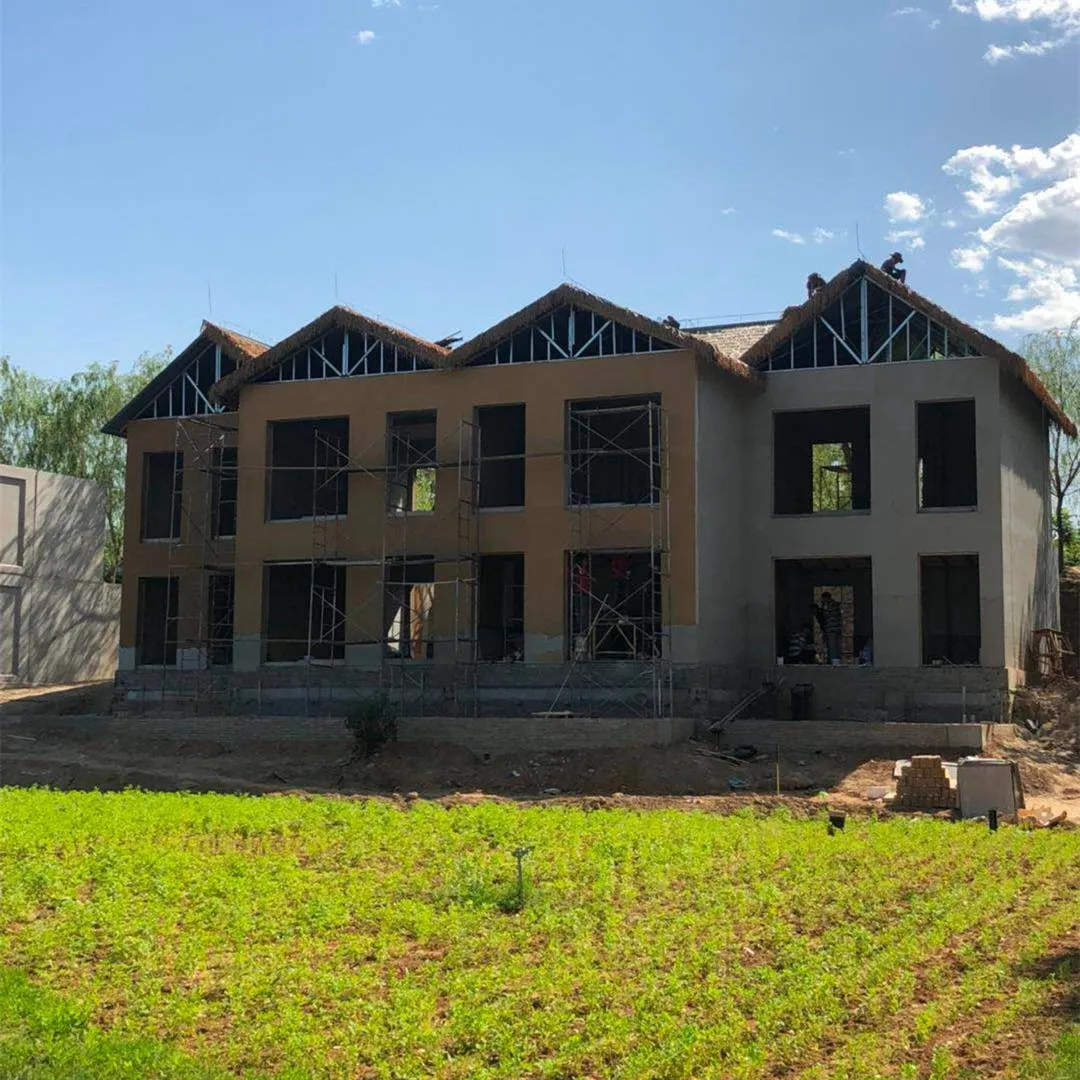

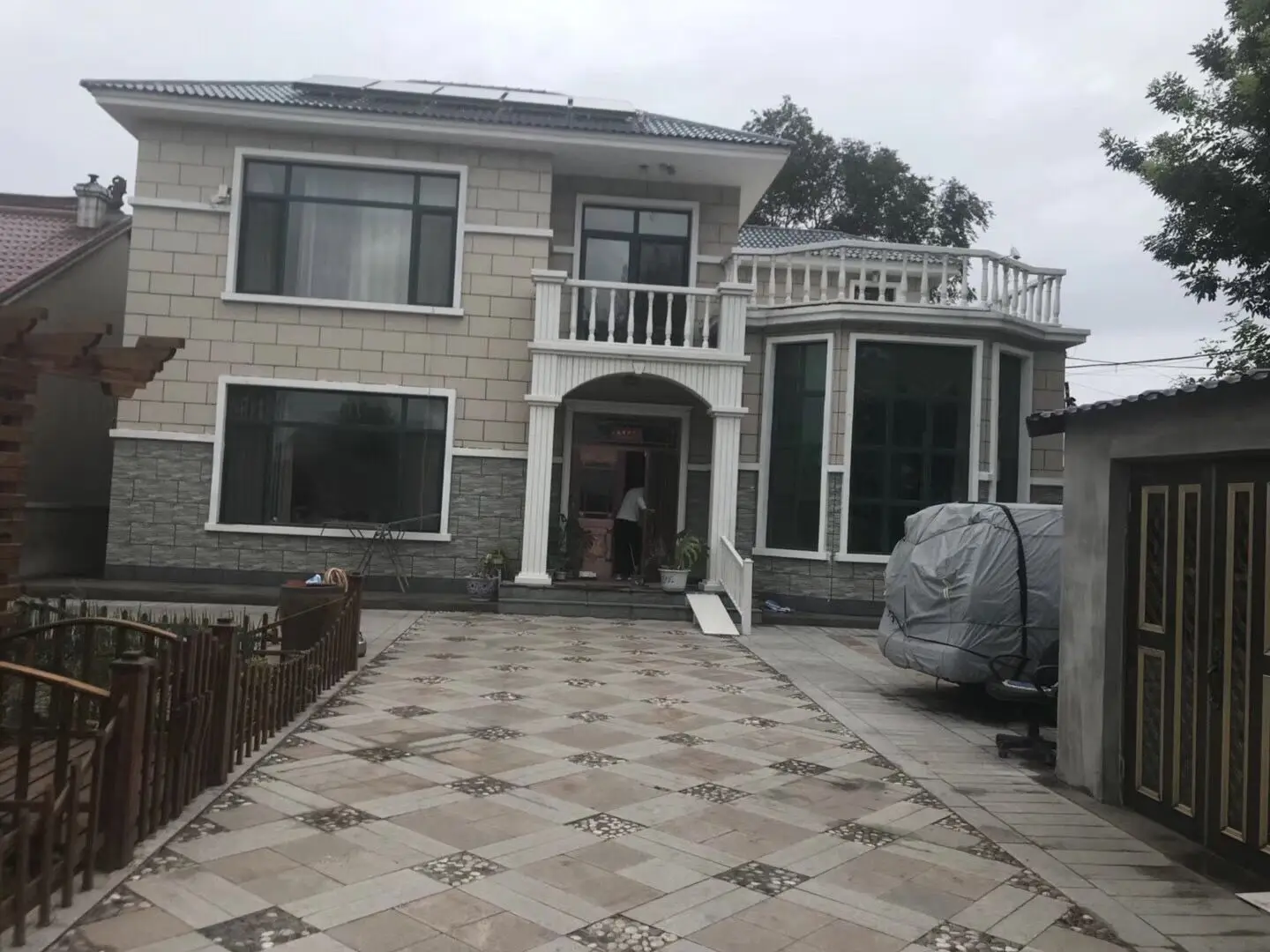

Building Project Cases

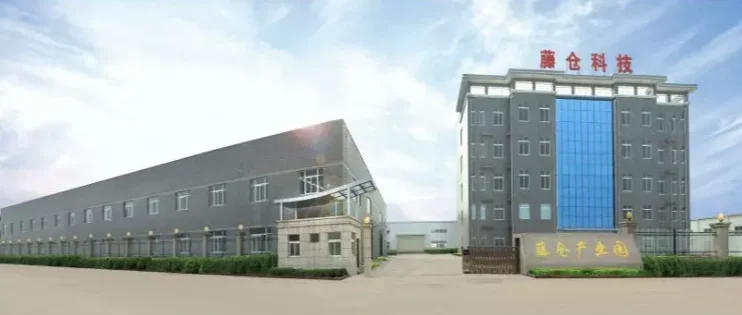

Company Profile
Hubei Tengcang Building Materials Technology Co., Ltd. is a professional group specialized in light steel house manufacture, structural design & construction. The company built a modern five-star industrial park by itself , which occupies 23000 square meters, and lies at the national high-tech development zone of Xiaogan city of Hubei province that is called " Hometown of Dongyong", we own hundreds of persons including architectural designers, housing engineers, trainers etc. Tengcang Technology always sticks to the international global development strategy of housing industry , aims at the mission of promoting and popularizing the green and energy-saving building and construction materials , dedicates itself to ecological and cultural
Why Choose Us
1. We offer good after-sale service. We support dispatch engineer to your country to install machines and training workers at least 30 days.
2. We offer on-line guidance of the machine after engineer come back
3. We offer video to guide you
4. Sales team will online 24 hours and respone your question in time.
FAQ
Q: How many sizes of the modular house?
A: The general sizes of unit module :
Width*length : 3*6m, 3.3*6m 3.3*6.3m 3.3*6.6m 3.5*7m 3.6*6m 3.6*6.6m 3.6*7.2m，
Height : 2.8m,3m,3.2m,
Length of eaves : 0-1.5m
Or can be customized by customized forming machine.
Q: Do you provide a guarantee for your machines?
A: We provide 1 years warranty for machines, and will also preapre free spare parts.
Q: What's the delivery time of machines?
A: 30 working days
Q: What is your payment terms for the buyer?
A: 30% T / T deposit, 70% T / T balance before loading.
Q: What's the production cost of 1 modular house?
A: The cost of self-produced concrete is about 57.1USD / cubic meter
(raw materials: cement, sand, stone, water).
The cost of steel bars is 428.5USD / ton = 0.428USD / KG.
Take a 3.3 * 6.6 * 3 meter (about 22 square meters) module unit as an example
The amount of material is as follows:
8.5 cubic meters of concrete: 400 * 8.5 = 485.7USD 420KG
Steel bar: 420 * 0.428= 180 USD
Water and Electricity costs: 42.85USD
Labor cost:71.43USD
The total cost of a modular unit (about 22 square meters) = 780USD
So the cost per square meter = 780 ÷ 22 = 35.45 USD per square meter
Q: How to contact you if i want to consult the machines?
A: You could send inquiry or add my whatsapp +86-18674058216
