fully precast modular concrete house manufacturing machines
- $7000.00 /set
- 1 set
- Hubei Tengcang Building Material Technology Co., Ltd.
- Hubei, China
- Mr Sam Xiao
PRODUCT DETAIL
| port: | Wuhan Port | place of origin; place of origin: | Hubei, China |
| After Warranty Service: | Video technical support, online support | After-sales service provided: | Online support, on-site installation and debugging training, video technical support |
| Packaging Details: | standard packaging | Supply capacity: | 50 units per month |
| payment terms: | L/C,T/T,Western Union | Showroom location: | not any |
| Health status: | new | Local service location: | not any |
| Applicable industries: | construction project | Warranty: | 1 year |
Product parameters

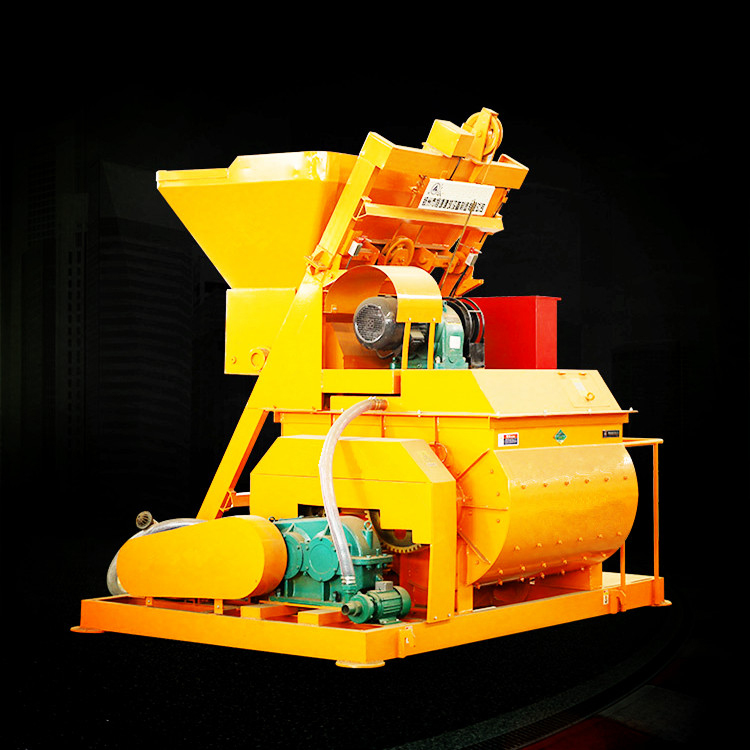

parameter | Concrete mixer A (Model: TC8041) | Concrete mixer B (Model: TC8042) |
Feed amount | 800L | 1600L |
Emissions | 500L | 1000L |
efficiency | 25 m3/h | 50 m3/h |
Rotating speed | 35 rpm | 25 rpm |
Aggregate size | up to 80 mm | up to 80 mm |
blade | 14 | 20 |
Voltage | 380 volts | 380 volts |
strength | 18.5kW | 37kW |
Machine size | 428*279*651mm | 877*344*654cm |
weight | 3900 kg | 8750 kg |

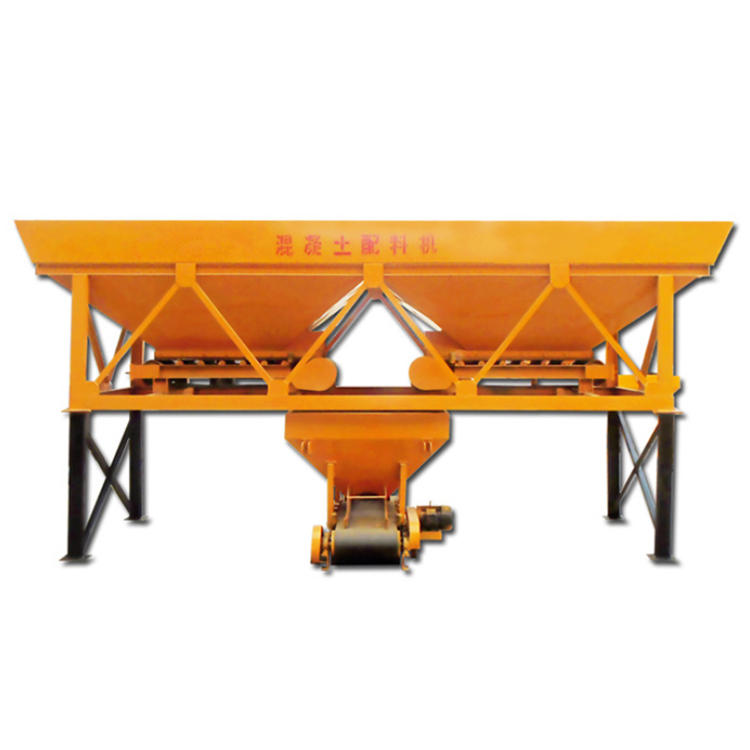

parameter | Batching machine A(Model: TC8051) | Batching machine B (Model: TC8052) |
Weighing volume | 800L | 1200L |
storage hopper | 5 cubic meters | 7 cubic meters |
efficiency | 48 cubic meters/hour | 60 cubic meters/hour |
batch error | ±1% | ±1% |
Maximum weight | 3000kg | 4000kg |
transfer speed | 1m/s | 1.25m/s |
Voltage | 380V | 380V |
strength | 12kW | 16kW |
Machine size | 560*183*270cm | 900*250*350cm |
weight | 2450kg | 4500kg |

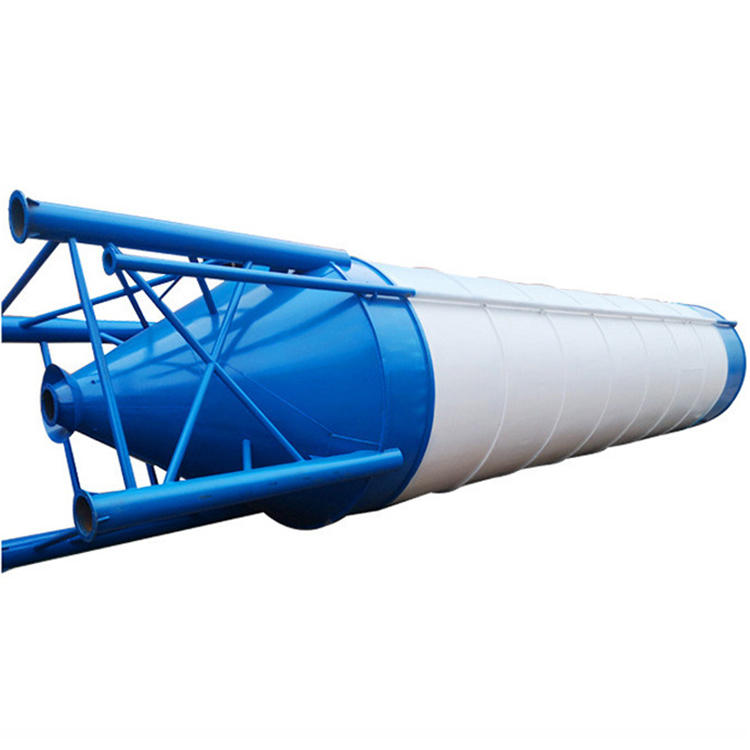

parameter | Assemble Tank A (Model: TC8061) | Assemble Tank B (Model: TC8062) |
storage weight | 80 tons | 150 tons |
volume | 60 cubic meters | 111 cubic meters |
diameter | 280cm | 320cm |
Line segment height | 900 cm | 1350cm |
total height | 1105cm | 1584 cm |
trestle height | 300 cm | 300 cm |
steel thickness | 6mm | 8mm |

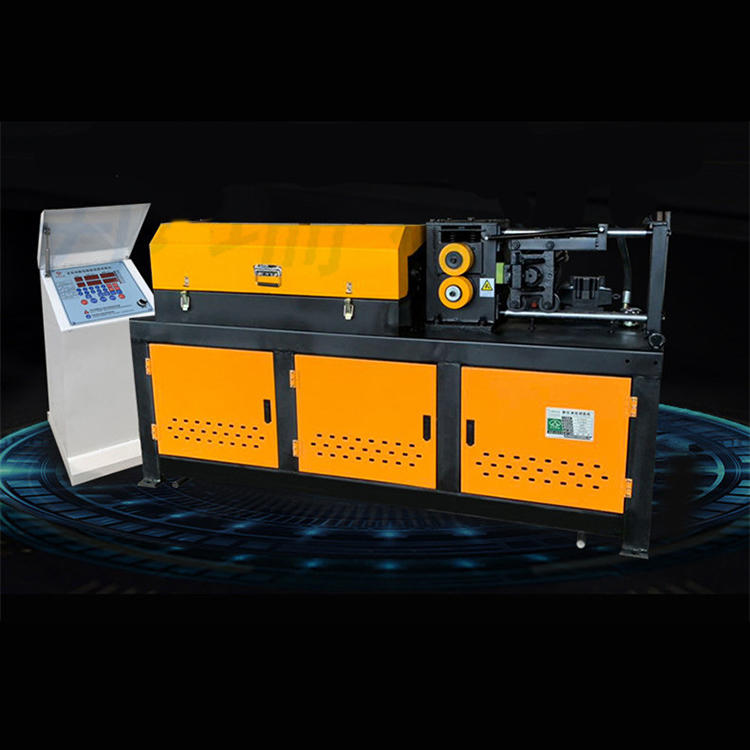

parameter | CNC Rebar Processing Machine (Model: TC8030) |
processing speed | 20-40m/min |
Machining diameter | 4-14mm steel bar |
Rebar type | Round bar, deformed bar |
in principle | hydraulic |
Control System | CNC |
Voltage | 380v |
strength | 9kW |
Machine size | 200*75*110cm |
weight | 900kg |

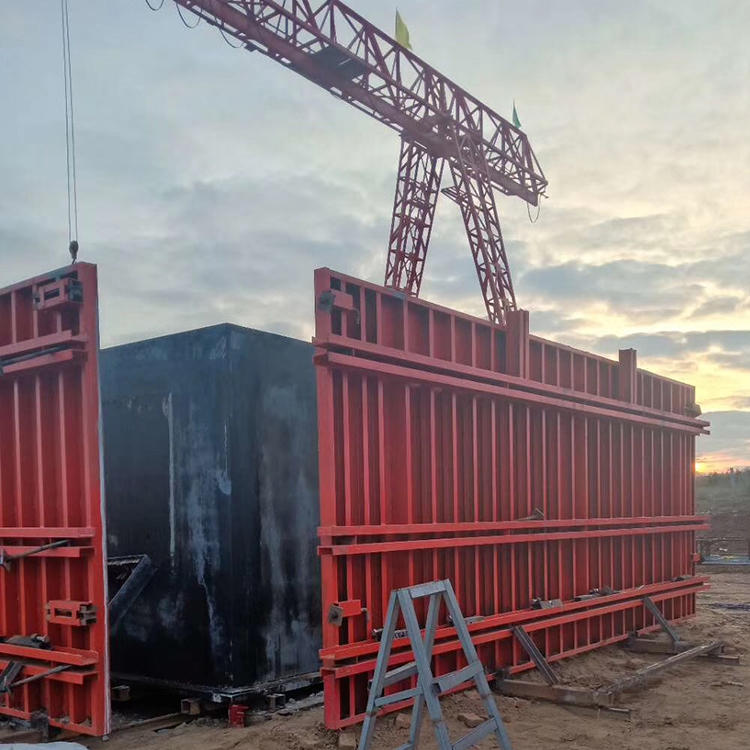

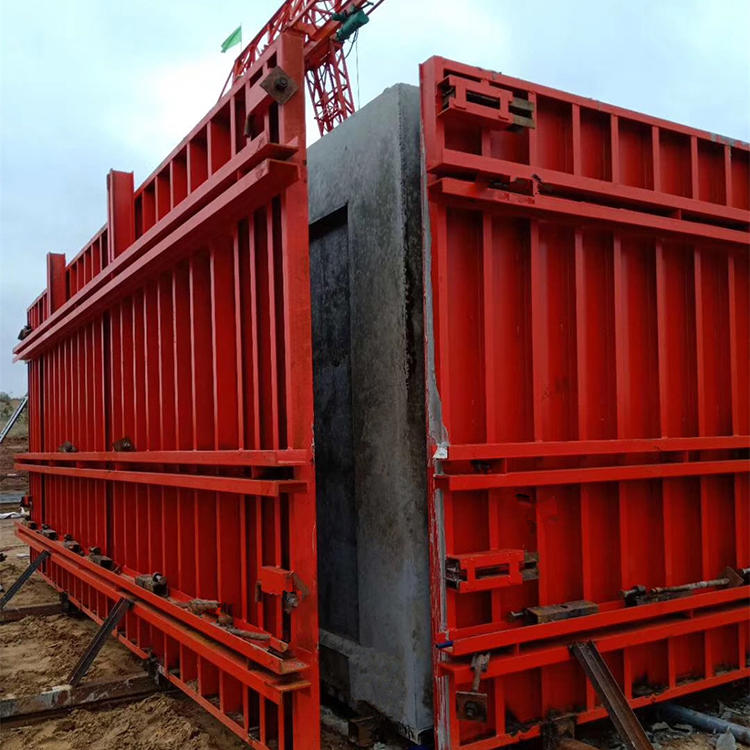

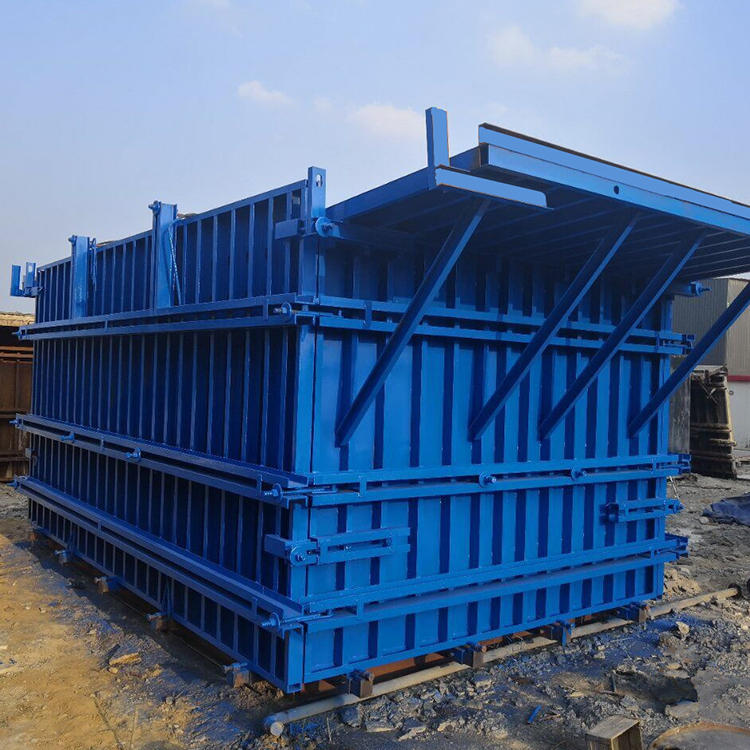

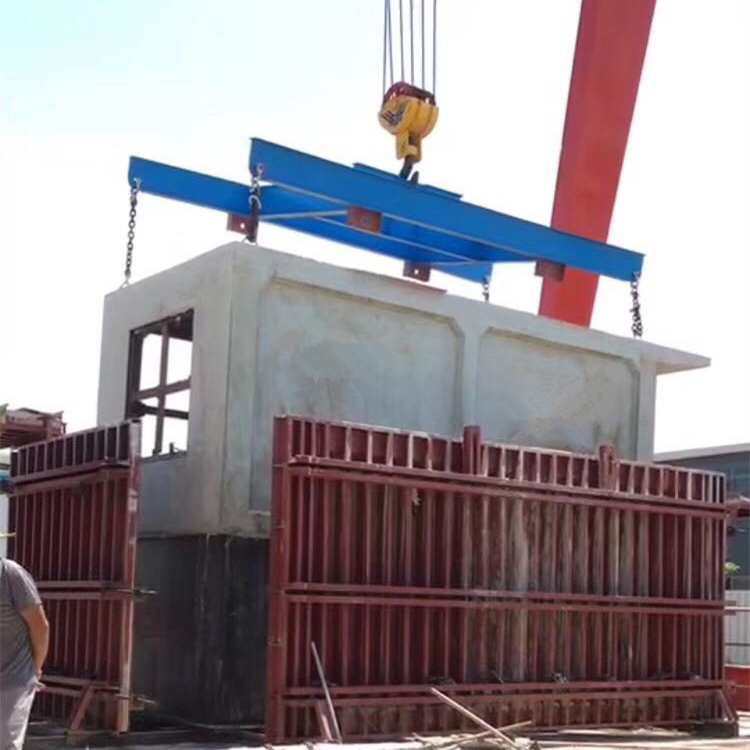

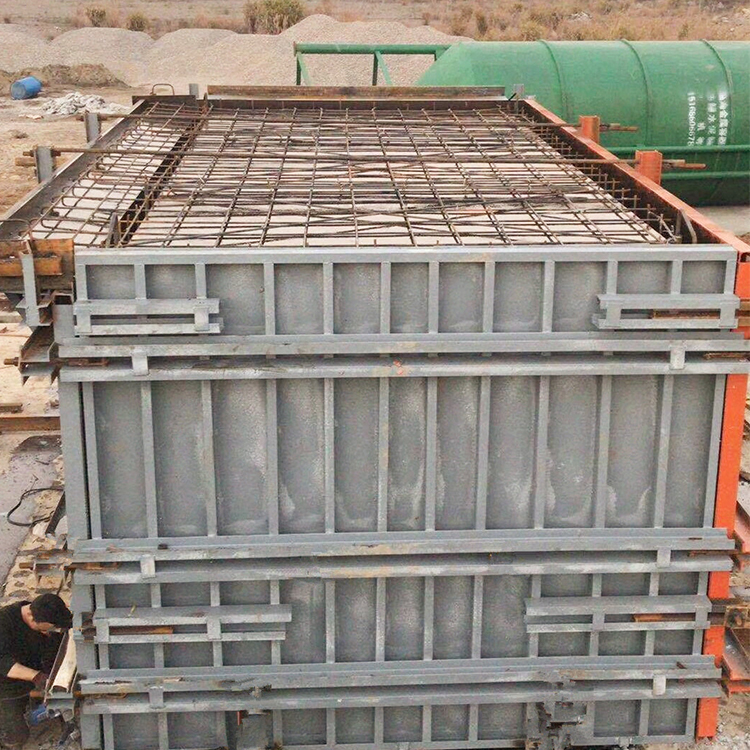

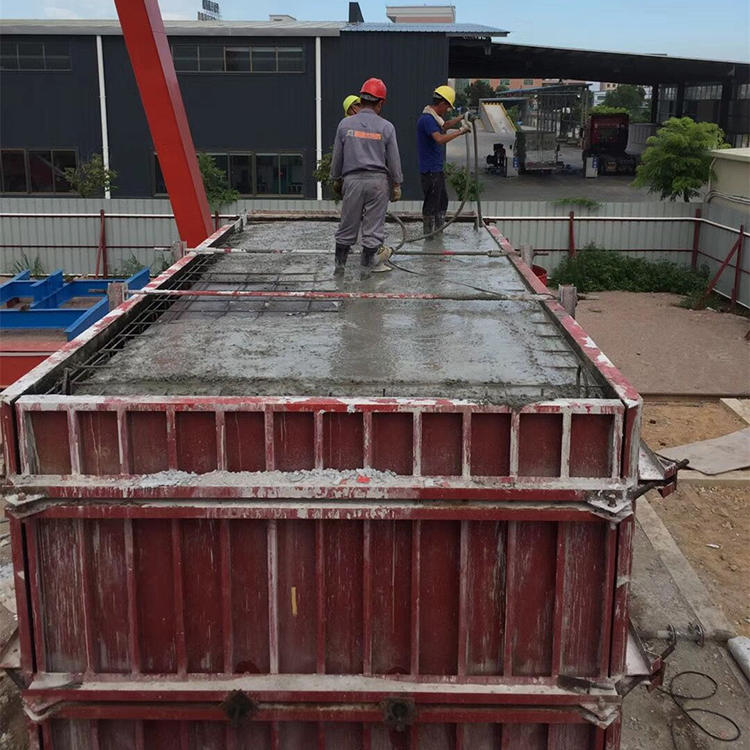

parameter | house forming machine (Model: TC8010) |
in principle | hydraulic |
automation | semi-automatic |
ways to produce | Reinforced concrete fill |
Molding time | 2-3 hours |
Machine material | all steel |
side panel | slidable |
inner box | retractable |
weight | 17000-23000KG |
size | 3*6m, 3.3*6.6m, 3.6*7.2m |
customizable | Yes |

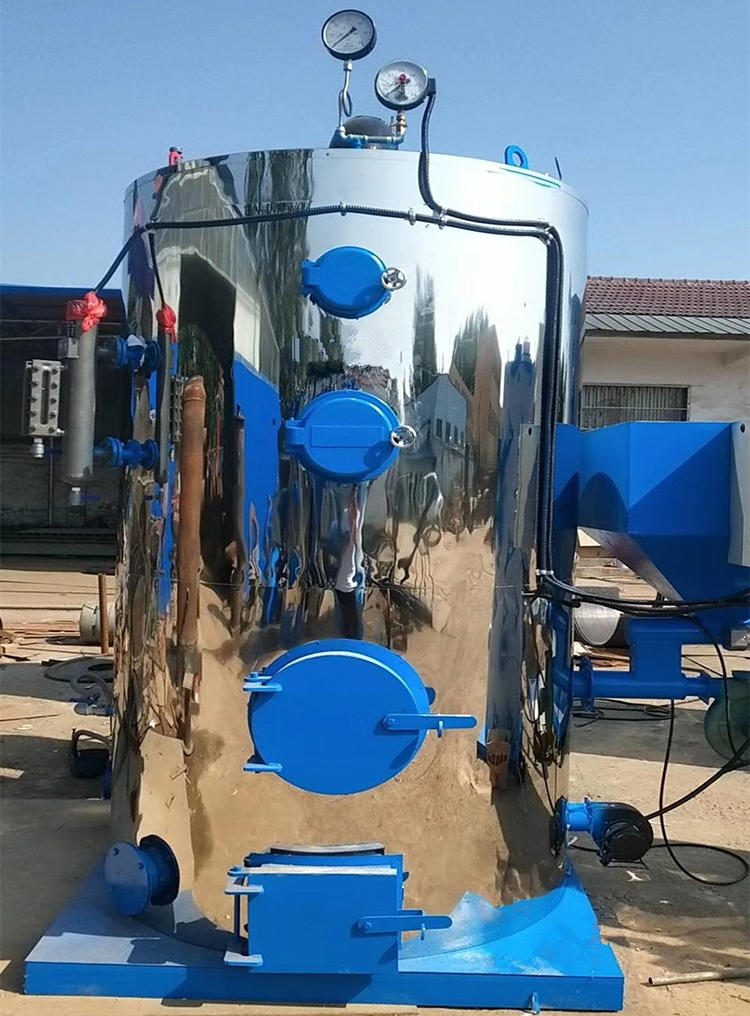

parameter | Housing rapid curing machine A (Model: TC8021) | Housing rapid curing machine B (Model: TC8022) |
efficiency | 500kg/h evaporation | 1000kg/h evaporation |
preset pressure | 0.7Mpa | 0.7Mpa |
temperature | 170 degrees Celsius | 170 degrees Celsius |
Voltage | 380V | 380V |
strength | 1.4kW | 3.3kW |
weight | 2500kg | 4500 kg |
size | 1m in diameter, 2.6m in height | 1.5m in diameter, 2.8m in height |
detailed picture
optional unit
scale | small | middle | big |
configure | 2 house forming machines 1 set of housing quick curing machine A 1 CNC rebar processing machine 1 set of concrete mixer A 1 batching machine A 1 set of assembled storage tank A Accessories and Tools On-site debugging equipment and technical training for engineers (30 days) | 4 sets of house forming machines 1 set of housing rapid curing machine B 2 CNC rebar processing machines 1 concrete mixer A 1 batching machine A 1 set of assembled storage tank A Accessories and Tools On-site debugging equipment and technical training for engineers (40 days) | 8 sets of house forming machines 2 House quick curing machines B 3 sets of CNC rebar processing machine 1 concrete mixer B 1 batching machine B 1 set of assembled storage tank B Accessories and Tools On-site debugging equipment and technical training for engineers (50 days) |
total price | $87,000 | $143,000 | $266,000 |
productivity | 600 Unit Module (House)/Year | 1200 Unit Module (House)/Year | 2400 Unit Module (House)/Year |

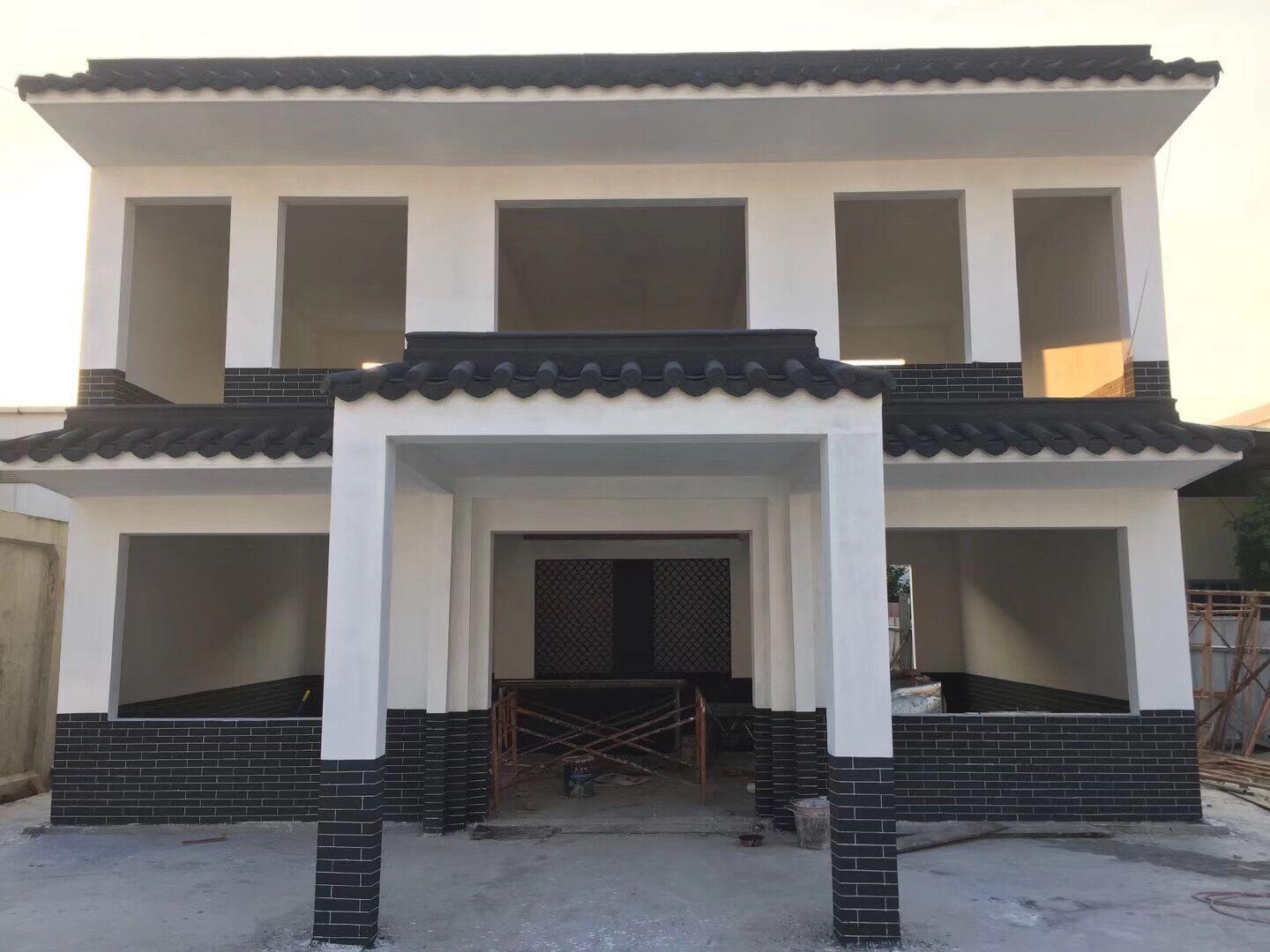

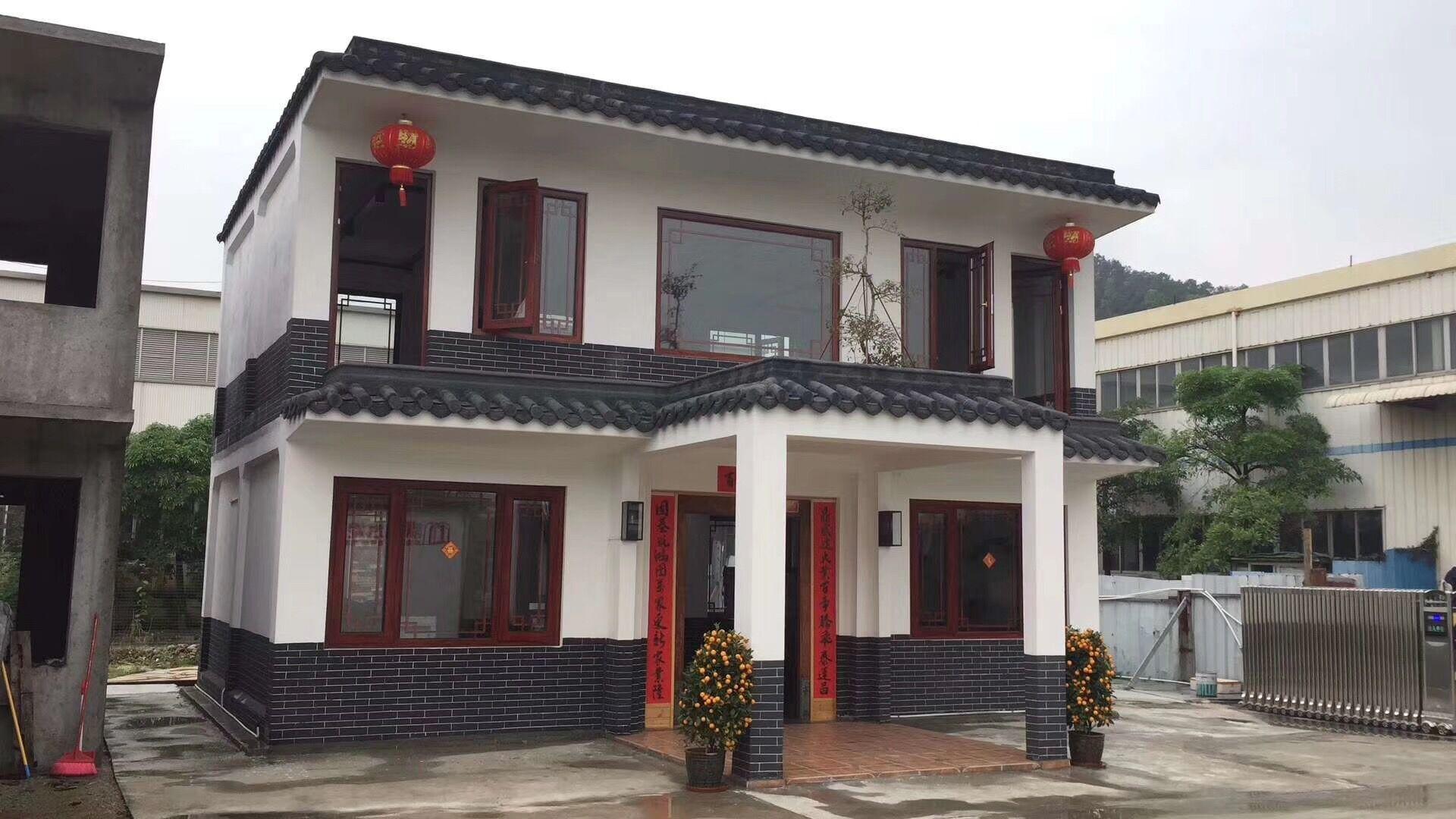

Finished product description

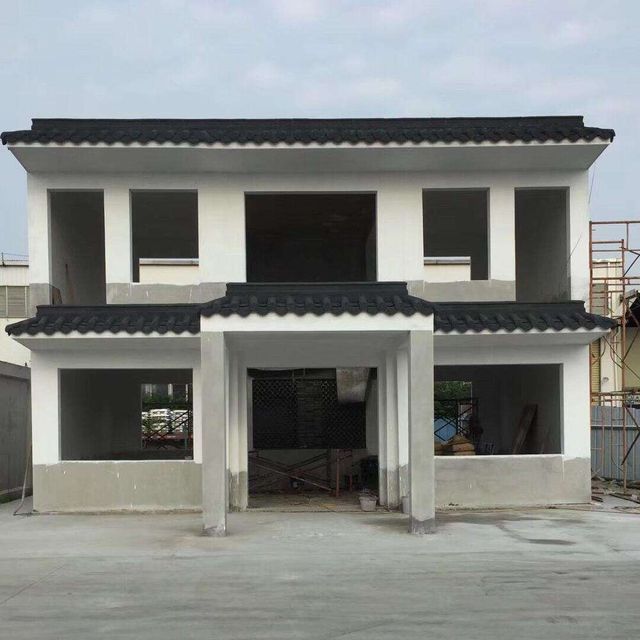

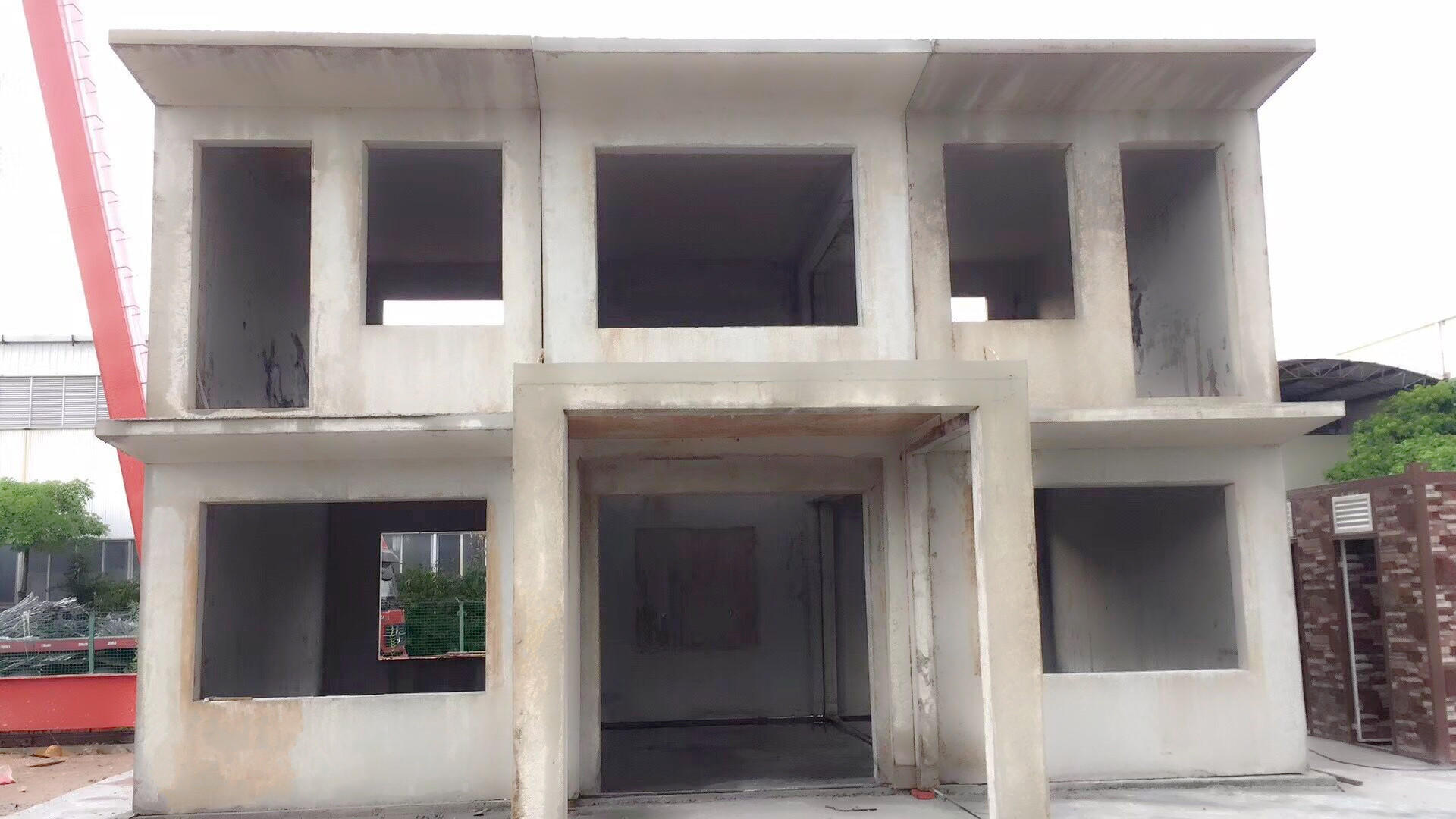

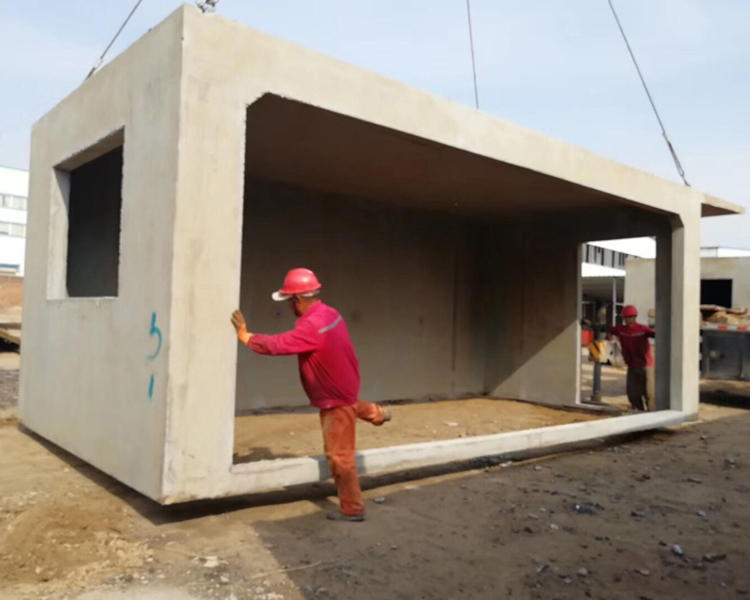

Concrete Modular HomeAlso known as precast concrete house, it is a kind of concrete prefabricated building. It is a new construction method with good energy saving and low cost. With reinforced concrete structure, the unit modules are prefabricated in the factory with special equipment, and then shipped directly to the site for assembly.
The prefabrication level is high, the size is accurate, and the construction speed is very fast, 500 square meters can be built in one day, which greatly improves the construction speed. Realized the industrial production of concrete houses. Can be used to build permanent structures or as a relocation home. It has the characteristics of earthquake resistance, wind resistance, moisture resistance and fire resistance, sound insulation and heat insulation. It can be assembled into various styles of houses and buildings, and can be widely used in villas, residences, office buildings, collective dormitories, farms and other civil residences and public buildings.
Houses, hotels, shops, etc.
Compared with traditional brick-concrete houses, the main advantages of concrete composite houses are low construction cost, good earthquake resistance, long service life, fast construction speed, labor saving, long service life, no construction waste, and can be demolished and relocated. . In line with the development direction of environmental protection construction advocated by the world.
The prefabrication level is high, the size is accurate, and the construction speed is very fast, 500 square meters can be built in one day, which greatly improves the construction speed. Realized the industrial production of concrete houses. Can be used to build permanent structures or as a relocation home. It has the characteristics of earthquake resistance, wind resistance, moisture resistance and fire resistance, sound insulation and heat insulation. It can be assembled into various styles of houses and buildings, and can be widely used in villas, residences, office buildings, collective dormitories, farms and other civil residences and public buildings.
Houses, hotels, shops, etc.
Compared with traditional brick-concrete houses, the main advantages of concrete composite houses are low construction cost, good earthquake resistance, long service life, fast construction speed, labor saving, long service life, no construction waste, and can be demolished and relocated. . In line with the development direction of environmental protection construction advocated by the world.
Finished product features
Concrete modular house features.
1. Low cost:The house was built for half the cost of a traditional brick and mortar home.
2. Extremely fast construction:The prefabrication level is high and the construction speed is fast, 500 square meters per day, which greatly improves the construction speed.
3. Shock resistance:It can withstand a magnitude 9 earthquake and will not collapse as a whole due to local damage during an earthquake.
4. Wind resistance:It can withstand hurricanes up to 200 km/h. The weight of each unit module is 20 tons (the weight of 10 cars).
5. Durable:The life of the reinforced concrete main structure can reach more than 100 years.
6. Fireproof:The solid wall of reinforced concrete structure has a long fire resistance time.
7. Sound insulation:The sound insulation of the wall can reach more than 65dB.
8. Insulation:Reinforced concrete structure solid wall, good thermal insulation
9. Energy saving and environmental protection:Newly built green buildings do not generate construction waste during construction, and can be demolished again during demolition and reuse.
10. Flexible assembly:It can be assembled into various styles of houses and buildings, each room can be assembled from one or more unit modules, up to five storeys.
1. Low cost:The house was built for half the cost of a traditional brick and mortar home.
2. Extremely fast construction:The prefabrication level is high and the construction speed is fast, 500 square meters per day, which greatly improves the construction speed.
3. Shock resistance:It can withstand a magnitude 9 earthquake and will not collapse as a whole due to local damage during an earthquake.
4. Wind resistance:It can withstand hurricanes up to 200 km/h. The weight of each unit module is 20 tons (the weight of 10 cars).
5. Durable:The life of the reinforced concrete main structure can reach more than 100 years.
6. Fireproof:The solid wall of reinforced concrete structure has a long fire resistance time.
7. Sound insulation:The sound insulation of the wall can reach more than 65dB.
8. Insulation:Reinforced concrete structure solid wall, good thermal insulation
9. Energy saving and environmental protection:Newly built green buildings do not generate construction waste during construction, and can be demolished again during demolition and reuse.
10. Flexible assembly:It can be assembled into various styles of houses and buildings, each room can be assembled from one or more unit modules, up to five storeys.
