High temperature kiln insulation ceramic fiber module

PRODUCT DETAIL
chemical composition:alumina, silicaDensity (kg/m3):160-220
thickness:10-50mmsize:customizable
Package preview:product name:Insulating ceramic fiber modules
grade:HP/HA/HZ modulepayment terms:L/C, Western Union, T/T
type:Ceramic Fiber ProductsOperating temperature:1000-1350
feature:fire protectionShrinkage rate (1800F, 3h):3% (24 hours)
Supply capacity:6000 tons/month low volume density high alumina insulation brickport:Qingdao, Tianjin
Packaging Details:A complete set of high temperature kiln insulation ceramic fiber modules can be made according to customer requirementsapplication:refractory
Product Description

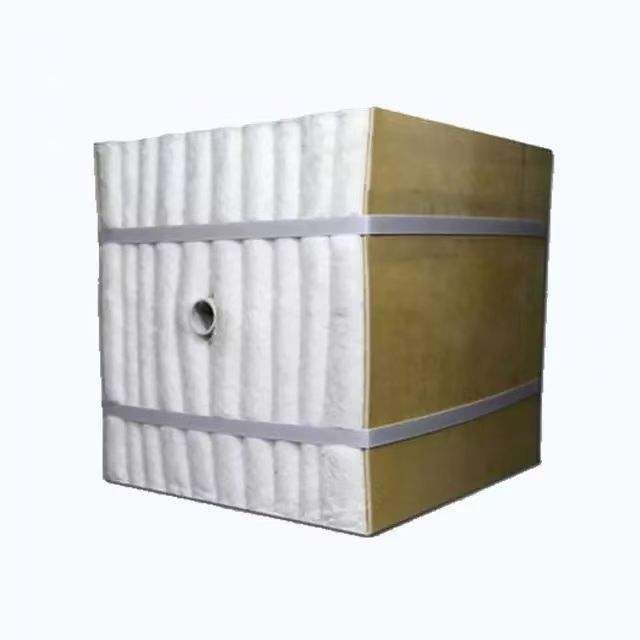

Ceramic Fiber Module Description

Rongsheng ceramic fiber modules are made by folding or cutting Rongsheng ceramic fiber blankets by experienced professional technicians. We use special equipment for the production of modules to determine the exact dimensions and keep the surface of the modules smooth, which are then applied to various thermal lining equipment. The product has the characteristics of reliable quality, quick installation and superior insulation performance.
The Rongsheng ceramic fiber module adopts reinforced H-shaped anchors, which are stronger and closer to the cold surface. It ensures strength at high temperatures. The fixed connecting rod is welded by high-quality heat-resistant steel and stamped butterfly plate. Two circular fixed connecting rods are embedded in the module system, which increases the bearing area and ensures the firmness of the anchoring system.
Product advantages
Specification
Ceramic Fiber Module
RS1050
RS1260ST
RS1260HP
RS1350
ha
RS1430
zirconium
RS1600
PM fiber
Grading temperature
1050
1260
1260
1350
1430
1600
192kg/m3/at()℃/24h
Linear shrinkage
≤2.0
(850°C)
≤2.0
(1000℃)
≤2.0
(1050°C)
≤2.0
(1100℃)
≤2.5
(1200℃)
≤1.5
(1450°C)

Density (kg/m3)
172-240
172-240
172-240
172-240
172-240
172-240

Thermal conductivity (W/mk)
400°C
0.08
0.08
0.08
0.08
0.08
-
600°C
0.15
0.15
0.15
0.12
0.12
0.12
800℃
0.22
0.20
0.19
0.18
0.16
0.15
1000℃
-
-
0.22
0.12
0.19
0.18
chemical composition(%)
Aluminum oxide
42-44
45-46
47-49
52-55
34-36
72-75
Al2O3+SiO2
≥99.0
≥99.0
≥99.0
≥99.0
≥99.0
≥99.0
Zirconia
-
-
-
-
15-17
-
other
≤1.0
≤1.0
≤1.0
≤1.0
≤1.0
≤1.0
Features of ceramic fiber modules
Low bulk density and low thermal conductivity. Thermal shock resistance, air erosion resistance. Excellent mechanical strength, built-in anchor bolts, good safety performance. Easy to install. After the lining is installed, a seamless space is formed, and the thermal insulation effect is good.
Applications
Ceramic fiber module product application
Ceramic industry: tunnel kiln, shuttle kiln, roller kiln. Petrochemical industry: Atmospheric pressure furnace, reformer, coking furnace, cracking furnace, flue, etc. Iron and steel industry: Ladle furnace cover, annealing furnace, rotary furnace, bell furnace, walking beam furnace, hot air, flue, etc. Green energy industry: Garbage incinerator, RTO exhaust gas treatment furnace, SCR environmental protection catalytic furnace, etc.
