LUYANGWOOL High quality thermal insulation ceramic fiber module for lining insulation
- $13.58 / 50 - 499 pieces
$3.86 / >=500 pieces - 50 pieces
- Luyang Energy-Saving Materials Co., Ltd.
- Shandong, China
- Mr Louis LU
PRODUCT DETAIL
| Feature 1: | Fast and easy installation; | Al2O3: | ≥43/44/52/35; |
| Classification Temperature (℃ ): | 1260/1260/1350/1430; | Package Preview: | ; |
| Supply Ability: | 100 Tons per Month; | SiO2: | ≥54/55/47/49; |
| Description: | LUYANGWOO STD/HP/HA/HZ MODULE; | ZrO2: | -/-/-/ ≥15; |
| Density (kg/m3): | 160-220; | Packaging Detail: | 1. inner plastic bag and carton outside; 2. inner plastic bag and packed on pallets; 3. inner plastic bag and carton outside, after will be packed on pallets.; |
| Feature 2: | Fast and easy repair; | Typical Application 1: | Petrochemical; |
| Port: | Qingdao Port; | Feature: | Fireproof; |
| Payment Terms: | L/C,D/P,T/T,Western Union,MoneyGram; | Typical Application 2: | Refining, iron and steel; |
Products Description

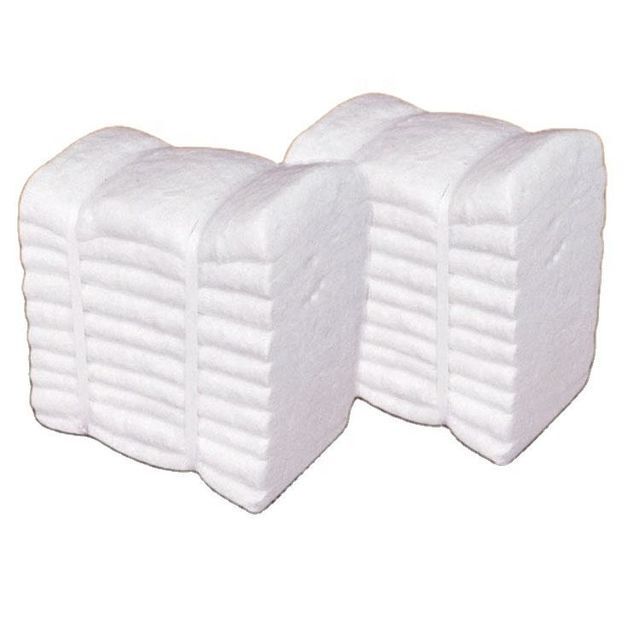

LUYANGWOOL® CERAMIC FIBER MODULE / RCF Module

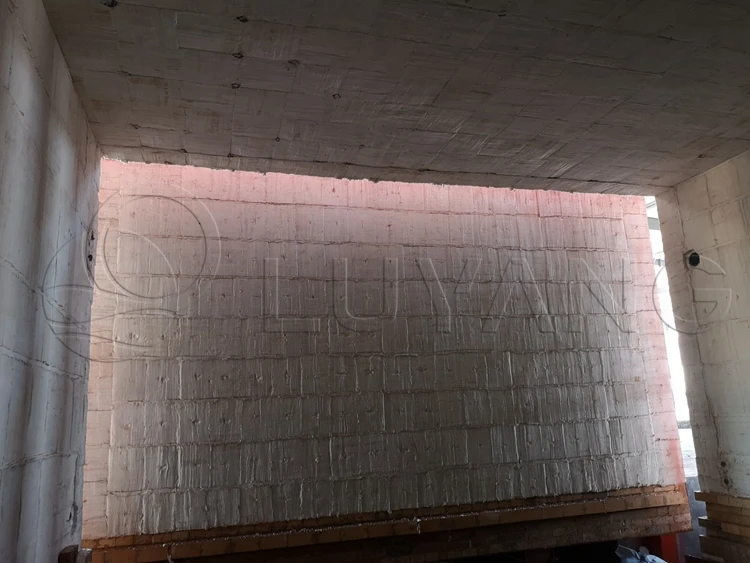

Luyangwool ® Ceramic fiber module adopt high quality ceramic fiber blanket, which is made up to compression module after folding, compression, packing, module can choose kinds combination of anchor and furnace body, installation method is so simple that quicken the speed of furnace lining construction largely, after installation, the bandaging are cut and the modules and so to form an integrated insulating lining.
The anchor system in remote from he module hot face, maintaining the metal components at a relatively low temperature
The anchor system in remote from he module hot face, maintaining the metal components at a relatively low temperature
Typical Parameters
Description | LUYANGWOOL® STD MODULE | LUYANGWOOL® HP MODULE | LUYANGWOOL® HA MODULE | LUYANGWOOL® HZ MODULE | ||||
Classification Temperature (℃ ) | 1260 | 1260 | 1350 | 1430 | ||||
Chemical Composition (%) | ||||||||
Al2O3 | ≥43 | ≥44 | ≥52 | ≥35 | ||||
SiO2 | ≥54 | ≥55 | ≥47 | ≥49 | ||||
ZrO2 | - | - | - | ≥15 | ||||
Color | White | White | White | White | ||||
Density (kg/m³) | 160-220 | 160-220 | 160-220 | 160-220 | ||||
Permanent Linear Shrinkage (%) | 1000℃ x 24h ≤2.5 | 1100℃ x 24h ≤2.5 | 1200℃ x 24h ≤3.0 | 1350℃ x 24h ≤3.0 | ||||
Thermal Conductivity (W/m·K) | ||||||||
400℃ | 0.10 | 0.10 | 0.10 | 0.10 | ||||
600℃ | 0.18 | 0.17 | 0.16 | 0.15 | ||||
800℃ | 0.20 | 0.20 | 0.20 | 0.19 | ||||
1000℃ | 0.27 | 0.26 | 0.26 | 0.26 | ||||

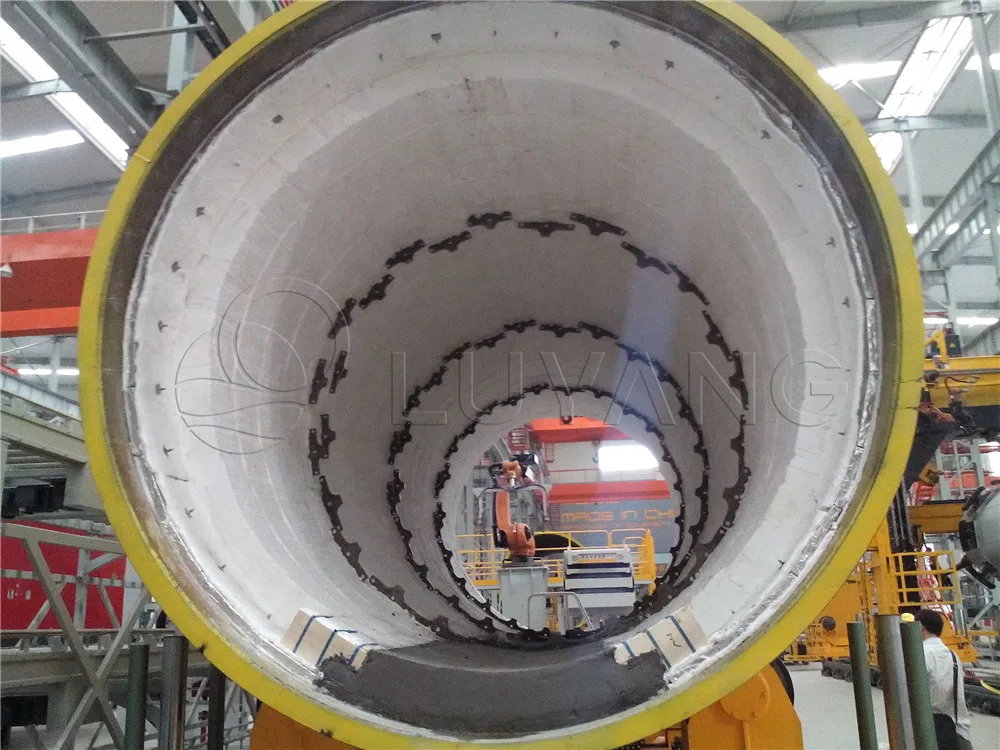

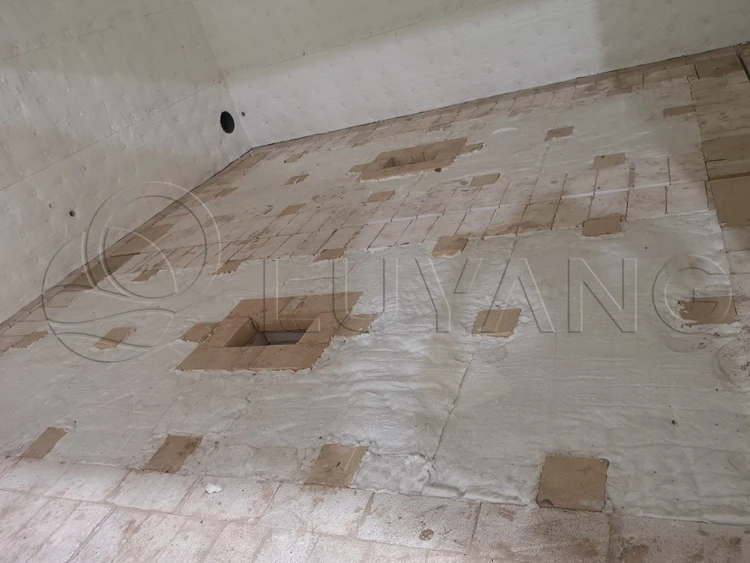

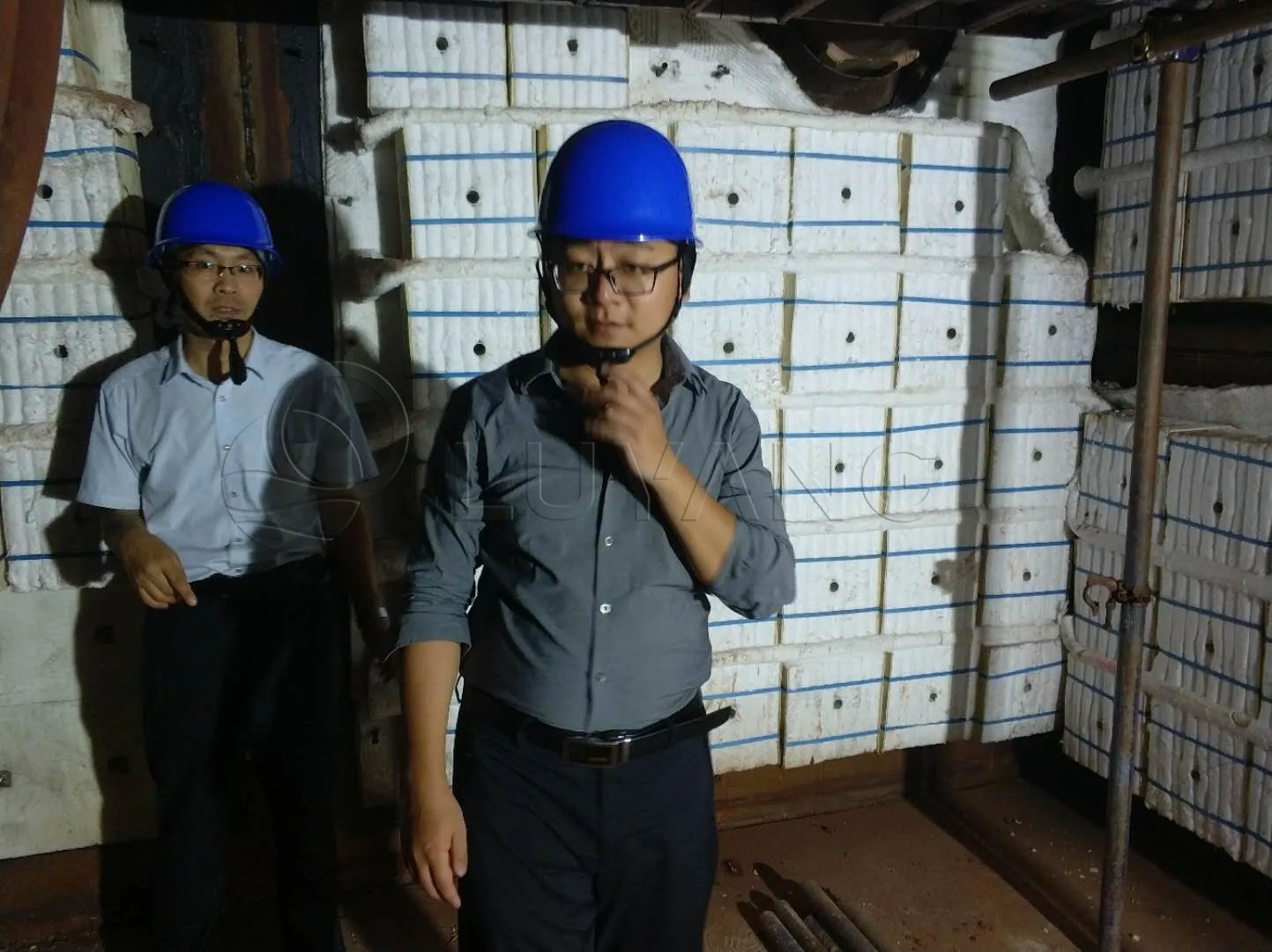

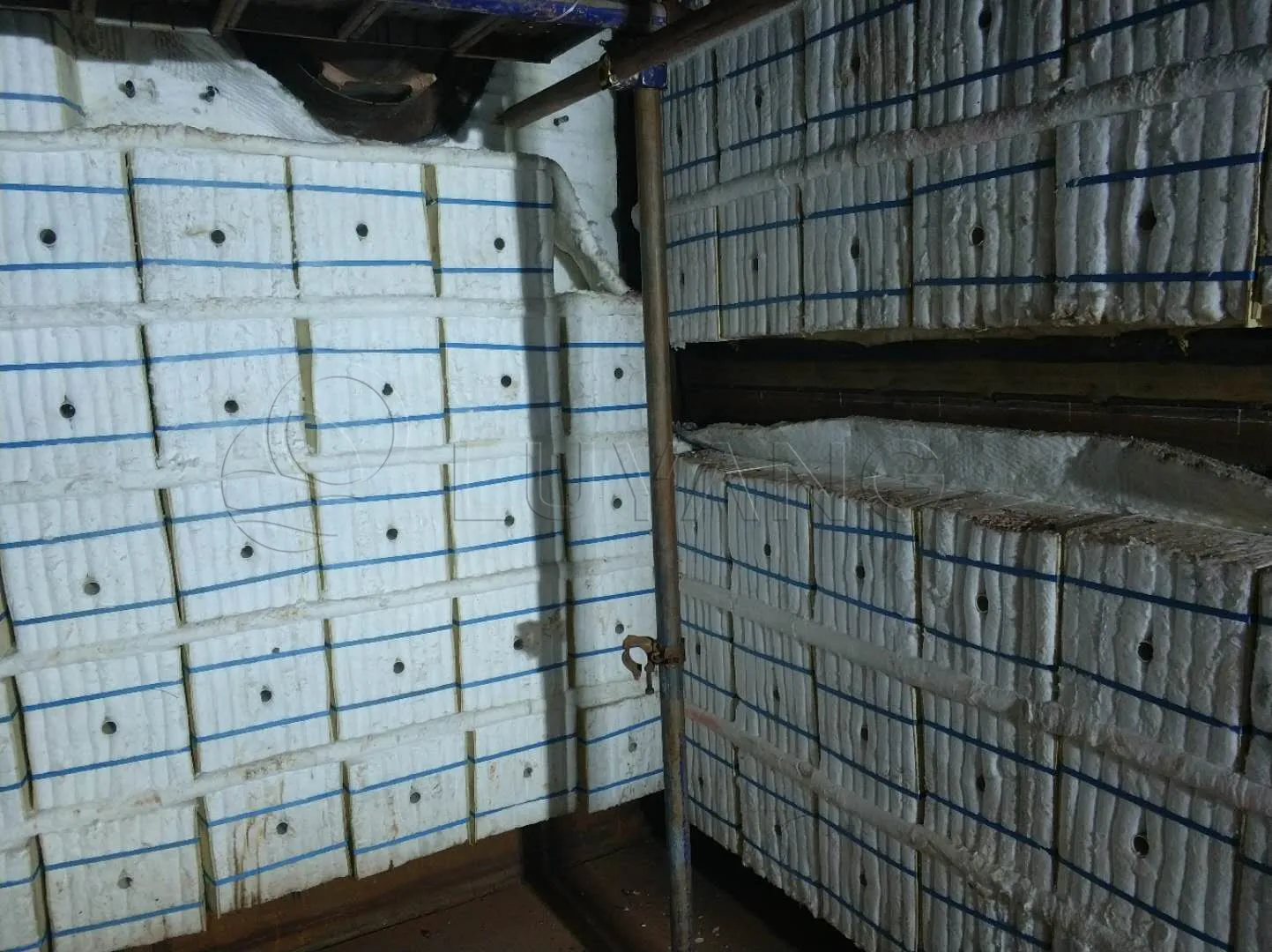

Application
Typical Applications
Heat treatment: annealing furnace, tempering furnace, soaking pit, etc
Ceramic: white ware, sanitary ware and brick firing tunnel and intermitted kiln.
Iron and Steel: Transfer ladle lids, soaking pit covers, reheating furnace, continuous annealing furnaces, lift-off furnaces
Petrochemical: ethylene pyrolysis furnace,reformers,atmosphere / reduced pressure furnace,ductwork pyrolysis heaters
Aluminium: Soaking pits and covers, bale out furnaces, homogenizing and ductwork
Utilities: waste heat recovery units, combustion chambers and boiler ductwork
Heat treatment: annealing furnace, tempering furnace, soaking pit, etc
Ceramic: white ware, sanitary ware and brick firing tunnel and intermitted kiln.
Iron and Steel: Transfer ladle lids, soaking pit covers, reheating furnace, continuous annealing furnaces, lift-off furnaces
Petrochemical: ethylene pyrolysis furnace,reformers,atmosphere / reduced pressure furnace,ductwork pyrolysis heaters
Aluminium: Soaking pits and covers, bale out furnaces, homogenizing and ductwork
Utilities: waste heat recovery units, combustion chambers and boiler ductwork

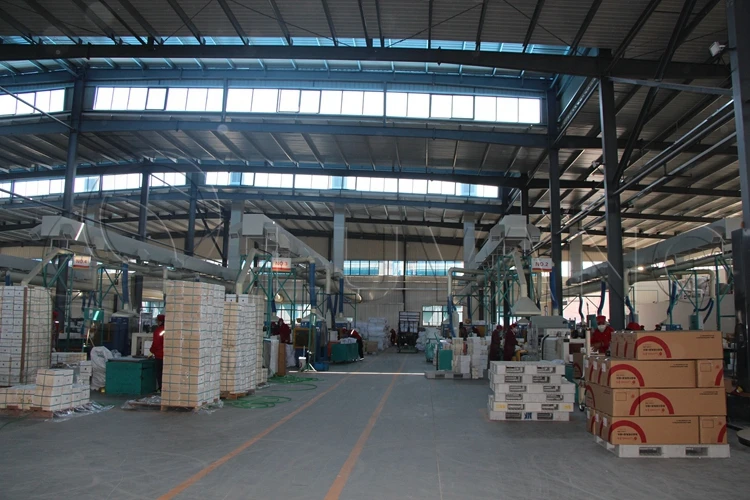

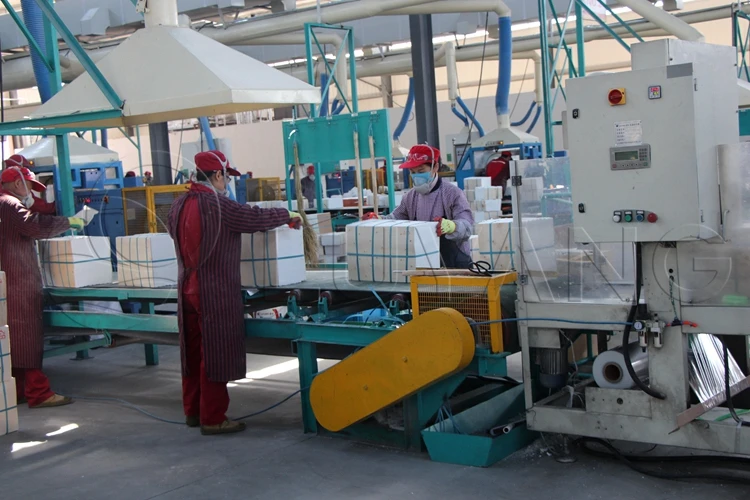

Production Line

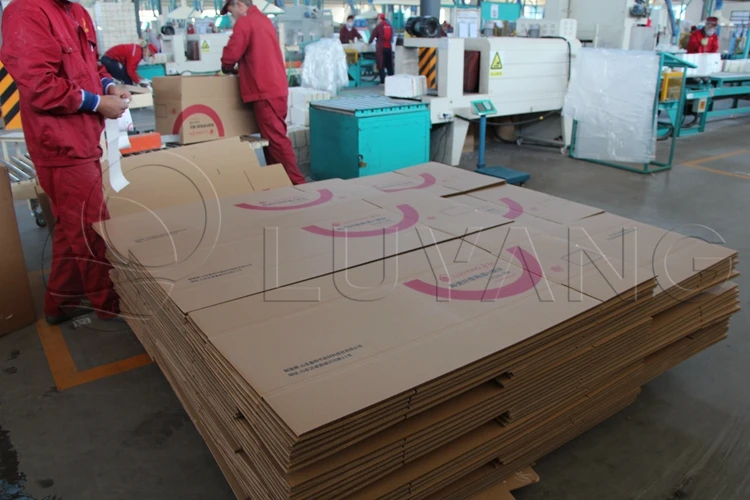

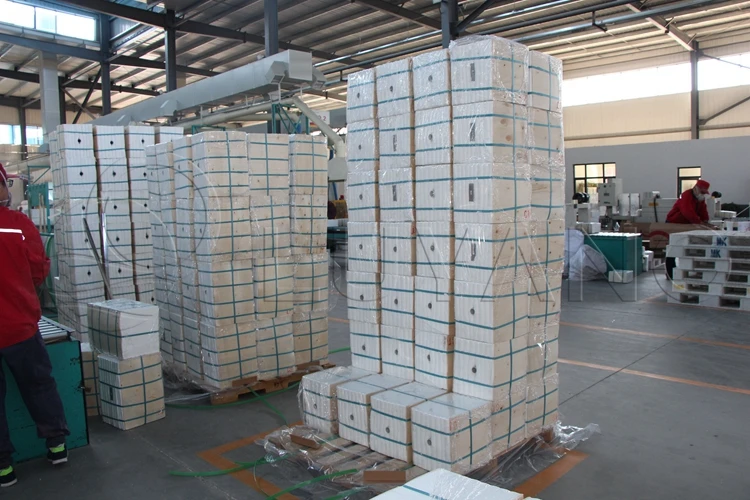

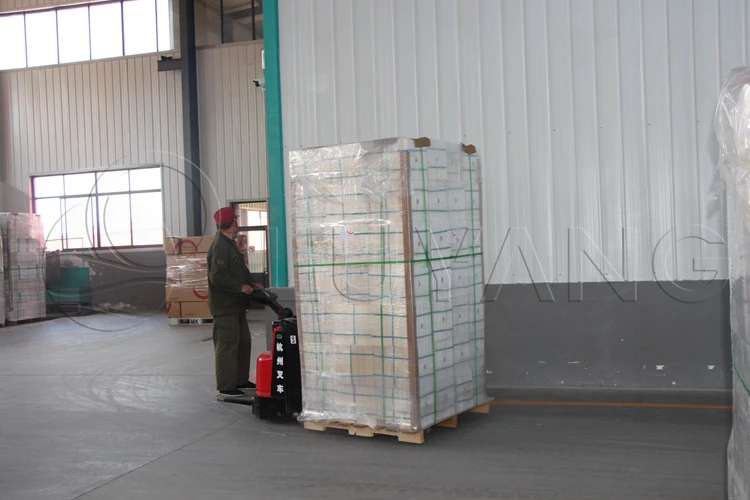

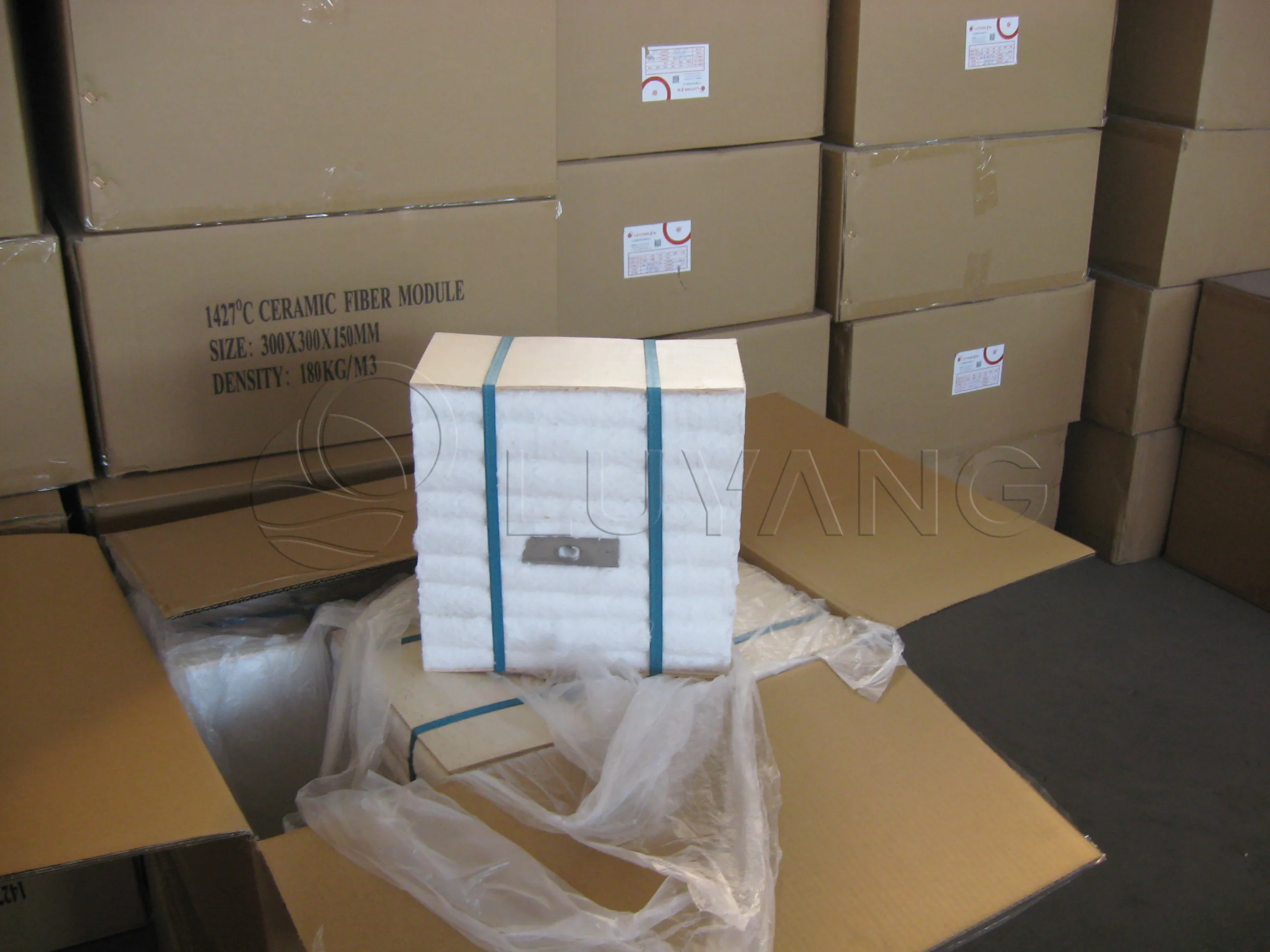

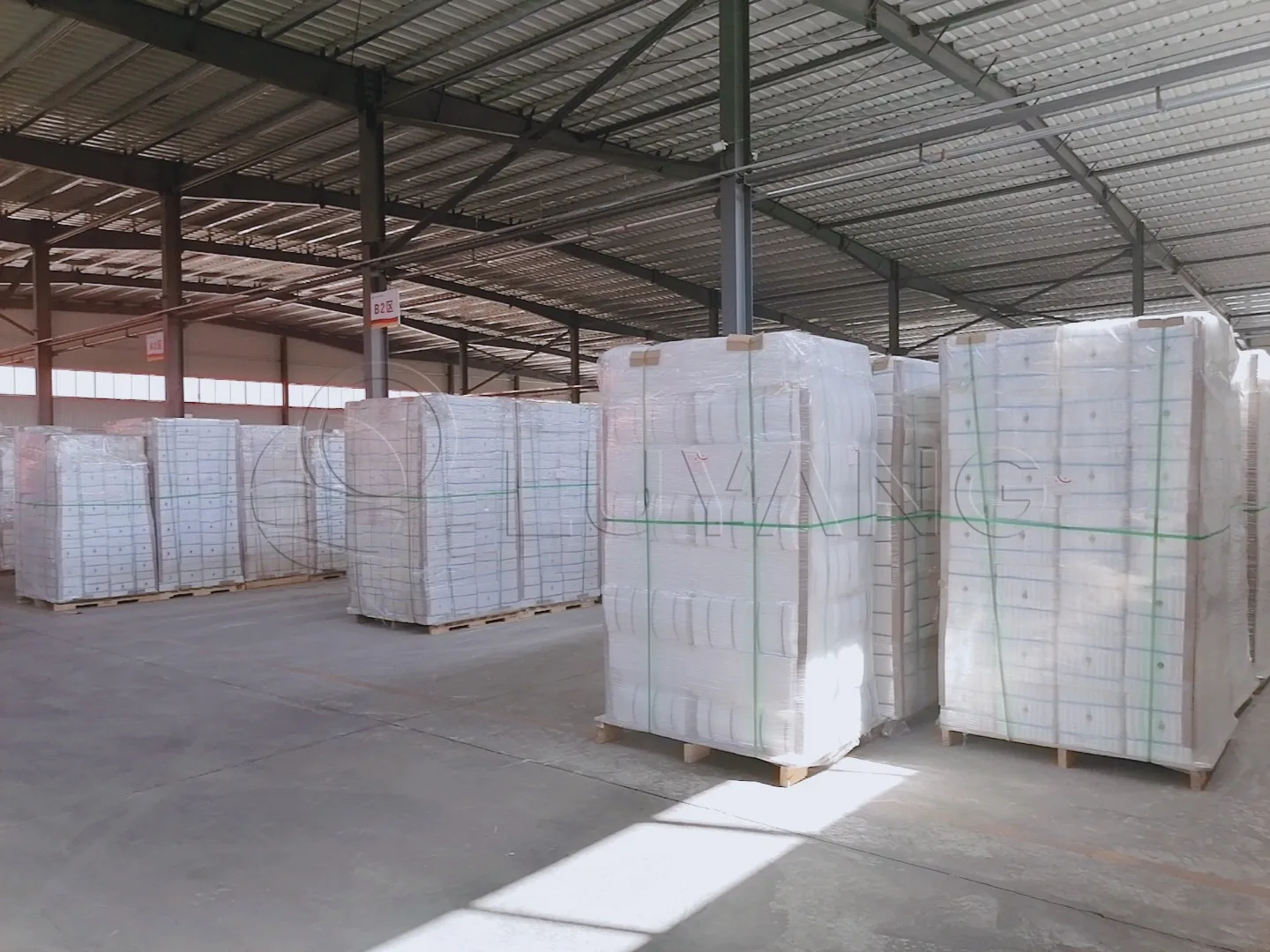

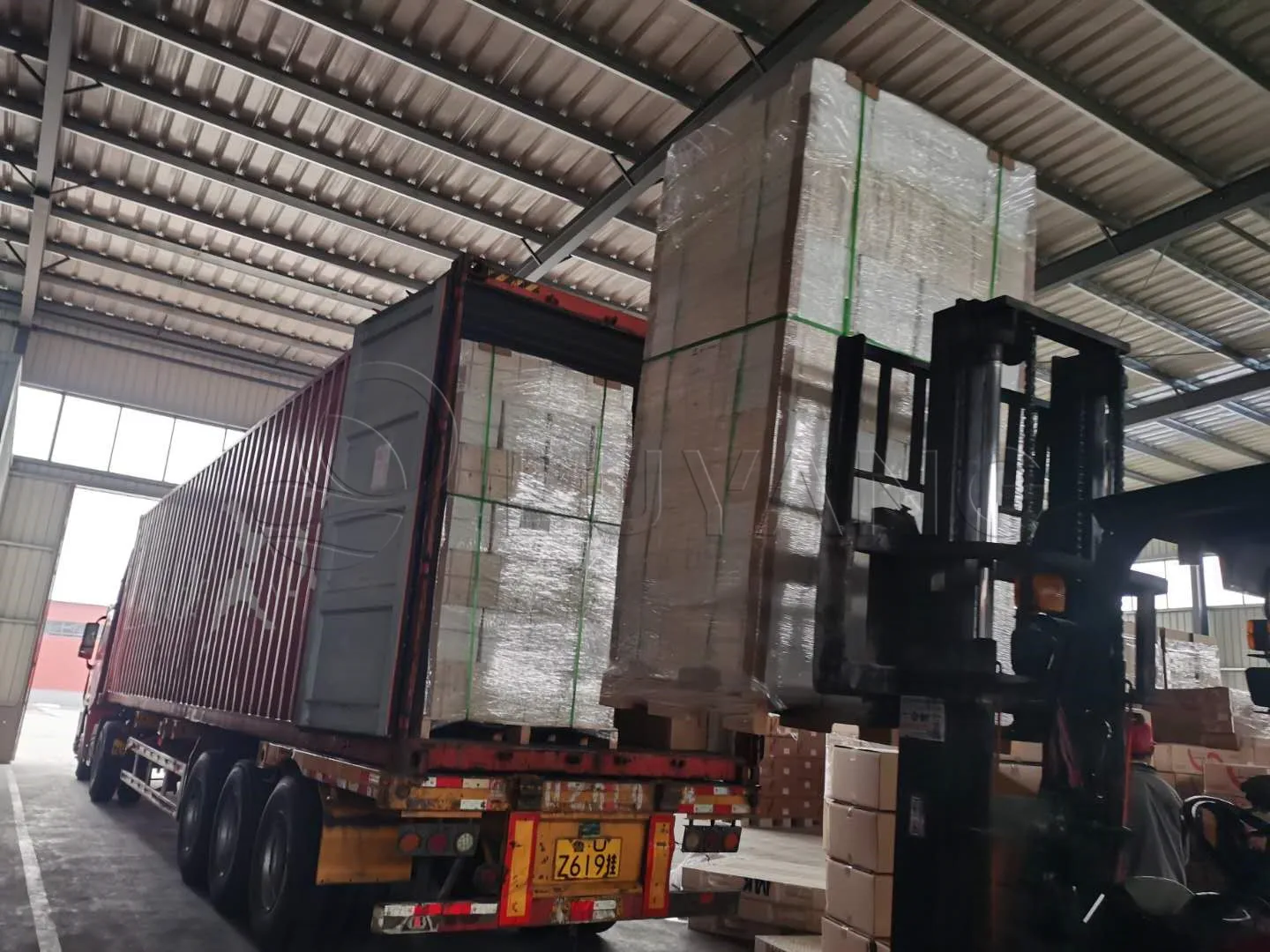

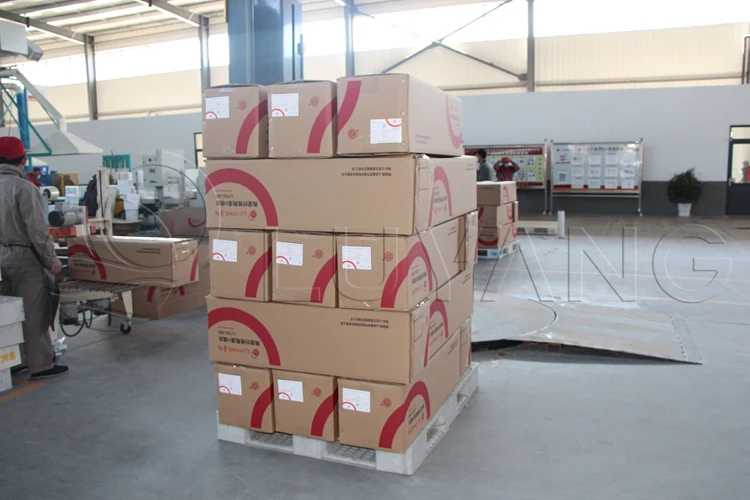

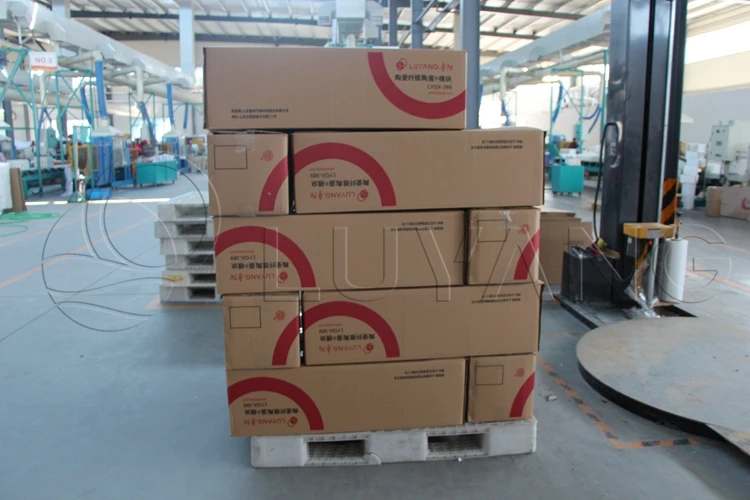

Packing & Delivery
Our service
Our Service
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2.Sample evaluation
Provide sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Short delivery time
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional and complete shipping documents
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
6. Warm and considerable after-sale service
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2.Sample evaluation
Provide sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Short delivery time
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional and complete shipping documents
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
6. Warm and considerable after-sale service
Company Profile
Luyang Energy-saving Materials Co., Ltd. was established in 1984 and listed in Shenzhen Stock Exchange in 2006(Stock Code:002088). Going through more than 30 years development, Luyang has become a world famous enterprise for new energy-saving materials researching, manufacturing and selling in the field of ceramic fibers,bio-soluble fibers, alumina fibers, rock wool fibers, microporous board and insulating firebricks. Products are in great demand nationwide and sold in more than sixty countries and regions,such as USA, Japan, Vietnam,EU. Products applied widely in the field of petrochemical refractory insulation, long-distance pipe network insulation, building fire insulation, shipping fire prevention, household appliances fire insulation, high-temperature insulation etc.
FAQ
1.You are a manufacture or a trading company ?
We are a manufacturer founded in 1984, located in Shandong China, with 8 branches.We not only provide the high quality products with the best price, but also can offer the best pre-sale service and after-service.
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Soluble Fiber Products,Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc.
3.Can you provide free samples ?
Free samples are available !
4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online !
2.What kind of product can you offer ?
Our company can offer all kind of refractory insulation materials. For example: Ceramic Fiber Products, Soluble Fiber Products,Alumina Fiber Products, Microporous Board, Insulating Firebricks, Calcium Silicate Products, Mineral Wool, Rock Wool Etc.
3.Can you provide free samples ?
Free samples are available !
4.What is your MOQ?
We don't have particular MOQ, we can accept any order for any different projects.Price depends on quantity.
5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online !
