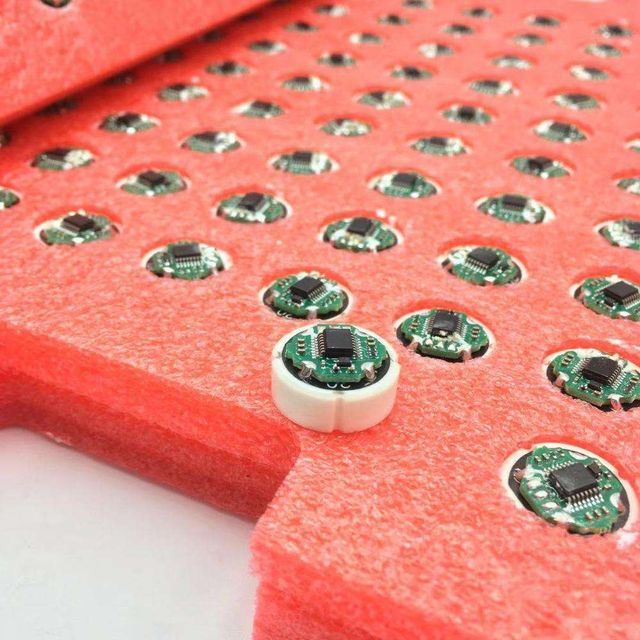

I2C Ceramic Pressure Sensor Piezoresistive Air Sensor
- $5.00 /piece
- 1 piece
- Shenzhen Ould Instrument Co., Ltd.
- Guangdong, China
- Ms Bonnie Huang
PRODUCT DETAIL
| Pressure range: | 0 - 1 bar - 35 bar | Response time: | <1 millisecond |
| output signal: | ICIC | payment terms: | L/C, T/T, PayPal |
| Overload pressure: | 200% full scale | Origin: | Guangdong, China |
| Warranty: | 1 year | Temperature drift: | ±0.03% full scale/K |
| Package preview: | product name: | cream pressure sensor | |
| accuracy: | 0.2% full scale - 0.5% full scale | brand: | Ould |
| Packaging Details: | standard carton | port: | Shenzhen, Guangzhou, Xiamen or other ports |
| model: | PM-18D | Operating temperature: | -40~85℃ |
| power supply: | 2.7VDC~5.5VDC | Material: | ceramics |
| Supply capacity: | 50000 pieces per month | Customization support: | Processing |
Product Description
PM-18D pressure transmission module is a miniature product specially designed by our company, which is widely used in variable frequency pumps, complete sets of water supply, air conditioning equipment, etc.
Professional anti-hammer impact, high electrical performance and long-term stability make it the first choice in the same industry, and can directly replace Atlas, MSI, HUBA and other similar products. All products can be customized according to your requirements, we can also accept OEM.
feature:
- Highly reliable ceramic piezoresistive sensor
- wide temperature compensation
- The signal adopts German high-precision, high-bandwidth, low-latency, low-power conditioning chip
- 16-bit ADC, the output is corrected by a sixth-order polynomial
- IIC output with CRC protection
- Frequency up to 400KHz
- Latency less than 0.1ms
- Rated current as low as 0.7mA
Technical Parameters
| media | Oil (mineral oil, screw compressor oil), water, air, etc. |
| power supply | 2.7VDC~5.5VDC |
| accuracy | 0.2% full scale - 0.5% full scale |
| pressure range | 0 - 1 bar - 50 bar |
| Material | ceramics |
| output | ICIC |
| current | 0.7mA type |
| temperature drift | ±0.03% full scale/K |
| Operating temperature | -40 ~ 85°C / -40 ~ 185°F |
| overload pressure | 2*FSO |
| Electrical connections | pad or cable connection |
| Response time | <1 millisecond |
| long-term stability | ±0.03%FS/year |
| Certificate | EU CE, ISO |
| Warranty | 12 months |
detailed image

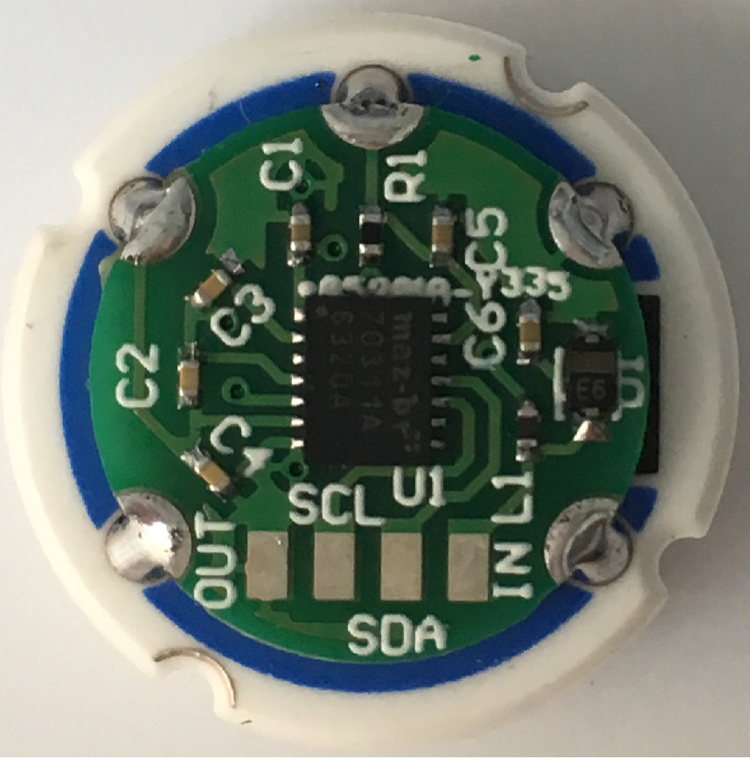

Electrical connections:
| output signal | ICIC |
| input+ | voltage control circuit |
| exist- | grounding |
| SCL | SCL |
| SDA | SDA |
