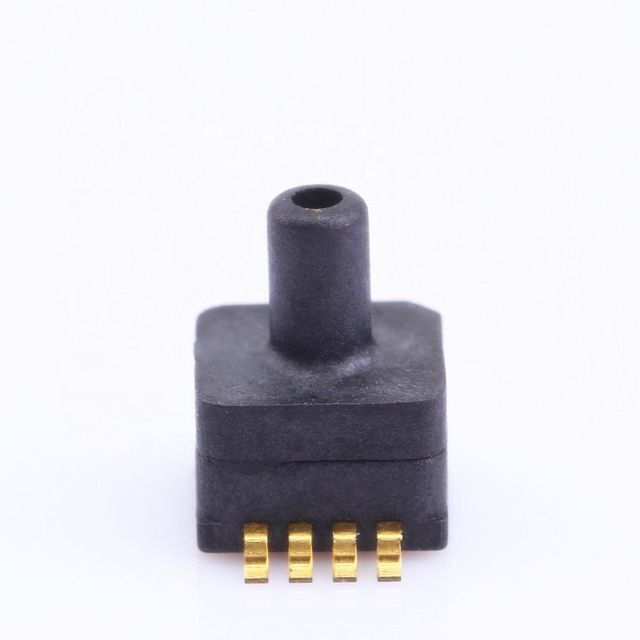

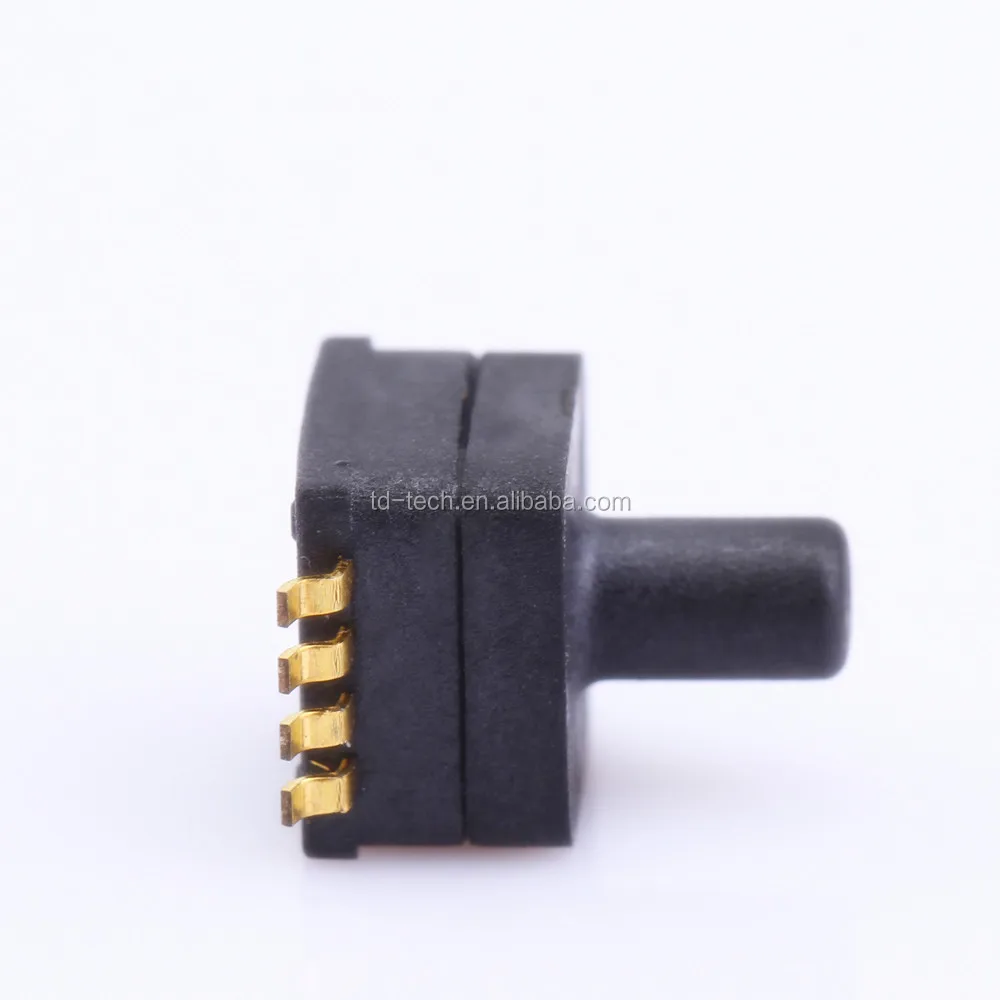

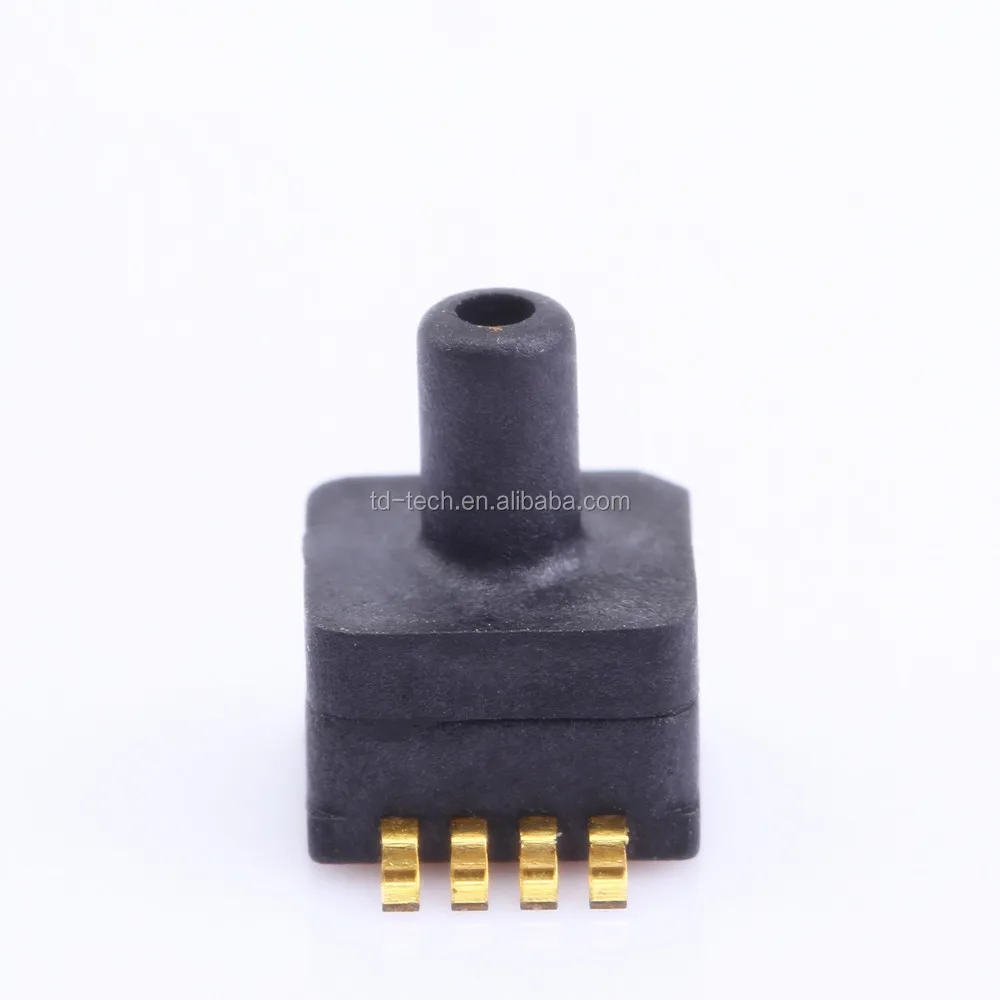

Taidacent XGZP181 10,40,100,200kPa High Temperature Differential Mems Pressure Transducer Waterproof Pressure Transducer
- $2.08 / 2 - 24 pieces
$1.98 / >=25 pieces - 2 pieces
- Shenzhen Taida Century Technology Co., Ltd.
- Guangdong, China
- Mr Bill Yuan
PRODUCT DETAIL
| Place of Origin: | Guangdong, China; | Model Number: | XGZP181; |
| Brand Name: | Taidacent; | Pressure range: | 10,40,100,200kPa optional; |
| Single package size: | 5X6X6 cm; | Package Preview: | ; |
| Packaging Detail: | box package; | Single gross weight: | 0.030 KG; |
| Selling Units: | Single item; |
Taidacent XGZP181 10,40,100,200kPa High Temperature Differential Mems Pressure Transducer Waterproof Pressure Transducer

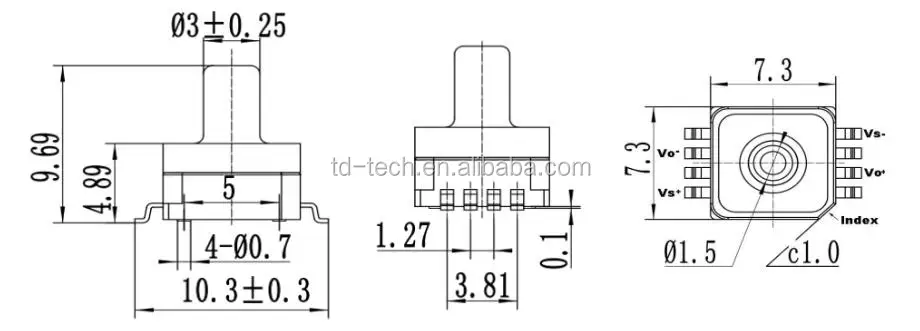

Structural performance
Pressure sensitive chip: silicon material lead: gold wire
Package housing: plastic
Pin: Gold plated
Protective adhesive: fluorinated silica gel
| Power supply | ≤10VDC or ≤3.0mADC |
| Input impedance | 4kQ~6kQ |
| Output impedance | 4k9~6k9 |
Electrical performance
Power supply: ≤10VDC or ≤3.0mADC
Input impedance: 4kQ~6kQ
Output impedance: 4k9~6k9
Insulation resistance: 100MQ, 100VDC
Allow overload: 1.5 times full scale reference condition
Measuring medium: air
Medium temperature: (25 ± 1) °C Ambient temperature: (25 ± 1) °C
Vibration: 0.1g (1m/s*) (Max)
Humidity: (50% ± 10%) RH power supply: (5 ± 0.005) VDC
