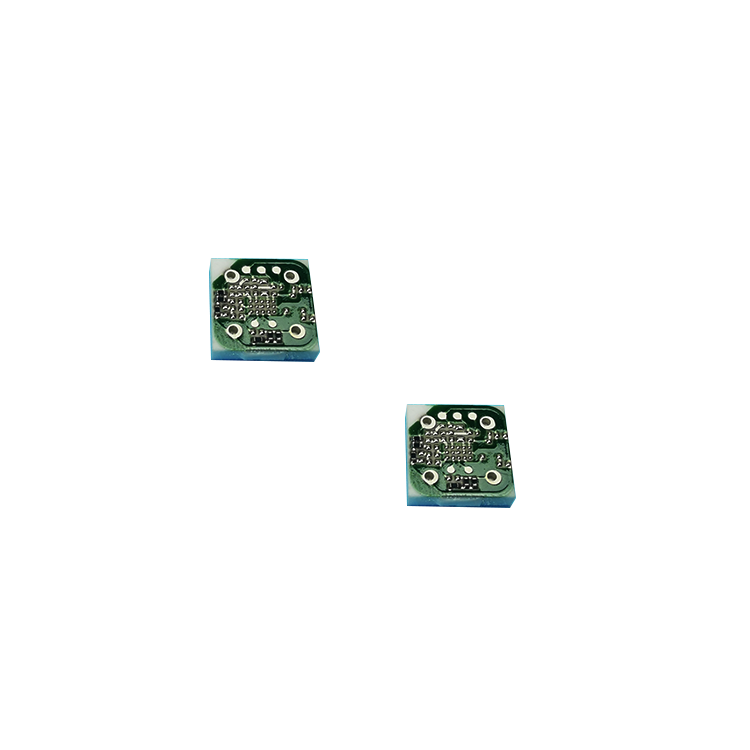

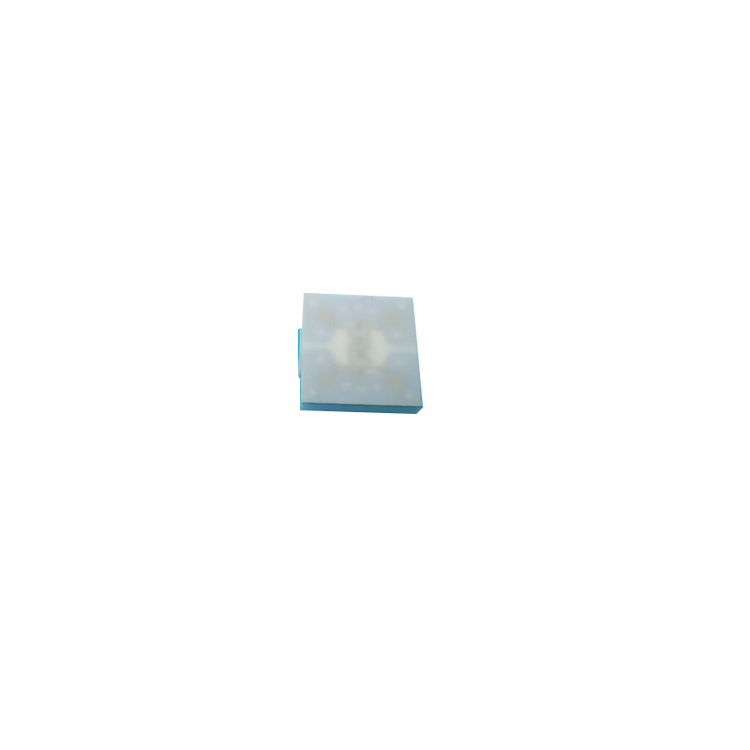

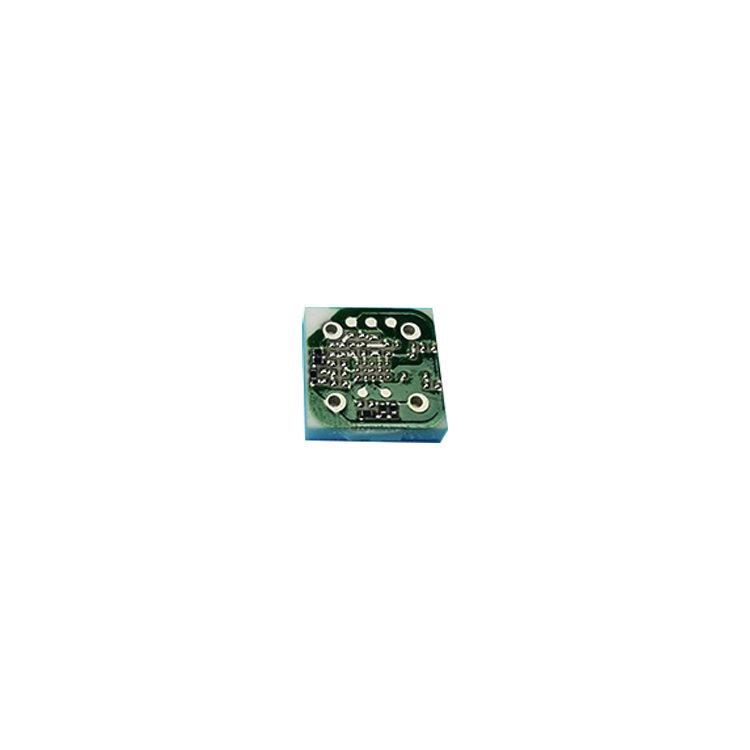

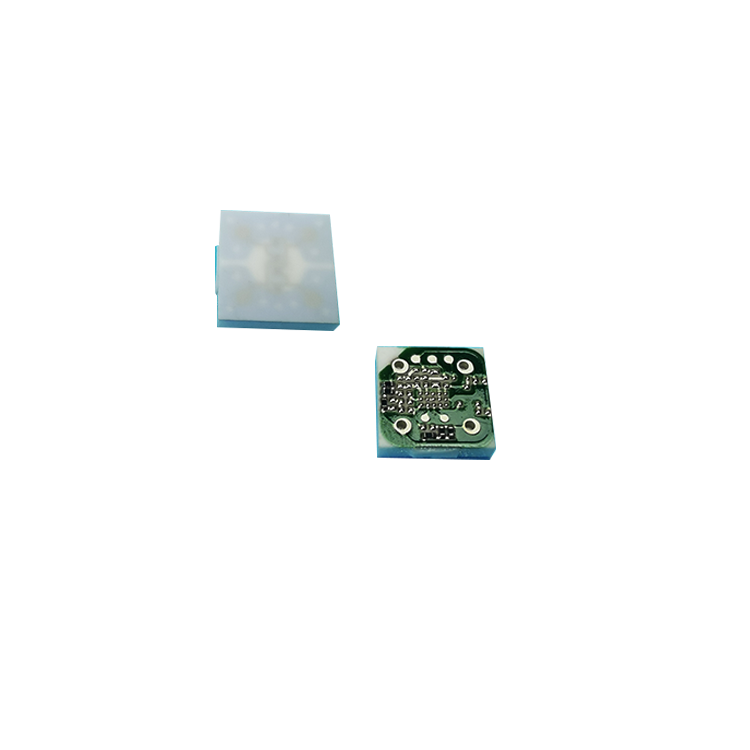

YF TS12 Low Cost FSR Resistive Ceramic Flat Film Pressure Sensor
- $5.00 / 10 - 999 pieces
$4.50 / 1000 - 4999 pieces
$4.00 / >=5000 pieces - 10 pieces
- Shanghai Yufavor Sensor Instrument Co., Ltd.
- Shanghai, China
- Mr bruce yu
PRODUCT DETAIL
| brand: | Eufavor | place of origin; place of origin: | China Shanghai |
| port: | Shanghai | Packaging Details: | Export standard packaging can be customized |
| Warranty: | 1 year | Custom Support: | OEM |
| model: | TS12 | Packaging Preview: | |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Supply capacity: | 200,000 pieces per month |
product description
The TS12 series is designed with ceramic thick film technology for higher cost performance and better stability, providing excellent sensitivity and linearity even in harsh environments. As a small pressure sensing element with excellent sensitivity and linearity, it can be packaged in various forms or directly integrated with the electronic circuits of machinery and equipment.
Function list
Flat film in compact size
Temperature drift: ≤±0.03%FS/℃
High precision and stability
High overload, corrosion resistance
Cost-effective
Temperature drift: ≤±0.03%FS/℃
High precision and stability
High overload, corrosion resistance
Cost-effective
optimal
back
both
Product Specifications
Do not | thing | data | ||
1 | Measuring range | 0bar...10bar...20bar...30bar...50bar | ||
2 | Bridge impedance | 5KΩ±30% | ||
3 | long term stability | ±0.2%FSO, typical (no time accumulation) | ||
4 | Temperature Drift (Zero + Span) | ≤±0.03%FS/℃ | ||
5 | Humidity (absolute pressure sensor) | 0 – 100% | ||
6 | pressure type | Gauge, Seal | ||
7 | weight | <3g | ||
8 | Storage temperature range | - 55 max + 150°C |
