Ice factory large capacity 10 tons tube ice machine
- $8000.00 /set
- 1 set
- Guangzhou Kingwell Heat Transfer Technology Co., Ltd.
- Guangdong, China
- Ms Lois Peng
| Local service location: | not any | Health status: | new |
| port: | Guangzhou Huangpu Port | Tube Ice Diameter: | 28~40mm |
| Core Components Warranty: | 1 year | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Packaging Details: | Standard wooden box for packing main frame. Containerized design requires no packaging. | capacity: | 20 tons/day |
| Ice storage capacity: | 300kg | brand: | Kingwell |
| Video external inspection: | if | Material: | 304 stainless steel |
| Showroom location: | not any | Mechanical test report: | if |
| Ice shape: | Tube ice, middle cylinder | place of origin; place of origin: | Guangdong, China |
| weight: | 3900KG | After-sales service provided: | Engineers can repair machinery overseas |
| Marketing Type: | normal product | Applicable industries: | Hotels, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Food Stores, Food and Beverage Stores |
| Voltage: | 380V, 50HZ, 3P/custom, 380V/3P/50Hz/custom | Dimensions (L*W*H): | 1600*1250*4800mm |
| The refrigerant: | R404A/R22 | Warranty: | 12 months |
| cooling method: | water/air cooling | Main selling point: | automatic |
| Compressor brand: | BITZER/custom | Ice shape: | tube ice |
| Core components: | programmable logic controller | strength: | 6000W |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Cash payment offline order | Ice-making capacity: | 20 tons/24 hours |
| Certification: | ce | Supply capacity: | 30 sets per month |

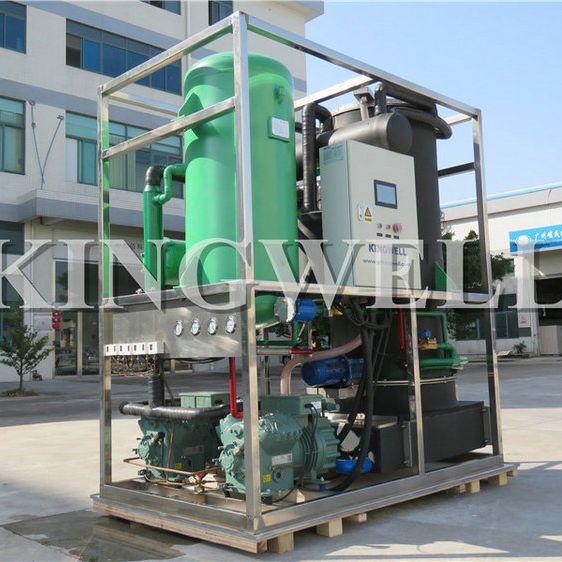

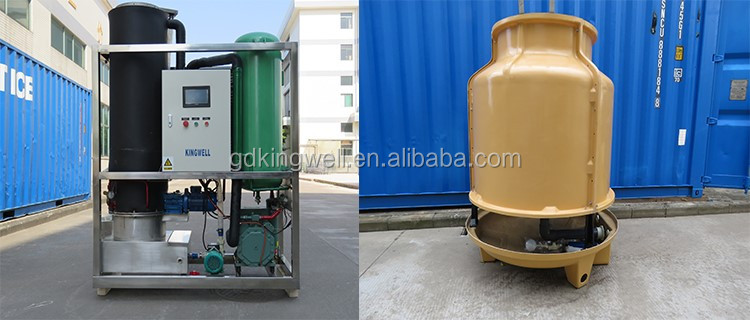

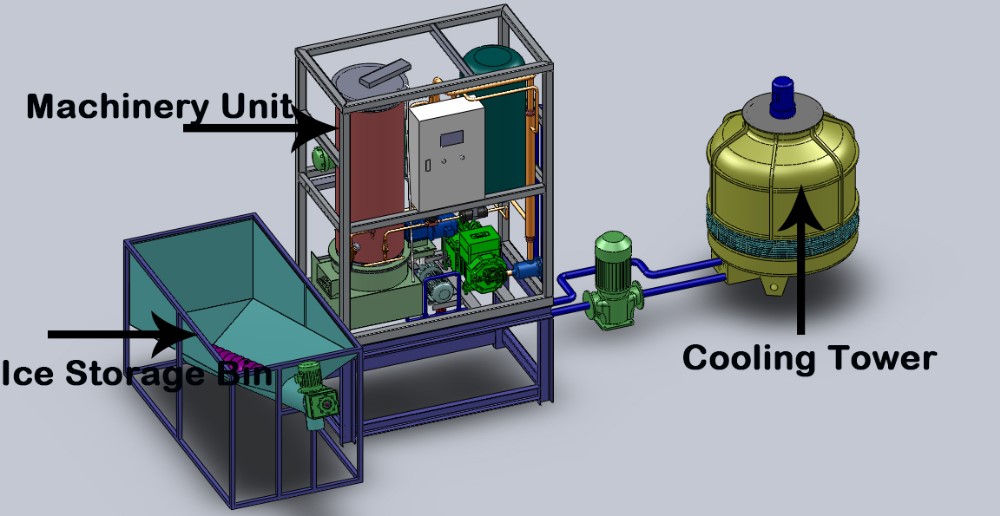

Ice factory large capacity 10 tons tube ice machine
(water cooling)
10 ton ice pipe machine specifications | ||||||
compressor | Card | Bitzer | ||||
origin | Germany | |||||
Power (HP) | 2*23 | |||||
Ice cutting motor(KW) | 0.37 | |||||
Circulating water pump (KW) | 0.75 | |||||
Cooling water pump (KW) | 1.1 | |||||
Cooling tower motor(KW) | 0.25 | |||||
daily capacity | 10 tons/24 hours | |||||
Inlet water temperature | 5℃~35℃ | |||||
ambient temperature. | 5℃~40℃ | |||||
Mechanical unit size (L*W*H,MM) | 2200*1900*2550 | |||||
Mechanical unit weight (Kg) | 1400 | |||||

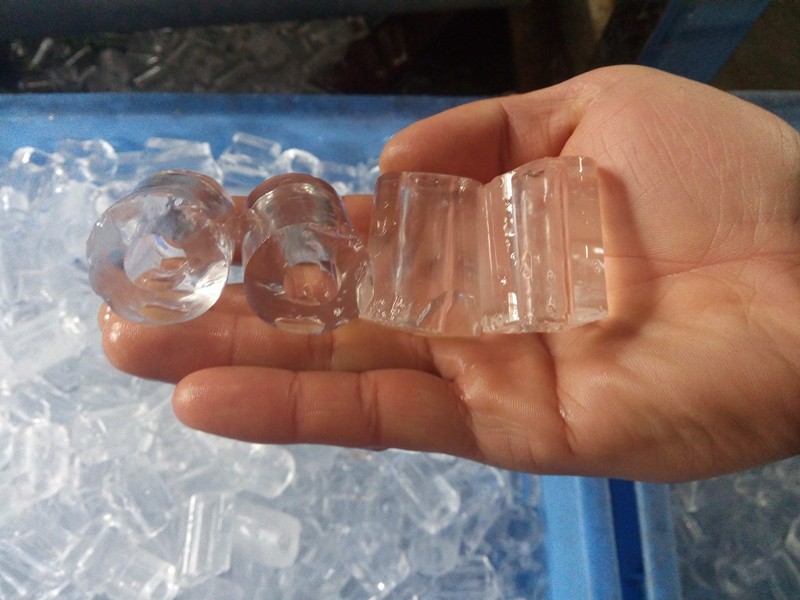

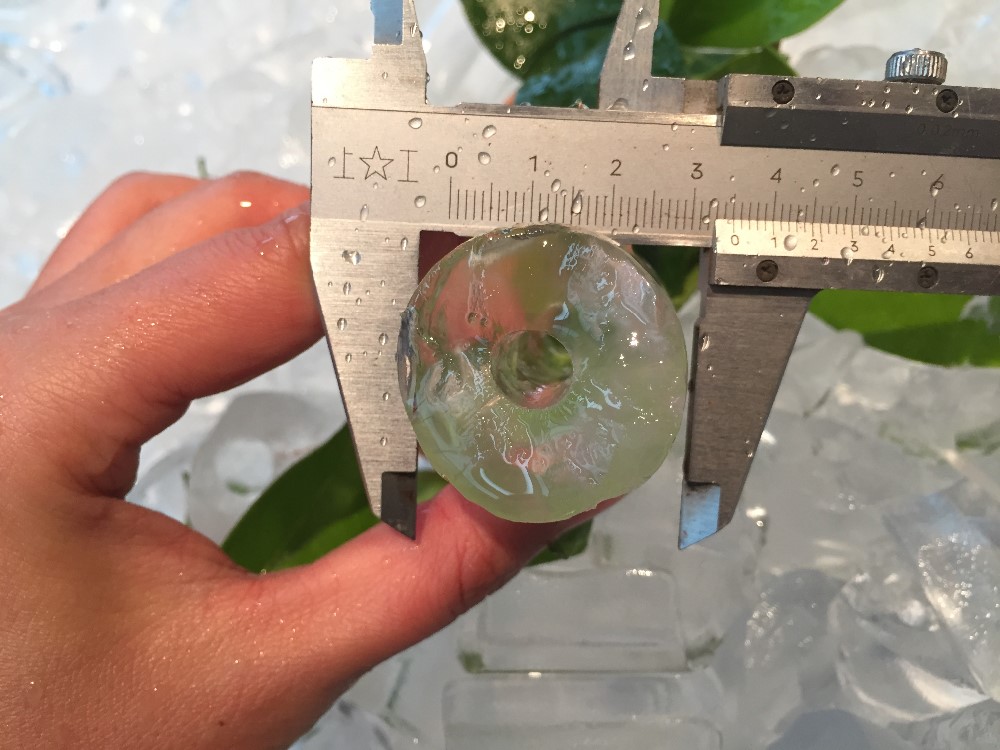

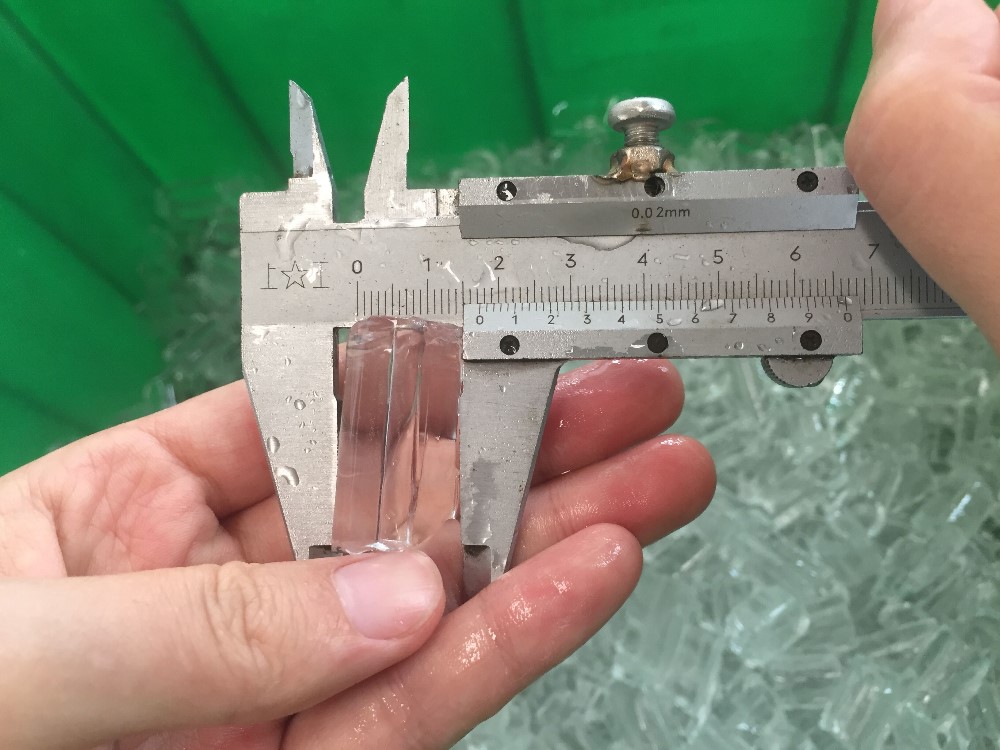

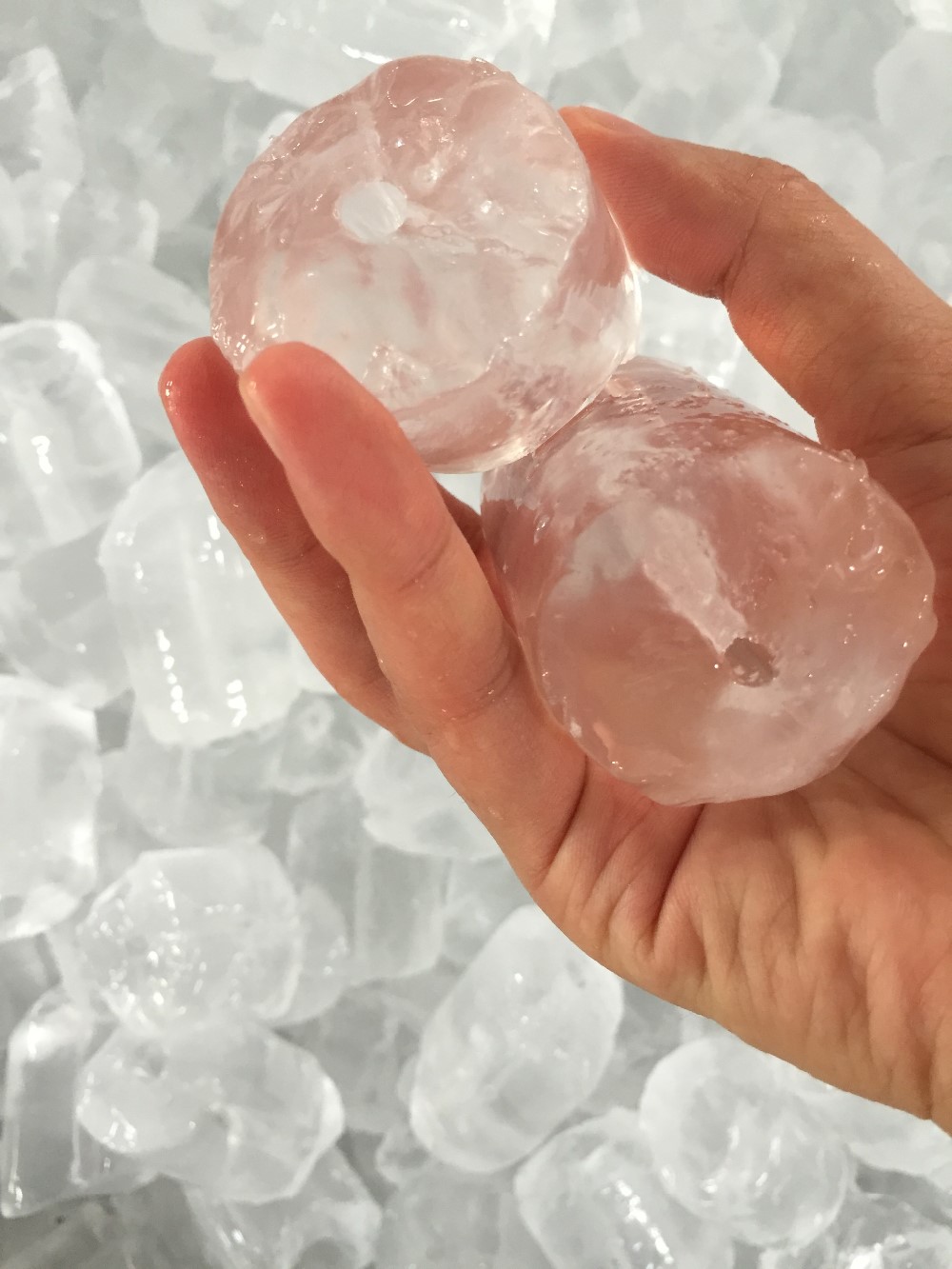

Ice tube size optional:
The outer diameter of the tube ice is 16mm, 22mm, 28mm, 34mm and 40mm; the inner diameter can be adjusted according to the ice making time. Usually between 5~10mm.
outer diameter | standard length | Freezing time/lap |
16mm | 25mm | 14 minutes |
22mm | 30mm | 16 minutes |
28mm | 35mm | 18 minutes |
34mm | 45mm | 22 minutes |
40mm | 55mm | 25 minutes |
Features of Jinwei Tube Ice Machine:
1) The tube ice is thick and transparent.
2) PLC system control, automatic ice discharge: sanitation and labor saving

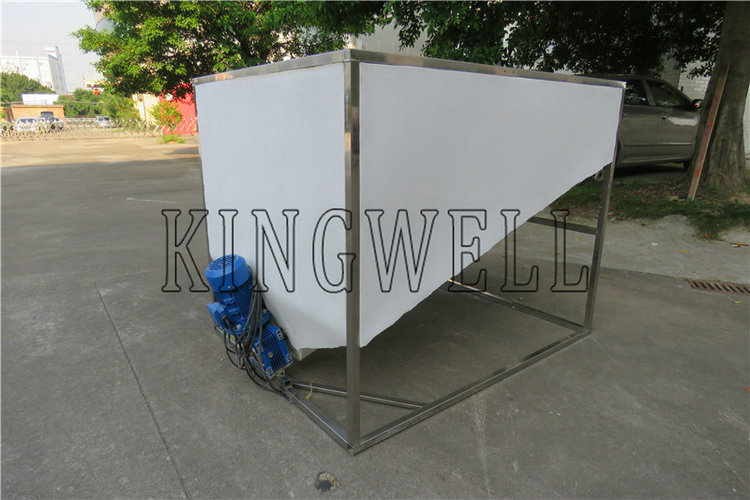

3)Semi-automatic packaging: step on the foot switch, the ice will come out from the screw conveyor at the bottom of the ice storage bin and jump directly into the plastic bag. Then you can complete the packaging process.
Jinwei tube ice machine technical parameters:
thing | Capacity (tons/day) | The refrigerant | compressor brand | Compressor (HP) | cool down method | aspect (L*W*H, mm) |
KW-T1 | 1 | R22/R404A | Bitzer | 4 | water/air | 1600*1350*2010 |
KW-T2 | 2 | R22/R404A | Bitzer | 9 | water/air | 1650*1090*2300 |
KW-T3 | 3 | R22/R404A | Bitzer | 14 | water/air | 1700*1400*2430 |
KW-T5 | 5 | R22/R404A | Bitzer | 25 | water | 1790*1080*2270 |
KW-T10 | 10 | R22/R404A | Bitzer/Bock | 2*25 | water | 2200*1900*2550 |
KW-T20 | 20 | R22/R404A | Bitzer/Bock | 2*50 | water | 4530*1800*3000 |
KW-T30 | 30 | R22/R404A | Bitzer/Bock | 3*50 | water | 2200*1900*6200 |
KW-T50 | 50 | R22/R404A | Bitzer/Bock/Hambel | 200 | water | 2000*1800*6800 |

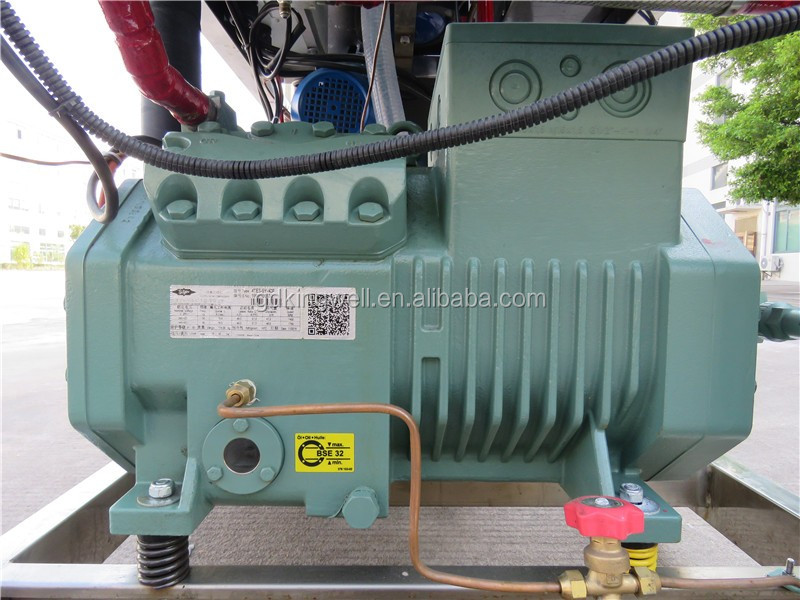

compressor
Brand: Bitzer
The original:Germany
The compressor is the most important part of the ice machine, just like the human heart, it can work efficiently and stably.

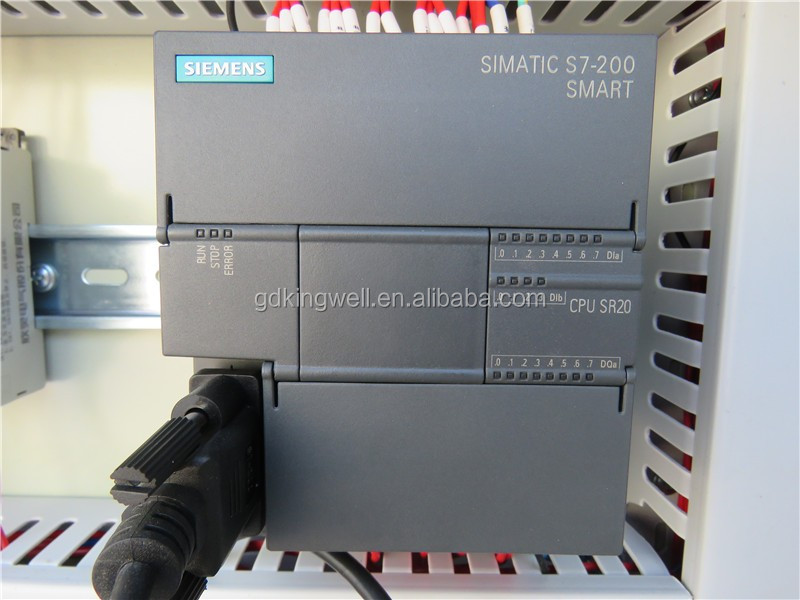

PLC system
Brand Name: Siemens
The original:Germany
Siemens PLC control system: automatic ice discharge, sanitation and labor saving
Just like the human brain controls a machine to do the right job at the right time.

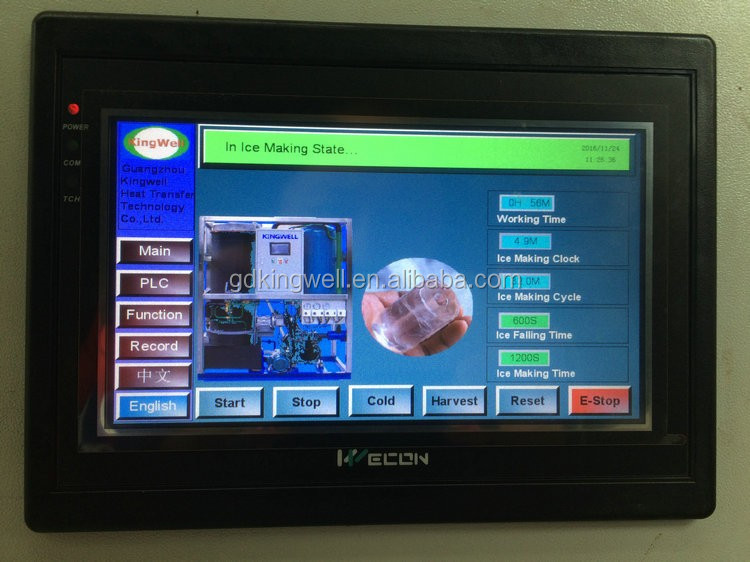

Brand: Wellcome
Original: Taiwan
(1) The ice thickness is adjustable.
(2) Record the history of machine work
(3) Set the operating parameters of the machine
(4) When the machine fails, it is easy to find the cause of the failure

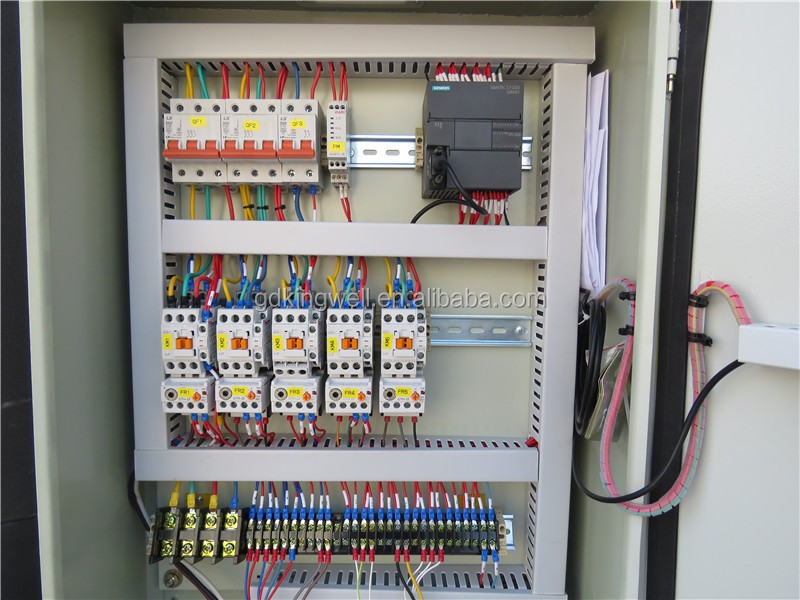

Electrical box
Switch brand: LS (Korea)
PLC brand: Siemens (Germany)
Contactor Brand: LS (Korea)
Overload Brand: LS (Korea)
Guangzhou Jwell Heat Transfer Technology Co., Ltd.
A professional manufacturer specializing in the research and development, design, production and sales of refrigeration equipment such as ice machines, cold storage, heat exchange equipment, etc.and many more
We have a professional R&D team working in the refrigeration field for more than 12 years. Professional engineers can provide customers with customized and scientific refrigeration technology solutions.
Good quality attracts customers! ! ! !
1) Excellent supplier
Quality is the first life of our products
2) Customer-centric, innovative design
3) A package of services
A package of services: design - production - installation - after-sales service.
