Nissan 50 tons of large-scale high-quality ice factory

PRODUCT DETAIL
Dimensions (L*W*H):13300*6200*1560mmIce shape:ice cubes
After-sales service provided:Free spare parts, on-site installation, commissioning and trainingWater temperature:18°C
weight:8000KgIce cube size:10/15/20/25/50/100kg
brand:shareExpansion valve:Danfoss
Applicable industries:manufacturing plantHealth status:new
Packaging Details:1. Standard wooden box. 2. The whole set of ice machine includes: ice machine, cooling tower, water pump, water pipe and water pipe accessories. 3. For small machines, users only need to connect the power supply and water supply to make the machine work; for large machines, send engineers to guide the installation. 4. All components required for installation will be provided.payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram
ambient temperature. :5~45°Cplace of origin; place of origin:Guangdong, China
capacity:50 tons/24 hoursWater supply:freshwater
Voltage:380V/3P/50HzSupply capacity:10 sets per month
Certification:ceport:Shenzhen
The refrigerant:R404A/R22/R717/R507Electrical part:Schneider
Name:block ice machineWarranty:1 year
Control System:LG/Siemens PLC and touch screenstrength:182kW
compressor:Bitzer/Copeland/Hambel

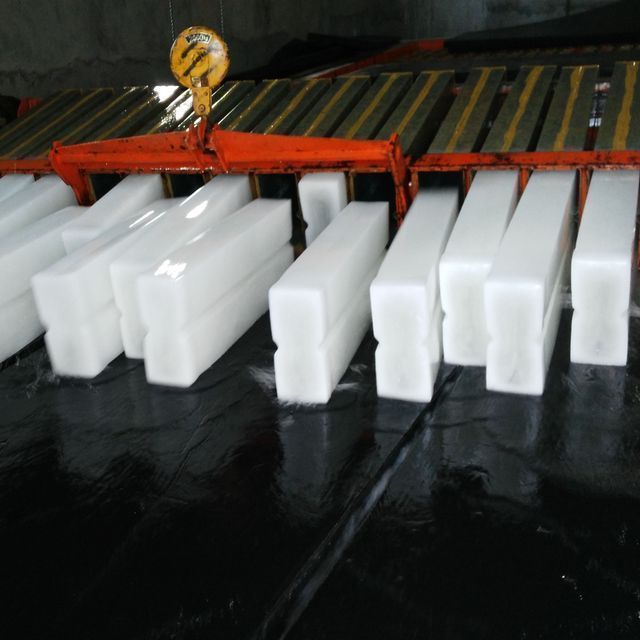

                                                               block ice machine


Product Description
feature:
  • Saltwater Pool Ice Maker
  • Block ice weight: 10/15/20/25/50/100kg
  • Refrigeration system: Feron system R22, R404A; Ammonia system R717
  • Evaporation temperature: -19℃; Condensation temperature: 40℃
  • Salt water tank material: 6mm thick carbon steel, ice mold material: 1.5~2.0mm thick galvanized iron sheet or SUS304
  • Compressor: Bitzer piston type, Hanbell screw type, Iceberg open screw type
  • Cooling method: air cooling, water cooling, evaporative cooling
  • Auxiliary equipment: lifting crane, melting tank, tipping device, water dispenser

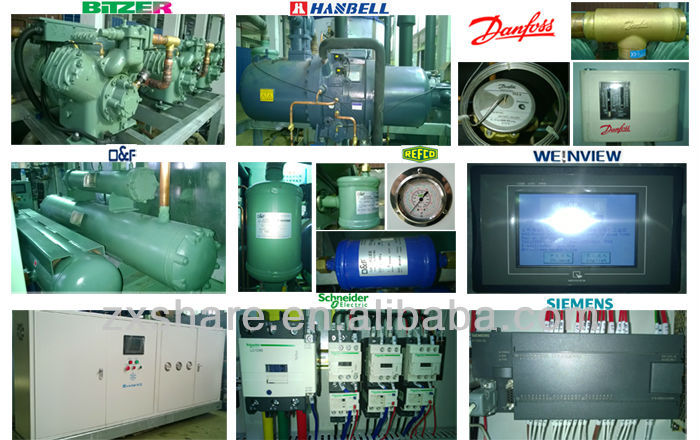

Element:

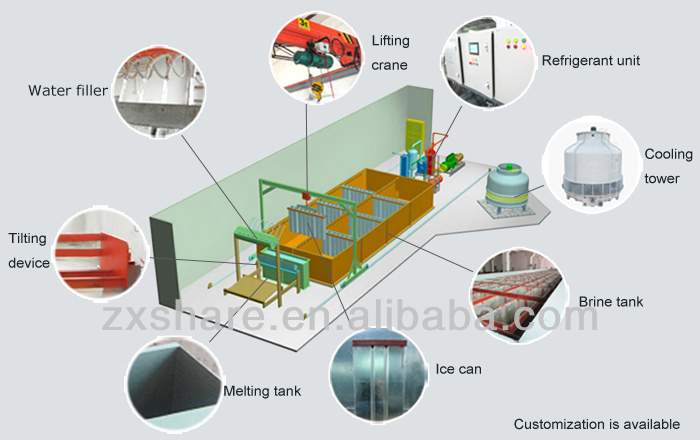

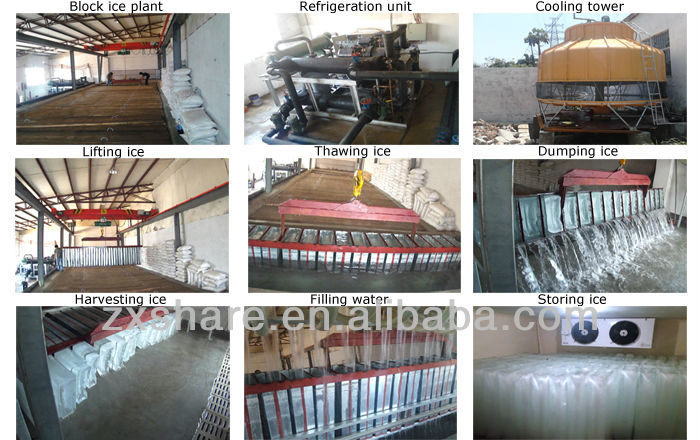

layout:

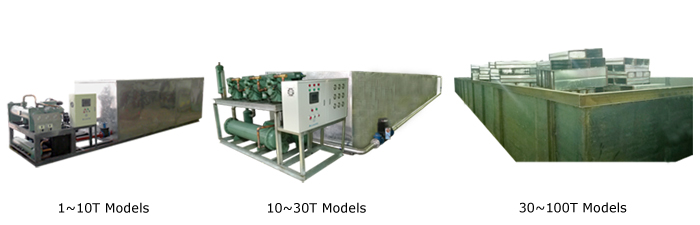

scope:



block ice machine

Model

Daily output

ice weight

total power

compressor

cooling method

aspect

weight

ZB1.0T-R4A

1.0T/24h

10/15/20/25Kg

6.4kW

Copeland

air cooling

2050*1000*800mm

800Kg

ZB3.0T-R4A

3.0T/24h

10/15/20/25Kg

14.3kW

Bitzer

water cooling

2473*1557*720mm

1400Kg

ZB5.0T-R2W

5.0T/24h

10/15/20/25Kg

25.9kW

Bitzer

water cooling

4735*1580*1130mm

2650Kg

ZB8.0T-R2W

8.0T/24h

10/15/20/25Kg

41.5kW

Bitzer

water cooling

5160*1820*1400mm

4000kg

ZB10.0T-R2W

10.0T/24h

20/25/50/100Kg

48.2kW

Han Bell

water cooling

6280*2000*1600mm

4650Kg

ZB15.0T-R2W

15.0T/24h

20/25/50/100Kg

53.3kW

Han Bell

water cooling

9800*2000*1500mm

5000Kg

ZB20.0T-R2W

20.0T/24h

20/25/50/100Kg

69kW

Han Bell

water cooling

12600*1940*1500mm

5500Kg

ZB25.0T-R2W

25.0T/24h

20/25/50/100Kg

97.8kW

Han Bell

water cooling

13500*2800*1600mm

6000Kg

ZB30.0T-R2W

30.0T/24h

20/25/50/100Kg

123kW

Han Bell

water cooling

14600*3000*1600mm

6500Kg

ZB40.0T-R2W

40.0T/24h

20/25/50/100Kg

166kW

Han Bell

water cooling

19500*3800*1600mm

7500Kg

ZB50.0T-R2W

50.0T/24h

20/25/50/100Kg

182kW

Han Bell

water cooling

13300*6200*1560mm

8000Kg




































company information

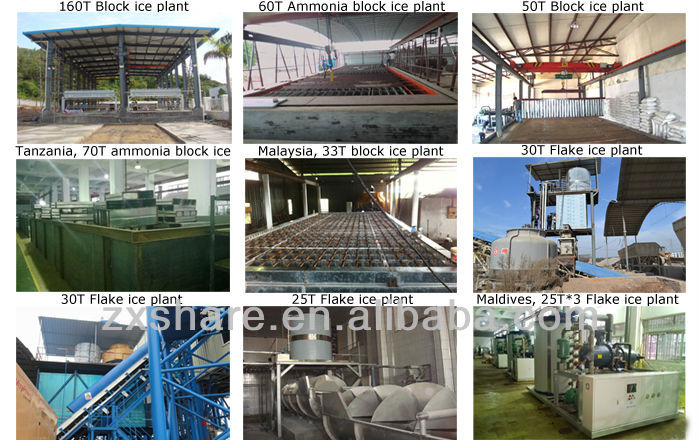

Project cases:
Application areas:


Packaging and Shipping

our service
  • All machines enjoy 72 hours of trouble-free testing before shipping.
  • All machines enjoy one year free warranty from the date of bill of lading.
  • All machines enjoy lifetime technical support and replacement parts at cost.
  • 24*7 hours telephone service
  • 12 hours response online service
  • On-site installation training
  • Engineers use service machinery overseas

Please send an inquiry with the following details:

  • your desired daily output, your voltage, ambient temperature and water temperature
  • Block ice machine, the weight of ice you want, 10/15/20/25/50/100kg
