JH Alcohol Recovery Distiller

PRODUCT DETAIL
Marketing Type:Hot Products of 2019Dimensions (L*W*H):to be determined
Processing type:AlcoholLocal service locations:not any
payment terms:L/C, T/TCore components:Blood vessel
Showroom location:not anyPackaging Details:Plastic film, cotton cloth and wooden box.
weight:to be determinedbrand:On the way
Health status:newOrigin:Zhejiang, China
Supply capacity:11 sets per monthVoltage:to be determined
Video outbound inspection:ifport:Shanghai/Ningbo
After Warranty Service:Video technical support, online support, spare partsProcessing:Concentrator
strength:to be determinedWarranty:1 year
After-sales service provided:Engineers available to repair machinery overseas, online supportCertification:TBDT
Core component warranty:1 yearMechanical test report:if
Applicable industries:Manufacturing plants, food and beverage plants

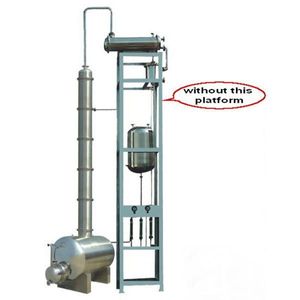

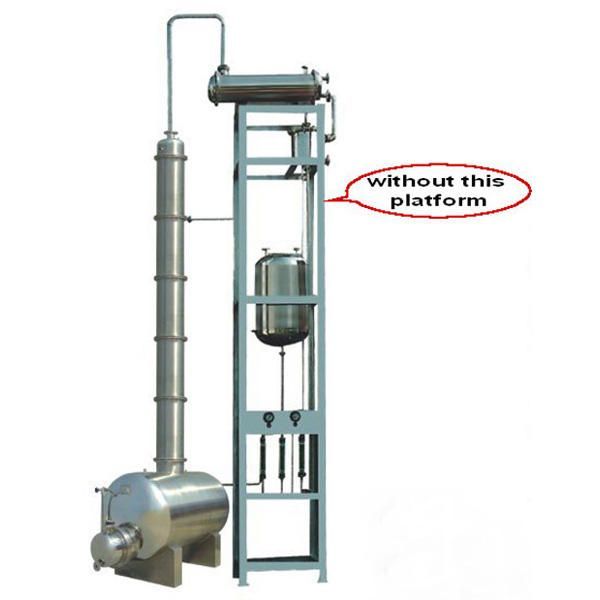

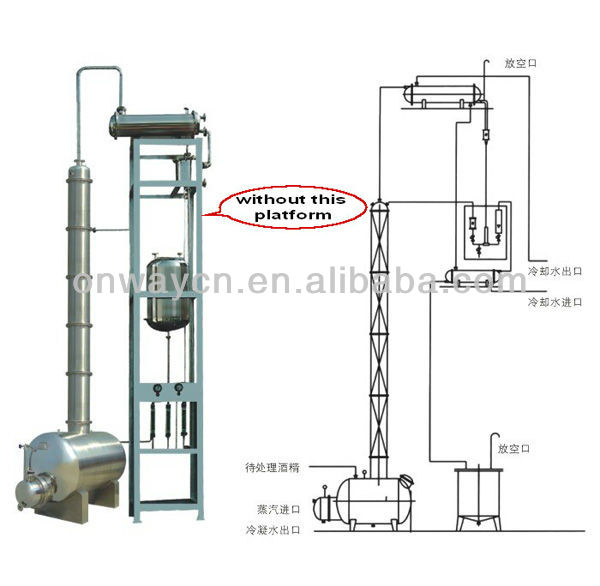

Jianhuaalcohol still(alcohol distillation equipment, distillation tower) consists of a main body, a tower body, a condenser, a cooler, a buffer tank, and a high-level storage tank.

This equipment changes the traditional tower tank into a concentrator, which integrates concentration and recovery. It is especially suitable for the concentration and recovery of alcohol solvents under normal pressure and high temperature. But not suitable for heat sensitive materials.



It is suitable for the recovery of dilute alcohol in medicine, food, light industry and chemical industry. It is beneficial to reduce production cost and economic benefit. Dilute alcohol of 30-50 degrees can be distilled to 93-95 degrees. The final product has a high alcohol content, which can increase the reflux ratio, but reduce the output of the final product, and the alcohol content of the raffinate decreases by ≤3 degrees. It is a good equipment for alcohol recovery and rectification.





Technical Parameters - Alcohol Recovery Distiller



JH-200

JH-300

JH-400

JH-500

JH-600

JH-800

Tower volume (L)

640

1220

1450

2300

2505

3200

Tower height(mm)

6000

7000

7000

7000

7500

7500

High tank volume (L)

300

400

650

800

1000

1500

Condenser area (m2)

5

8

11

18

25

45

Cooling area (m2)

1

1.5

2.2

4

6

8

Heating area (square meters2)

3.0

6.0

6.5

10

15

26

Recovery capacity(kg/h)

45~50

90~1000

150~160

280~300

420~440

600~620

Recovery concentration (%)

93~95

package style

stainless steel corrugated loading material

size

length x width x height

2300×700×7300

2600×800×7500

2500×1000×9000

3000×1200×9000

3500×1400×1000

4200×1800×1000



Alcohol recovery still

Alcohol recovery still





Alcohol recovery still
