Spherical vacuum evaporation alcohol recovery concentrator evaporator, spherical concentration tank
- $500.00 /set
- 1 set
- Shanghai Bingyu Technology Co., Ltd.
- Shanghai, China
- Ms Natasha Hu
| Warranty: | 1 year | After-sales service provided: | Online support |
| Packaging Details: | Plastic film packaging, cotton fixation and wooden box packaging. | Packaging Preview: | |
| Dimensions (L*W*H): | custom made | Processing Type: | juice |
| place of origin; place of origin: | China | brand: | ice jade |
| Certification: | custom made | port: | Shanghai |
| strength: | custom made | Health status: | new |
| Voltage: | custom made | Supply capacity: | 30 sets per month |
| payment terms: | L/C,D/P,T/T | Material: | Stainless Steel 304/316L |
| Applicable industries: | Food and Beverage Factory, Pharmaceutical, Chemical | weight: | custom made |
| Processing: | Concentrator |

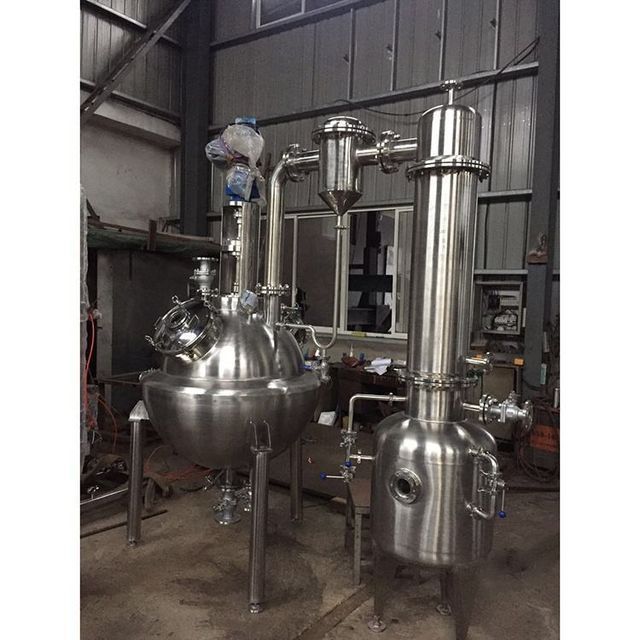

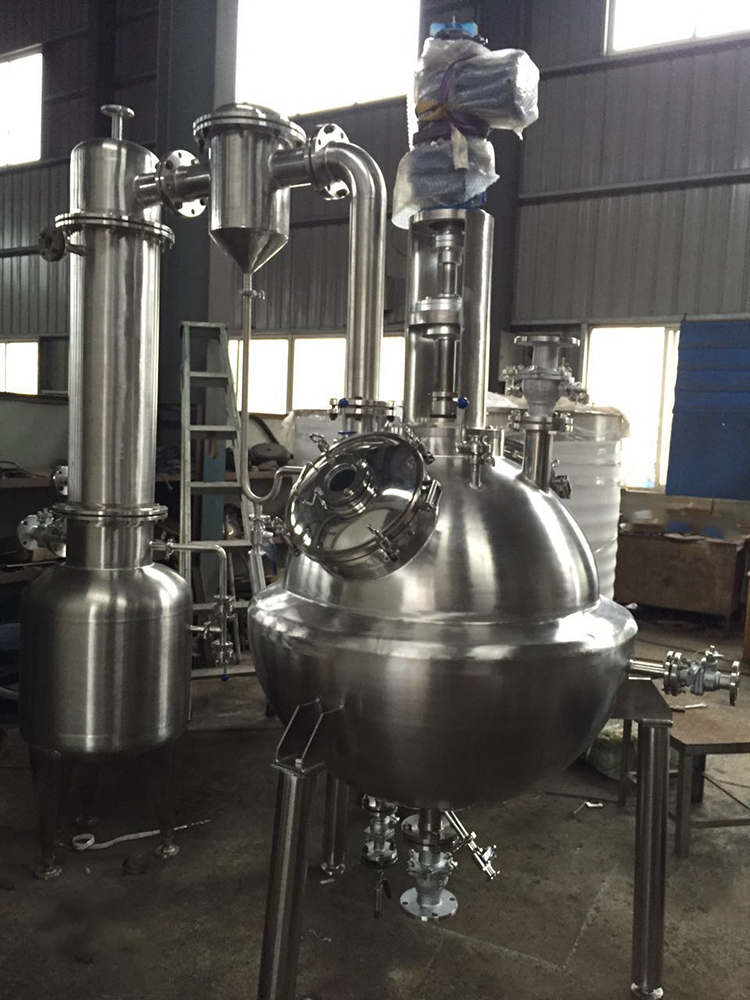

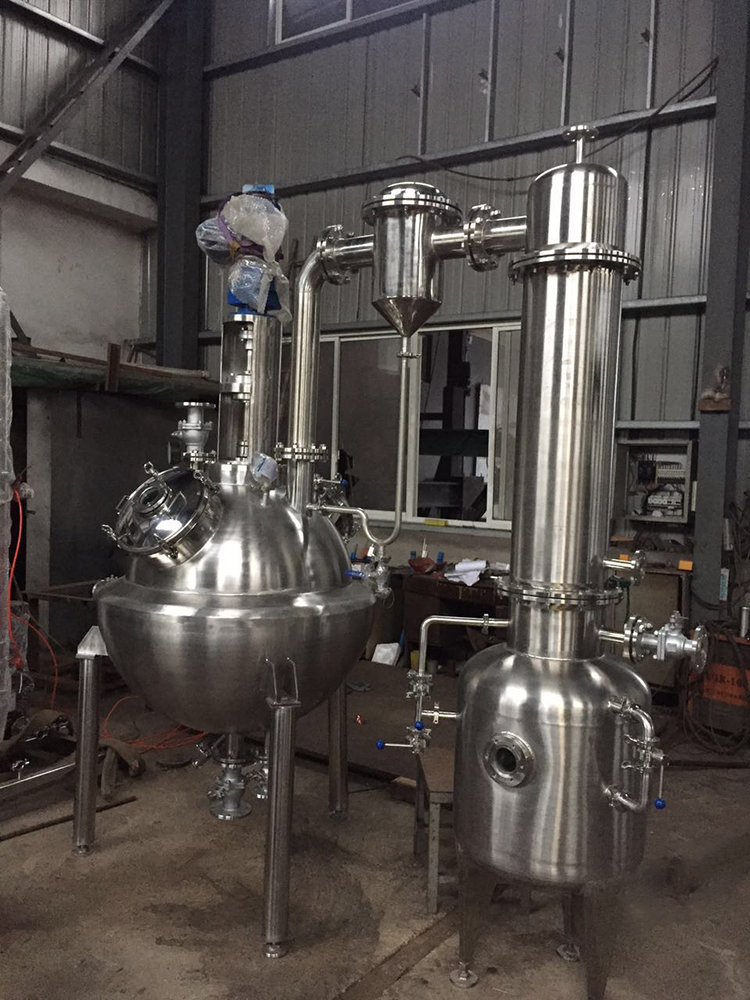

Spherical vacuum evaporation alcohol recovery concentrator evaporator, spherical concentration tank
application:
The spherical concentrator is mainly suitable for the concentrated distillation of heat-sensitive materials and the concentrated and concentrated extraction of organic solvents (such as alcohol) in the industries of traditional Chinese and western medicine, starch sugar, dairy products, biopharmaceuticals, and chemical industry. It can effectively reduce the active ingredients of heat-sensitive materials. damage.
feature:

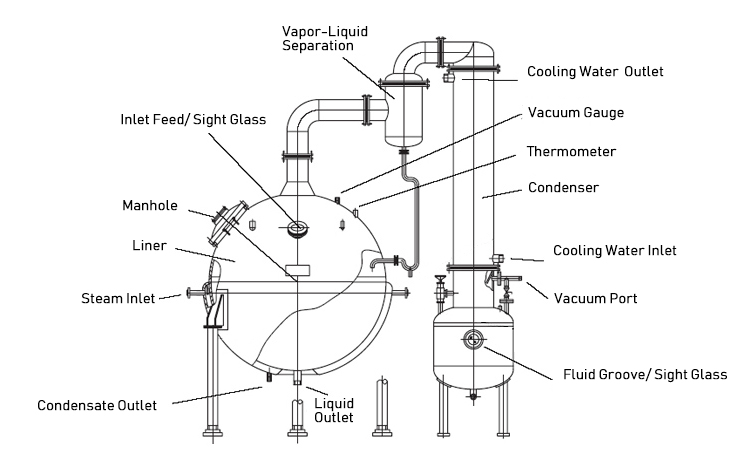

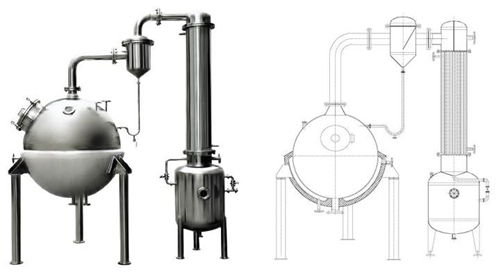

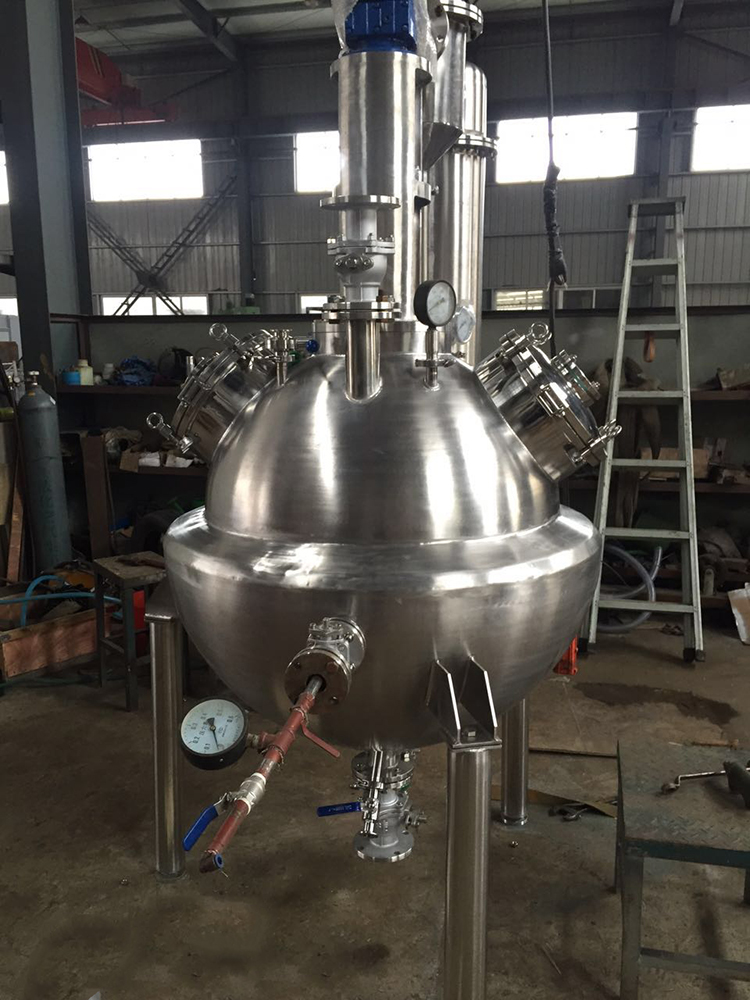

The five specifications of the concentration tank, condenser, gas-liquid separator, cooler, and liquid-contacting barrel are all made of stainless steel beautiful materials. The concentration tank is a reel structure. The condenser is a pipeline type, and the cooler is a coil type, which can be mixed with agitation when the concentration is high or the development is withdrawn, and the effect is better.
| Do not. | QN-300 | QN-500 | QN-700 | QN-1000 |
| Evaporation (Kg/h) | 70 | 120 | 145 | 195 |
| Volume (L) | 300 | 500 | 700 | 1000 |
| Jacket pressure (Mpa) | 0.09 | |||
| Vacuum (mmHg) | 500-620 | |||
| Heating area (square meters) | 1.3 | 1.8 | 2.2 | 2.8 |
| Condensing area (square meters) | 4 | 5 | 6 | 8 |
Weight (kg) | 380 | 450 | 630 | 950 |
| Dimensions (L*W*H mm) | 1900*1100*2300 | 2030*1200*2500 | 2100*1300*2600 | 2335*1520*2760 |
| The actual technical parameters of the equipment will vary due to the needs of the equipment. The specific technical solution we provide you shall prevail. | ||||
