Large capacity product hydraulic wine press

  • $103.68 /set
  • 1 set
  • CEP S.R.L.
  • Padova, Italy
  • Mr davide CEP srl
PRODUCT DETAIL
Great treatment:Wide range of applicationsProcessing Type:fruit
high pressure:easy to operatestrength:2,2 kW
Mechanical test report:Not availableLocal service location:Italy
Processing:JuicerCore Components Warranty:1 year
Main selling point:automaticApplicable industries:Food and Beverage Plants, Farms
Certification:CE certificatepayment terms:wire transfer
brand:CEPCOSTRUZIONI ENOLOGICHE PADOVANEHealth status:new
Showroom location:Italyweight:900KG
Dimensions (L*W*H):2100X1400X2900Voltage:220v/380v
Marketing Type:New Products 2020Core components:motor
Warranty:1 yearVideo external inspection:Not available
place of origin; place of origin:ItalyAfter Warranty Service:Online support, spare parts

Website www.cepitaly.com



Global Vertical Press N.1! ! ! !

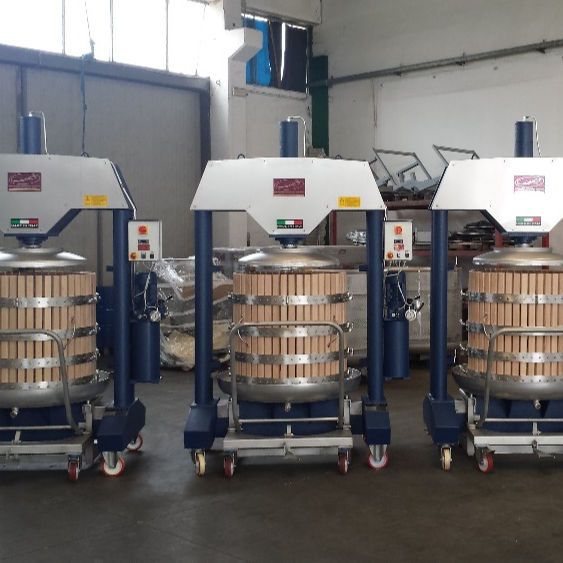

Vertical Press mod Sirio

The hydraulic vertical press Mod Sirio is the result of the maximum technical expression and design of modern oenology, utilizing the best traditions. It uses Pascal's principle "pressure applied at any point in a liquid is transmitted with equal intensity in all directions". Therefore, put pressure on the small surface piston, which will be transmitted to the plate. The surface pressure is further increased according to the ratio between the surfaces. The maximum pressure varies between models from 8 to 10.2 kg/cm2, the pressure can be adjusted by means of an electrical contact pressure gauge or a touch screen PLC to handle the product in a "soft" way. The processing of the grapes or pomace does not take place during the various pressing stages (no lees). They are designed to improve the pressing quality of white and red grape pomace, aiming to produce the most prestigious and natural wines that can grow qualitatively in the bottle for many years and become top products on the market. Chrome-plated steel plunger with lever-closed cage or hydraulic lift via lateral cylinders, wheel-mounted support frame and removable wheeled trolley or pallet for forklifts, large must-collect tank made entirely of Aisi 304 stainless steel Steel is standard on all models, making the press action of this device simple, fast, traditional and unique.

All Sirio models can be equipped with the following options:

Platen covered in Aisi 304 stainless steel

Double hydraulic pump belt

Quick Approach Button Panel

Trolley centering plate with Aisi304 stainless steel

Standard on all models

Nylon drain pan

fabric filter bag

Sirio models are available in three versions:

Mod SIRIO is a traditional model with a wooden cage

with painted steel wheels

Mod SIRIO C with wooden cage

Aisi 304 stainless steel wheels

Mod SIRIO X with full Aisi304 stainless steel cage

Vertical Press mod Sirio

The hydraulic vertical press Mod Sirio is the result of the maximum technical expression and design of modern oenology, utilizing the best traditions. It uses Pascal's principle "pressure applied at any point in a liquid is transmitted with equal intensity in all directions". Therefore, put pressure on the small surface piston, which will be transmitted to the plate. The surface pressure is further increased according to the ratio between the surfaces. The maximum pressure varies between models from 8 to 10.2 kg/cm2, the pressure can be adjusted by means of an electrical contact pressure gauge or a touch screen PLC to handle the product in a "soft" way. The processing of the grapes or pomace does not take place during the various pressing stages (no lees). They are designed to improve the pressing quality of white and red grape pomace, aiming to produce the most prestigious and natural wines that can grow qualitatively in the bottle for many years and become top products on the market. Chrome-plated steel plunger with lever-closed cage or hydraulic lift via lateral cylinders, wheel-mounted support frame and removable wheeled trolley or pallet for forklifts, large must-collect tank made entirely of Aisi 304 stainless steel Steel is standard on all models, making the press action of this device simple, fast, traditional and unique.

All Sirio models can be equipped with the following options:

Platen covered in Aisi 304 stainless steel

Double hydraulic pump belt

Quick Approach Button Panel

Trolley centering plate with Aisi304 stainless steel

Standard on all models

Nylon drain pan

fabric filter bag

Sirio models are available in three versions:

Mod SIRIO is a traditional model with a wooden cage

with painted steel wheels

Mod SIRIO C with wooden cage

Aisi 304 stainless steel wheels

Mod SIRIO X with full Aisi304 stainless steel cage

Vertical Press mod Sirio

The hydraulic vertical press Mod Sirio is the result of the maximum technical expression and design of modern oenology, utilizing the best traditions. It uses Pascal's principle "pressure applied at any point in a liquid is transmitted with equal intensity in all directions". Therefore, put pressure on the small surface piston, which will be transmitted to the plate. The surface pressure is further increased according to the ratio between the surfaces. The maximum pressure varies between models from 8 to 10.2 kg/cm2, the pressure can be adjusted by means of an electrical contact pressure gauge or a touch screen PLC to handle the product in a "soft" way. The processing of the grapes or pomace does not take place during the various pressing stages (no lees). They are designed to improve the pressing quality of white and red grape pomace, aiming to produce the most prestigious and natural wines that can grow qualitatively in the bottle for many years and become top products on the market. Chrome-plated steel plunger with lever-closed cage or hydraulic lift via lateral cylinders, wheel-mounted support frame and removable wheeled trolley or pallet for forklifts, large must-collect tank made entirely of Aisi 304 stainless steel Steel is standard on all models, making the press action of this device simple, fast, traditional and unique.

All Sirio models can be equipped with the following options:

Platen covered in Aisi 304 stainless steel

Double hydraulic pump belt

Quick Approach Button Panel

Trolley centering plate with Aisi304 stainless steel

Standard on all models

Nylon drain pan

fabric filter bag

Sirio models are available in three versions:

Mod SIRIO is a traditional model with a wooden cage

with painted steel wheels

Mod SIRIO C with wooden cage

Aisi 304 stainless steel wheels

Mod SIRIO X with full Aisi304 stainless steel cage

Vertical Press mod Sirio

The hydraulic vertical press Mod Sirio is the result of the maximum technical expression and design of modern oenology, utilizing the best traditions. It uses Pascal's principle "pressure applied at any point in a liquid is transmitted with equal intensity in all directions". Therefore, put pressure on the small surface piston, which will be transmitted to the plate. The surface pressure is further increased according to the ratio between the surfaces. The maximum pressure varies from 8 to 10.2 kg/cm2 between models and can be adjusted by means of an electric contact pressure gauge or a touch screen PLC to handle the product in a "soft" manner. The processing of the grapes or pomace does not take place during the various pressing stages (no lees). They are designed to improve the pressing quality of white and red grape pomace, aiming to produce the most prestigious and natural wines that can grow qualitatively in the bottle for many years and become top products on the market. Chrome-plated steel plunger with lever-closed cage or hydraulic lift via lateral cylinders, wheel-mounted support frame and removable wheeled trolley or pallet for forklifts, large must-collect tank made entirely of Aisi 304 stainless steel Steel is standard on all models, making the press action of this device simple, fast, traditional and unique.

All Sirio models can be equipped with the following options:

Platen covered in Aisi 304 stainless steel

Double hydraulic pump belt

Quick Approach Button Panel

Trolley centering plate with Aisi304 stainless steel

Standard on all models

Nylon drain pan

fabric filter bag

Sirio models are available in three versions:

Defense SirioIt is a traditional model equipped with a wooden cage

with painted steel wheels

Module SIRIO CComes with a wooden cage with

Aisi 304 stainless steel wheels

Module SIRIO XEquipped with full Aisi304 stainless steel cage
