Destemming - Crushing

For 50 years, CEP has been producing destemmers for the wine industry worldwide. Today, we offer a complete range of products with capacities ranging from 4 to 130 t/h, suitable for gentle and delicate grape handling, for different grape varieties and stages of ripeness. These machines are equipped with the most modern systems for handling mechanically harvested grapes and are designed to facilitate thorough cleaning without the need to dismantle any mechanical parts. In addition, we offer a wide range of accessories to help recover and store the expelled stems.

Beta 40 Destemmer

Destemming press with rubber food rollers. All models are equipped as standard with a pair of rollers that ensure gentle pressing of the grapes. The destemming shaft is made of rubber blades. The destemming cage is made of stainless steel with slots. The machine is equipped with a central opening and cage extraction device for simple and thorough cleaning.

Components: Self-adjusting rubber rollers - Entirely in Aisi 304 stainless steel - Stirring shaft with rubber food blade - Must collecting tray with feeding screw - Electrical panel for start and stop Power Kw. 1.8 - Capacity 3500/5000 kg/h - Dimensions 1300x800xh1150 mm

Euro 1-2-3 Destemmer

EURO is a destemming crusher. All models are made of Aisi304 stainless steel and have a variable speed option that simultaneously adjusts the rotation speed of the feed auger. It consists of a shaft with rubber food blades, a destemmer and a perforated drum in order to optimize the destemming process according to the ripeness of the grapes. The feed auger conveys the grapes into the perforated cylinder, where the stirring shaft rotating at a low speed removes the grapes from the stems in a gentle and delicate manner. All models are equipped with a roller device at the bottom. The rubber rollers are for food and are self-adjusting. All models combined with a crusher are suitable for destemming and crushing or destemming without crushing.

Stainless steel destemmer with transmission. Features: A pair of adjustable drums with crushing / non-crushing system - Stainless steel cage - Transmission - Removable shaft with anti-crushing berry type blades covered with food rubber - Motor and stop and start switch, voltage 400/3/50hz.

Page 09

DestemmerZeus Mode 100 to 1300

DestemmerZeus Models 100 to 1300

The ZEUS destemmer is state-of-the-art and designed to meet the requirements of modern quality oenology. For processing soft, fragile grapes - Adapts to different processing requirements depending on grape variety and maturity stage - Suitable for processing mechanically harvested grapes

The independent feed auger is equipped with hopper and grid for initial drainage - the speed variation is precise, regulated by an inverter with digital display. The machine is designed to facilitate thorough cleaning without disassembling any parts. The machine can be customized to suit your needs - the machine output ranges from 8 to 130 t/h.

Soft destemming machine Model: ZEUS Made entirely of stainless steel. Features: With wide hopper - With initial drainage system - Variable speed inverter - Removable stirring shaft - Stirring scraper covered with food grade rubber - Self-adjusting rubber roller - Crushing / non-crushing device

Destemming - Crushing

Straw chopper

To optimize the handling of the stems, CEP has produced a stem cutter that can be applied to a stem crusher with a maximum output of 50/60 tons of grapes per hour. Thanks to its innovative structure, this machine is small, powerful in the cutting section and equipped with an efficient product discharge system, the product can be loaded directly into normal pallet containers without operator intervention (containers not included), it works together with the stem crusher, receiving the stems from it and making the final deposit of the chopped stems into the container on sections of 1.5 meters. The machine is equipped with a panel with start and stop buttons. The machine is completely made of stainless steel, except for the rotor and drum in painted steel.

Straw extractors, cyclones and screens

The T series extractors are made of radial blade impellers and are open, making them particularly suitable for

Fibrous materials such as stalks. On request we can produce cyclones, bars or grilles in painted iron or in full Aisi 304 stainless steel.

Crusher with hopper

CEP offers a wide range of roller sets

For crushing grapes or fruit.

These can be designed as per requirement.

Comes with hopper.

With mechanical transmission

On the support frame.

Flange connection to the pump

Output ranges from 4 to 130 tons/hour

Pallets must be collected

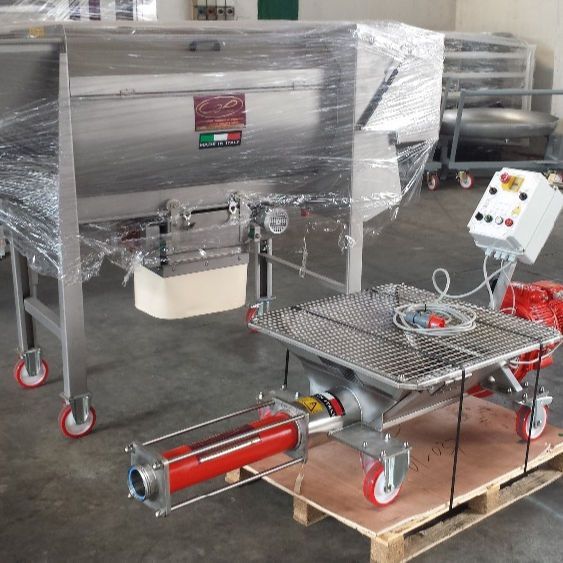

CEP offers an alternative to a pump with hopper for recovering grapes from the destemmer.

Freestanding motorized tray, complete with auger for easy transport, made entirely of stainless steel.

size:

950x650xH507 mm

700x600xH507 mm

550x550xH500 mm
