Wine hydraulic press
- $102.17 /set
- 1 set
- CEP S.R.L.
- Padova, Italy
- Mr davide CEP srl
payment terms: | wire transfer | Marketing Type: | New Products 2021 |
Mechanical test report: | Not available | After Warranty Service: | Online support |
Core Components Warranty: | 1 year | Local service location: | Italy |
Dimensions (L*W*H): | 1800x1300x2850 | Voltage: | 220V/380V |
brand: | CEPCOSTRUZIONI ENOLOGICHE PADOVANE | After-sales service provided: | Provide overseas third-party support |
weight: | 500kg | Applicable industries: | Food and Beverage Plants, Farms |
place of origin; place of origin: | Italy | Showroom location: | Italy |
Core components: | motor | Certification: | CE certificate |
strength: | 1.1kw | Warranty: | 1 year |
Video external inspection: | Not available | Health status: | new |
Website www.cepitaly.com
wine equipment
N.1 in vertical presses worldwide!
urgent
Suppression has always been an important part of obtaining quality products that meet market requirements. As early as 1962, CEP produced hydraulic motor presses with a counter-pressure system, in which the piston is pushed upwards from the bottom. To date, with 52 years of experience in the wine industry, it is able to provide the following solutions:

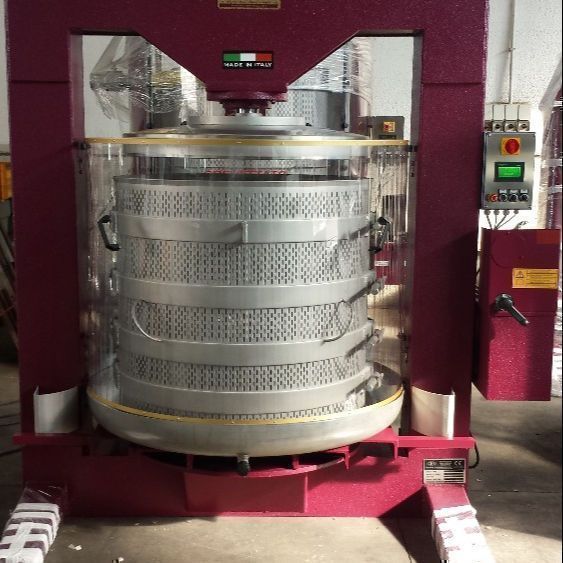

Vertical press mod Sirio
The hydraulic vertical press Mod Sirio is the result of the maximum technical expression and design of modern oenology, utilizing the best traditions. It uses Pascal's principle "pressure applied at any point in a liquid is transmitted with equal intensity in all directions". Therefore, put pressure on the small surface piston, which will be transmitted to the plate. The surface pressure is further increased according to the ratio between the surfaces. The maximum pressure varies between models from 8 to 10.2 kg/cm2, the pressure can be adjusted by means of an electrical contact pressure gauge or a touch screen PLC to handle the product in a "soft" way. The processing of the grapes or pomace does not take place during the various pressing stages (no lees). They are designed to improve the pressing quality of white and red grape pomace, aiming to produce the most prestigious and natural wines that can grow qualitatively in the bottle for many years and become top products on the market. Chrome-plated steel plunger with lever-closed cage or hydraulic lift via lateral cylinders, wheel-mounted support frame and removable wheeled trolley or pallet for forklifts, large must-collect tank made entirely of Aisi 304 stainless steel Steel is standard on all models, making the press action of this device simple, fast, traditional and unique.
All Sirio models can be equipped with the following options:
Platen covered in Aisi 304 stainless steel
Double hydraulic pump belt
Quick Approach Button Panel
Trolley centering plate with Aisi304 stainless steel
Standard on all models
Nylon drain pan
fabric filter bag
Sirio models are available in three versions:
Mod SIRIO is a traditional model with a wooden cage
with painted steel wheels
Mod SIRIO C with wooden cage
Aisi 304 stainless steel wheels
Mod SIRIO X with full Aisi304 stainless steel cage
