Leaching Tank for gold copper silver iron tungsten lead cobalt zinc tin ore
- $3500.00 / 1 - 1 sets
$3400.00 / >=2 sets - 1 set
- Zhengzhou Shibo Machinery Manufacturing Co., Ltd.
- Henan, China
- Mr Shibo Machinery
PRODUCT DETAIL
| Effective Volume: | 6m3-395m3; | Core Components: | Motor; |
| Local Service Location: | None; | Motor Type: | AC Motor; |
| Applicable Industries: | Energy & Mining; | Supply Ability: | 200 Set/Sets per Month; |
| Impeller speed: | 40r/min; | Production Capacity: | High; |
| Payment Terms: | L/C,D/A,D/P,T/T; | Brand Name: | Shibo Machinery; |
| Packaging Detail: | Standard Export Container Packaging; | Certification: | CE ISO; |
| Showroom Location: | Indonesia,India,Russia,Kenya,South Africa,Malaysia,Australia; | Video outgoing-inspection: | Provided; |
| Machinery Test Report: | Provided; | Warranty of core components: | 1 Year; |
| Application: | ore processing; | Type: | Leaching Tank; |
| Warranty: | 1 Year; | Place of Origin: | Henan China; |
| Marketing Type: | New Product 2020; | Dimension(L*W*H): | According to the model; |
| Port: | QingDao; | After-sales Service Provided: | Online support,Video technical support,Field installation, commissioning and training; |

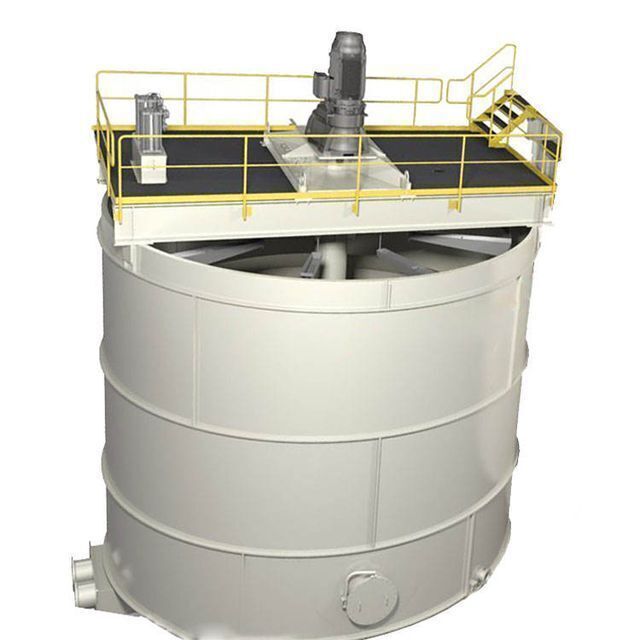

5-400 m3 Gold Leaching Agitation Mixing Tank Gold CIP Plant Leaching Tank
Product Description
Double impeller leaching tank including motor, cycloidal planetary gear speed reducer, bearing block and agitating shaft, and the agitating shaft equipped with a double impeller , from the top view the impeller rotating clockwise, each impeller composed of 4 blades, and the angle of the top blade and the below one is 45 degree. Double-impeller leaching tank is a equipment used for gold cyanidation leaching process and absorption.
The compact air gets through the elbow pipe or the hollow shaft to the tank's bottom, the raising air plays the role of mixing , at the same time the big bubble shattered by the impeller changing into small bubbles, in the end the pulp and air reaches fully mixing and sodium cyanide solution contacts with the pulp completely, thereby gets the better gold leaching result. The design of this device keeps the impeller low-speed moving, reducing the possibility of wearing or smashing the active carbon, so as to achieve high leaching rate, high absorption rate and collects more gold.
Main features:
1.high gold recovery rate
2.adopt a planet-cycloid reducer or flat envelope Reducer drive, high-efficiency to 92%
3. special structure compared with the same type equipment reducing the motor power, energy-saving rate 27.3%
4. Little chance of accident happening, high overload capacity
5. Light weight, low-cost, long service life
1.high gold recovery rate
2.adopt a planet-cycloid reducer or flat envelope Reducer drive, high-efficiency to 92%
3. special structure compared with the same type equipment reducing the motor power, energy-saving rate 27.3%
4. Little chance of accident happening, high overload capacity
5. Light weight, low-cost, long service life
Size Information
Model | Tank size (mm) | Volume (m³) | Impeller speed (r/min) | Motor power (kw) |
sj2.0x2.5 | 2000x2500 | 6 | 52 | 2.2 |
sj2.5x3.15 | 2500x3150 | 13.14 | 52 | 2.2 |
sj3.0x3..0 | 3000x3500 | 18 | 41 | 4 |
sj3.5x3.5 | 3500x3500 | 30 | 43 | 4 |
sj4.0x4.5 | 4000x4500 | 48 | 35 | 7.5 |
sj5.5x6.0 | 5500x6000 | 112 | 31 | 11 |
sj6.5x7.0 | 6500x7000 | 195 | 21 | 22 |
sj7.5x8.0 | 7500x8000 | 269 | 23 | 22 |
sj8.5x9.0 | 8500x9000 | 400 | 18.5 | 30 |
Related Products
Company Introduction
Zhengzhou Shibo Machinery Manufacturing Co., Ltd. is committed to the research, development, production and sales of technical equipment in the mining industry. It mainly produces large-scale crushing, grinding and sand production lines.
Our company has 11 service outlets in China, and also exported products to Europe, America, Asia, Africa etc. more than 30 Country and region. Our company owns an experienced and skilled sales and service team which compose a perfect service network. We will professional engineers to the installation sites and provide guidance for the installation, commissioning and initial run as well as planning administration of the equipment after purchase. And welcome all our client to visit our factory in Zhengzhou.
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price.
A1: We are factory.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price.
