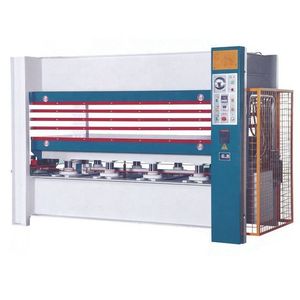

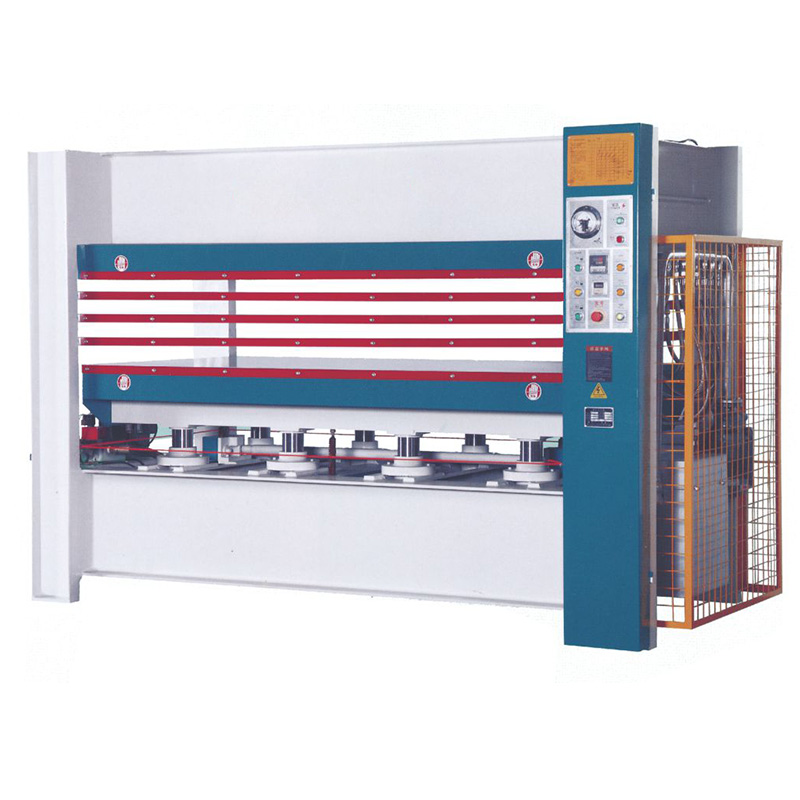

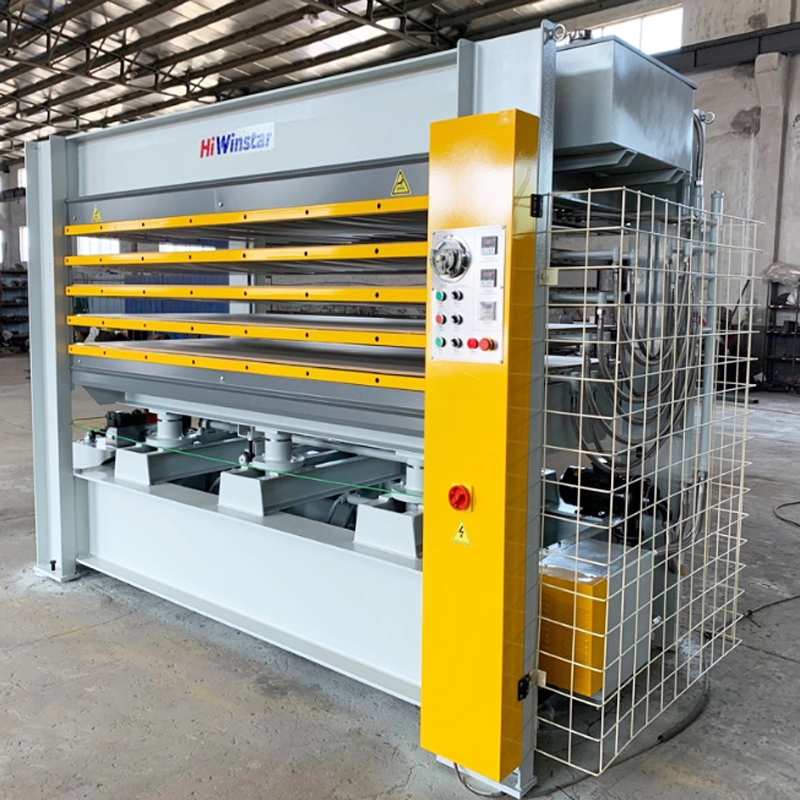

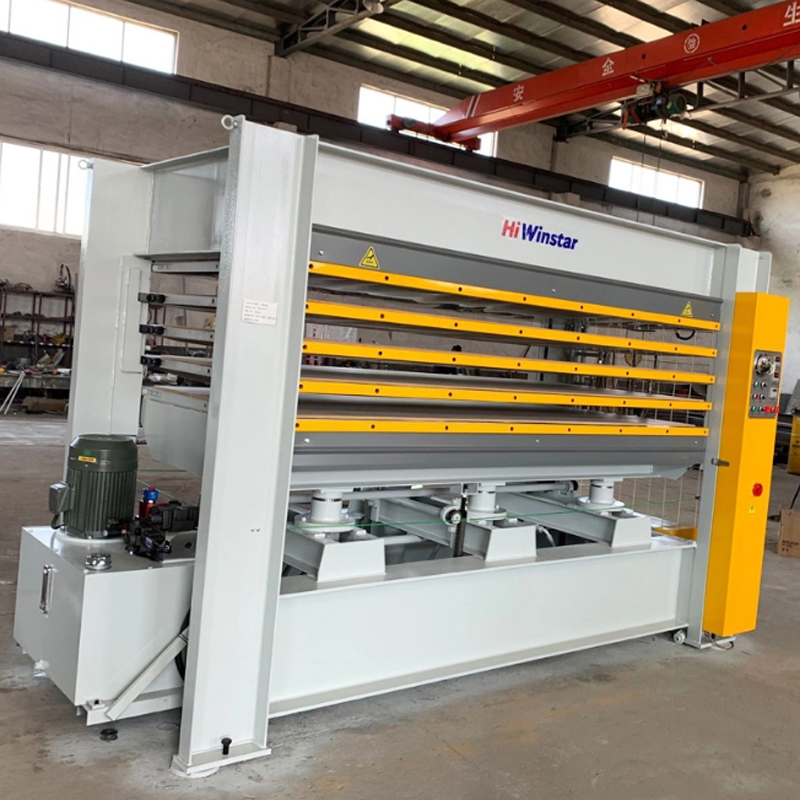

MH3848*3 woodworking wooden door hydraulic heat press veneer melamine heat press
- 1 piece
- Shanghai Win Star Woodworking Machinery Co., Ltd.
- Shanghai, China
- Ms cerol liu
MH3848*3 woodworking wooden door hydraulic heat press veneer melamine heat press
model | MH3848*1 | MH3848*2 | MH3848*3 |
work pressure | 120 tons | 120 tons | 120 tons |
Pressure plate size | 2500*1300mm | 2500*1300mm | 2500*1300mm |
Oil cylinder pressure plate | ø100*8pcs | ø100*8pcs | ø100*8pcs |
Number of laminate layers | 1st floor | 2nd floor | 3rd floor |
Pressure plate opening | 380mm | 170 mm | 100mm |
Heating power | 27kW | 45kW | 54kW |
Hydraulic system power | 5.5kW | 5.5kW | 5.5kW |
Heating oil pump power | 1.5kW | 2.2kW | 2.2kW |
weight | 6485 kilowatts | 7400kg | 8500kg |
Overall dimensions | 3700*1660*2100mm | 3700*1660*2100mm | 3700*1660*2100mm |
Function
Hydraulic hot press is mainly related to temperature selection, technical control and quality of processed products. Traditional heating methods usually include steam heating and electric heating. The former is simple.
Problems such as uneven board temperature, while the latter has the characteristics of high power consumption and high operating costs. Later, there were methods such as heating oil. This heating method has high heat capacity, uniform temperature and small heat loss.
This can reduce production costs and achieve ideal hot pressing effects.
Detailed description

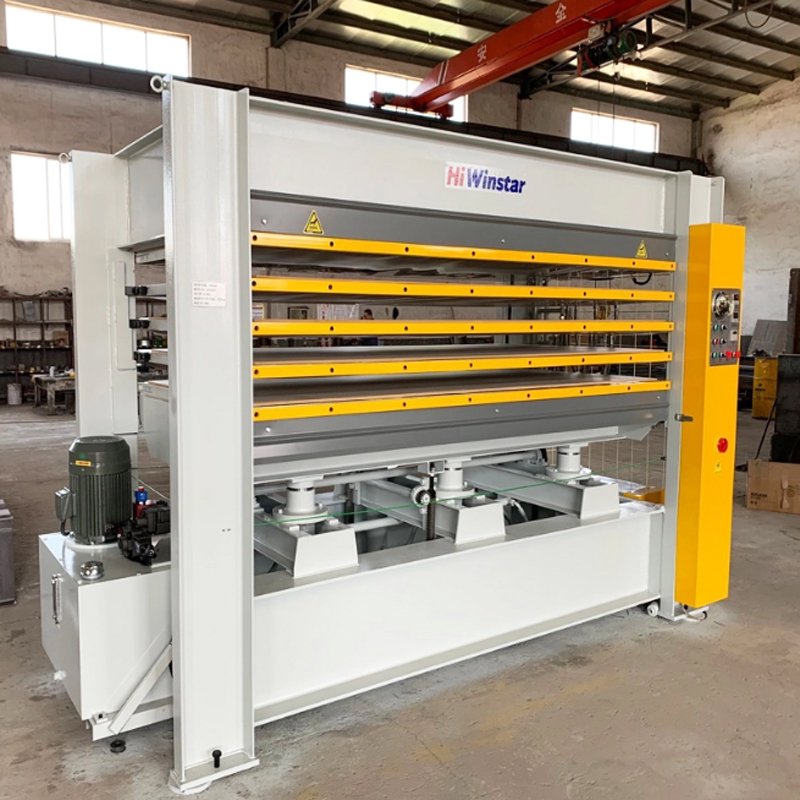

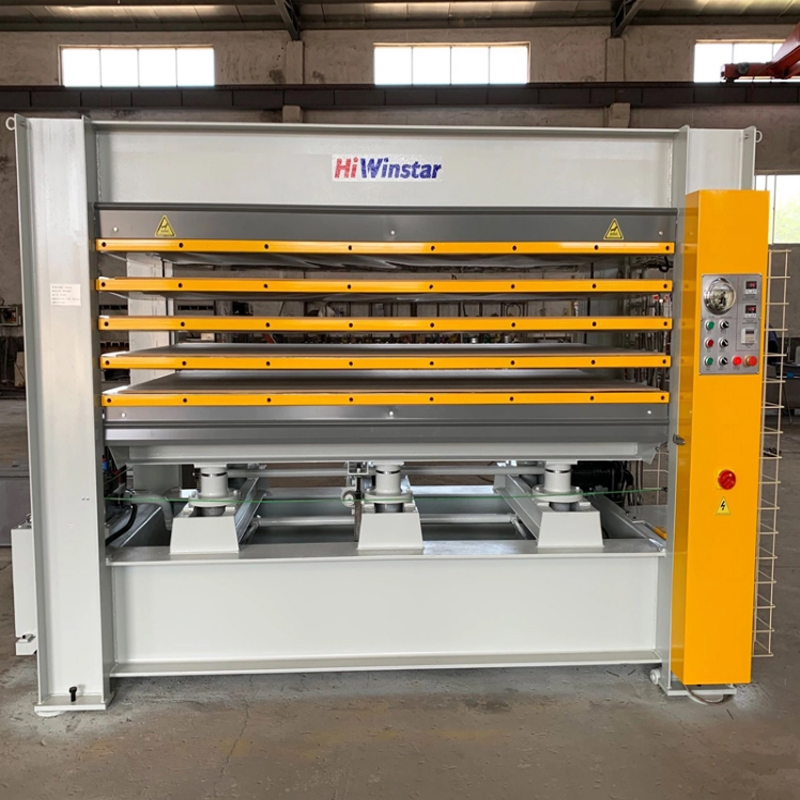

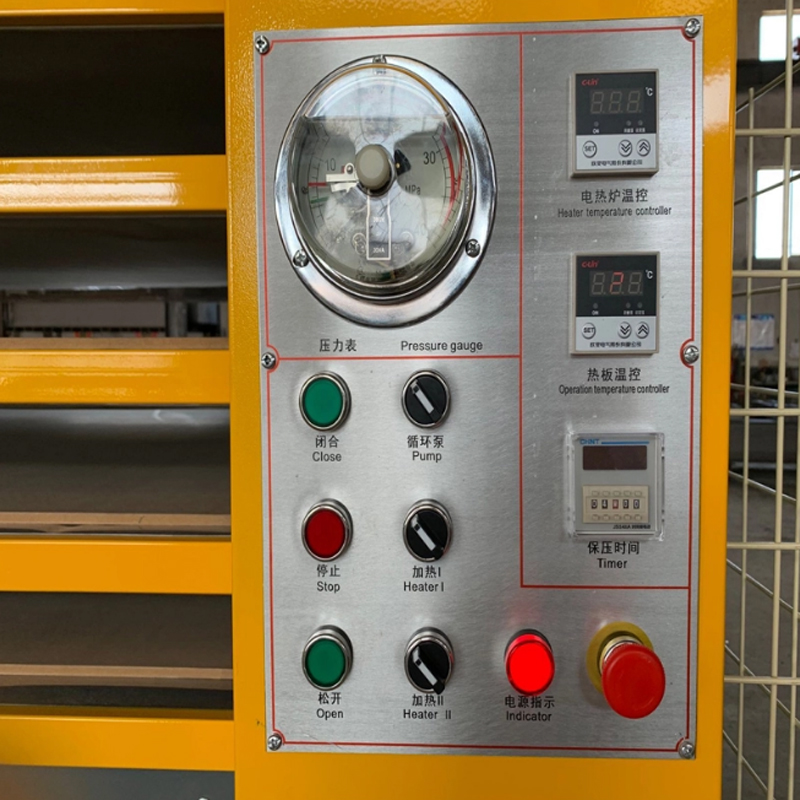

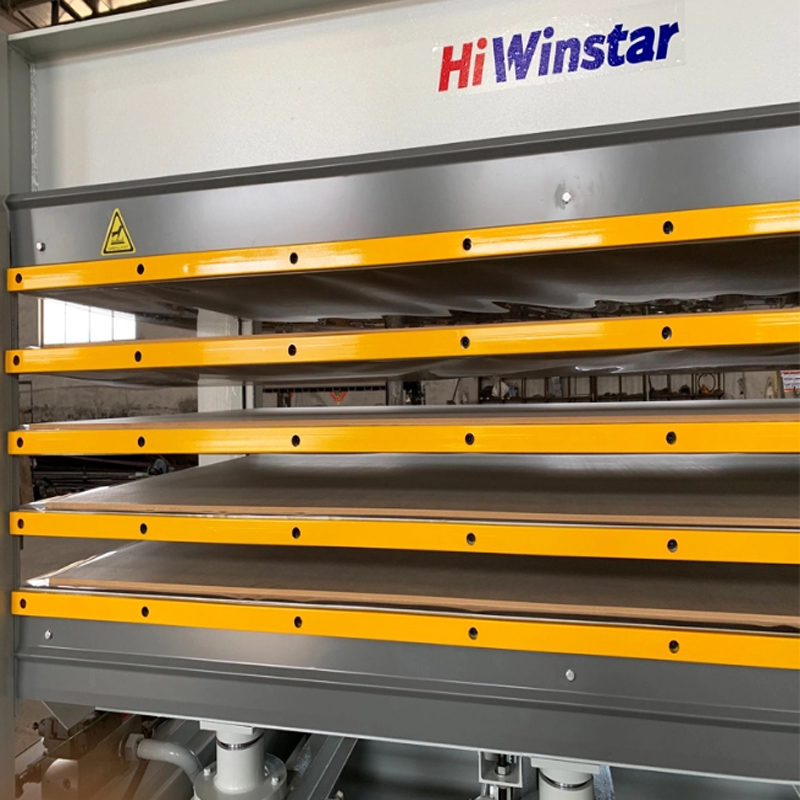

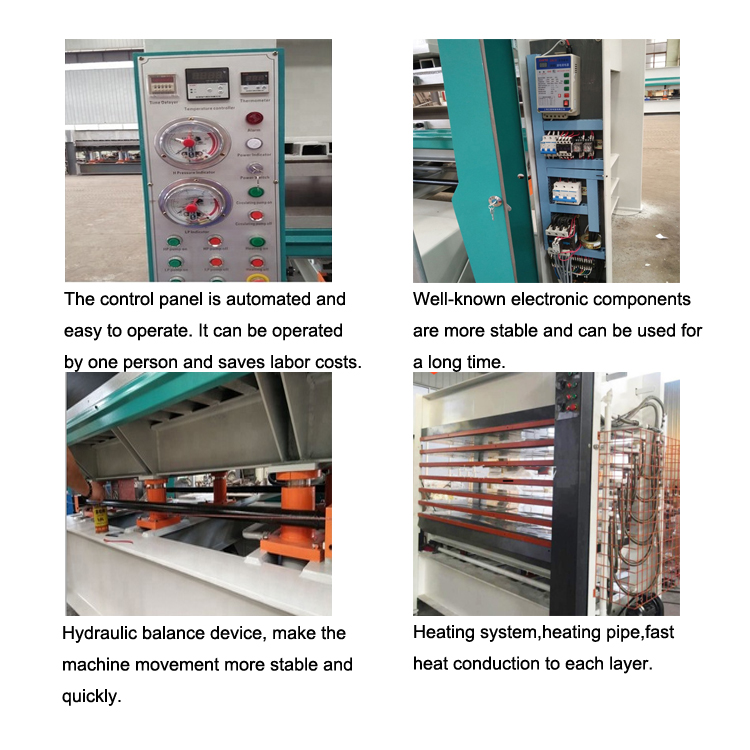

Detailed pictures
application
It is suitable for secondary processing of surface materials in furniture, wooden door factories, and artificial panel manufacturers, and is used for thermally bonded furniture panels, building partition doors, fire door surface materials, and wooden veneers. On artificial boards, plywood, blockboards, MDF, and particleboards, the surface is pressed onto various decorative materials, decorative cloths, wood veneers, PVC, etc. It can also be used for drying, leveling, color decorative wood grain leveling, and shaping of veneers. , the effect is significant.
