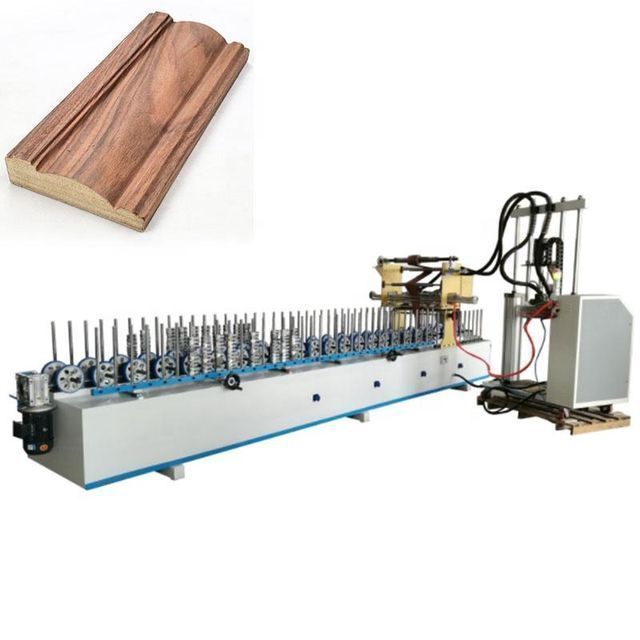

PUR hot melt adhesive profile packaging machine
- $11000.00 / 1 - 1 sets
$8000.00 / >=2 sets - 1 set
- Shanghai Win Star Woodworking Machinery Co., Ltd.
- Shanghai, China
- Ms cerol liu
| Main selling point: | easy to operate | brand: | Haiying Star |
| Voltage: | 380V 50HZ | Feed rate: | 0-25m/min |
| Weight (kg): | 1350 | application: | wrap wood veneer |
| Maximum packing width: | 300mm | Minimum working length: | 600mm |
| place of origin; place of origin: | China Shanghai | port: | Shanghai Port |
| total measurement: | 5900*750*2100mm | weight: | 1350kg |
| Warranty: | 12 months | Total power: | 11.5kW |
| Name: | Wood Veneer Packaging Machine | strength: | 11.5kW |
| Core parts warranty: | 1 year | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, veneer packing machine |
| Core components: | PLC, motor | Supply capacity: | Monthly output of 100 sets of veneer edging machines |
| Dimensions (L*W*H): | 5900*750*2100mm | Model: | PUR350C |
| Mechanical test report: | if | color: | required |
| Video external inspection: | if | Showroom location: | Vietnam, Indonesia, Malaysia |
| Marketing Type: | New Products 2022 | Health status: | new |
| Packaging Details: | Each set of profile winding machine is packed in wooden case | Applicable industries: | furniture workshop |
PUR hot melt adhesive profile packaging machine
| model | PUR350C |
| total power | 11.5kW |
| packing speed | 0-25m/min |
| Maximum packing width | 300mm |
| Minimum winding length | 600mm |
| weight | 1350kg |
| total measurement | 5900*750*2100mm |
feature
The profile winding machine adopts PUR hot melt polyurethane reactive adhesive and automatic doctor blade system. The machine has the functions of automatic dust removal, gluing, profile heating, automatic scraping, protective film and so on. The machine adopts variable frequency speed regulation and worm gear transmission.
1. Finish the surface, sides and bottom at once.
2. It adopts touch screen, programmable controller PLC and inverter control, which is easy to operate and has high precision.
3.45# steel solid base, connecting piece, column, durable, the error is less than 0.02mm.
4. The special unit system ensures the problems of wrinkling and pressure instability during the line coating process.
5. The rubber roller adopts silicon rubber wheel, which has the characteristics of high strength, good elasticity, and the metal surface is not easy to separate.
6. The equipment is equipped with two sets of feeding shafts for alternating PVC decorative materials to improve work efficiency.
7. Equipped with precision metering pump, the feeding speed can be adjusted according to user needs.
8. Can be equipped with a substrate cleaner to automatically clean and clean the substrate into the machine.

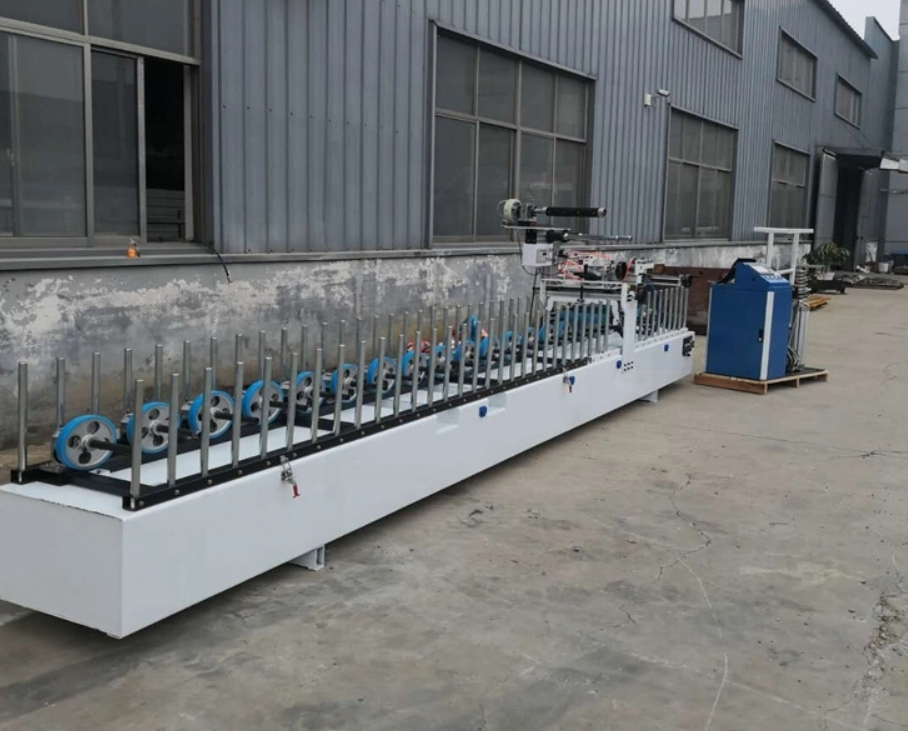

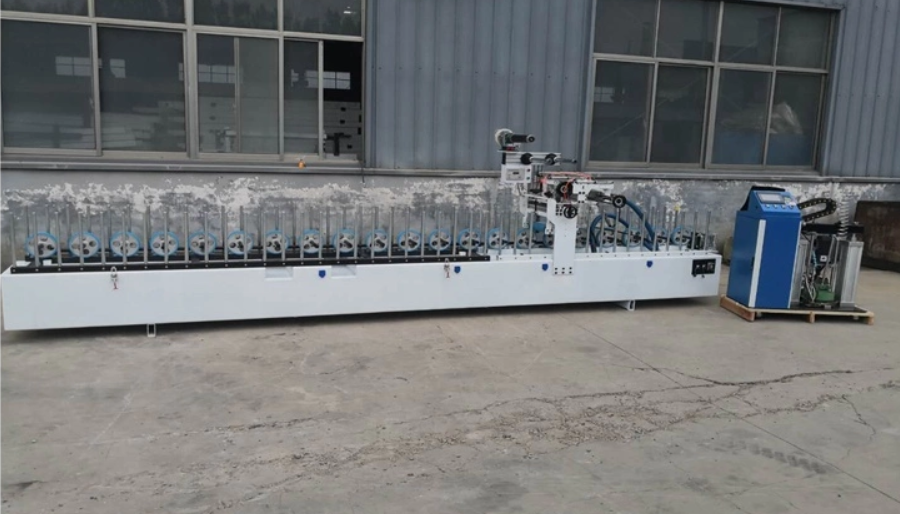

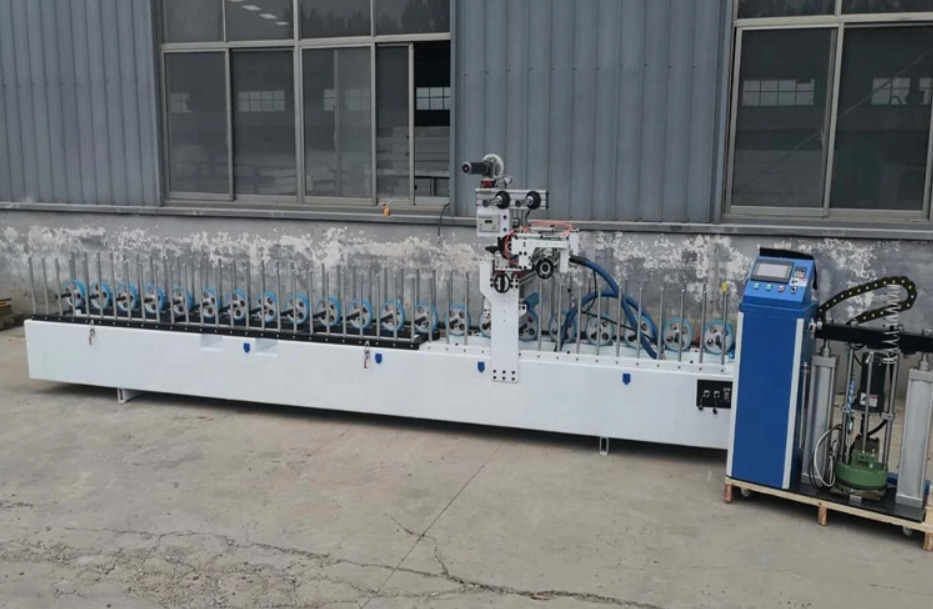

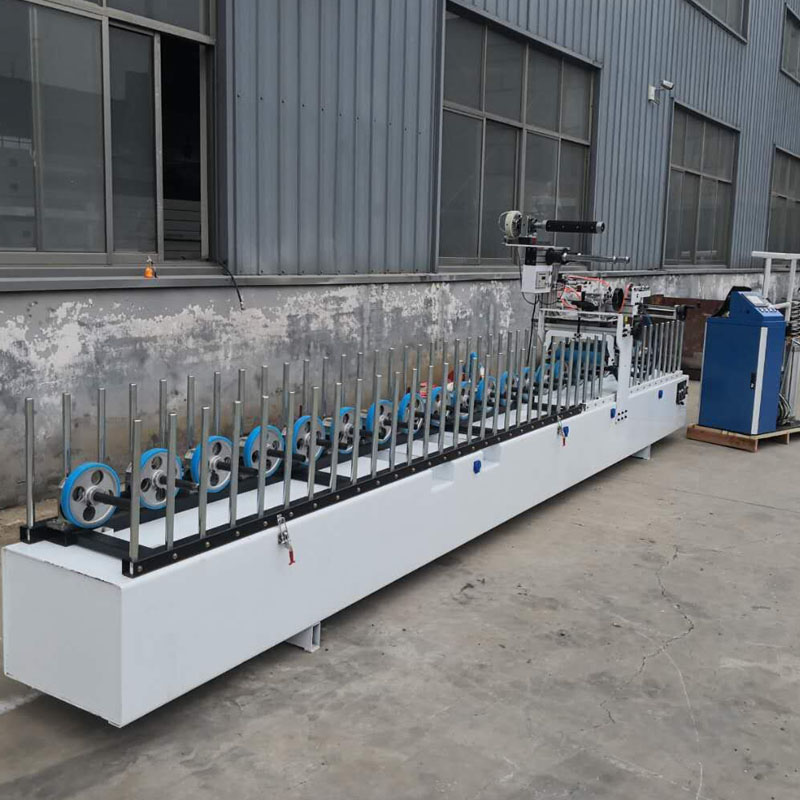

detailed picture
application
This process is widely used in some developed countries in Europe and America. It is a new direction for the development of modern building materials. The product will not be opened due to temperature changes and high temperatures. And the glue is very environmentally friendly, does not contain toxic solvents, and the interior decoration materials are safer. Due to the factors such as anti-aging, high bonding strength, moisture resistance and irreversibility of PUR glue, the finished product of this equipment can be used in various conventional harsh environments.
