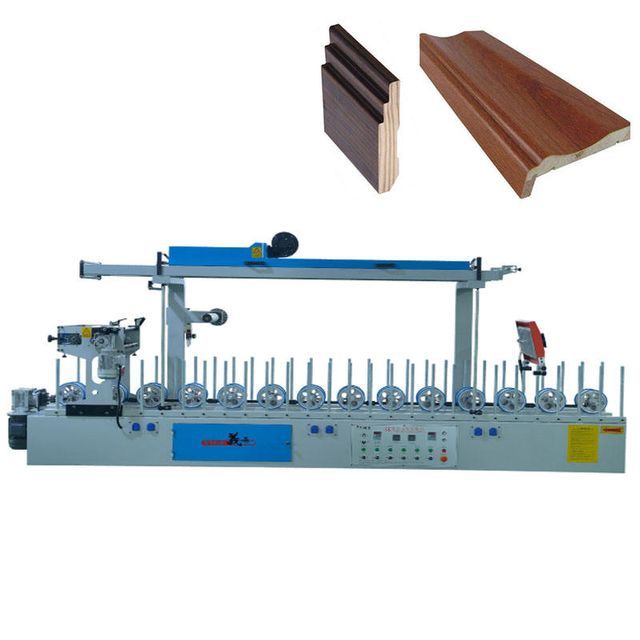

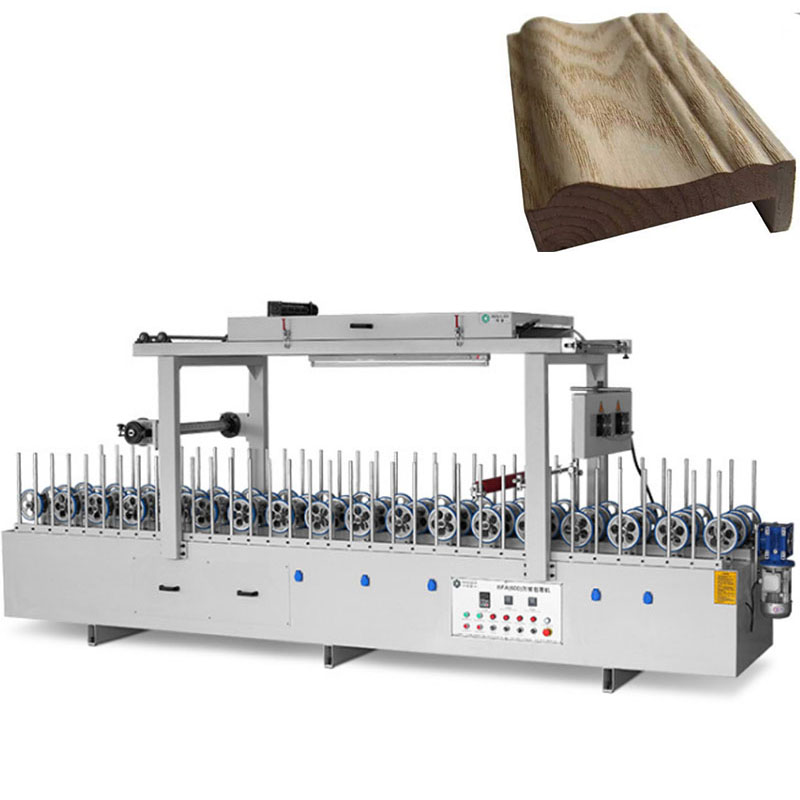

Woodworking wooden window door frame furniture MDF PVC veneer profile wrapping machine
- $4980.00 / 1 - 1 sets
$4180.00 / >=2 sets - 1 set
- Shanghai Win Star Woodworking Machinery Co., Ltd.
- Shanghai, China
- Ms cerol liu
| strength: | 11.5 kW | total measurement: | 5900*750*2100mm |
| Feeding speed: | 0-25 m/min | Core components: | PLC, motor |
| Supply capacity: | 100 profile packaging machines per month | Key selling points: | easy to use |
| Voltage: | 380 volts 50 Hz | Total Power: | 11.5 kW |
| Packaging Details: | Each set of profile packaging machine is packed in wooden box | brand: | Haiyingxing |
| Maximum packaging width: | 300 mm | color: | Required |
| Mechanical test report: | if | Core component warranty: | 1 year |
| Name: | Profile wrapping machine | Minimum working length: | 600 mm |
| Dimensions (L*W*H): | 5900*750*2100mm | Health status: | new |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Hot Glue Profile Packaging Machine | weight: | 1350 kg |
| Weight (kg): | 1350 | Marketing Type: | New Products for 2021 |
| port: | Shanghai Port/Qingdao Port/Guangzhou Port | Video factory inspection: | if |
| Model: | BXW350C | Origin: | China Shanghai |
| Exhibition Hall Location: | Vietnam, Indonesia, Malaysia | Applicable industries: | Furniture workshop |
| Warranty: | 12 months | application: | Wrapped wood veneer |
Woodworking wooden window door frame furniture MDF PVC veneer profile wrapping machine
| model | BXW350C |
| Total Power | 11.5 kW |
| Packaging speed | 0-25 m/min |
| Maximum packaging width | 300 mm |
| Minimum packaging length | 600 mm |
| weight | 1350 kg |
| Dimensions | 5900*750*2100mm |
feature
The profile wrapping machine has the functions of automatic dust removal, gluing, profile heating, automatic scraping, and protective film application. The machine adopts frequency conversion speed regulation and worm gear transmission.
1. The surface, sides and bottom are completed at one time.
2. Adopt touch screen, programmable controller PLC and frequency converter control, easy to operate and high precision.
The 3.45# steel solid base, connectors and columns are durable and the error is less than 0.02mm.
4. The special unit system ensures that there will be no wrinkling, unstable pressure and other problems during the line coating process.
5. The rubber roller is made of silicone rubber wheel, which has the characteristics of high strength, good elasticity and not easy to separate from the metal surface.
6. The equipment is equipped with two sets of feeding shafts for alternately feeding PVC decorative materials to improve work efficiency.
7. Adopt precision metering pump, the feeding speed can be adjusted according to user needs.
8. It can be equipped with a substrate cleaner to automatically clean the substrate and put it into the machine.

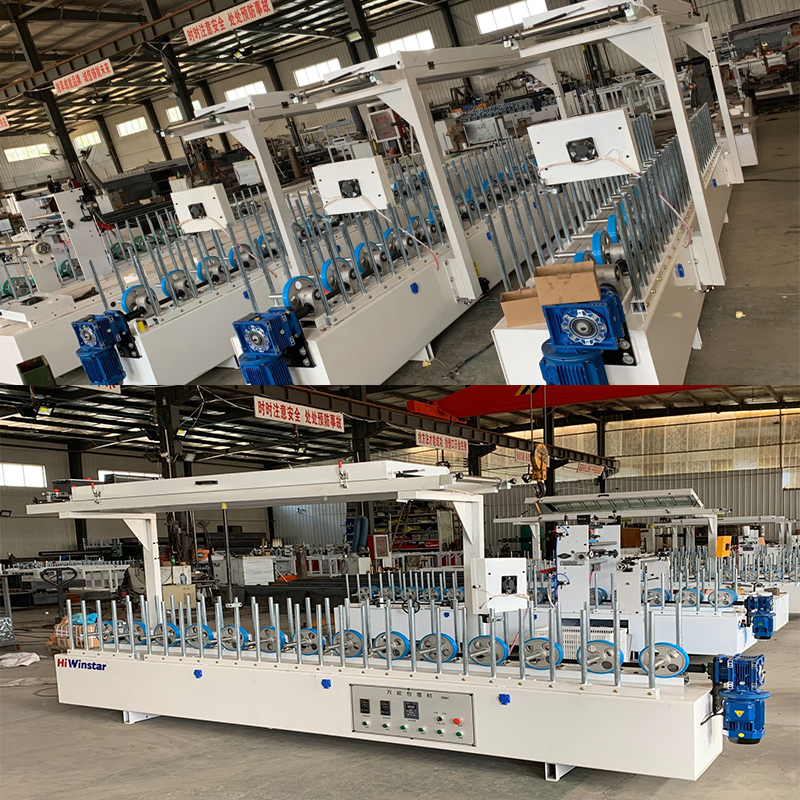

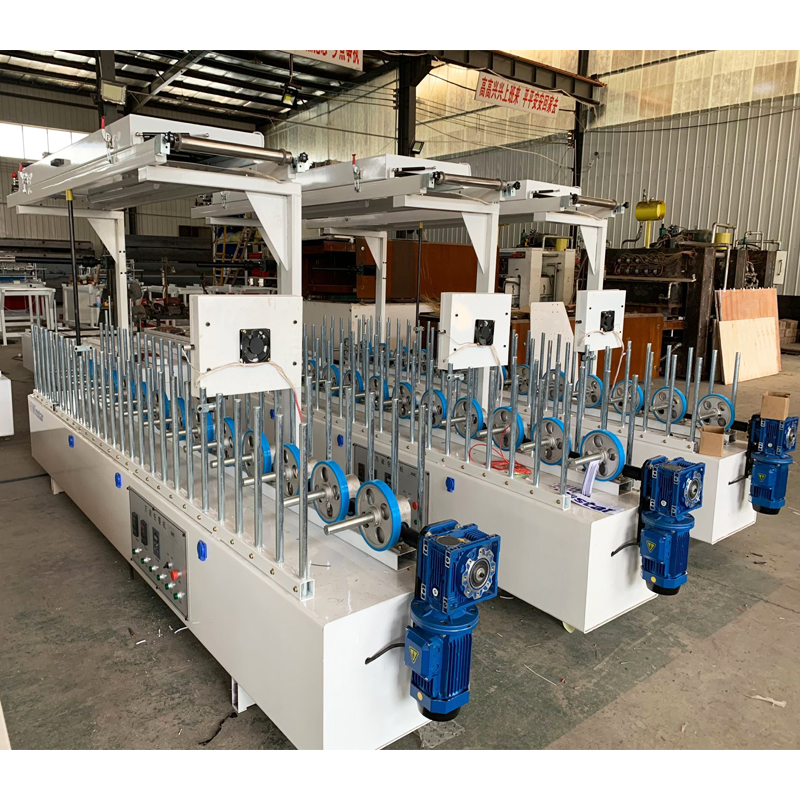

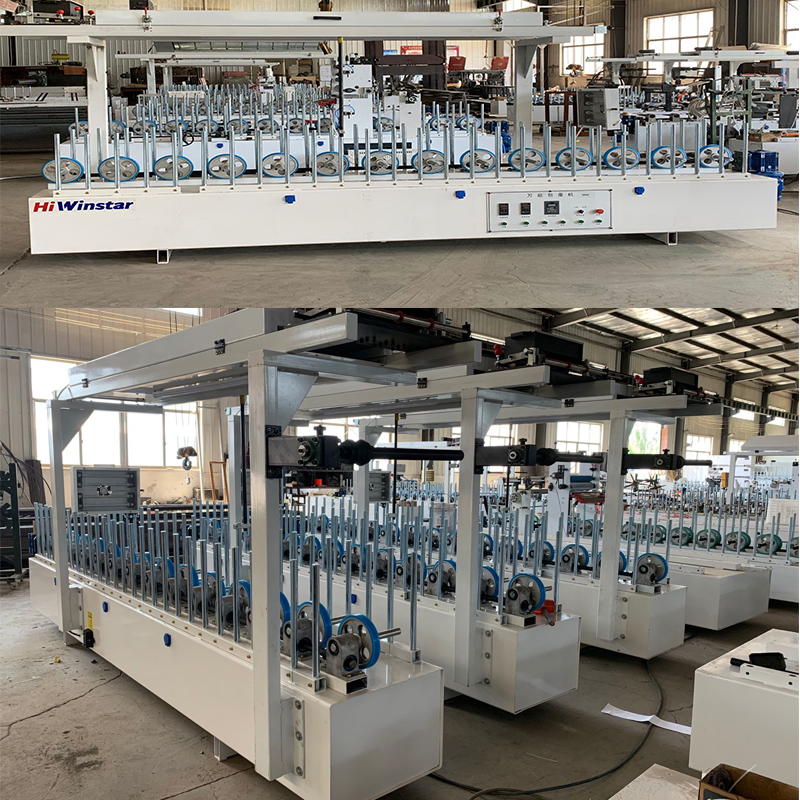

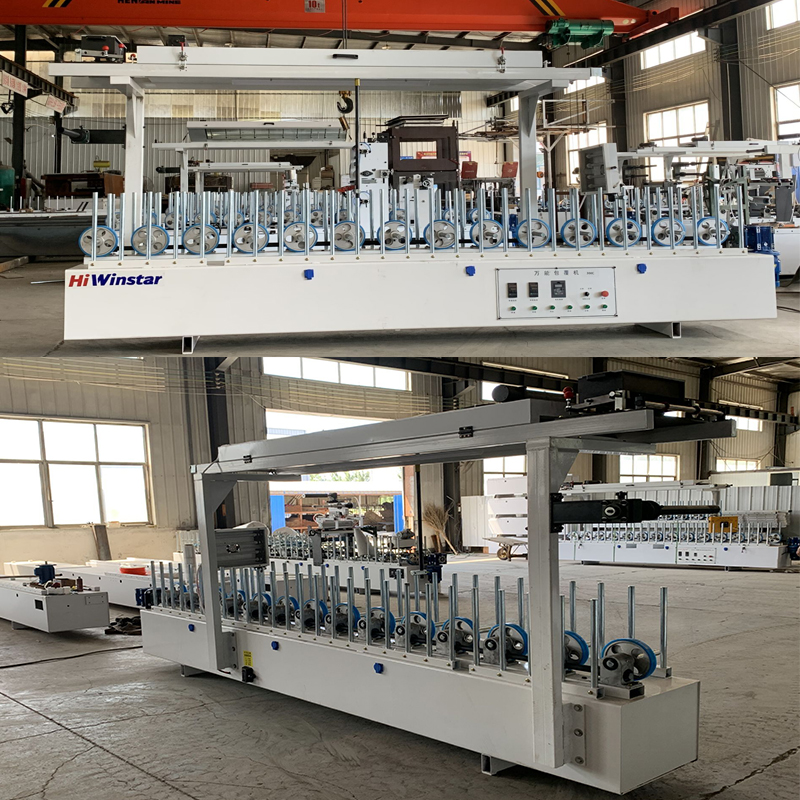

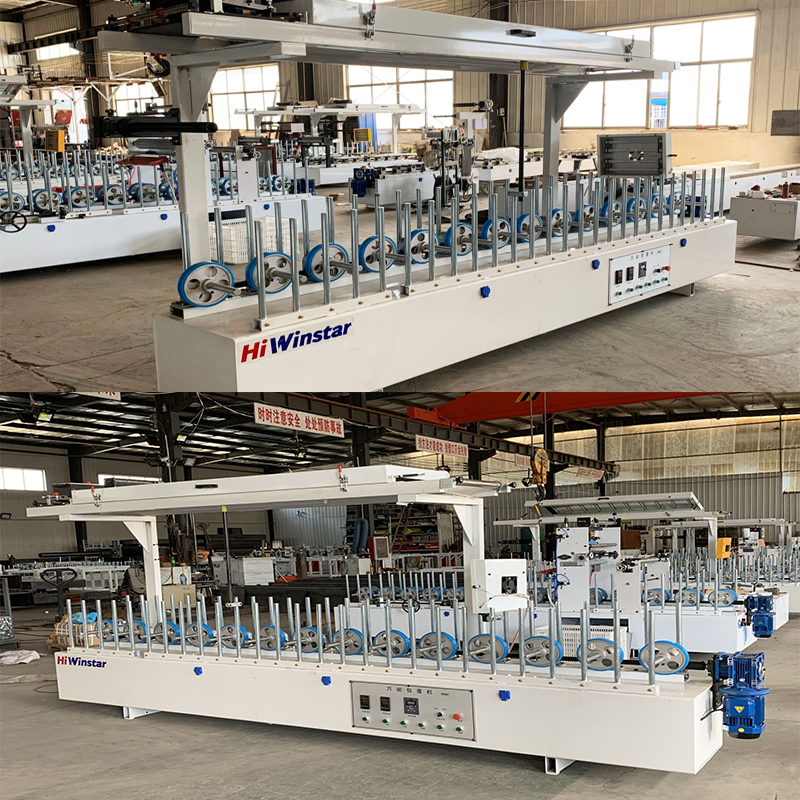

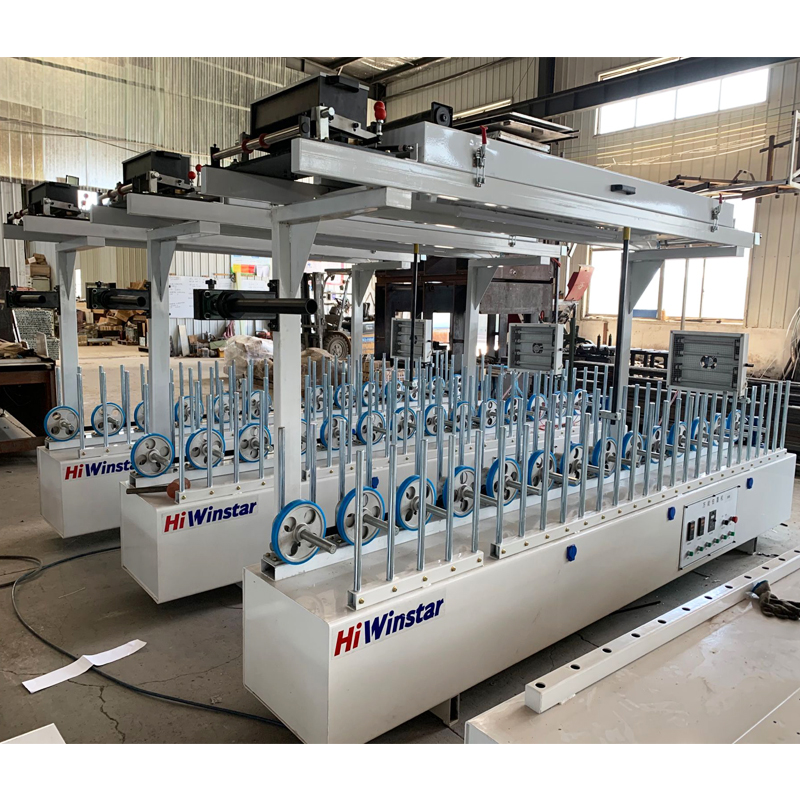

detailed picture
application
This process is widely used in some developed countries in Europe and America. It is a new direction for the development of modern building materials. The products will not crack due to temperature changes and high temperatures. Moreover, the glue is very environmentally friendly and does not contain toxic solvents, making interior decoration materials safer. Due to the anti-aging, high bonding strength, moisture resistance and irreversibility of PUR glue, the finished products made by this equipment can be used in various conventional harsh environments.
