Manufacturer T-960W PCB Reflow Oven Mounter SMT Assembly Production BGA LED Soldering Equipment
- $1100.00 /set
- 1 set
- Wenzhou Hecan Electronic Equipment Co., Ltd.
- Zhejiang, China
- Ms Cici Cheng
PRODUCT DETAIL
| Voltage: | AC220V/380V, 50HZ, 220V/110V | port: | Shanghai/Ningbo/Tianjin/Guangzhou |
| brand: | he can | Weight (kg): | 98 kg |
| Rated Capacity: | 4500w | Length*Width*Height (mm): | 1500*900*650MM |
| aspect: | 150X90X65CM | payment terms: | L/C, Western Union, T/T, Paypal |
| Warranty: | 1 year | Core components: | engine |
| current: | 20A | Package preview: | |
| Applicable industries: | Building materials store, machinery repair shop, manufacturing plant | Heating zone: | Up 3 / Down 2 |
| Showroom location: | India, Russia | type: | reflow soldering |
| Packaging Details: | Wooden box, steel frame, internal foam wrapped support, strong and pressure-resistant. | Temperature control range: | Room temperature - 350°C |
| Main selling points: | easy to operate | Origin: | Zhejiang, China |
| usage: | PCB/BGA/LED full patch welding | Conveyor speed: | 0-290mm/min |
| Direction of operation: | left to right | Core component warranty: | 1 year |
| Mechanical test report: | if | Supply capacity: | 200 sets per month |
| Marketing Type: | Hot Products of 2022 | Health status: | new |
| Nominal Duty Cycle: | 100% | Video shipment inspection: | if |
| Solder area: | 300*960 mm/ 11.8 x 37.8 inches | Temperature control accuracy: | ±1℃ |
| rated power: | 4.5KW | Heating time: | about 10 minutes |

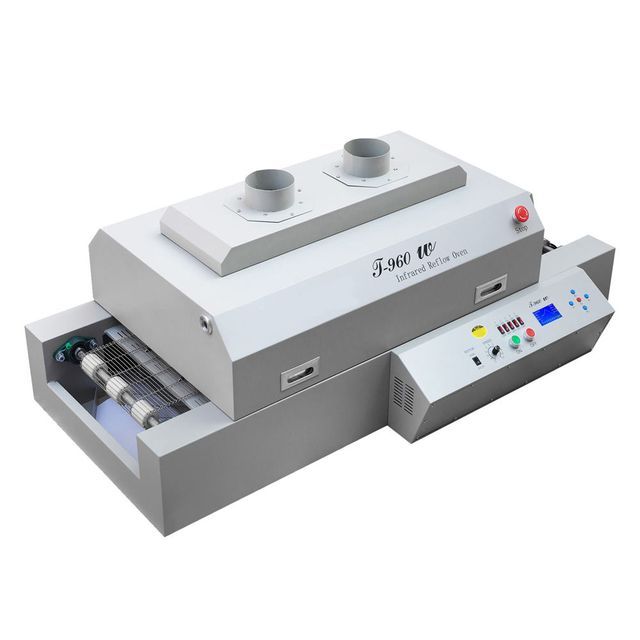

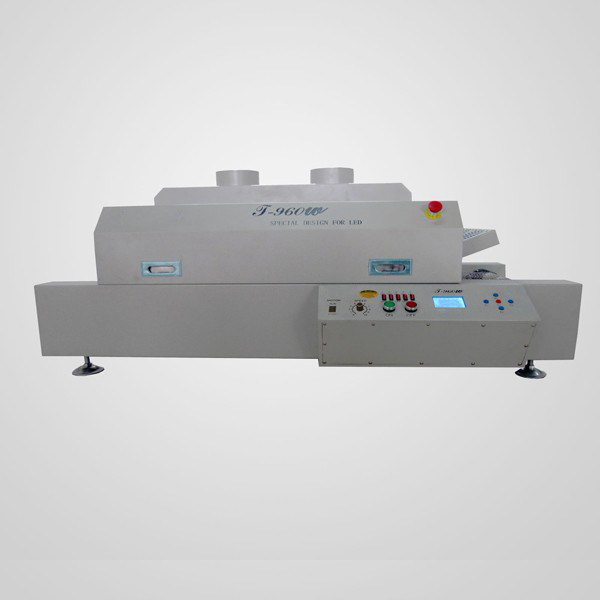

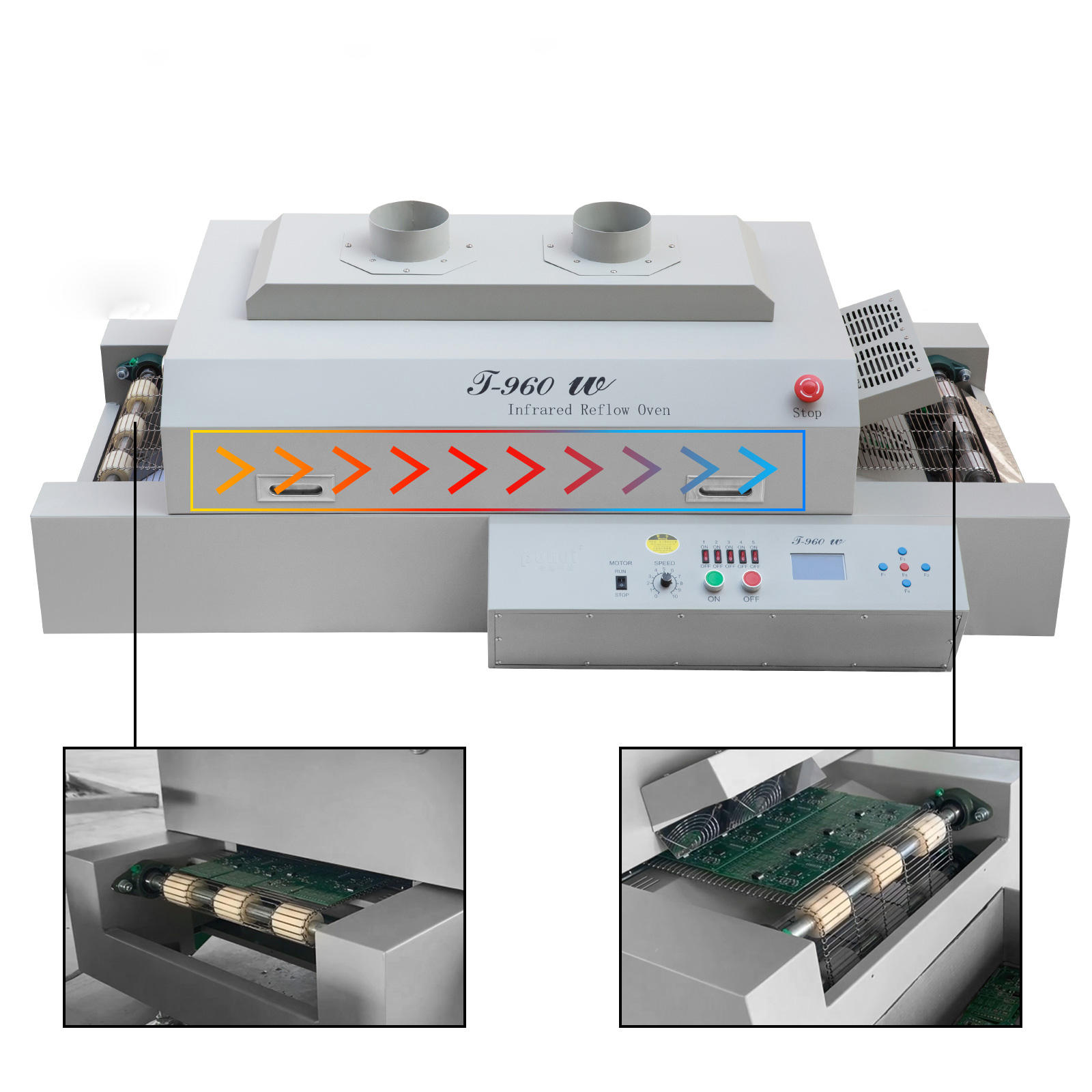

Infrared and Hot Air Benchtop
Conveyor Belt Reflow Oven
Welding machine T-960W series
For LED PCB soldering
Conveyor Belt Reflow Oven
Welding machine T-960W series
For LED PCB soldering
feature
1. Native selectionInfrared and hot air heating technologycontrol, equipped with a specially designed wind wheel, so Stable speed, uniform temperature, especially suitable forSolder LED and BGA assemblies without interruption.2. The machine is equipped withcrawler conveyorand5 temperature zonesheating systems.Each temperature zone usesIndependent PID controlandTop and bottom heating type.It can make the indoor temperature more accurate and even. It takes about 15 minutes to let it warm up from room temperature to working temperature. 3. Intelligent temperature curve heating type, large capacity curve selection. machine has8 temperature curvesCan meet various welding process requirements.
4. Using programmable technology, the preset temperature curve memory storage function can automatically complete the entire welding process. 5. UseThermocouple temperature measurementand addcompensation circuitMake the temperature measurement more accurate and the curve more perfect. 6. Adopt PID intelligent temperature control technology to make temperature control more accurate. The use of imported high-current solid-state relays can effectively avoid damage to the lc or circuit board due to rapid or uninterrupted temperature rise. Make the whole welding process more scientific.
The machine is easy to operate, and can memorize 8 curves, which can meet the requirements of various welding processes. At the same time, the curve data can be changed as needed.
How to Select a Curve for T960/T960E/T960w
Wave 1/2: less lead paste, such as 85Sn/15Pb 70Sn/30Pb
Wave 3/4: more lead paste, such as 63Sn/37Pb 60Sn/40Pb.
Wave 5/6: high melting point lead-free paste, such as Sn/Ag3.5; Sn/Cu.75 Sn/Ag4.0/Cu.5; Sn95.5/Ag3.8/Cu0.7
Wave 7/8 : melting point lead-free solder, such as Sn/Ag2.5/Cu.8/Sb.5; Sn/Bi3.0/Ag3.0
Wave 3/4: more lead paste, such as 63Sn/37Pb 60Sn/40Pb.
Wave 5/6: high melting point lead-free paste, such as Sn/Ag3.5; Sn/Cu.75 Sn/Ag4.0/Cu.5; Sn95.5/Ag3.8/Cu0.7
Wave 7/8 : melting point lead-free solder, such as Sn/Ag2.5/Cu.8/Sb.5; Sn/Bi3.0/Ag3.0
Model | Welding width | strength | temperature range | heating zone | aspect |
T-961 | 230mm | 3.5KW | RT-300℃ | Up 3/Down 3 | 1000x466x445mm |
T-960 | 300mm | 4.5KW | RT-300℃ | Up 3/Down 2 | 1450x630x470mm |
T-960E | 300mm | 4.5KW | RT-350℃ | Up 3/Down 2 | 1200x630x470mm |
T-960W | 300mm | 4.5KW | RT-350℃ | Up 3/Down 2 | 1450x630x470mm |
Specification
·Model: T-960W
·Heating zone: upper 3/lower 2
·Welding area: 300 x 960 mm/11.8 x 37.8 inches
·Voltage: 220V, 50HZ
·Heating zone length: 960 mm/37.8 in
·Maximum width of PCB board: 300 mm/11.8 inches
·Rated power: 4.5KW

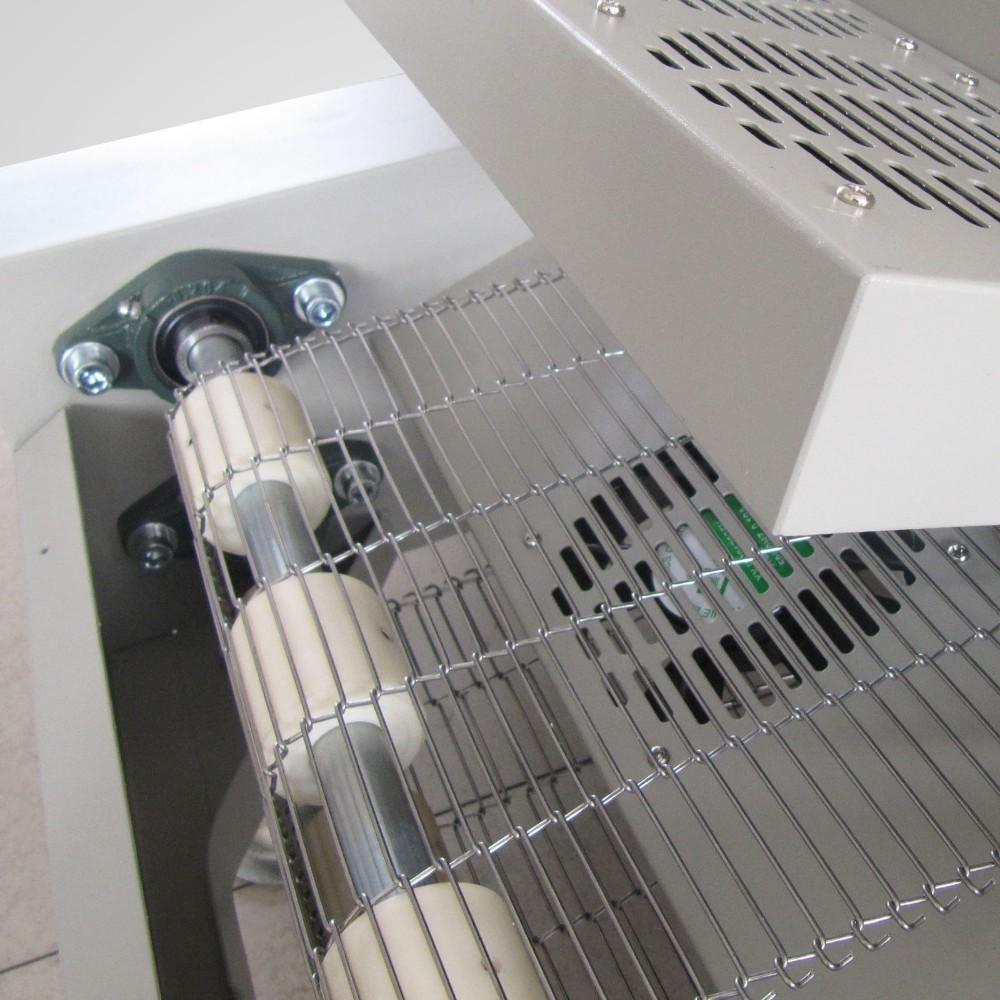

·Conveyor belt speed: 0-290mm/min
·Heating time: 0-10 minutes
·Temperature control range: room temperature - 350 ℃ / 572 ℉
·Temperature control accuracy: ±1°C
·Temperature distribution deviation: ±2°C
·Heating zone: upper 3/lower 2
·Welding area: 300 x 960 mm/11.8 x 37.8 inches
·Voltage: 220V, 50HZ
·Heating zone length: 960 mm/37.8 in
·Maximum width of PCB board: 300 mm/11.8 inches
·Rated power: 4.5KW
·Conveyor belt speed: 0-290mm/min
·Heating time: 0-10 minutes
·Temperature control range: room temperature - 350 ℃ / 572 ℉
·Temperature control accuracy: ±1°C
·Temperature distribution deviation: ±2°C
·Heating method: infrared & hot air
·Temperature control: PID&SSR
·direction:about
·Cooling Zones: 1
·Length*Width*Height (mm):1500*900*650mm
·Machine weight: 98kg
·Gross weight: 130kg
smart heating
PID temperature control, fast infrared radiation, and downwind circulation are the three key elements of the heating system. Imported high-current solid-state relays have non-contact output, which can effectively avoid IC or circuit board damage and make the whole welding process more scientific and safe.

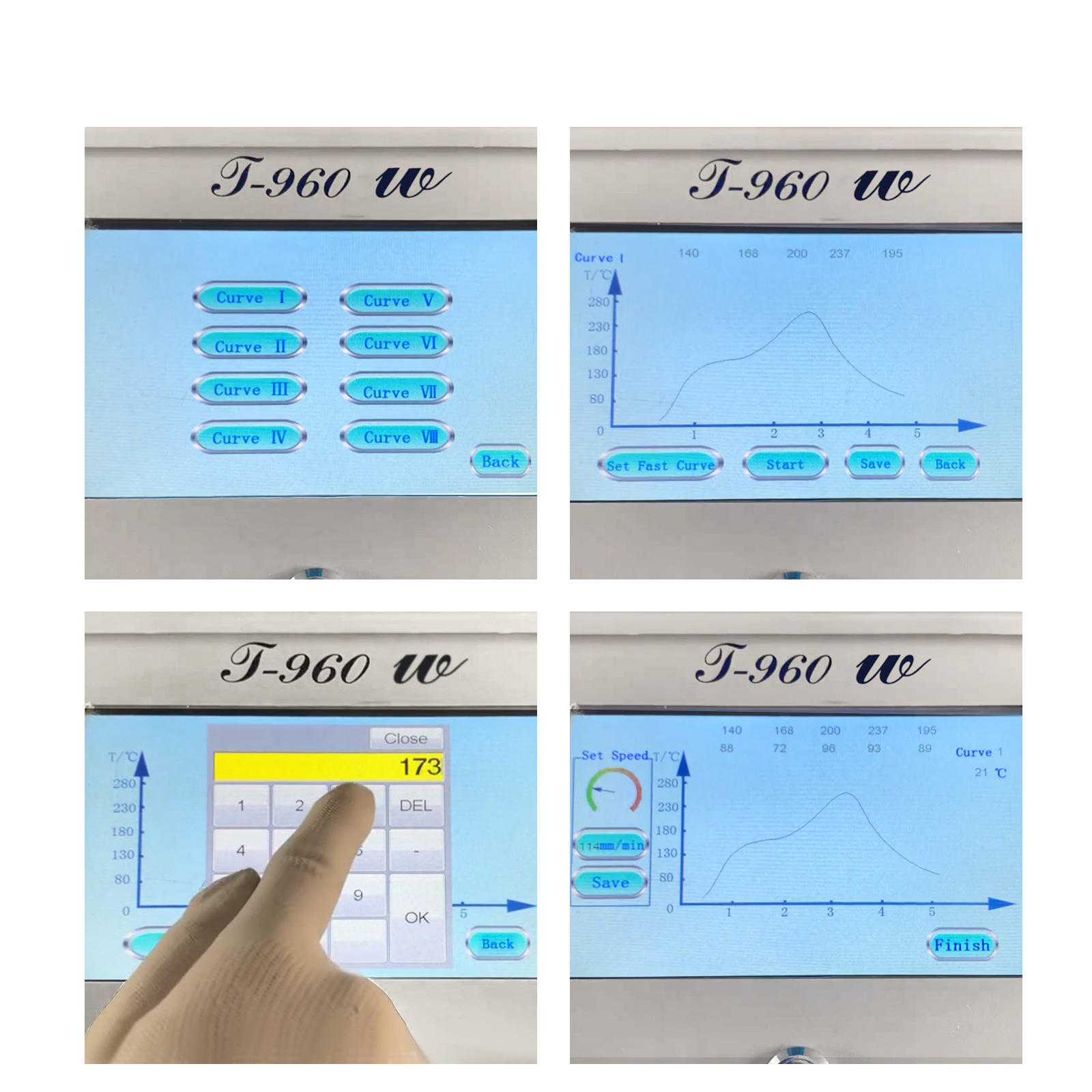

eight temperature wavesThis SMD reflow oven can provide eight storage temperature parameter waves for selection to meet various soldering process requirements, and has mobile heating and cooling functions. Also, after you preset the waves, the whole welding process is done automatically. So you can say it's easy to use.

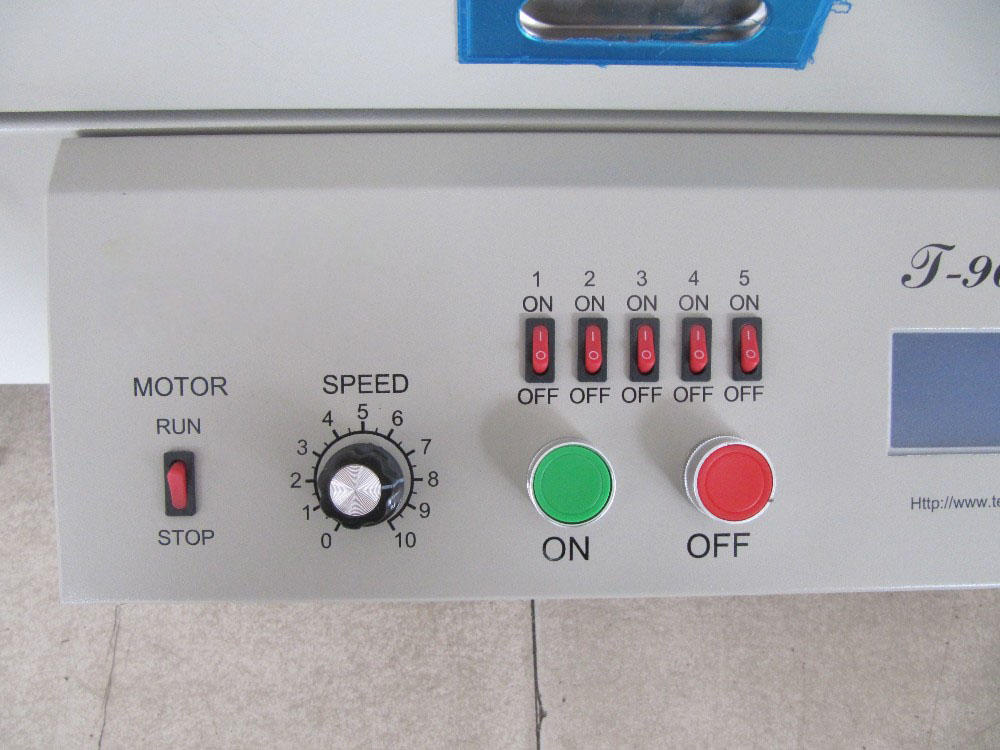

Clear the operator panel
The simple operation panel provides a user-friendly operation interface. Several control buttons and an LCD screen on the panel allow you to adjust and monitor each data such as speed, time and temperature. You can watch the whole repair process very clearly without connecting to a PC.

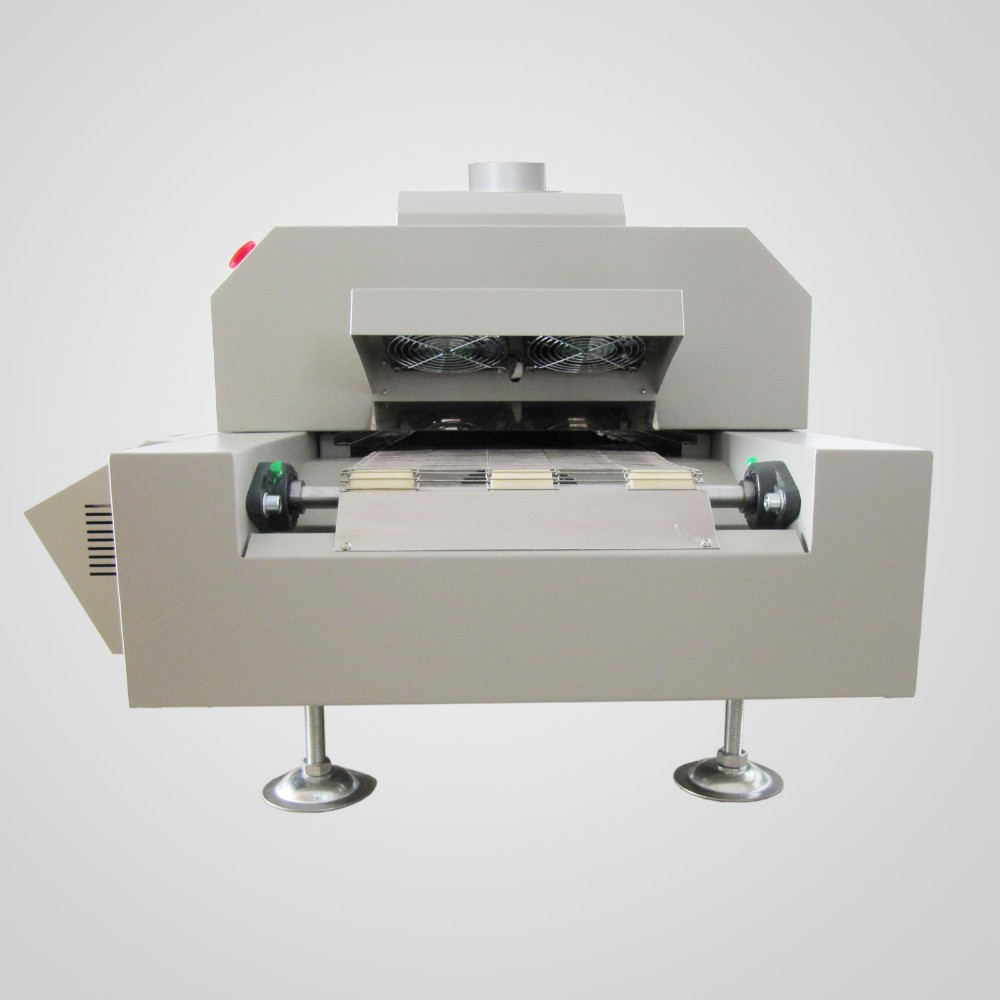

Efficient Cooling Fan
The machine is equipped with a high-efficiency cooling fan to ensure the rapid cooling of the PCB board. It keeps them at the low temperature needed for PCB board release. Therefore, the process can be done efficiently and safely.

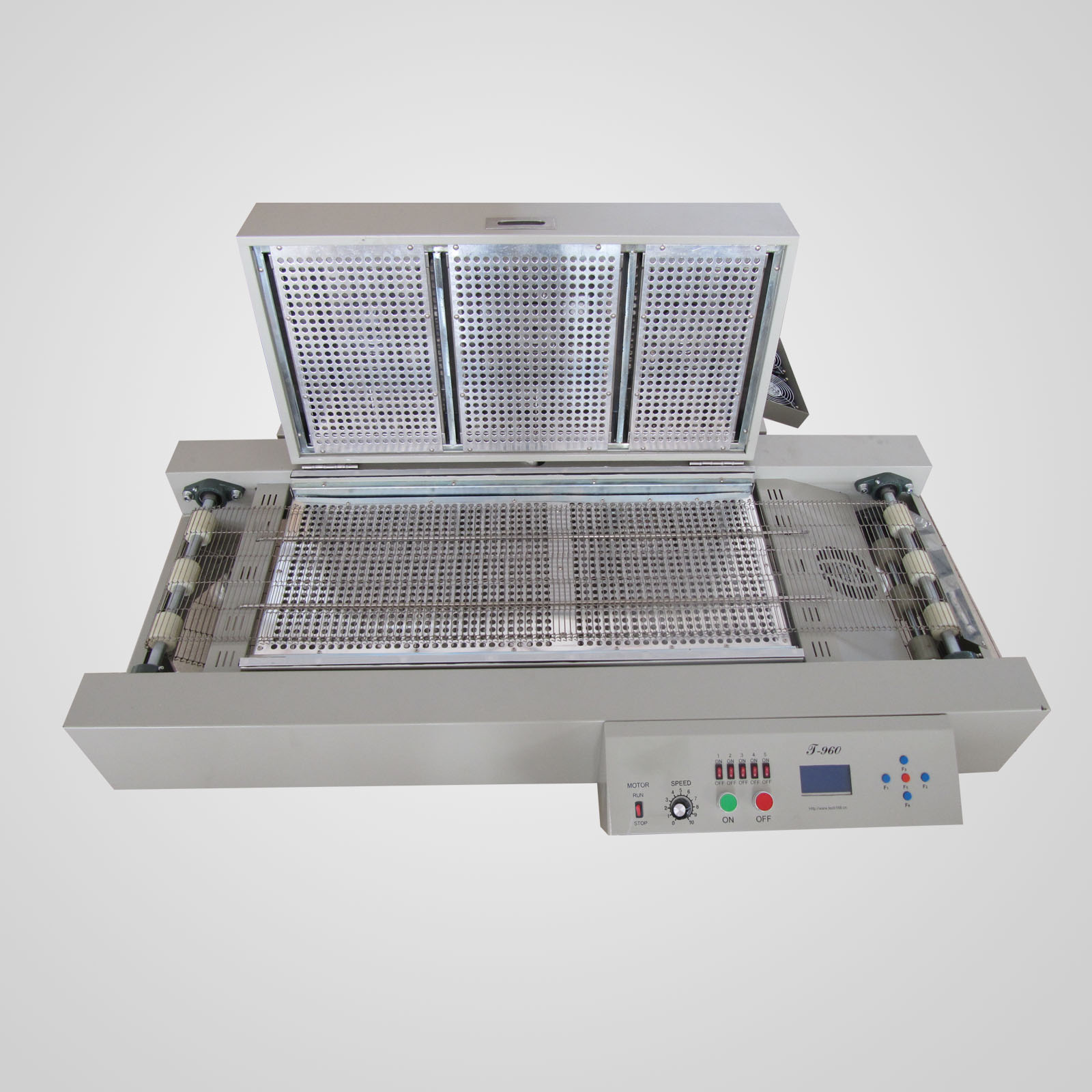

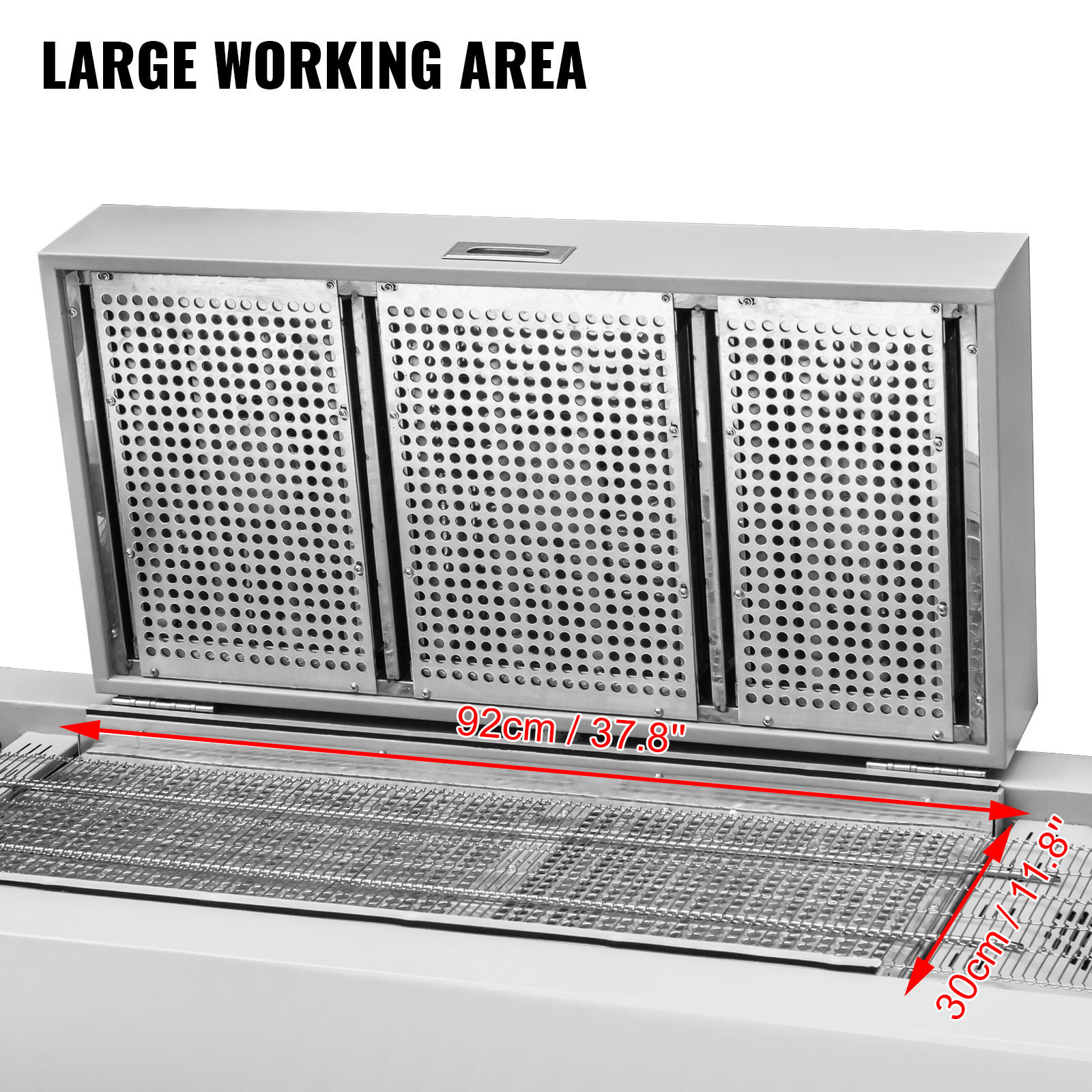

large work area
The wide working area of 300 x 960 mm allows the machine to work in different working conditions. Due to this, the range of applications is greatly expanded. It's definitely an economical investment.
real shot
Package
FAQ
Q: How was the training?
A: After buying our machine, it is very easy for your engineer to go to our company or operate the machine according to the training video and user manual, the user manual will be provided together with the machine.
Q: Are these machines difficult to use?
A: No, it is not difficult at all. For our previous customers, it only takes about 2 days to learn to operate
Q: Can the machine meet the software update?
Q: How was the training?
A: After buying our machine, it is very easy for your engineer to go to our company or operate the machine according to the training video and user manual, the user manual will be provided together with the machine.
Q: Are these machines difficult to use?
A: No, it is not difficult at all. For our previous customers, it only takes about 2 days to learn to operate
Q: Can the machine meet the software update?
A: Yes, we will update the machine and send it to you at the first time
Q: Is there an operation video to watch?
A: We provide customers with special operation videos. If you don't understand anything, you can contact us, and we will arrange for engineers to shoot the specified video.
Q: What kind of maintenance is required?
A: Add lubricating oil to the guide rail, drain the water from the oil-water separator, and clean the nozzle (we will support this oil)
