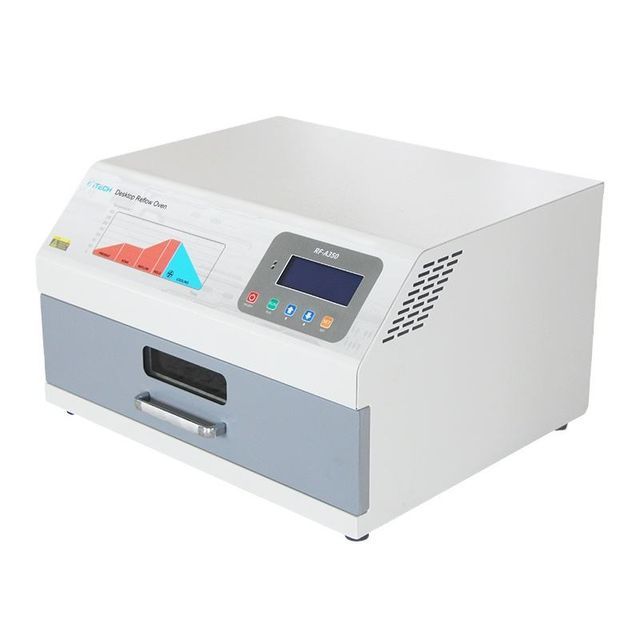

New Reflow Soldering Kit High Precision Desktop Reflow Oven Drawer Type Reflow Oven
- $164.68 /set
- 1 set
- Zhejiang Huaqi Zhengbang Automation Technology Co., Ltd.
- Zhejiang, China
- Mr Denley Hu
PRODUCT DETAIL
| Sales unit: | single product | product name: | reflow oven |
| Drawer size: | 300*250*30mm | heating method: | Infrared radiant heating & hot air circulation |
| Gross weight per piece: | 32.000 kg | Certification: | CE certification |
| Video shipment inspection: | if | Marketing Type: | New Products 2020 |
| Origin: | Zhejiang, China | Effective welding area: | 250mm*200mm |
| power supply: | AC220V | Core component warranty: | 1 year |
| aspect: | L250xW180xH20mm | Showroom location: | India, Russia, Argentina |
| operating system: | Chinese and English bilingual operating system | usage: | Welding machine |
| brand: | dex | Voltage: | AC220V |
| Main selling points: | precise temperature control | Applicable industries: | Machinery Repair Shop, Manufactory, Others |
| Rated Capacity: | 700W | current: | alternating current |
| Nominal Duty Cycle: | 100% | type: | reflow soldering |
| Dimensions: | 425*400*312 mm | Health status: | new |
| Warranty: | 1 year | Maximum power: | 3600W |
| Mechanical test report: | if | Core components: | engine |
| Packaging Details: | Plywood shell and membrane or according to customer requirements. | Single package size: | 61X59X40 cm |
| Weight (kg): | 13.5 kg |
Product Details
Product Description
reflow ovenInstructions:
1. Put the product to be lightly processed on the stage in the drawer, close the drawer, press F1 to turn on the machine, it will automatically perform the selection of heat wave, display the current performance time, set the temperature and measure the temperature on the LCD screen, and automatically form the command waveform.2. Through the data, waveform and LCD display of the observation window in front of the drawer, it can be seen during the monitoring of the entire processing process. If the processing waveform requirements cannot be met, the parameters can be modified.
3. Strict wave making. Different solder pastes and different temperatures have pre-set requirements for reflow, and another wave can be prepared according to different needs.
4. During the processing, if you need to stop, you can press the "S" key to stop it forcibly; after putting it in your hand, the fan will automatically cool the product; you can also start the fan to cool down forcibly.
5. After the reflow is completed, if there is a defect in the product, it can be reflowed, or the starting heating can be removed for reflow. This unit is set for this function.

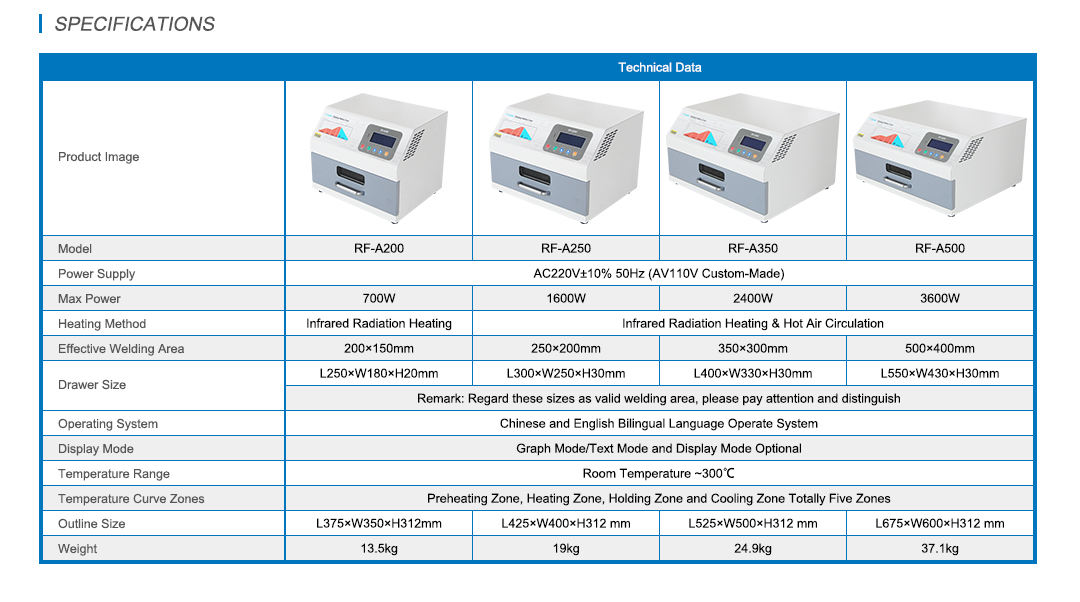

Model | Reflow Oven Soldering | ||||||
power supply | AC220V±10% 50Hz (AV110V customized) | ||||||

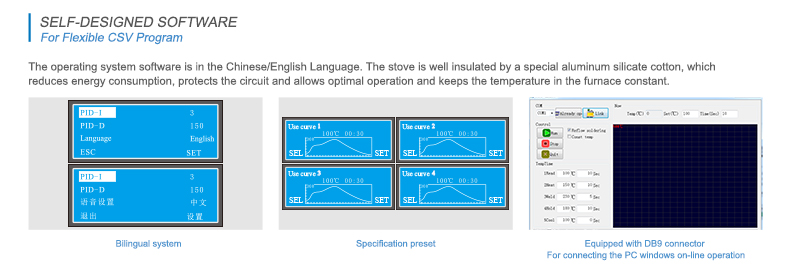

operating system | Chinese and English bilingual operating system | ||||||
display mode | Graphics mode/text mode and display mode optional | ||||||
main selling point | automatic | ||||||
net weight | 13.5KG/19KG/24.9KG/34.1KG | ||||||
aftersale service provided | online support | ||||||
