Mini Secondary Structure Diesel Pump Column Concrete Pump
- $2700.00 / 1 - 1 pieces
$2500.00 / 2 - 2 pieces
$2100.00 / >=3 pieces - 1 piece
- Xingtai Bailun Machinery Manufactor Co., Ltd.
- Hebei, China
- Ms Alice Li
PRODUCT DETAIL
| place of origin; place of origin: | Hebei china | payment terms: | L/C, T/T |
| maximum. Vertical conveying distance: | 30M | maximum. Horizontal conveying distance: | 80M |
| Power type: | electrical | Showroom location: | not any |
| Certification: | CE certification | Video shipment inspection: | if |
| Dimensions (L*W*H): | 2000*700*1500mm | Unique selling point: | Large capacity pump system |
| Marketing Type: | New Products 2020 | State of health: | new |
| weight: | 720 kg | brand: | Balen |
| productivity: | 10 cubic meters / hour | Core components: | motor, water pump |
| Warranty: | 1 year | Mechanical test report: | if |
| Core component warranty: | 1 year | Applicable industries: | construction project |
1. The special pouring pump for secondary structure fine stone mortar can realize the transportation of fine stone concrete and mortar for long-distance high-rise buildings.

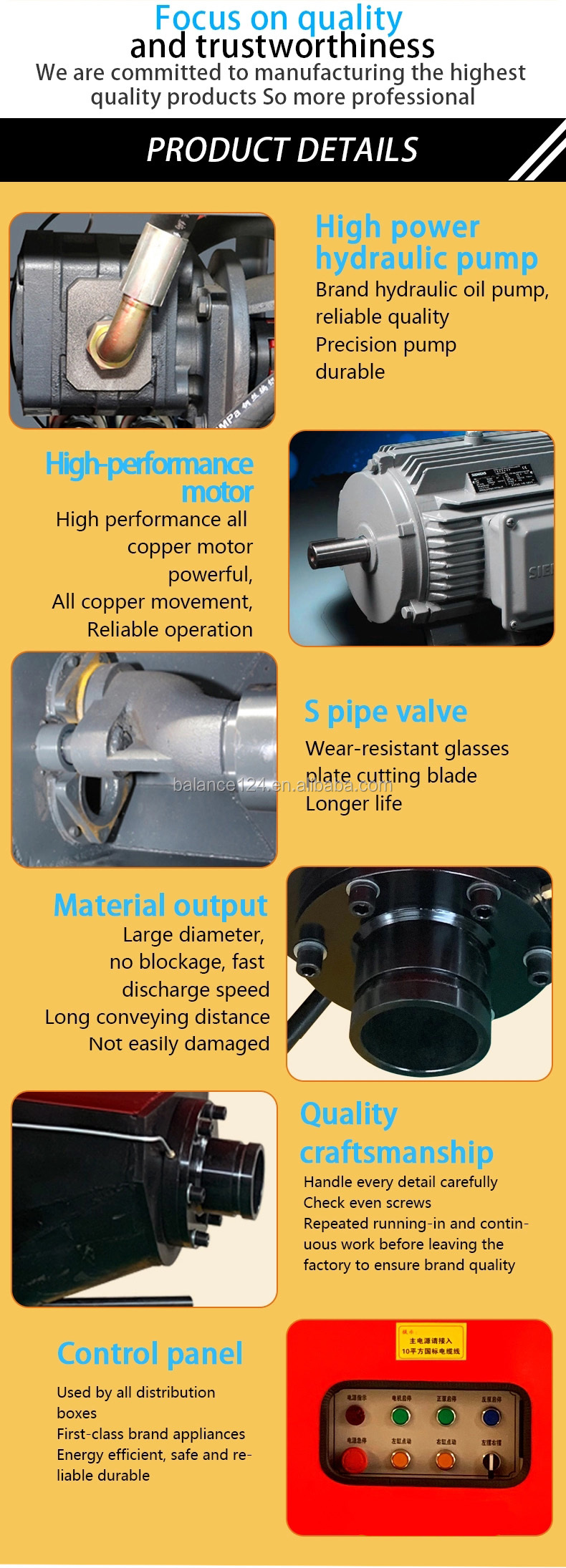

2. The distribution valve adopts advanced S-type pipe valve, which has good sealing performance and simple and reliable structure.
3. The eye plate (commonly known as wear plate) and floating cutting ring are made of hard alloy, which has good wear resistance, long service life and easy replacement. The cutting ring automatically compensates for gap structures.
4. The machine adopts electro-hydraulic control mode and has perfect electro-hydraulic overload protection and instrument display system. With anti-pump function, easy to troubleshoot blockages. The pumping speed is adjustable to adapt to various working conditions.
5. The centralized lubrication system is automatically controlled by the program to start, stop and run time, which is effective
Extend the life of rotating parts.
6. Electrical components such as contactors and button switches work reliably, the control circuit is simple, and switches are installed in the electrical box, which is easy to operate.
7. The main seal adopts high-quality seals to prevent internal and external leakage of the hydraulic system.
2. The distribution valve adopts advanced S-type pipe valve, which has good sealing performance and simple and reliable structure.
3. The eye plate (commonly known as wear plate) and floating cutting ring are made of hard alloy, which has good wear resistance, long service life and easy replacement. The cutting ring automatically compensates for gap structures.
4. The machine adopts electro-hydraulic control mode and has perfect electro-hydraulic overload protection and instrument display system. With anti-pump function, easy to troubleshoot blockages. The pumping speed is adjustable to adapt to various working conditions.
5. The centralized lubrication system is automatically controlled by the program to start, stop and run time, which is effective
Extend the life of rotating parts.
6. Electrical components such as contactors and button switches work reliably, the control circuit is simple, and switches are installed in the electrical box, which is easy to operate.
7. The main seal adopts high-quality seals to prevent internal and external leakage of the hydraulic system.
Product Description
Model | BLM-CP10M |
driving mode | drag and drop |
Motor Power | 15KW (national standard) |
Forms of work | hydraulic piston |
specific throughput | 10 cubic meters / hour |

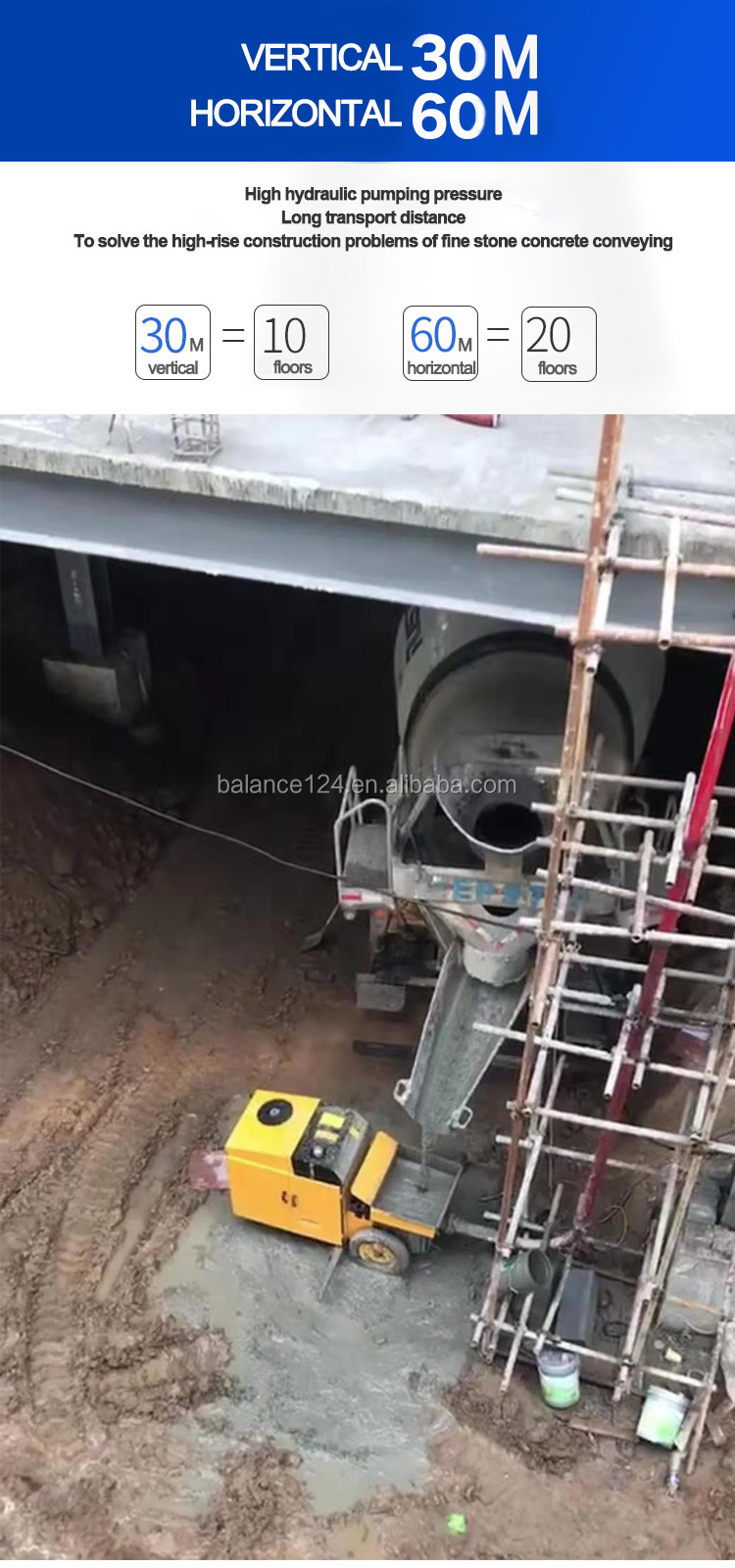

Conveying distance | Vertical 30m Horizontal 60m |
aggregate size | <20mm |
Duct diameter | 75/80mm |
Product Usage | Conveying mortar and fine stone |
size | 2000*700*1050mm |
machine weight | 720 kg |
