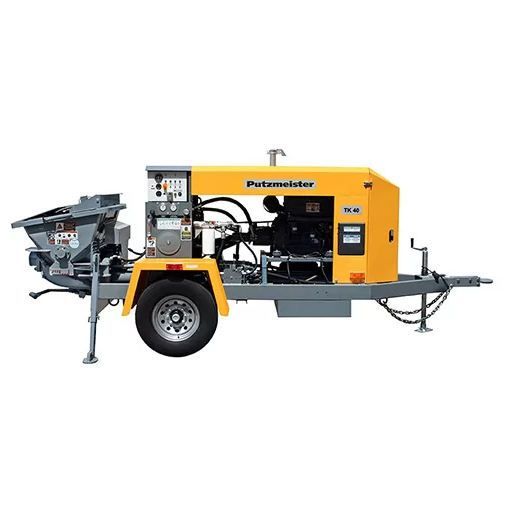

TK70 Putzmeister TK40/TK50/TK60/TK70 concrete pump pumping system module

PRODUCT DETAIL
Warranty:1 yearMechanical test report:not available
maximum. Vertical conveying distance:100MOEM:Putzmeister
Applicable industries:Construction Engineering, Concrete Pumpingbrand:achieve
productivity:58 cubic meters / hourPackage preview:
Core components:Motors, bearings, gears, pumpsmaximum. Horizontal conveying distance:500M
Core component warranty:1 yearVideo outbound inspection:if
Power type:diesel engineSupply capacity:5 units per month
Marketing Type:New Products for 2021weight:1500 kg
Unique selling point:easy maintenanceShowroom location:not any
brand:achieveHealth status:new
payment terms:L/C, T/TOrigin:Hunan, China

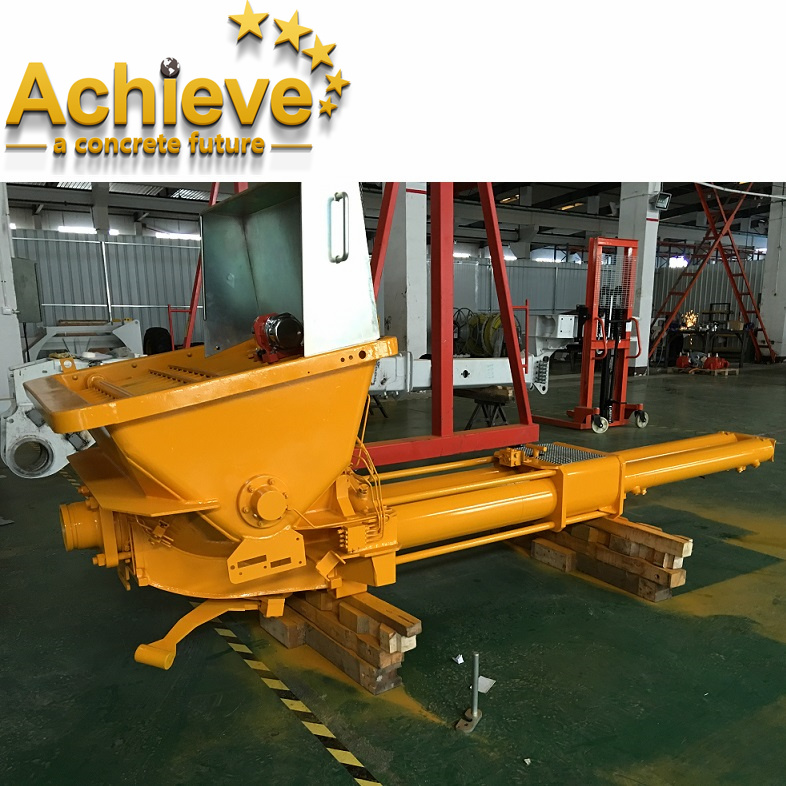

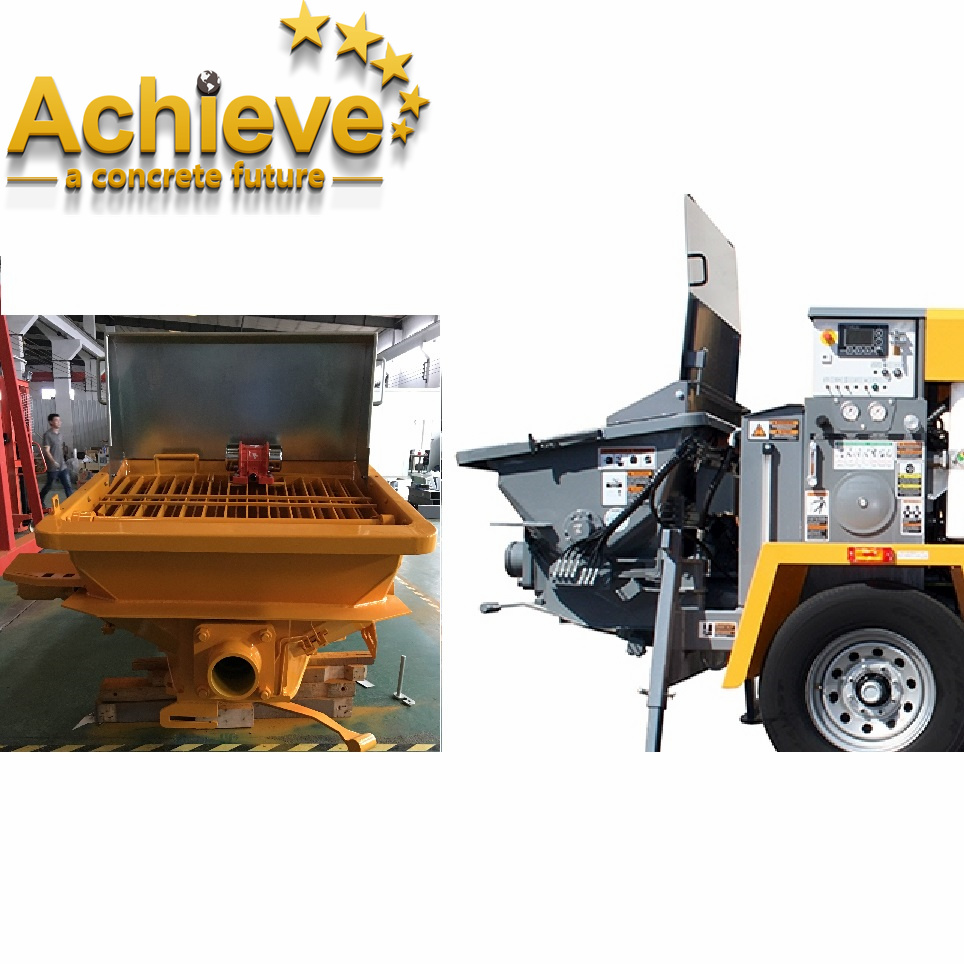

TK70 Putzmeister TK40/TK50/TK60/TK70 concrete pump pumping system module

















TK70 Putzmeister TK40/TK50/TK60/TK70 concrete pump pumping system module



Technical Data Sheet

NO.1 thing Specification
1 Model TK70
2

Maximum Concrete Production

74yd3/hour (57 cubic meters/hour)

3

maximum. concrete pumping pressure

1,130 psi (78 bar)

4

aggregate size

1.50 inches (38mm)

5

Diesel model

Cummins/Dutz

6

horsepower

100 hp (75 kW)

7

Material Cylinder

7” x 39” (180x1,000mm)

8

Maximum number of Stokes per minute

31

9

variable volume control

0 to full

10

S-type valve (cast)

7”x5” (180x125mm)

11

Number of shift cylinders

2

12

Hydraulic oil tank capacity

44 gallons (167 liters)

13

Hopper height

49 inches (1,245 mm)

14

Hopper capacity

9.5 cubic feet (270L)

15

outlet diameter

5” HD (125mm)

16

Wired + radio remote control (optional HBC or AUTEC)

number 17

Aluminum hopper cover + hopper grille + vibration motor



TK70 Putzmeister TK40/TK50/TK60/TK70 concrete pump pumping system module

TK70 Putzmeister TK40/TK50/TK60/TK70 concrete pump pumping system module



PUTZMEISTER/SCHWING/CIFA/ZOOMLION/SANY pumping system customization is all available! Contact us to get your pump ASAP! ^^
