Pressurized solar water heating system

PRODUCT DETAIL
Circulation type:Indirect/Closed Loop (Active)type:vacuum tube
tube:Copper/stainless steel-aluminum/nitrogen heat pipeOrigin:Zhejiang, China
Application Control:Yesmodel:Z-PC5815
port:Shanghai/NingboWarranty:5 years
After-sales service provided:Free spare parts, returns and replacementspayment terms:L/C, Western Union, T/T, MoneyGram
Building materials:Galvanized steelEnergy source:solar
Certification:EU CE, ISOSupply capacity:Annual output of 200,000 sets
application:Automotive, RV, Outdoor, Hotel, CommercialInstall:Detached
Connection Type:In-linebrand:Zilan New Energy

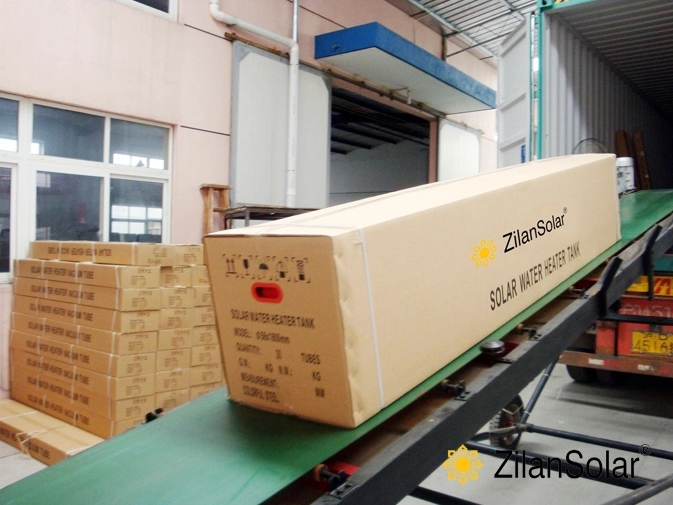

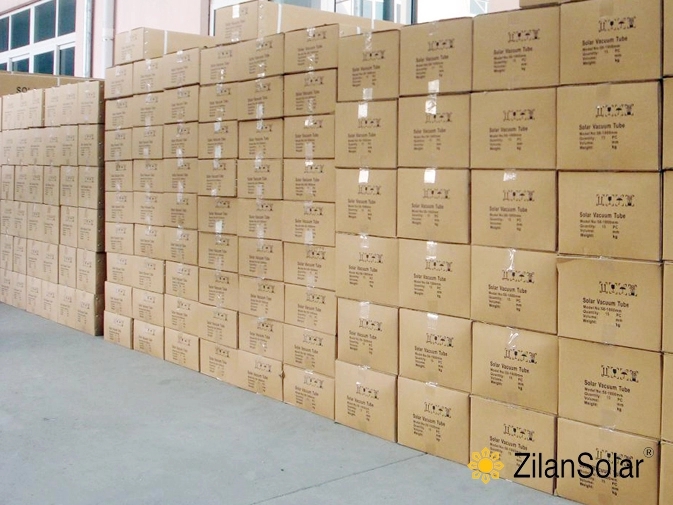

Packaging Details:Samples are packed in wooden cases, container orders are packed in cartons with foam inside.capacity:150
Private Mold:Yes

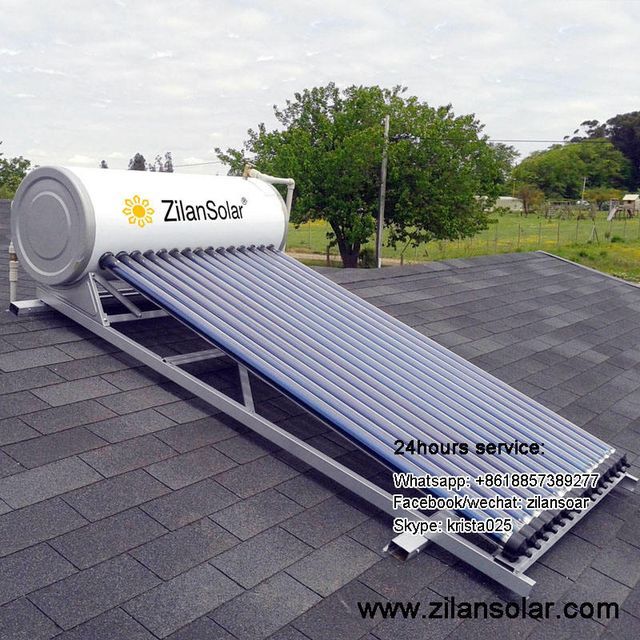

1. Photos:







2. Material:



<1> Imported SUS304-2B food grade stainless steel, thickness: 1.5mm

<2> Outer tank: high quality galvanized steel plate, thickness: 0.31~0.5mm

<3> Insulation layer: 50~55mm polyurethane foam

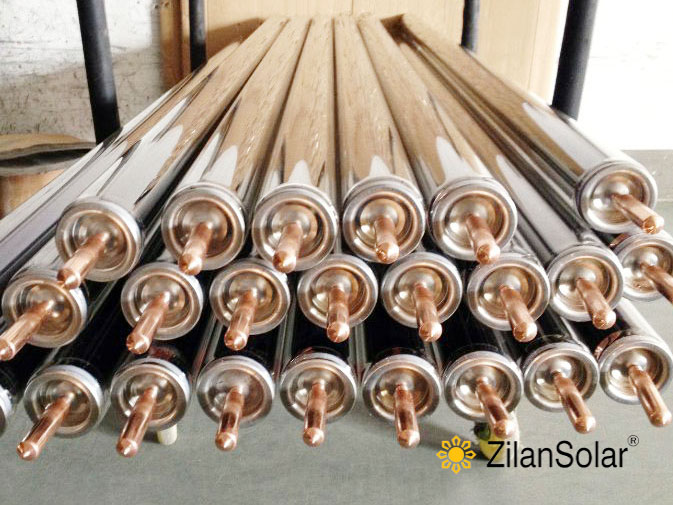

<4> Vacuum tube: CU/SS-AL/N heat pipe

<5> Frame: coated steel/aluminum alloy, thickness: 1.2~2mm

<6> Reflector: galvanized steel/aluminum alloy optional

<7> Working pressure: 0.6Mpa

<8> Accessories: solar controller, electric heater, magnetic bar, T/P valve, pressure relief valve.



3. Workmanship:

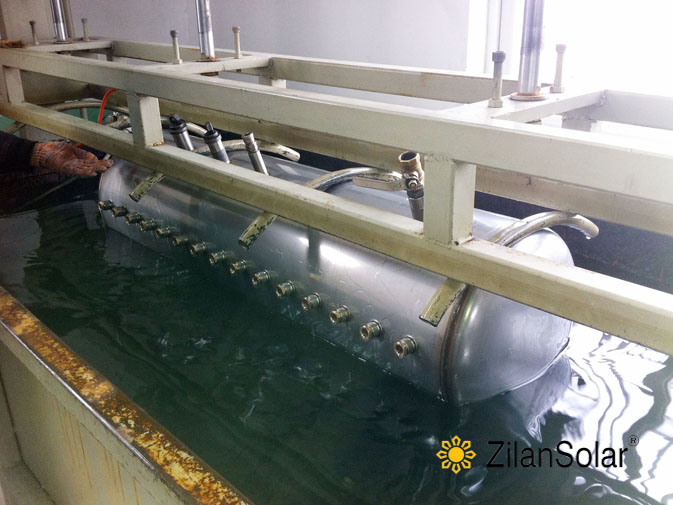

It adopts automatic argon arc welding technology, which has strong pressurization ability, strong anti-corrosion ability of weld seam, and never leaks. Adopt automatic mechanical foaming technology, super heat preservation ability.



4. Size range:



serial number Specification Effective light area tank capacity Application crowd Coal bed methane
tank diameter Tube Quantity(pcs) Diameter pipe length
Z-PC5810 470mm 10 58mm 1.8m 1.04 100 liters 4 0.37
Z-PC5812 470 mm 12 58mm 1.8m 1.25 120 liters 4-5 0.44
Z-PC5815 470mm 15 58mm 1.8m 1.56 150 liters 6 0.56
Z-PC5818 470mm 18 58mm 1.8m 1.87 180 liters 7-8 0.64
Z-PC5820 470mm 20 58mm 1.8m 2.08 200 liters 8 0.7
Z-PC5825 470mm 25 58mm 1.8m 2.61 250 liters 10 0.89
Z-PC5830 470mm 30 58mm 1.8m 3.13 300 liters 12 1



5. Payment



<1> T/T (wire transfer)

<2> L/C at sight

<3> 30% T/T in advance as deposit, the rest paid before shipment

<4> 30% T/T in advance as deposit, the rest paid against the copy of B/L



6. Certificate





7. Our advantages:



<1>We have 8 senior engineers working on development. This will allow us to lead the way both structurally and technologically

<2> 15 QCs to control the quality to ensure nothing goes wrong

<3> Fast after-sales service, any problems you mentioned will be dealt with within 24 hours!

<4>Our professional sales staff are always online to answer your questions

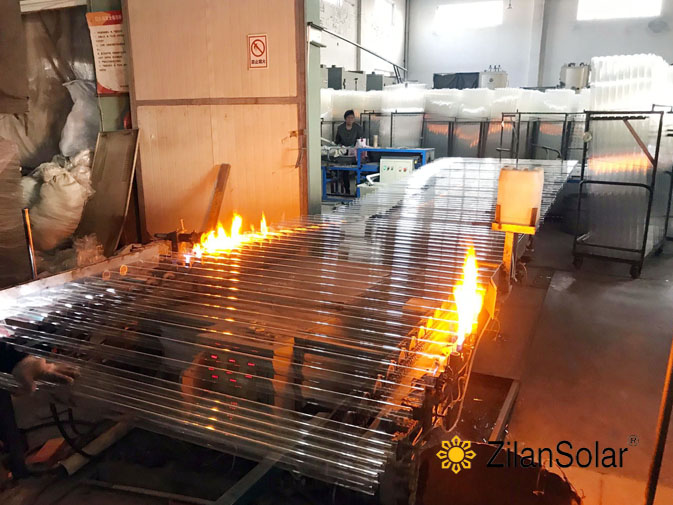

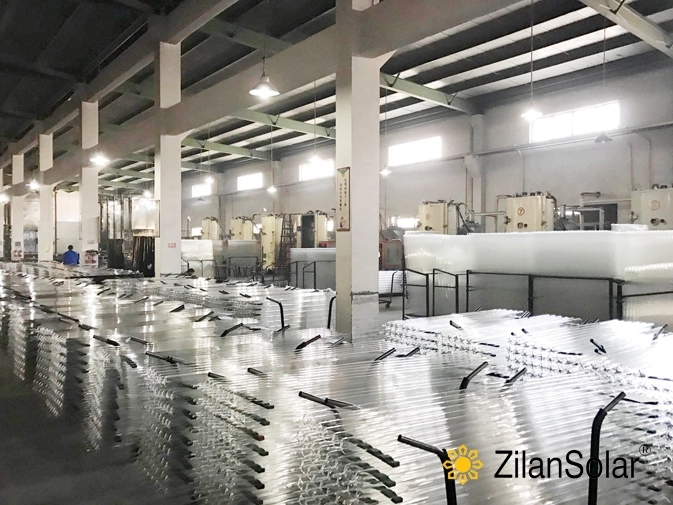

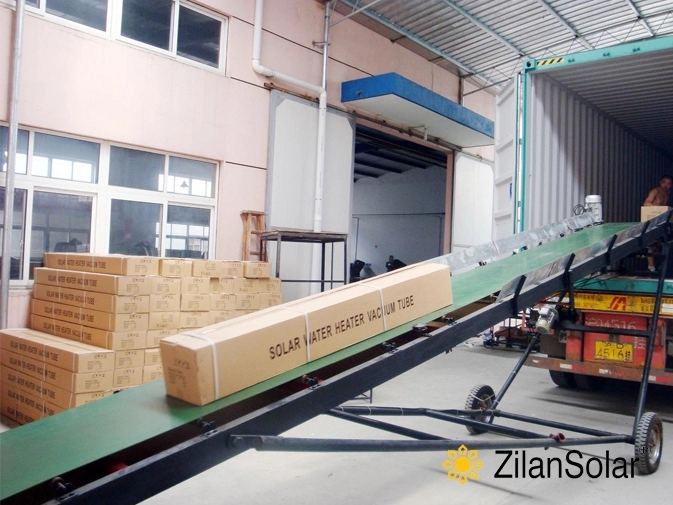

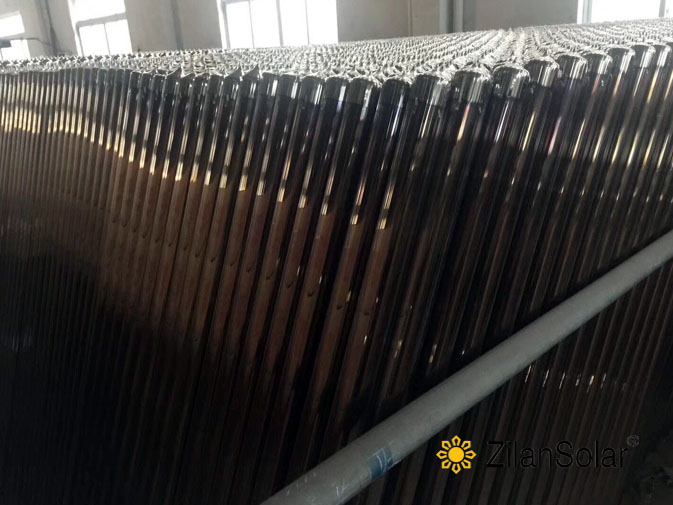

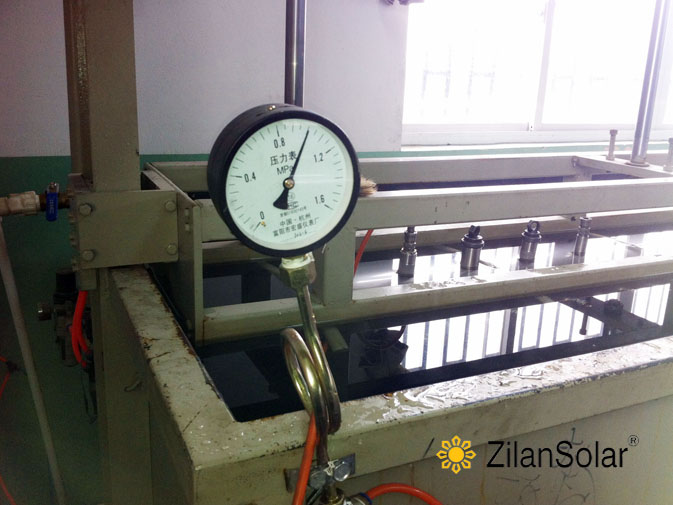

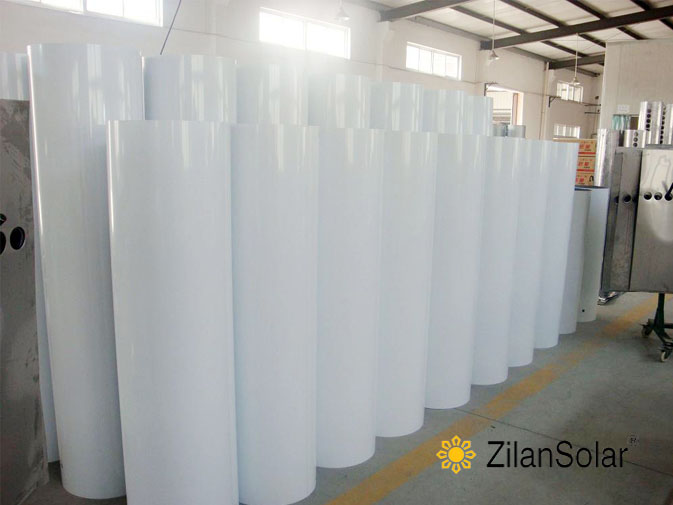

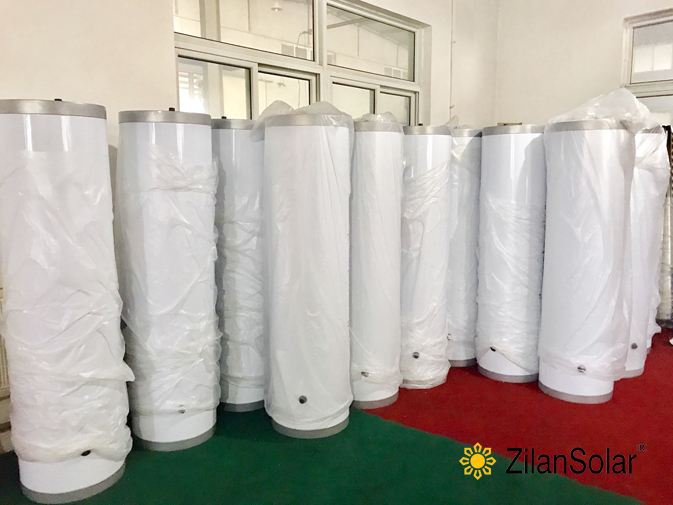

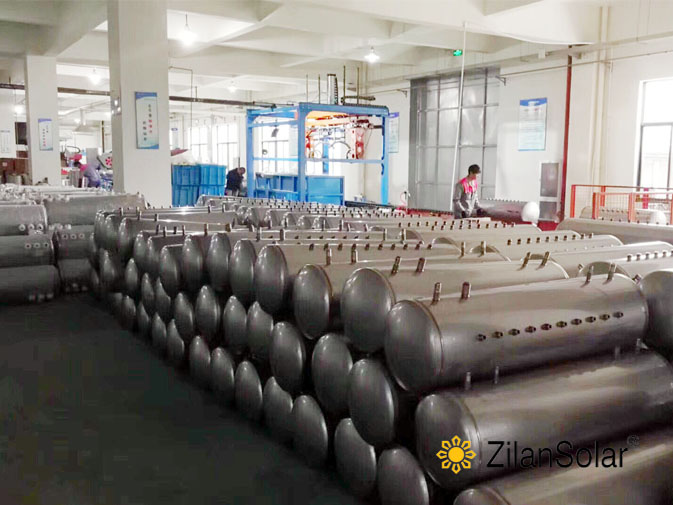

8. Factory photos:





9. Contact information:



Mr. Zhang



Position: Sales Manager

Tel: 86-573-87090146

Mobile/whatsapp: +8618857389277

Facebook/WeChat: Zilansolar

Skype: Christa 025

Website: www.zilansolar.com



For more details, please email us, thanks!
