solar instant water Heater
- $586.00 / >=10 sets
- 10 sets
- Haining Jixiang New Material & Technology Co., Ltd.
- Zhejiang, China
- Mr Lucky Solar
| Supply Ability: | 6500 Set/Sets per Month; | Collector frame angle: | 0,18,22,38,45 optional, pitched roof, flat roof optional.; |
| Brand Name: | LUCKY / OEM; | Connection Type: | Split; |
| Package Preview: | ; | Certification: | ce,Solar Keymark/SRCC/SGS/ISO/CCC; |
| Model Number: | JXSP series; | Port: | Shanghai port / Ningbo port; |
| Application: | Car; | Warranty: | 5 years; |
| Capacity: | 300; | Circulation Type: | Indirect / Closed Loop (Active); |
| Packaging Detail: | Special packing for LCL delievery Standard export packing for FCL order; | Installation: | Freestanding; |
| Power Source: | Solar; | After-sales Service Provided: | Free spare parts; |
| Place of Origin: | Zhejiang China; | Payment Terms: | L/C,T/T; |
| Accessories: | Working station, electrical heater, magnesium bar, P/T valve, etc; | Housing Material: | Painted steel; |
| Type: | Evacuated Tube; |
solar instant water Heater

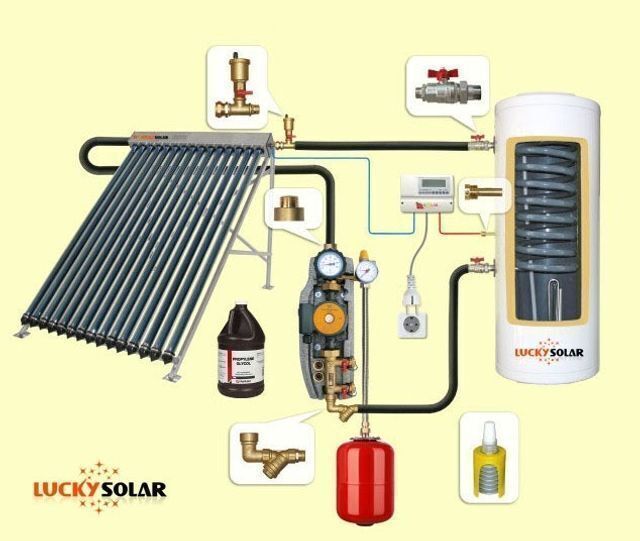

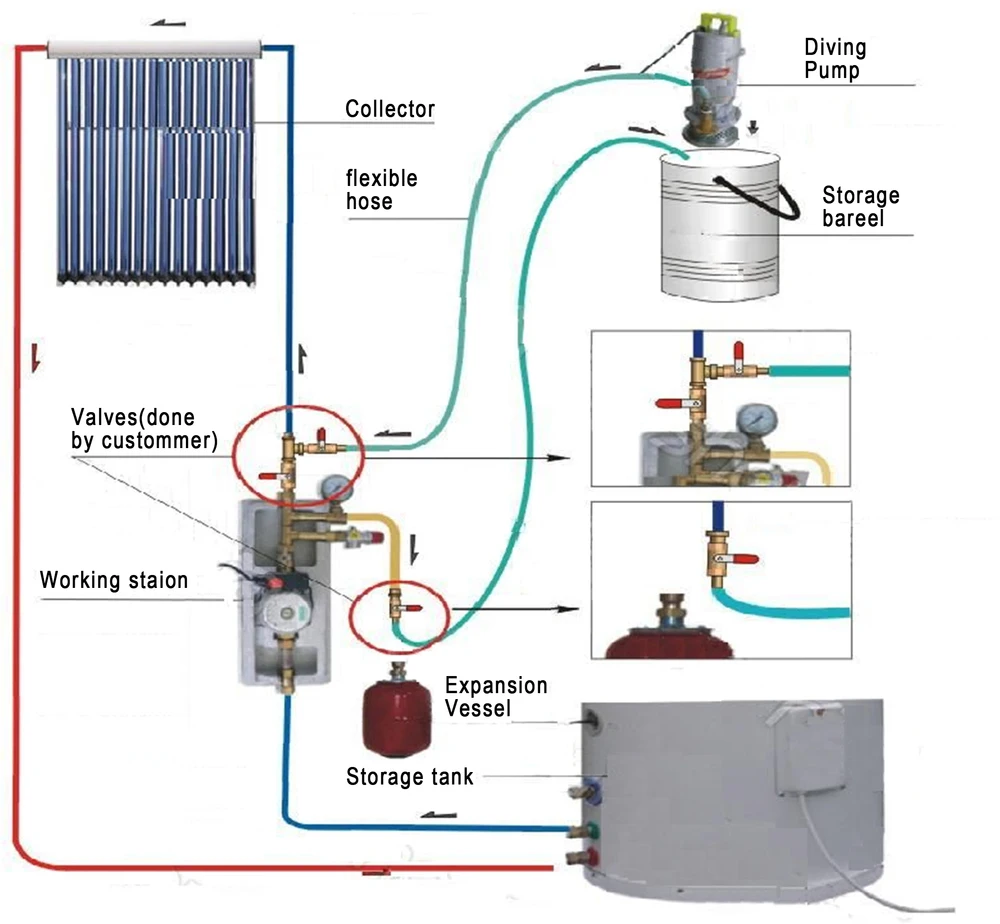

The JXSP-SERIAL solar system is combined with solar collector, pressurized storage tank, intelligent controller, solar working station, expansion vessel, pipeline, etc.
1. Collector: JXSPC-SERIAL, JXSC-SERIAL, or U pipe collectors
2. Tank Capacity: pressurized tank, 100L-1500L
3. SP-106, SP116, SP328, SR962, SR962 …solar working station
4. SR868, SR868C8Q…temperature differential controller
Feature:
1) Collector separates with the storage tank. The tank can be put anywhere of the house
2) And the collector can be put on both tilted roof and flat roof
3) Module design, arbitrary combination, harmony with the building perfectly
4) Intelligent control and automatic operation
5) Anti-freeze: no water inside the tubes when it works
|
Water Tank Performance and Specification |
|
|
Material of out tank |
High quality Painted steel/ Stainless steel. |
|
Material of inner tank |
Food grade SUS304-2B stainless steel. |
|
Tank insulating layer |
with 45kg/m³ high-density polyurethane foamed |
|
Out/inlet connection size(inch) |
3/4inch, NPT |
|
Copper coil connector size(inch) |
1/2 inch NPT ( 3/4inch,1inch size optional, price different) |
|
Rated pressure(Mpa) |
0.7 |
|
Working pressure(Mpa) |
0.6 |
|
Temp. Control(C) |
30-95C |
|
Copper coils size(mm) |
12mm/16mm/19mm,optional |
|
Heat exchanger material |
Copper, stainless steel, optional |
|
Free components: |
Electric heater, Magnesium rod, T/P valve, Pressure reducing valve |
|
Water Tank Performance and Specification |
||
|
Tank size(mm) |
Tank size(mm) |
Packing dimension(mm) |
|
JXDT-100 L |
470 |
560*560*1200 |
|
JXDT-150 L |
470 |
560*560*1550 |
|
JXDT -200 L |
550 |
660*660*1500 |
|
JXDT -250 L |
580 |
660*660*1600 |
|
JXDT -300 L |
580 |
660*660*1800 |
|
JXDT -400 L |
700 |
780*780*1700 |
|
JXDT -500 L |
700 |
780*780*2050 |
|
JXDT -1000 L |
1000 |
2050*** |
|
Heat Pipe Solar Collector Specification |
|||||||||
|
JXSPC-SERIAL |
Size |
Tube Quantity |
Heat Pipe Condenser |
Aperture Area |
Gross Area |
Gross Length |
Gross Width |
Gross Height |
20GP/40HQ |
|
(mm) |
(pcs.) |
(mm) |
(M2) |
(M2) |
(mm) |
(mm) |
(mm) |
(set) |
|
|
JXSPC-10 |
58x1800 |
10 |
14/20/22/24 |
0.941 |
1.600 |
2290 |
673 |
130 |
193/460 |
|
JXSPC-12 |
58x1800 |
12 |
14/20/22/24 |
1.128 |
1.852 |
2290 |
808 |
130 |
161/383 |
|
JXSPC-15 |
58x1800 |
15 |
14/20/22/24 |
1.410 |
2.315 |
2290 |
1010 |
130 |
127/309 |
|
JXSPC-18 |
58x1800 |
18 |
14/20/22/24 |
1.692 |
2.778 |
2290 |
1212 |
130 |
111/263 |
|
JXSPC-20 |
58x1800 |
20 |
14/20/22/24 |
1.880 |
3.087 |
2290 |
1347 |
130 |
96/234 |
|
JXSPC-25 |
58x1800 |
25 |
14/20/22/24 |
2.350 |
3.858 |
2290 |
1683 |
130 |
80/194 |
|
JXSPC-30 |
58x1800 |
30 |
14/20/22/24 |
2.820 |
4.630 |
2290 |
2020 |
130 |
70/170 |
Haining jixiang Solar Energy Co.,Ltd (Lucky) is a new high - tech company specializing in developing and utilizing of solar energy. Locating in Haining City, near Shanghai. we are specialized in the research and application of solar energy and manufacture of all kinds of solar water heaters, Eco- friendly oven and integrative ceiling and PVC panels ect.
We are an ISO9001 and SGS certified conpany , we have acquired the EN12975 , sOLAR KEYMARK AND CHINESE WELL-KNOW TRADEMARK, CCC and CE, and we are applying for the certificate of SRCC.
