solar collector
- $113.00 / 2 - 39 sets
$110.00 / 40 - 79 sets
$109.00 / >=80 sets - 2 sets
- Haining Jixiang New Material & Technology Co., Ltd.
- Zhejiang, China
- Mr Lucky Solar
| Packaging Details: | Standard export packing: 1.Sample or LCL: Special packing - packed in carton with foam inside, then to plywood box 2.FCL: packed in carton with foam inside | product name: | solar water heaters |
| Install: | Freestanding/Wall Mounted | Heat source: | Solar, heat pump, boiler or electric heater |
| Liner: | SUS304/2B food grade | model: | JXSC series |
| Supply capacity: | 5000 sets per month | Circulation type: | Indirect/closed loop (active) |
| Warranty: | 5 years, 5 years | place of origin; place of origin: | Zhejiang, China |
| Energy source: | solar | payment terms: | L/C,D/A,D/P,T/T |
| application: | hotel, home, hot water, bathtub, shower, washing | type: | vacuum tube |
| Certification: | ce | Building Materials: | painted steel/galvanized steel |
| brand: | OEM | Connection Type: | Split |
| Vacuum tube material: | Borosilicate glass 3.3 | insulation: | 55mm polyurethane layer |
| frame: | Stainless steel, aluminum alloy, galvanized steel, etc. | capacity: | 200 |
| port: | Shanghai | solar water heaters: | partial pressure |
| Liner material: | Stainless steel SUS304-2B/SUS316 | After-sales service provided: | Free spare parts |
General information on split pressure systems
feature
1) The collector is separated from the storage tank. The water tank can be placed anywhere in the house
2) The collector can be placed on sloping roofs and flat roofs
3) Modular design, any combination, in perfect harmony with the building
4) Intelligent control and automatic operation
5) Antifreeze: there is no water in the pipe when working
6) The system controller has an anti-freezing function, and the temperature cycle runs after reaching a fixed temperature
7) Male

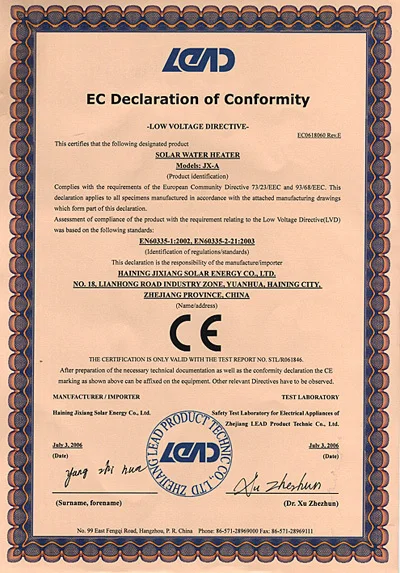

Certification
ISO9001, SGS, EN12975, Solar Keymark and China Famous Trademark, CCC, CE.
Multifunctional: bathing, washing, home heating
8) Always available and delightful

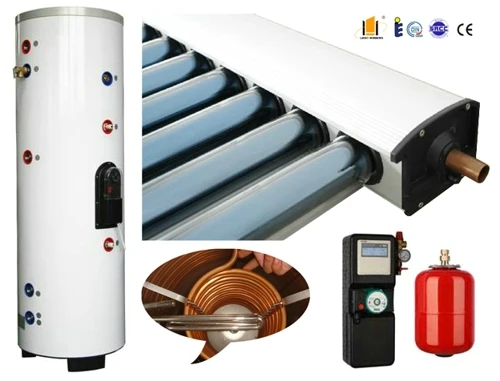

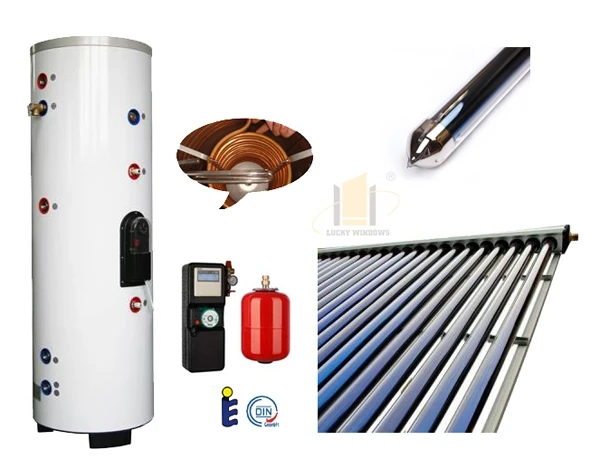

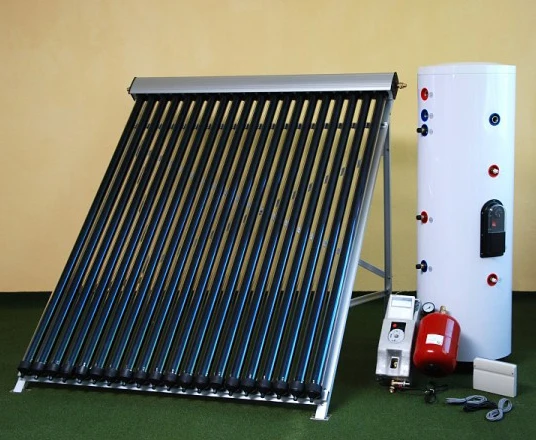

product structure

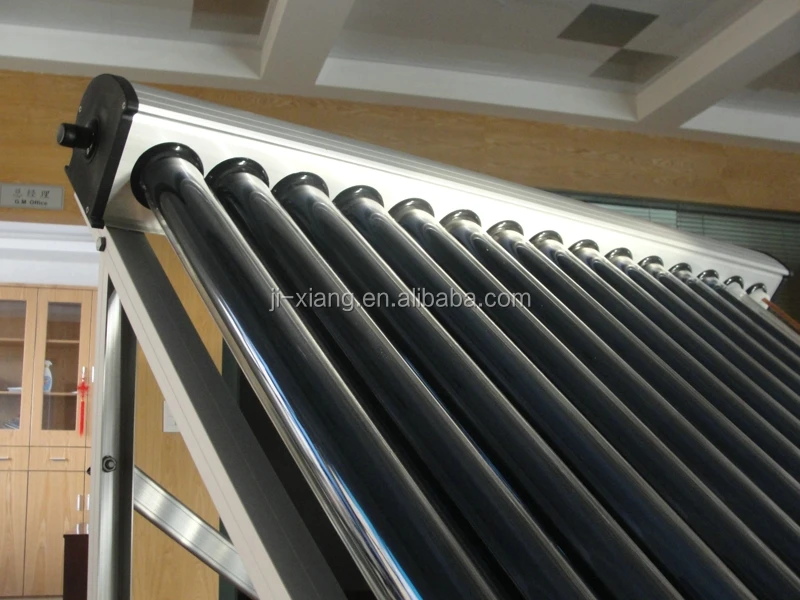

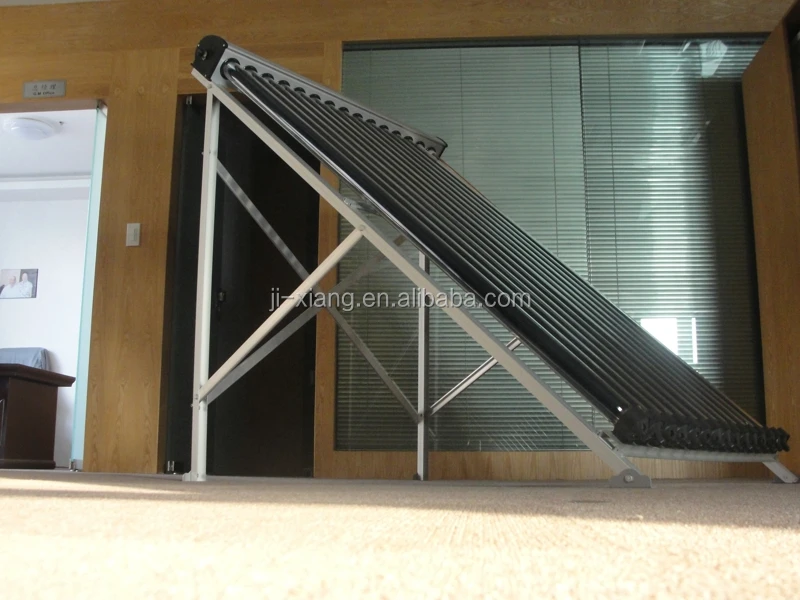

vacuum tube
Support frame
water tank
Certification
ISO9001, SGS, EN12975, Solar Keymark and China Famous Trademark, CCC, CE.
working principle
1) When the temperature difference between the solar collector and the water tank reaches the set value, the controller automatically starts the circulating pump.
2) The circulating pump makes the thermal fluid circulate automatically.
3) The heat transfer liquid transfers heat to the water through the heat exchanger in the water tank.
4) If the water tank temperature does not reach T max, start the auxiliary heating device.
5) If the temperature difference between the collector and the water tank does not reach the set value, the circulating pump should be automatically turned off.
Technical Parameters and Specifications
Solar water tank performance and specifications Ⅱ | ||||||
Tank size (mm) | Tank size (mm) | Insulation | Inner tank thickness | Out of the tank thickness | Electric heater strength | Package Dimensions (mm) |
JXDT-100L | 470 | 50mm | 1.0mm | 0.5mm | 1500W | 560*560*1200 |
JXDT-150L | 470 | 50mm | 1.2mm | 0.5mm | 1500W | 560*560*1550 |
JXDT-200L | 550 | 50mm | 1.5mm | 0.5mm | 1500W | 660*660*1500 |
JXDT-250L | 580 | 50mm | 1.5mm | 0.5mm | 1500W | 660*660*1600 |
JXDT-300L | 580 | 50mm | 1.5mm | 0.5mm | 1500W | 660*660*1800 |
JXDT-400L | 700 | 50mm | 2.0mm | 0.5mm | 2000W | 780*780*1700 |
JXDT-500L | 700 | 60mm | 2.0mm | 0.5mm | 3000W | 780*780*2050 |
The main technical parameters: | ||
workstation
| 1. Size: 465×165×113mm | 3. Power: ≤3W |
2. Input voltage: 200V~240V AC or 100V~120V AC | 4. Temperature measurement accuracy: ±1℃ | |
5. Temperature measurement range: 0~99℃ | ||
6. Input signal: (1) 1xPT1000 sensor temperature probe≤500℃, silicon cable≤280℃; | (2) x NTC10K sensor temperature probe≤135℃, PVC cable≤105℃ | |
7. Output signal: (1) 1x auxiliary heating output (maximum load current: 12A) | (2) 2 x relay outputs (maximum load current: 3A) | |
8. System design pressure: 1MPa | 12. Pipe material: brass | |
9. Safety valve response pressure: 0.6MPa | 13.LCD-display | |
10. WILO pump model: RS15/6 | 14. Ambient temperature range: -10~50℃ | |
11. Threaded coupling: 1/2 | 15. Waterproof grade: IP40 | |
The main function: | ||
1. Time display | 6. Three periods of pipeline circulation can be adjusted | |
2. Temperature difference cycle | 7. Auxiliary heating can be adjusted for three periods of time | |
3. Tank overheating protection | 8. The third speed of the circulating pump | |
4. System overheat emergency stop | 9. Regulate the flow | |
5. Freeze protection of pipes and collectors | 10. Display system pressure | |
Pump-WILO RS15/6-Technical parameters: | ||
| 1.220V/50HZ or 110V/60HZ | 4. Maximum volume: 2.5/2.5/1.5 m3/h |
2. Input power: 93/67/46W | 5. Pipe diameter: 15 (outer diameter 25mm) | |
3. Lifting length: 6/5/3m | 6. Weight: 2.1kgs | |
circulating pump
Expansion Vessel - Technical Parameters: | ||||||
Model | JXV-5L | JXV-8L | JXV-12L | JXV-18L | JXV-24L | JXV-36L |
capacity | 5L | 8L | 12L | 18L | 24L | 36L |
diameter | 150 | 210 | 270 | 270 | 270 | 350 |
high | 320 | 320 | 300 | 400 | 450 | 560 |
Precharge pressure | 1.5BAR | 1.5BAR | 1.5BAR | 1.5BAR | 1.5BAR | 1.5BAR |
greatest pressure | 10 bar | 1 bar | 10 bar | 10 bar | 10 bar | 10 bar |
maximum temperature | 99℃ | 99℃ | 99℃ | 99℃ | 99℃ | 99℃ |
Connector size | G1",G3/4" | Gl",G3/4" | Gl",G3/4" | G1",G3/4" | Gl", G3 | G1",G3/4" |

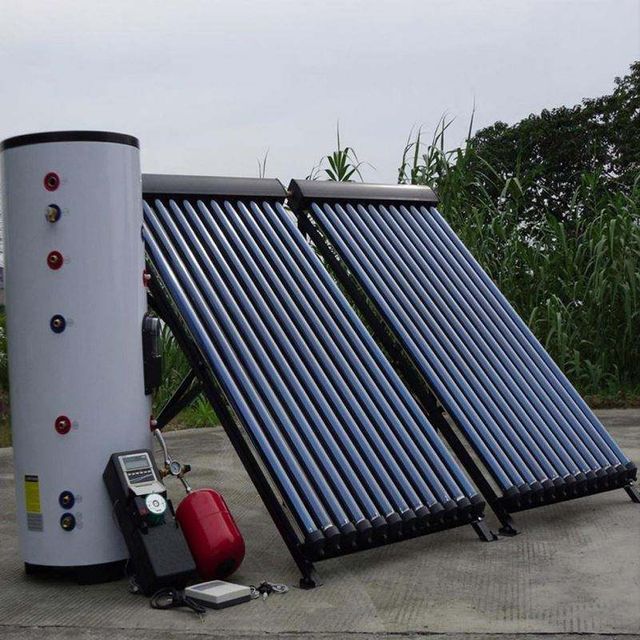

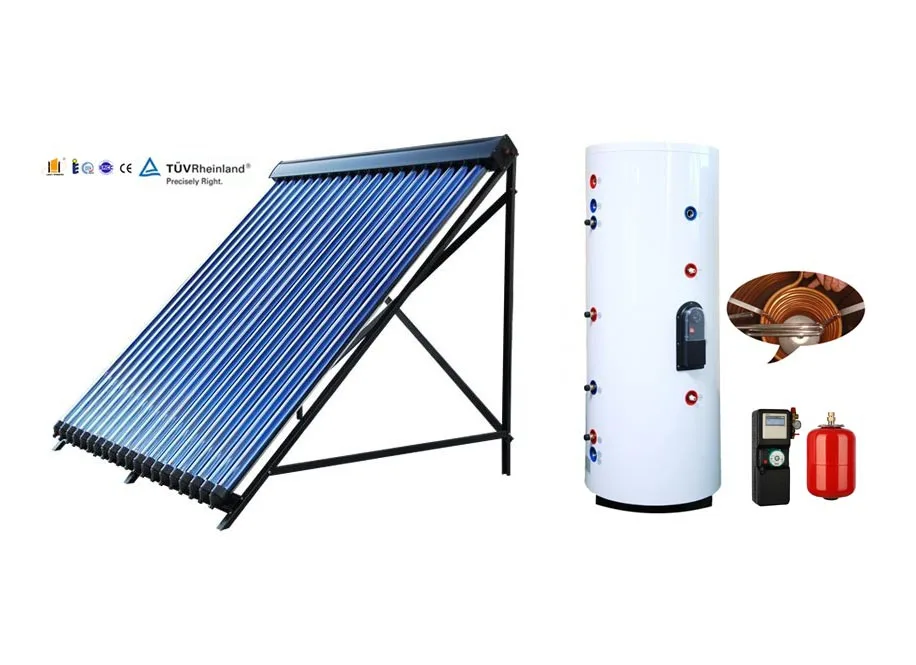

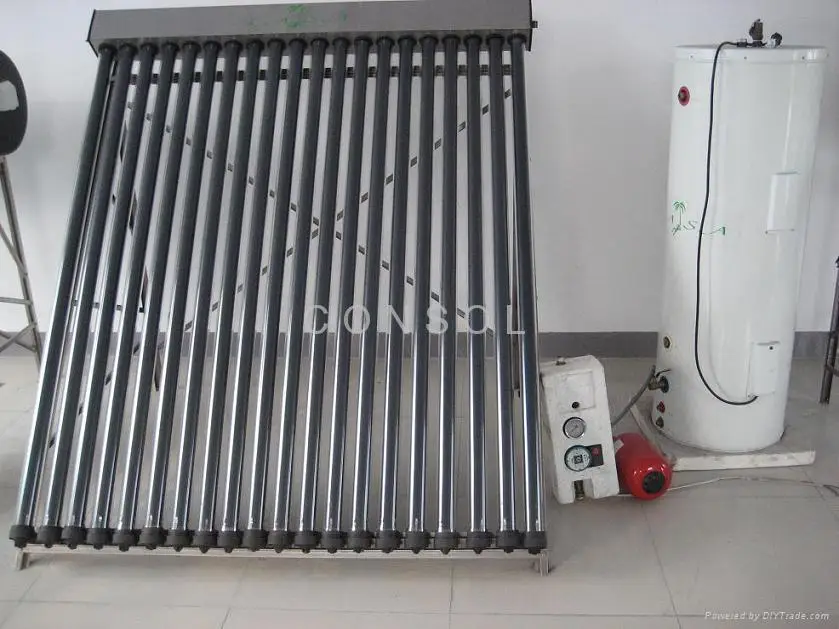

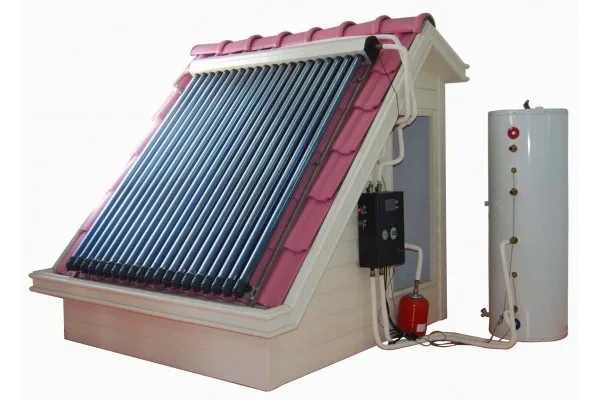

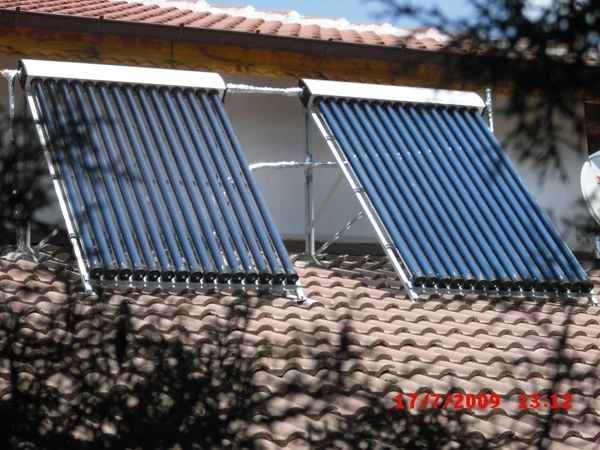

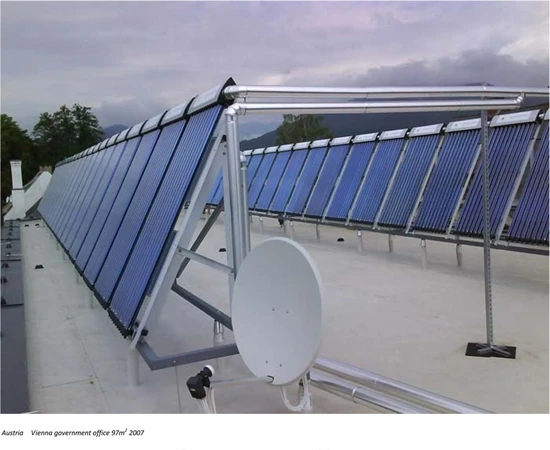

Product display

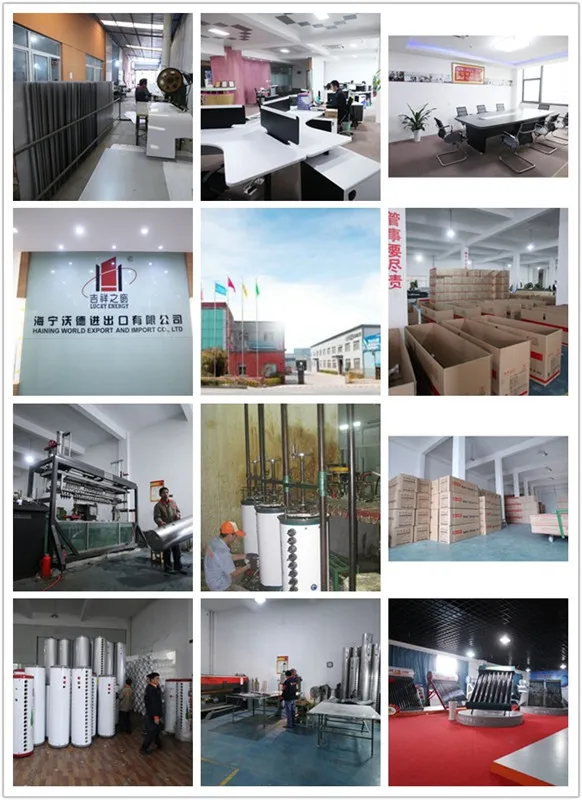

Company Profile
Haining Lucky Solar Energy Co., Ltd. (Lucky) is a high-tech enterprise specializing in solar energy utilization. Our company is located in Haining City, with high-quality technical staff. With strong integration capabilities and global resources, our company is moving towards establishing an international brand.
Our Lucky Series water heaters include Lucky Sambo Water Heater, Lucky Ruyi Water Heater, Lucky Fortune Water Heater, Lucky Harmony Water Heater and Lucky Haoyun Water Heater. These series of products are subject to strict quality control measures. Our company's management and products have passed ISO9001 certification, and our products have obtained CCC certificate and CE certificate. The "Window of Fortune" brand was listed as a "recommended brand" by CCTV. In addition, this series of products are also regarded as quality safety products. Due to Lucky's good image and high quality, our products sell well in Spain, Italy and many other European countries.
