SDE430-C three 3 phase power analyzer meter energy counter RS485 modbus with 40A open type current transformer
- $50.00 / 1 - 99 sets
$45.00 / 100 - 499 sets
$30.00 / >=500 sets - 1 set
- Shanghai Standardel Electrical Tech. Co., Ltd.
- Shanghai, China
- Ms Amy Lee
PRODUCT DETAIL
| Display: | Digital LCD Display; | Rated current: | 5A, 20A, 40A, 60A, 100A, 200A, 400A, 600A; |
| Warranty: | 3 Years; | Package Preview: | ; |
| Display Type: | Digital Only; | Model Number: | SDE430-C; |
| Selling Units: | Single item; | Single gross weight: | 0.500 KG; |
| Phase: | Three Phase; | Baud Rate: | 1200-38400bps; |
| Single package size: | 30X30X30 cm; | Place of Origin: | Shanghai, China; |
| Measuring Energy Range: | 0-99999999kWh; | Dimensions: | 72*89*59mm; |
| Installation: | DIN Rail Installation; | Brand Name: | StandardeL; |
| Power Supply: | AC85-265; | Output Voltage: | 0-450V; |
| Operating Temperature: | -20~70℃; | Communicatioin: | RS485; |
| Packaging Detail: | CARTON; | Accuracy Class: | 0.5s; |
Product Description
| - Product Description - |

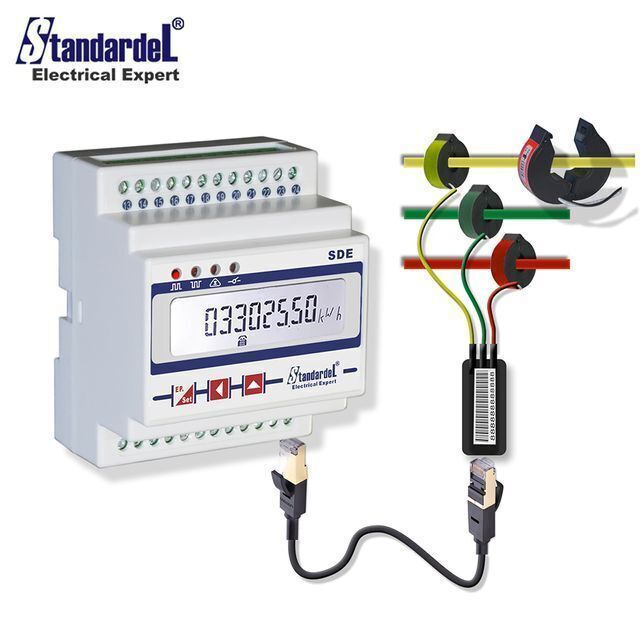

SDE430-C mini DIN rail 3 phase power analyzer is designed special for renovation project of energy management (EMS). It has 3 external split core CTs (5~600A) or 3 Rogowski coils (200~6000A), so we don't need to dismantle bus to install it. By its DIN rail installation, it is very suitable to be used with breakers, contactors.
Besides electrical energies, it can measure all the parameters on the electrical networks, such as currents, voltages, active powers, reactive powers, apparent powers, frequency, power factors and 4 quadrant energies. It is designed as just 2 modules, so it can be installed in any so small space or to use it as multi channel 3 phase analyzer. Every SDE430-C has a RS485 interface to transfer its measuring data to other master devices, such as PLC, data center computers.
SDE430-C has good cost performance, as an intelligent unit and a digital electrical data collection unit, it has been widely used in many intelligent systems.
Besides electrical energies, it can measure all the parameters on the electrical networks, such as currents, voltages, active powers, reactive powers, apparent powers, frequency, power factors and 4 quadrant energies. It is designed as just 2 modules, so it can be installed in any so small space or to use it as multi channel 3 phase analyzer. Every SDE430-C has a RS485 interface to transfer its measuring data to other master devices, such as PLC, data center computers.
SDE430-C has good cost performance, as an intelligent unit and a digital electrical data collection unit, it has been widely used in many intelligent systems.
Advantages Functions
+
| - Advantages & Functions - |
- Measuring: 30 parameters on AC electrical network:
AL1, AL2, AL3(current senses), VL1, VL2, VL3, VL1-2, VL2-3, VL3-1, Fr,
PL1, PL2, PL3, PL,QL1, QL2, QL2, QL, SL1, SL2, SL3, SL, PF1, PF2, PF3, PF,
imp & exp kWh, L & C kvarh
- Display: With 8 digits LCD, display range 000000.00~99999999 kWh;
keep kWh value without power;
dot will move according to energy value to 8 integer digits;

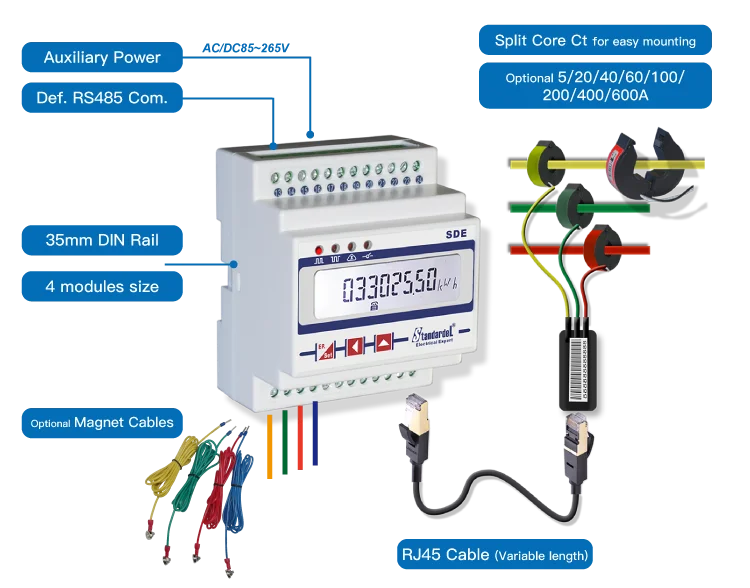

- Dimension: 4 modules (72×89×74mm);
- Current Input:
SDE430-C: split core CT (option 5A, 20A, 40A, 60A, 100A, 200A, 400A, 600A);
SDE430-R: rogowski coil (option 200, 600A, 1kA, 2kA, 4kA, 6kA);
(5A split core CT is applied on the secondary cable of original 5A CT);
- Line & Voltage Input:
3P4L (3x57.7/100V, 3x127/220V, 3x230V/400V,3x240/415V);
3P3L (3x100V, 3x220V, 3x380V)
- Power Supply: Default axiliary power supply AC/DC85~265V;
Optional DC5V/12V/24V/48V
- Communication: With 2 cables isolated RS485 interface up to 38400bps (Def. Modbus-RTU protocol);
- Pulse: kWh impulse output (comply DIN43864);
- Relay ouput: Optional 1 relay output as remote switch or as alarm;
- Autodiagnosis: for wiring error alarm, check error reason by alarm code;
- Mounting: 35mm standard DIN rail installation;
- Software: With free testing software, to easily read its data and set its parameters by computer;
- Secondary Develop: provide DLL dynamic library and C# example, to develop you own software;
AL1, AL2, AL3(current senses), VL1, VL2, VL3, VL1-2, VL2-3, VL3-1, Fr,
PL1, PL2, PL3, PL,QL1, QL2, QL2, QL, SL1, SL2, SL3, SL, PF1, PF2, PF3, PF,
imp & exp kWh, L & C kvarh
- Display: With 8 digits LCD, display range 000000.00~99999999 kWh;
keep kWh value without power;
dot will move according to energy value to 8 integer digits;
- Dimension: 4 modules (72×89×74mm);
- Current Input:
SDE430-C: split core CT (option 5A, 20A, 40A, 60A, 100A, 200A, 400A, 600A);
SDE430-R: rogowski coil (option 200, 600A, 1kA, 2kA, 4kA, 6kA);
(5A split core CT is applied on the secondary cable of original 5A CT);
- Line & Voltage Input:
3P4L (3x57.7/100V, 3x127/220V, 3x230V/400V,3x240/415V);
3P3L (3x100V, 3x220V, 3x380V)
- Power Supply: Default axiliary power supply AC/DC85~265V;
Optional DC5V/12V/24V/48V
- Communication: With 2 cables isolated RS485 interface up to 38400bps (Def. Modbus-RTU protocol);
- Pulse: kWh impulse output (comply DIN43864);
- Relay ouput: Optional 1 relay output as remote switch or as alarm;
- Autodiagnosis: for wiring error alarm, check error reason by alarm code;
- Mounting: 35mm standard DIN rail installation;
- Software: With free testing software, to easily read its data and set its parameters by computer;
- Secondary Develop: provide DLL dynamic library and C# example, to develop you own software;
Technical Features
+
| - Technical Features - |
+
| Technical Features | Parameters | |
| Input | Wiring | 1P2L, 3P3L, 3P4L |
| Voltage | 2x110V/220V, 3x57.7/100V, 3x127/220V, 3x230V/400V,3x240/415V 3x100V, 3x220V, 3x380V |
|
| Rated 0.9 ~ 1.1Un; Max 0.7 ~ 1.2Un | ||
| Comsumption ≤5VA / line | ||
| Current | SDE330-C: 5A (to measure normal 5A CT), 20A, 40A, 60A, 100A, 200A, 400A, 600A (Split core CT) SDE330-R: 200A, 600A, 1kA, 2kA, 4kA, 6kA(Rogowski Coil) |
|
| Comsumption ≤4VA / line | ||
| Frequency | 50 / 60Hz | |
| Accuracy | U,I,P 0.5%, kWh 1.0% | |
| Thermal drift | <200ppm | |
| RS485 interface |
Wiring | 2 cables isolated RS485 (Modbus-RTU protocol) |
| Baud rate | 1200,2400,4800,9600,19200,38400bps | |
| Parity | n81,n82,e81,o81 | |
| Bus Capacity | 32 | |
| Relay Ouput (Option K ) |
Mode | Dry Contact |
| Capacity | Capcity: AC250/3A,DC24/5A | |
| Installation | Standard 35mm DIN rail | |
| Power Supply | Default AC/DC85~265V (Optional DC5V/12V/24V/48V) |
|
| Standard | IEC 61557-12 Class 0.5 IEC 62053-21 Class 1.0 |
|
| Isolation | 2kVAC/min ( input / output / power supply) | |
| input / housing and output / housing >50Mohm | ||
| Environment | Work Temperature: -20C ~ +55C | |
| Storage Temperature: -40C ~ +70C | ||
| Relative humidity: 5% ~ 95% (no condensation) | ||
| Altitude: < 2500m | ||
| Dimension: 72×89×74 (mm) | ||
| Weight: 345g (net without CT) | ||
Model Selection
+
| - Model Selection - |
Integration Solution
+
| - Integration & Solution - |
Software
+
| - Software - |
Dimension & Wiring
+
| - Dimension & Wiring - |
FAQ
+
| - FAQ - |
Q: Can I ask for sample ?
A: Yes, for sample orders, please order from our online shop.
Q: Are you trading company or manufacturer ?
A: We are factory located in Shanghai.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 10-15 days for the items out of stock.
Q: What is your terms of payment ?
A: Order amount less than $5000, 100% paid before shipment; order amount more than $5000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
Q: Do you provide software ?
A: We have the free testing software for every model device. In the meantime, we also provide detection software to manage the device data, and charge of these software, you may demand our salers.
A: Yes, for sample orders, please order from our online shop.
Q: Are you trading company or manufacturer ?
A: We are factory located in Shanghai.
Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 10-15 days for the items out of stock.
Q: What is your terms of payment ?
A: Order amount less than $5000, 100% paid before shipment; order amount more than $5000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
Q: Do you provide software ?
A: We have the free testing software for every model device. In the meantime, we also provide detection software to manage the device data, and charge of these software, you may demand our salers.
